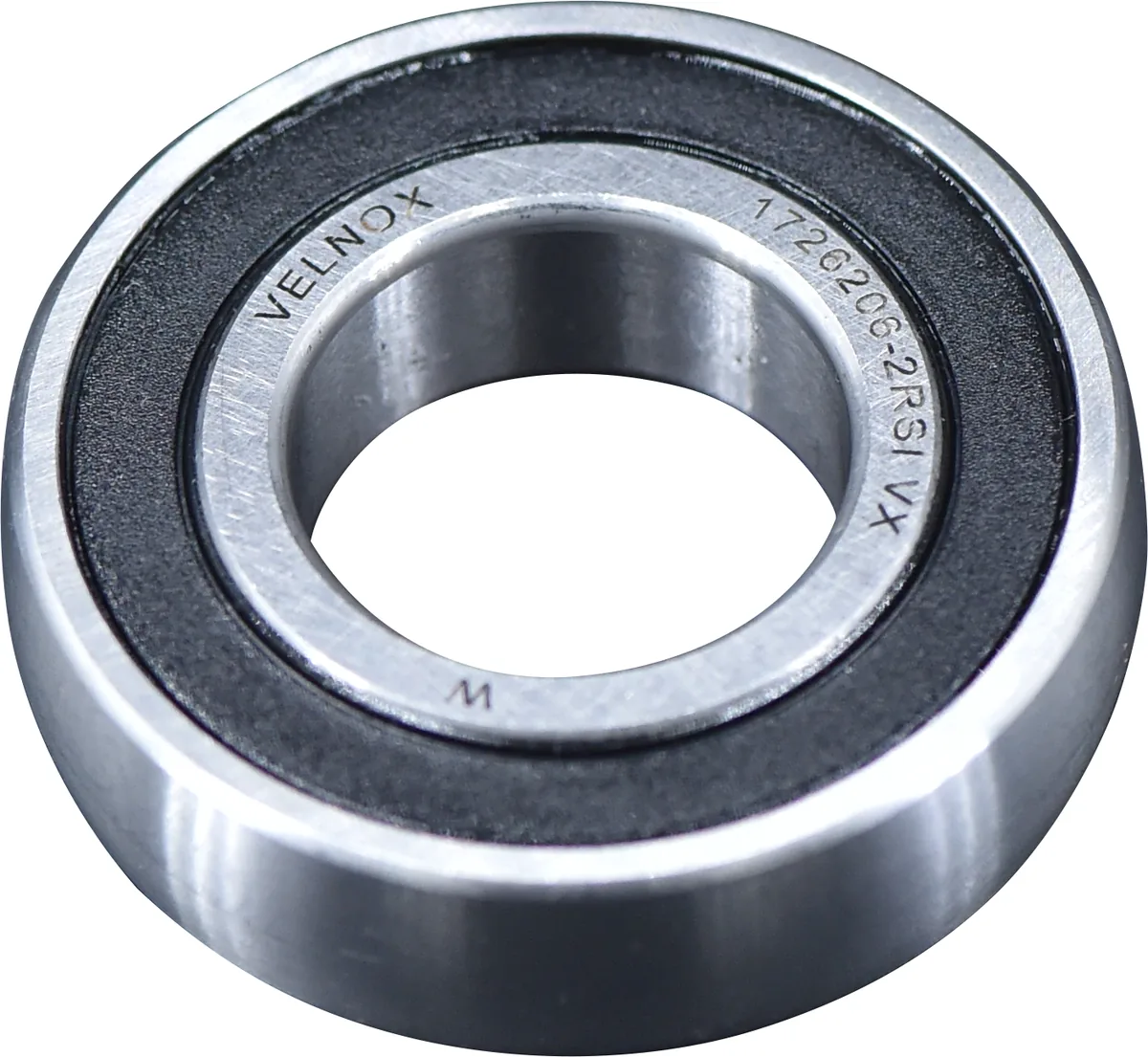

1726206-2RS1 VX

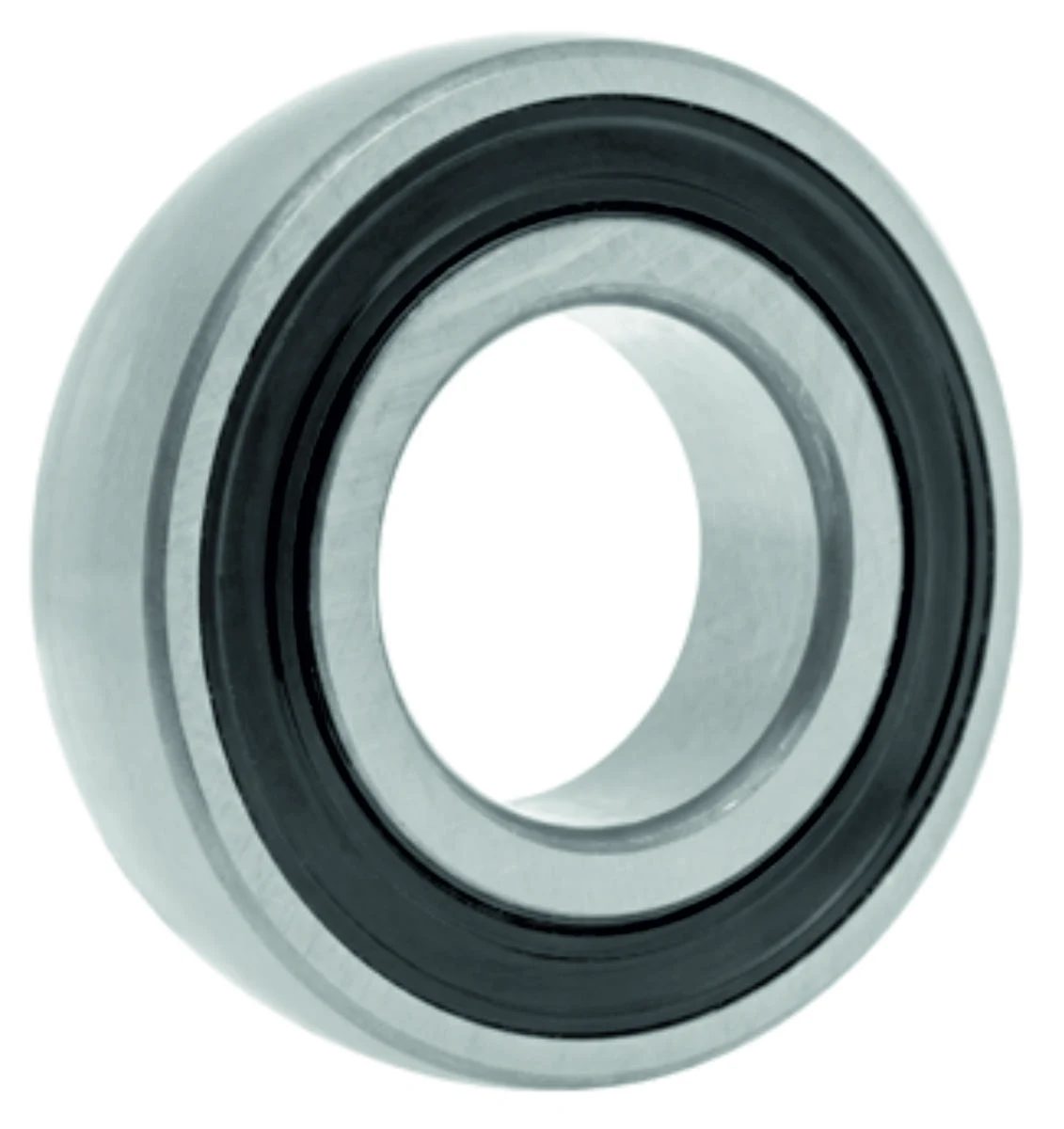

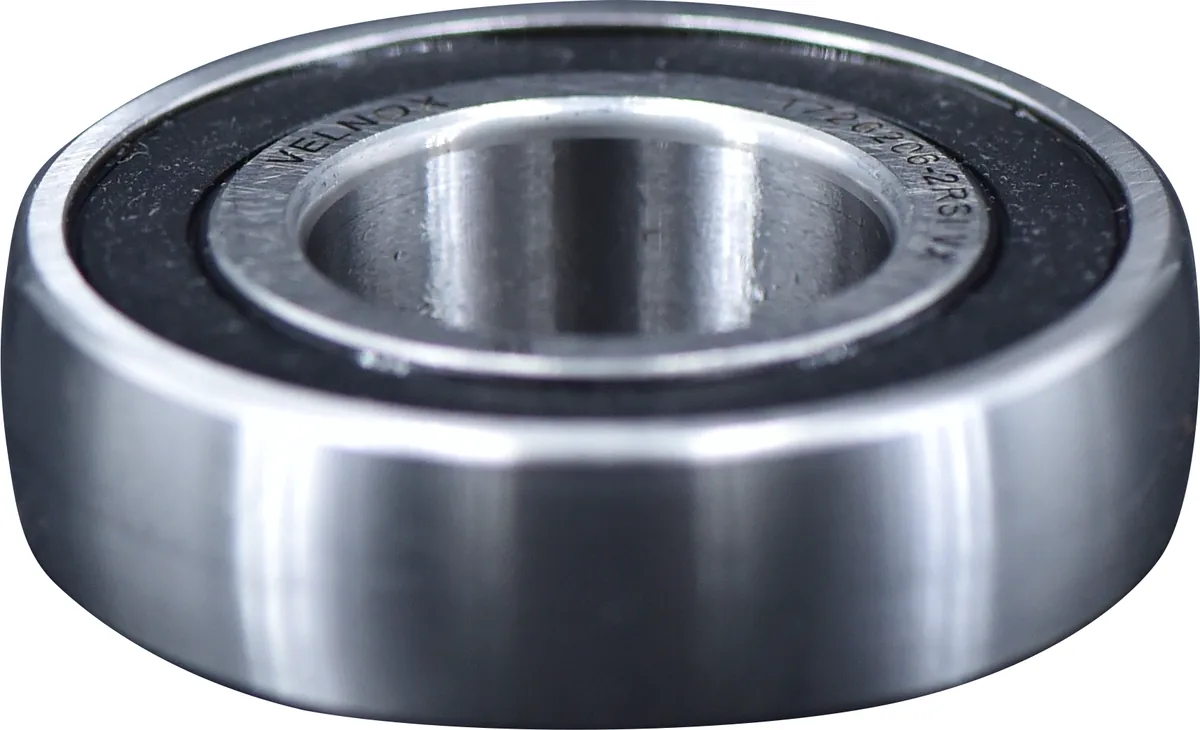

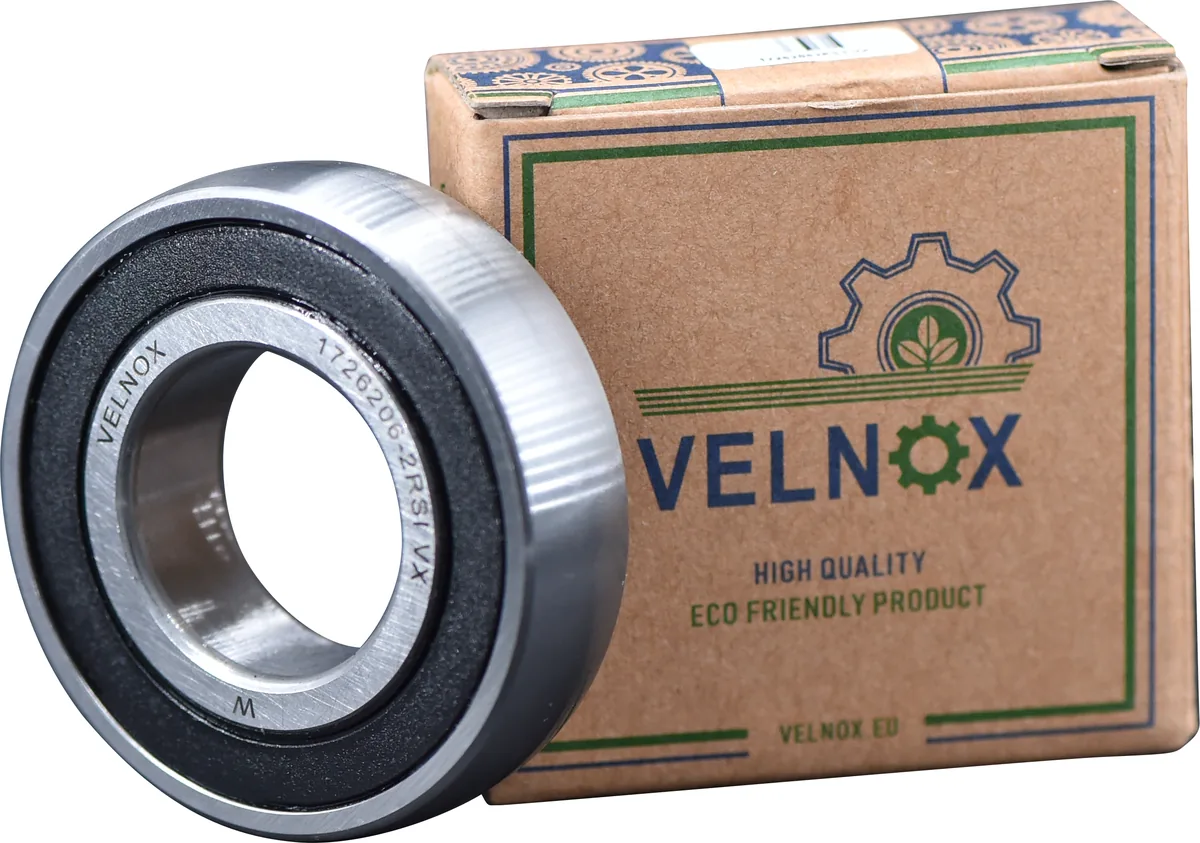

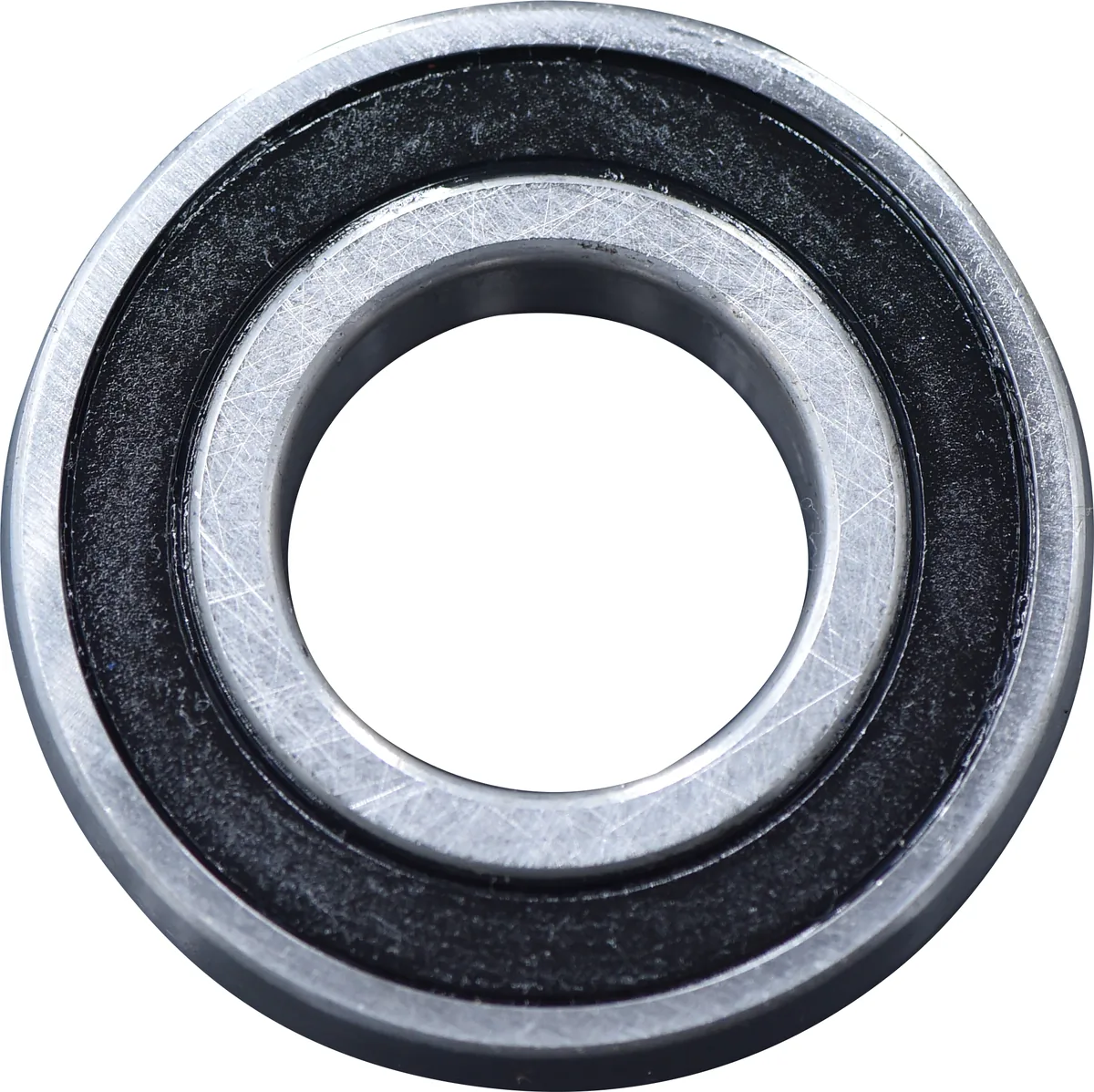

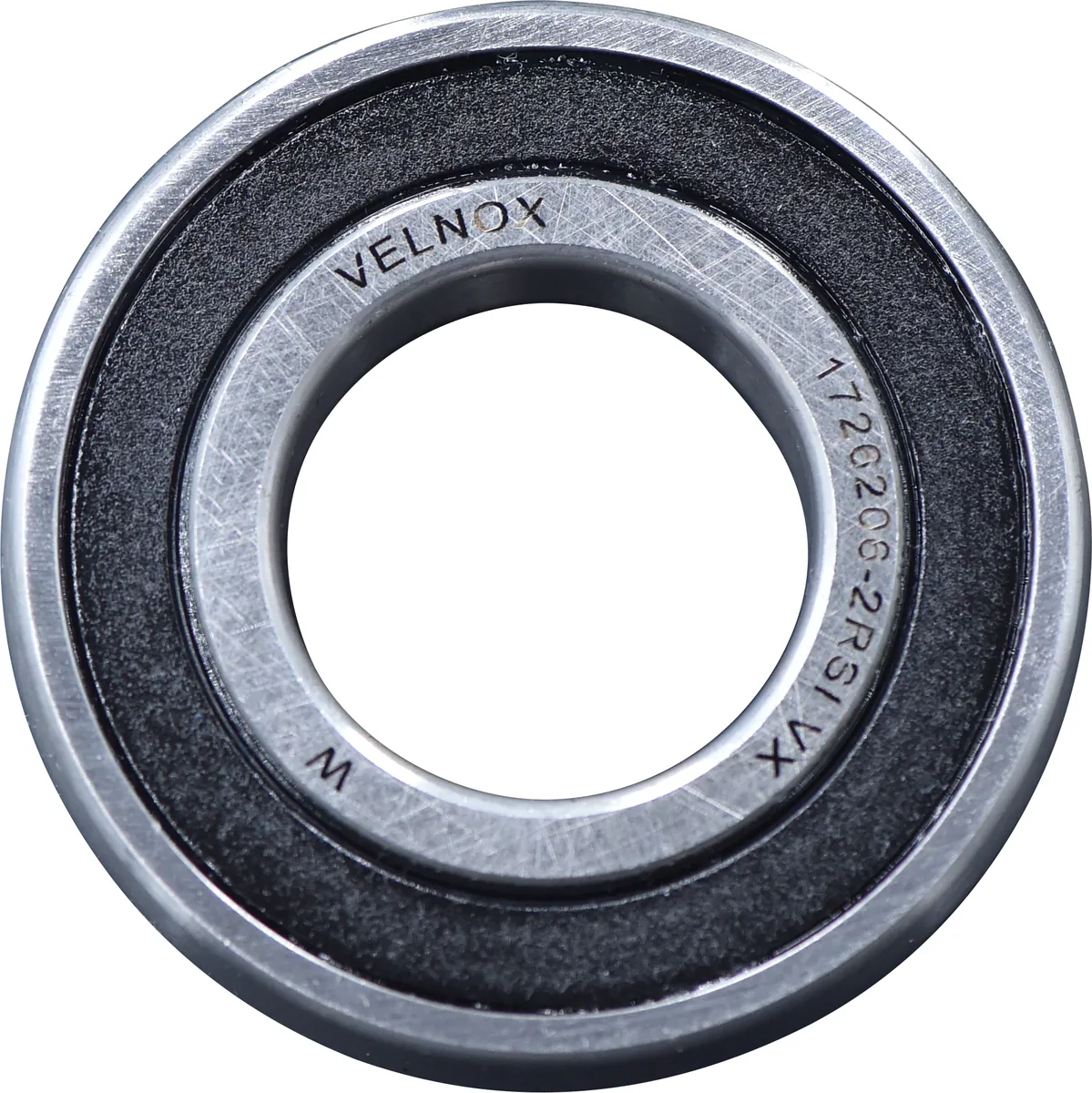

Radial ball bearing of the 1726 series (type 206) with an extended inner ring (shoulder diameter d₁ = 39.7 mm), a standard format for mounting assemblies in agricultural equipment. Bore diameter d = 30 mm, outer diameter D = 62 mm, inner ring width B = 16 mm; dynamic load rating — 19.5 kN, static — 11.2 kN. Symmetric double-sided contact seal 2RS1 retains grease and isolates the raceway from soil particles and moisture. Direct replacement for SKF 1726206-2RS1, INA 206 NPPB, TIMKEN 1726206 2RS, SNR 6206 S EE; fits OEM assemblies of CLAAS (211156.0), KUHN (81023064, YP800030), John Deere (JD10386) and Kverneland (VF06215766).
Ready for integration into your project?
Get exact CAD models of the units in the required format or contact our engineers for customization to your operating environment.
| Bore diameter d (mm) | 30 |
|---|---|
| D (mm) — housing outside diameter | 62 |
| Inner ring width B (mm) | 16 |
| Centering diameter d1 (mm) | 39.7 |
| Chamfer dimension r 1,2 (mm) | 1 |
| Dynamic load rating Cdyn (kN) | 19.5 |
| Static load rating Co (kN) | 11.2 |
| Fatigue load limit Pu (kN) | 0.48 |
| Mass | 0.18 |

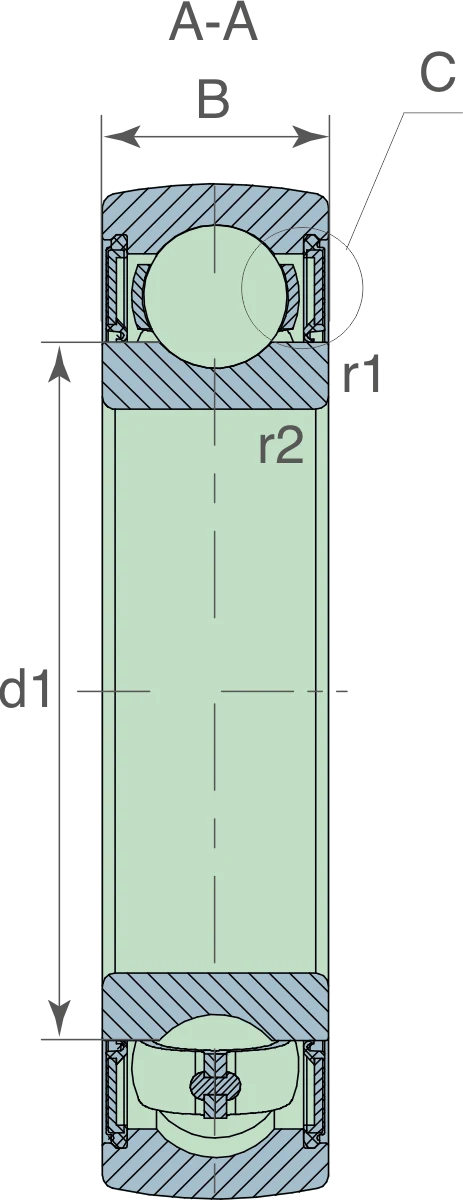

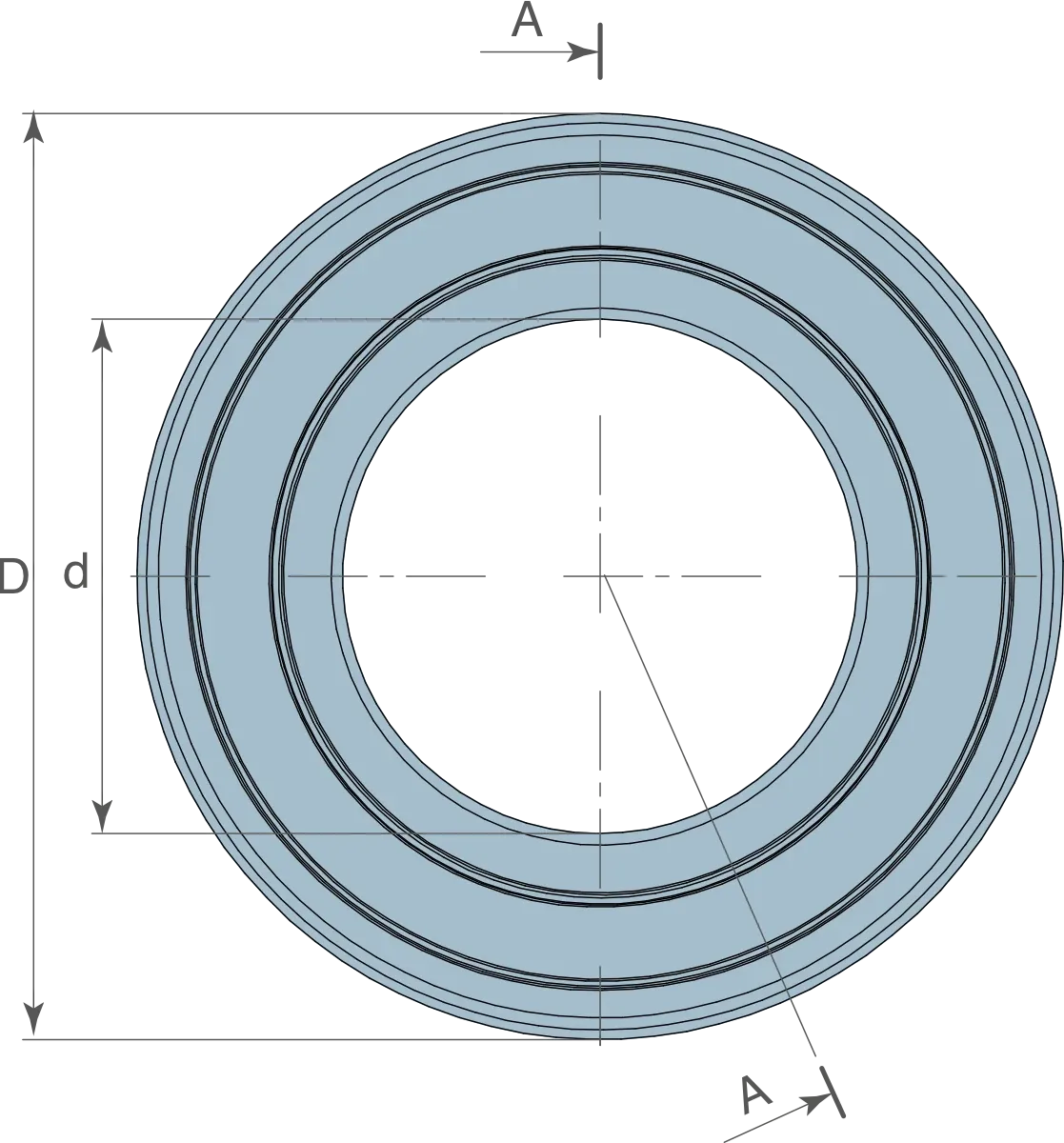

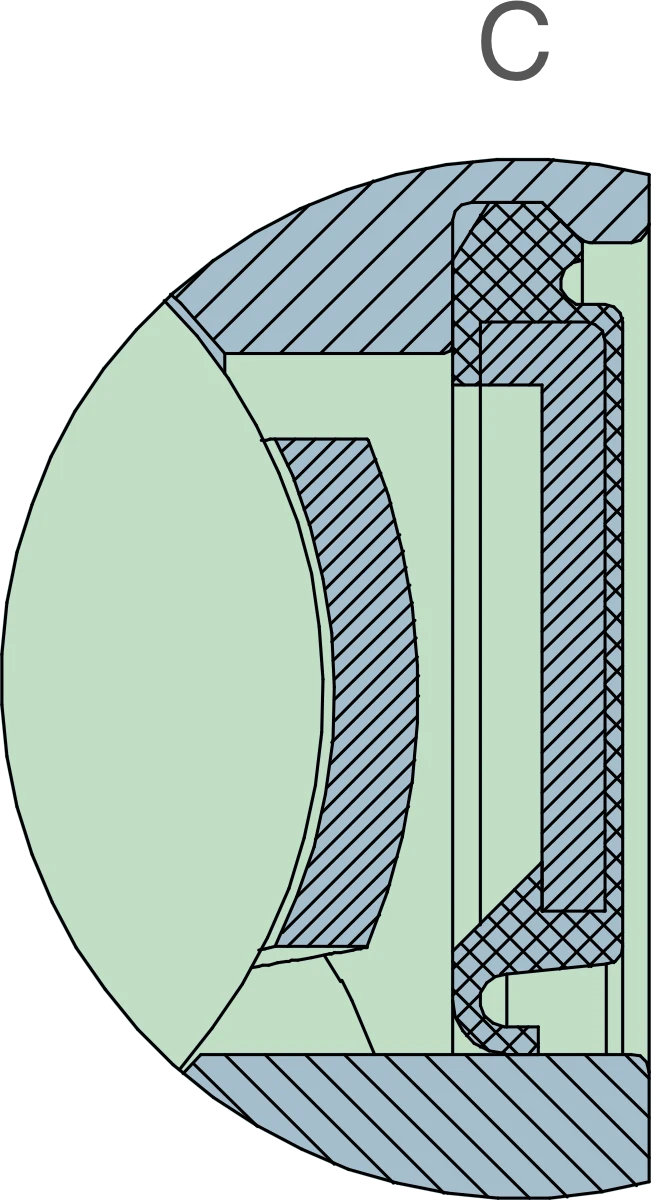

Interactive Drawing
| Bore diameter d (mm) | 30 |
|---|---|
| D (mm) — housing outside diameter | 62 |
| Inner ring width B (mm) | 16 |
| Centering diameter d1 (mm) | 39.7 |
| Chamfer dimension r 1,2 (mm) | 1 |
| Dynamic load rating Cdyn (kN) | 19.5 |
| Static load rating Co (kN) | 11.2 |
| Fatigue load limit Pu (kN) | 0.48 |
| Mass | 0.18 |
