VELNOX Bearing Units. Uncompromising Reliability for Serial Production.
APPLICATIONS
Packer Roller Bearings
Packer roller bearings operate in constant contact with soil, moisture, and abrasive particles, which creates high radial loads and intensive contamination conditions. Bearing units for such applications must ensure stable operation at low rotational speeds, high static loads, and shock impacts.
VELNOX solutions for packer rollers are developed taking into account real operating conditions: reinforced housings, effective sealing systems, and optimized internal clearances ensure reliable operation of the units in difficult field conditions. The design is focused on reducing the impact of contamination and increasing service life with minimal maintenance.
VELNOX bearing units are used in packer rollers of agricultural machinery, ensuring stable operation of the equipment and reducing downtime throughout the entire season.
Technical Specifications & Unit Parameters
The VELNOX technical guide is created for fast work by designers and purchasers. Below are summary parameter tables for exact unit selection for your tasks.
Bearing Unit BUQ — Table 1
| Bearing Designation | Brand | Cross analogues |
|---|---|---|
| FYJ1.1/4TF (YEL 207-104 2F + FY507M) | SKF | |
| EXF207-20/UCF207-20 | SNR |
Part Number | Bore diameter d (mm) | Bore diameter d (inch) | Overall housing width A1 (mm) | Housing flange thickness A2 (mm) | Bolt hole spacing J (mm) | Overall length L (mm) | Bolt hole diameter N (mm) | Overall width A (mm) | Mass (kg) | Dynamic load rating Cdyn (kN) | Static load rating Co (kN) | Fatigue load limit Pᵤ (kN) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BUQ 207-104-2X3H | 31.75 | 1 1/4 | 34 | 13 | 92 | 118 | 14 | 44.4 | 1.6 | 25.5 | 15.3 | 0.643 | |
| BUQ 207-106-2X3H | 34.925 | 1 3/8 | 34 | 13 | 92 | 118 | 14 | 44.4 | 1.6 | 25.5 | 15.3 | 0.643 | |
| BUQ 207-2X3H | 35 | — | 34 | 13 | 92 | 118 | 14 | 44.4 | 1.6 | 25.5 | 15.3 | 0.643 | |
| BUQ 208-108-2X3H | 38.1 | 1 1/2 | 36 | 14 | 102 | 130 | 16 | 51.2 | 1.95 | 30.7 | 19 | 0.798 | |
| BUQ 208-2X3H | 40 | — | 36 | 14 | 102 | 130 | 16 | 51.2 | 1.95 | 30.7 | 19 | 0.798 | |
| BUQ-209-2T3H | 45 | — | 38 | 16 | 105 | 137 | 16 | 52.2 | 2.41 | 33.2 | 21.9 | 0.92 | |
| BUQ 210-2X3H | 50 | — | 40 | 16 | 111 | 143 | 16 | 54.6 | 2.78 | 35.1 | 23.2 | 0.974 | |
| BUQ-214-2T3H | 70 | — | 50.3 | 21.3 | 152 | 193 | 19 | 70.7 | 6.2 | 62.4 | 44 | 1.848 |
Part Number | Bearing Designation | Brand | Cross analogues | Bore diameter d (mm) | Bore diameter d (inch) | Overall housing width A1 (mm) | Housing flange thickness A2 (mm) | Bolt hole spacing J (mm) | Overall length L (mm) | Bolt hole diameter N (mm) | Overall width A (mm) | Mass (kg) | Dynamic load rating Cdyn (kN) | Static load rating Co (kN) | Fatigue load limit Pᵤ (kN) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BUQ 207-104-2X3H |
|
| — | 31.75 | 1 1/4 | 34 | 13 | 92 | 118 | 14 | 44.4 | 1.6 | 25.5 | 15.3 | 0.643 | |
| BUQ 207-106-2X3H |
|
| — | 34.925 | 1 3/8 | 34 | 13 | 92 | 118 | 14 | 44.4 | 1.6 | 25.5 | 15.3 | 0.643 | |
| BUQ 207-2X3H |
|
| — | 35 | — | 34 | 13 | 92 | 118 | 14 | 44.4 | 1.6 | 25.5 | 15.3 | 0.643 | |
| BUQ 208-108-2X3H |
|
| — | 38.1 | 1 1/2 | 36 | 14 | 102 | 130 | 16 | 51.2 | 1.95 | 30.7 | 19 | 0.798 | |
| BUQ 208-2X3H |
|
| — | 40 | — | 36 | 14 | 102 | 130 | 16 | 51.2 | 1.95 | 30.7 | 19 | 0.798 | |
| BUQ-209-2T3H |
|
| — | 45 | — | 38 | 16 | 105 | 137 | 16 | 52.2 | 2.41 | 33.2 | 21.9 | 0.92 | |
| BUQ 210-2X3H |
|
| — | 50 | — | 40 | 16 | 111 | 143 | 16 | 54.6 | 2.78 | 35.1 | 23.2 | 0.974 | |
| BUQ-214-2T3H | EXF 214/UCF 214 | SNR | — | 70 | — | 50.3 | 21.3 | 152 | 193 | 19 | 70.7 | 6.2 | 62.4 | 44 | 1.848 |
BUQ-308-2T3H-DS — Table 2
| Bearing Designation | Brand | Cross analogues |
|---|---|---|
| CE066 | SNR | 957305 AMAZONE AMAZONE |
| LSQFR308 TBT.H.T.Zn | FKL | CE066 AMAZONE AMAZONE |
| UC 308 X1 | SNR | CE078 AMAZONE AMAZONE |
| UCF308 A01X1 | SNR | LSQFR308 TBS.H.T.Zn FKL FKL |
| W308-40MM-FDT-MF-AP-SP1 (PER.W308RRBP52-F-A) | PEER | PN00042 RBF Housing RBF |
| W308-40MM-FDT-MF-AP-SP1 W308RRBP52-F-B (BX-PER.W308RRBP52-F) | PEER | SL308MR3L Z&S Z&S |
| XUCF308B01B169 | SNR | UCFE308 A01X1= UC308X1+FE308A01 UCFE |
| UCFE308 A01X1 UCFE |
Part Number | Bore diameter d (mm) | Overall housing width A1 (mm) | Housing flange thickness A2 (mm) | Bolt hole spacing J (mm) | Overall length L (mm) | Hole / Thread H/T | Overall width A (mm) | Mass (kg) | Dynamic load rating Cdyn (kN) | Static load rating Co (kN) | Fatigue load limit Pᵤ (kN) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BUQ-308-2T3H-DS | 40 | 40.6 | 19 | 101.5 | 130 | M12 | 51.4 | 2.5 | 62.3 | 45.2 | 1.898 |
Part Number | Bearing Designation | Brand | Cross analogues | Bore diameter d (mm) | Overall housing width A1 (mm) | Housing flange thickness A2 (mm) | Bolt hole spacing J (mm) | Overall length L (mm) | Hole / Thread H/T | Overall width A (mm) | Mass (kg) | Dynamic load rating Cdyn (kN) | Static load rating Co (kN) | Fatigue load limit Pᵤ (kN) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BUQ-308-2T3H-DS |
|
|
| 40 | 40.6 | 19 | 101.5 | 130 | M12 | 51.4 | 2.5 | 62.3 | 45.2 | 1.898 |
Bearing Unit BUQ 309-2T3H
| Bearing Designation | Brand | Cross analogues |
|---|---|---|
| CJI 309 GGG+19000509 (Assy) | CT-AGRI | 4000412 Farmet |
| LSQFR 309-2TB.H.T | FKL | M14581 Farmet |
| LSQFR 309-2TB.H.T | CT-AGRI | 15626ND Farmet |
| 18888ND Farmet | ||
| M10257 Farmet | ||
| M13082ND Farmet | ||
| M15626 Farmet | ||
| M17627 Farmet | ||
| M24607 Farmet | ||
| CJI309GGG+ 19000509А | ||
| LEFG 209 TDT FKL |
Part Number | Bore diameter d (mm) | Overall length L (mm) | Bolt hole spacing J (mm) | Hole / Thread H/T | Overall width A (mm) | Overall housing width A1 (mm) | Housing flange thickness A2 (mm) | Inner ring width B (mm) | Mass (kg) | Dynamic load rating Cdyn (kN) | Static load rating Co (kN) | Fatigue load limit Pᵤ (kN) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BUQ 309-2T3H3D | 45 | 137 | 105 | 14 | 54 | 44 | 22 | 51.1 | 3.4 | 59.6 | 80.8 | 2.503 |
Part Number | Bearing Designation | Brand | Cross analogues | Bore diameter d (mm) | Overall length L (mm) | Bolt hole spacing J (mm) | Hole / Thread H/T | Overall width A (mm) | Overall housing width A1 (mm) | Housing flange thickness A2 (mm) | Inner ring width B (mm) | Mass (kg) | Dynamic load rating Cdyn (kN) | Static load rating Co (kN) | Fatigue load limit Pᵤ (kN) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BUQ 309-2T3H3D |
|
|
| 45 | 137 | 105 | 14 | 54 | 44 | 22 | 51.1 | 3.4 | 59.6 | 80.8 | 2.503 |

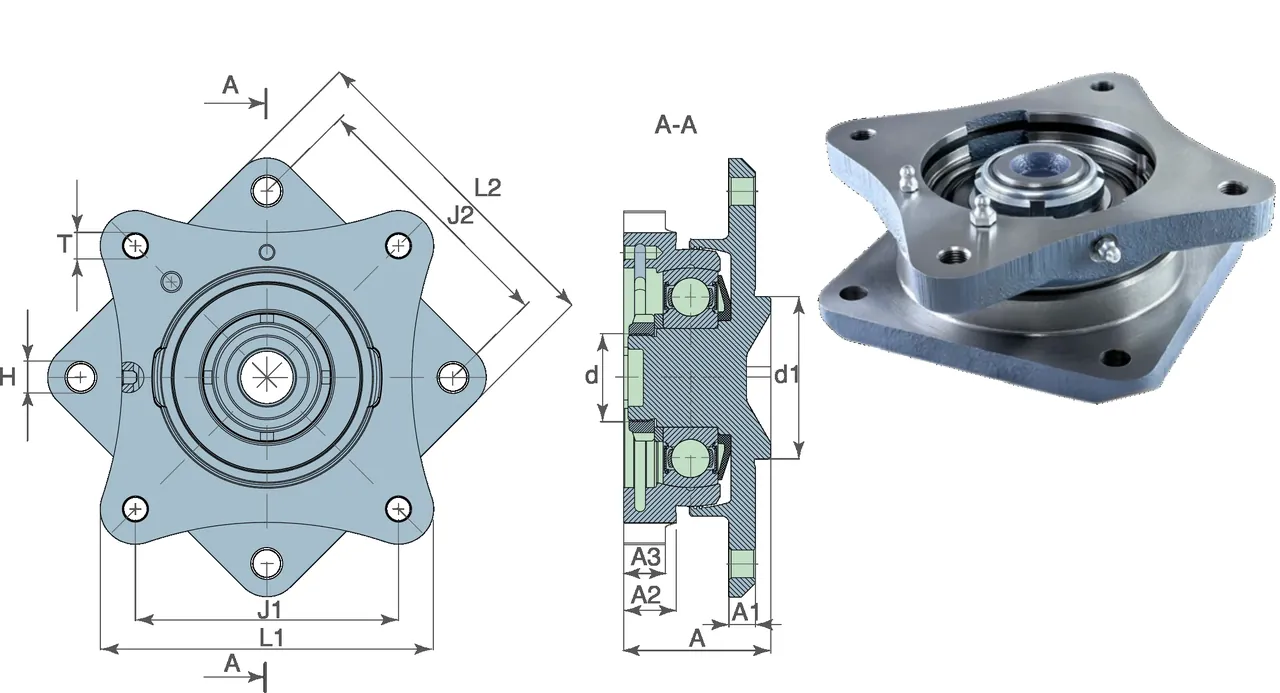

BUCR-SG-309-S2 — Table 4
| Bearing Designation | Brand | Cross analogues |
|---|---|---|
| M43400468 | CT-AGRI | 17014180 GASPARDO |
| M43400468 H.60 S.PAR | Ri.Ma | M23400435 — Bearing housing section GASPARDO |
| M43400468 Bearing unit PN 0102 | FKL | M23400436 — Bearing housing section GASPARDO |
| ZGKU 309 2S | RBF | M43400413 GASPARDO |
| PN00102 | M43400468 GASPARDO | |
| M43400468R GASPARDO | ||
| R17015300 GASPARDO | ||
| M43400468 Bearing Unit GASPARDO |
Part Number | Bore diameter d (mm) | Centering diameter d1 (mm) | Housing overall width L1 (mm) | Distance between holes J1 (mm) | Housing overall width L2 (mm) | Distance between holes J2 (mm) | Overall width A (mm) | Flange thickness A1 (mm) | Housing flange thickness A2 (mm) | Centering diameter height A3 (mm) | Threaded hole size T | Hole diameter H (mm) | Mass (kg) | Dynamic load rating Cdyn (kN) | Static load rating Co (kN) | Fatigue load limit Pᵤ (kN) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BUCR-SG-309-S23D | 45 | 74 | 152 | 120 | 150 | 120 | 66.9 | 18 | 12 | 7 | 4×M12×1.25 | 4×12.3 | 5.6 | 52.7 | 31.5 | 1.32 |
Part Number | Bearing Designation | Brand | Cross analogues | Bore diameter d (mm) | Centering diameter d1 (mm) | Housing overall width L1 (mm) | Distance between holes J1 (mm) | Housing overall width L2 (mm) | Distance between holes J2 (mm) | Overall width A (mm) | Flange thickness A1 (mm) | Housing flange thickness A2 (mm) | Centering diameter height A3 (mm) | Threaded hole size T | Hole diameter H (mm) | Mass (kg) | Dynamic load rating Cdyn (kN) | Static load rating Co (kN) | Fatigue load limit Pᵤ (kN) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BUCR-SG-309-S23D |
|
|
| 45 | 74 | 152 | 120 | 150 | 120 | 66.9 | 18 | 12 | 7 | 4×M12×1.25 | 4×12.3 | 5.6 | 52.7 | 31.5 | 1.32 |

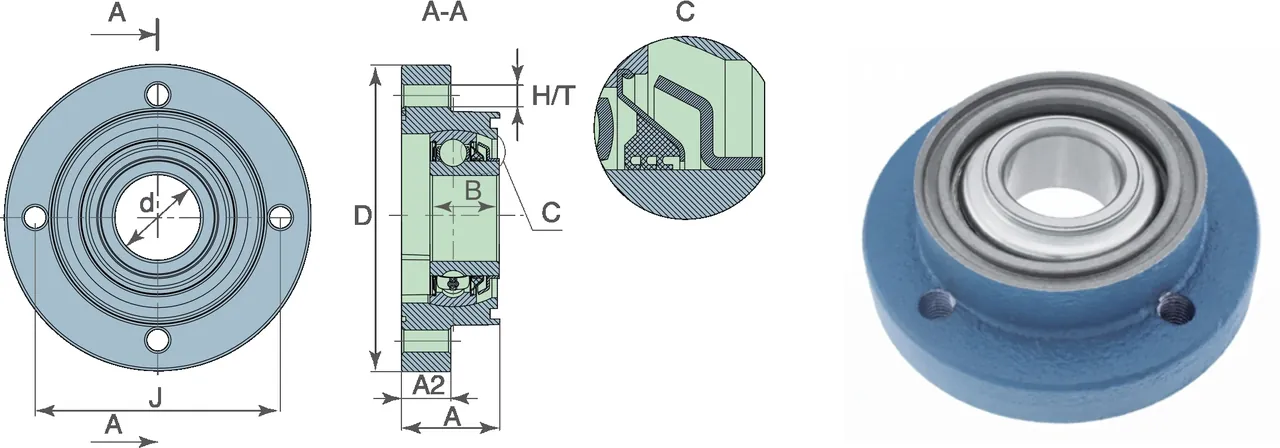

BUP-207-X3L — Table 5
| Bearing Designation | Brand | Cross analogues |
|---|---|---|
| 207XTR-R-DFC-A534 (PER.207RRSB-FC-A) | PEER | 31910034 Lemken LEMKEN |
| GH.PN 00032 | RBF | 3199372 Lemken LEMKEN |
| LSGR 207-TBS | FKL | 3421370 Opall Agri OPALL AGRI |
| LSGR 207-TBS | CT-AGRI | F232812 - 0200 INA/FAG Bearing INA/FAG |
| LSGR 207-TBS | NTE | GGF35A08 INA/FAG |
| PN 00023 | RBF | GGME07 - AH07 INA/FAG Housing INA/FAG |
| PN 00032 | RBF | RCJ 35 35x118x39,9 4xM12 OPALL AGRI |
| UC 207 X1 SNR Bearing SNR |
Part Number | Bore diameter d (mm) | Outside diameter D (mm) | Bolt hole spacing J (mm) | Hole / Thread H/T | Overall width A (mm) | Housing flange thickness A2 (mm) | Inner ring width B (mm) | Mass (kg) | Static load rating Co (kN) | Dynamic load rating Cdyn (kN) | Fatigue load limit Pᵤ (kN) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BUP 207-X3L3D | 35 | 125 | 100 | M12 | 40 | 20 | 28.3 | 1.7 | 15.3 | 25.5 | 0.643 |
Part Number | Bearing Designation | Brand | Cross analogues | Bore diameter d (mm) | Outside diameter D (mm) | Bolt hole spacing J (mm) | Hole / Thread H/T | Overall width A (mm) | Housing flange thickness A2 (mm) | Inner ring width B (mm) | Mass (kg) | Static load rating Co (kN) | Dynamic load rating Cdyn (kN) | Fatigue load limit Pᵤ (kN) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BUP 207-X3L3D |
|
|
| 35 | 125 | 100 | M12 | 40 | 20 | 28.3 | 1.7 | 15.3 | 25.5 | 0.643 |
