Bearing Hubs

Agricultural Hub Units

Why OEM Manufacturers Choose VELNOX Hubs?

Contamination Protection

Hubs designed to operate in extreme dust and moisture conditions. Multi-level cassette sealing prevents soil moisture and abrasives from entering the unit.

Geometric Compatibility

100% geometric analogs of original HORSCH, Köckerling, Bednar, Vaderstad hubs. Direct installation without structural changes to machinery.

Guaranteed Service Life

Maintenance-free units with minimal play. Guaranteed service life of 2000+ hours in the field without lubrication or disassembly.

HORSCH disc harrow working in field — VELNOX hub assemblies

DISK HARROWS

Hubs for Disc Harrows and Heavy Cultivators

Unit designed for operation in extreme dust and moisture conditions. Used in soil preparation aggregates where each disc requires independent rotation under load.

Application areaDeep looseners, heavy disc harrows, combined aggregates

OEM compatibilityFull compatibility with HORSCH equipment (Joker, Focus, Terrano series)

Technical Specifications & Hub Parameters

VELNOX technical guide for quick OEM engineer reference. Tables contain complete parameters for hub selection for specific applications.

Hub Unit HORSCH — Table 1

Bearing Designation	Brand	Cross analogues
		28071300 HORSCH
		28077800 HORSCH
		28077900 HORSCH
		28085600 HORSCH
		PN60041

Show only selectedShow details

Velnox Part No.	Flange bolt hole spacing J (mm)	Outside diameter D (mm)	Outside diameter D1 (mm)	Shaft diameter d (mm)	Hole spacing C (mm)	Hole / Thread H/T	Thread G	Total length L (mm)	Bore depth L1 (mm)	Thread length F (mm)	Mass (kg)	Dynamic load rating Cdyn (kN)	Static load rating Co (kN)	Fatigue load limit Pᵤ (kN)
28071300 VX	106	127.3	64.2	55.7	38	M12	2×M20	106.5	2	25	3.81	48.8	35.3	1.483

Velnox Part No.	Bearing Designation	Brand	OEM	Flange bolt hole spacing J (mm)	Outside diameter D (mm)	Outside diameter D1 (mm)	Shaft diameter d (mm)	Hole spacing C (mm)	Hole / Thread H/T	Thread G	Total length L (mm)	Bore depth L1 (mm)	Thread length F (mm)	Mass (kg)	Dynamic load rating Cdyn (kN)	Static load rating Co (kN)	Fatigue load limit Pᵤ (kN)
28071300 VX	—	—	28071300 HORSCH 28077800 HORSCH 28077900 HORSCH 28085600 HORSCH PN60041	106	127.3	64.2	55.7	38	M12	2×M20	106.5	2	25	3.81	48.8	35.3	1.483

Bednar cutting node in field — VELNOX hub assemblies

CUTTING NODES

Hubs for Cutting Nodes with Independent Suspension

Maintenance-free bearing units providing precise blade angle of attack. Design includes built-in cassette sealing eliminating lubrication needs throughout service life.

Application areaCompact disc harrows, pre-seeding cultivators

OEM compatibilityReplacement hubs for Bednar, Köckerling, Gaspardo, Kuhn, Lemken

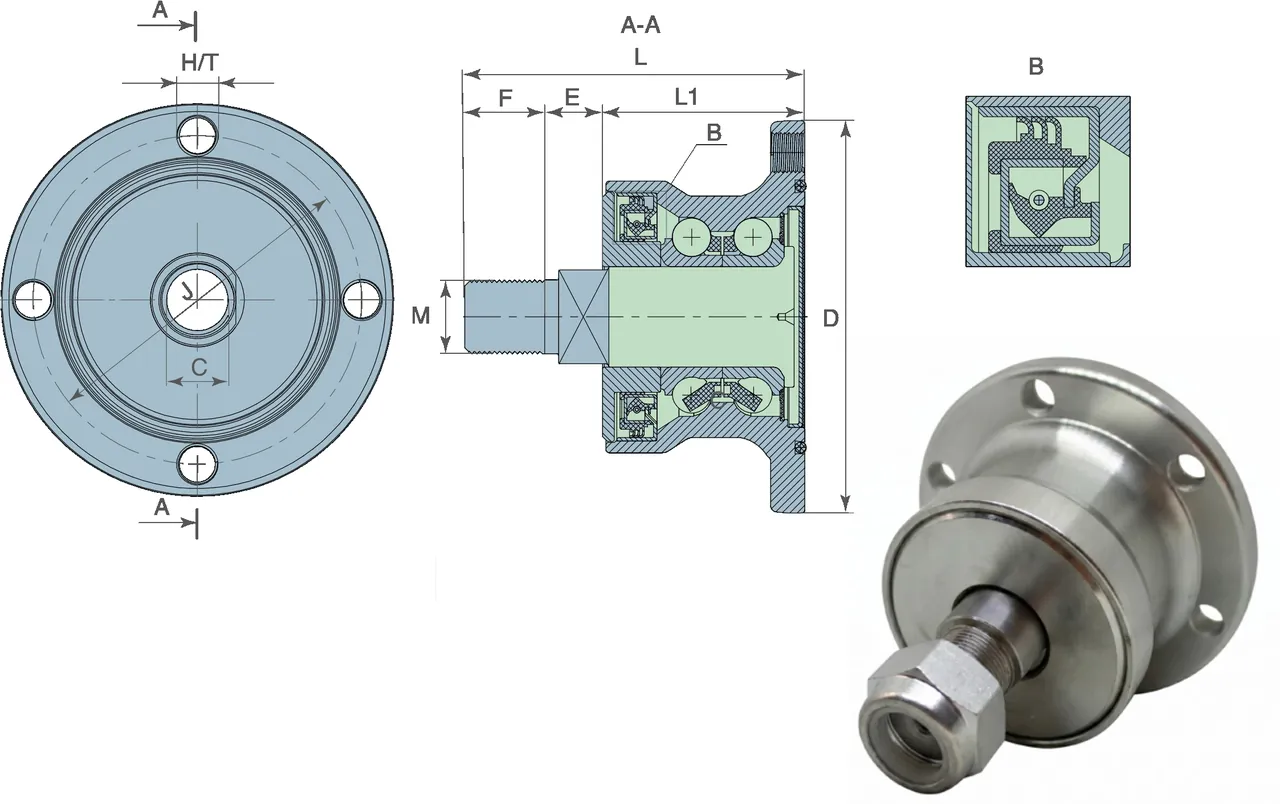

Cutting Node Hub Unit — Table 2

Bearing Designation	Brand	Cross analogues
8395.TDA.5.05.015	ХАРП	1000042983 Holmer
AGHU2898X4E-DSCS	SKF	642668 Köckerling
AHU28117A-01	NSK	910974 Köckerling
BAA 0004	SKF	BAA 0004
BAA 0004 (SAH0004)	FBJ	F06160015 Gaspardo
F-673270.04.TILL	INA	IL40-98/4T-M22
HUB 30мм ASSY (47661)	PEER	Il50-98/4t-m22
HUB-30Мм-X-ASSY-A221	PEER	KM040110 BEDNAR
IL-117-M22	FKL	M11308 Farmet
PN 60014	RBF	PN60014 RBF
		R18125110R GASPARDO

Show only selectedShow details

Velnox Part No.	Flange bolt hole spacing J (mm)	Outside diameter D (mm)	Hole / Thread H/T	Outside diameter D1 (mm)	D-shaped bore size C (mm)	Thread M	Total length L (mm)	Bore depth L1 (mm)	D-shaped section length E (mm)	Thread length F (mm)	Mass (kg)	Dynamic load rating Cdyn (kN)	Static load rating Co (kN)	Fatigue load limit Pᵤ (kN)
BAA-0004 VX3D	98	117	4×M12×1.25	27.95	25.4	M22×1.5	102	60	17	25	2.16	42.9	36.3	1.53

Velnox Part No.	Bearing Designation	Brand	OEM	Flange bolt hole spacing J (mm)	Outside diameter D (mm)	Hole / Thread H/T	Outside diameter D1 (mm)	D-shaped bore size C (mm)	Thread M	Total length L (mm)	Bore depth L1 (mm)	D-shaped section length E (mm)	Thread length F (mm)	Mass (kg)	Dynamic load rating Cdyn (kN)	Static load rating Co (kN)	Fatigue load limit Pᵤ (kN)
BAA-0004 VX3D	8395.TDA.5.05.015 AGHU2898X4E-DSCS AHU28117A-01 BAA 0004 BAA 0004 (SAH0004) F-673270.04.TILL HUB 30мм ASSY (47661) HUB-30Мм-X-ASSY-A221 IL-117-M22 PN 60014	ХАРП SKF NSK SKF FBJ INA PEER PEER FKL RBF	1000042983 Holmer 642668 Köckerling 910974 Köckerling BAA 0004 F06160015 Gaspardo IL40-98/4T-M22 Il50-98/4t-m22 KM040110 BEDNAR M11308 Farmet PN60014 RBF R18125110R GASPARDO	98	117	4×M12×1.25	27.95	25.4	M22×1.5	102	60	17	25	2.16	42.9	36.3	1.53

Seeder in field — VELNOX hub assemblies for planting equipment

HIGH-SPEED SEEDERS

Hubs for High-Speed Seeders and Press Wheels

High-precision rotation units. Minimal play ensures stable seeding depth even at high operating speeds.

Application areaSeeding complexes, grain and vegetable seeder sections

OEM compatibilityOptimized for Vaderstad (Rapid series), Agrisem equipment

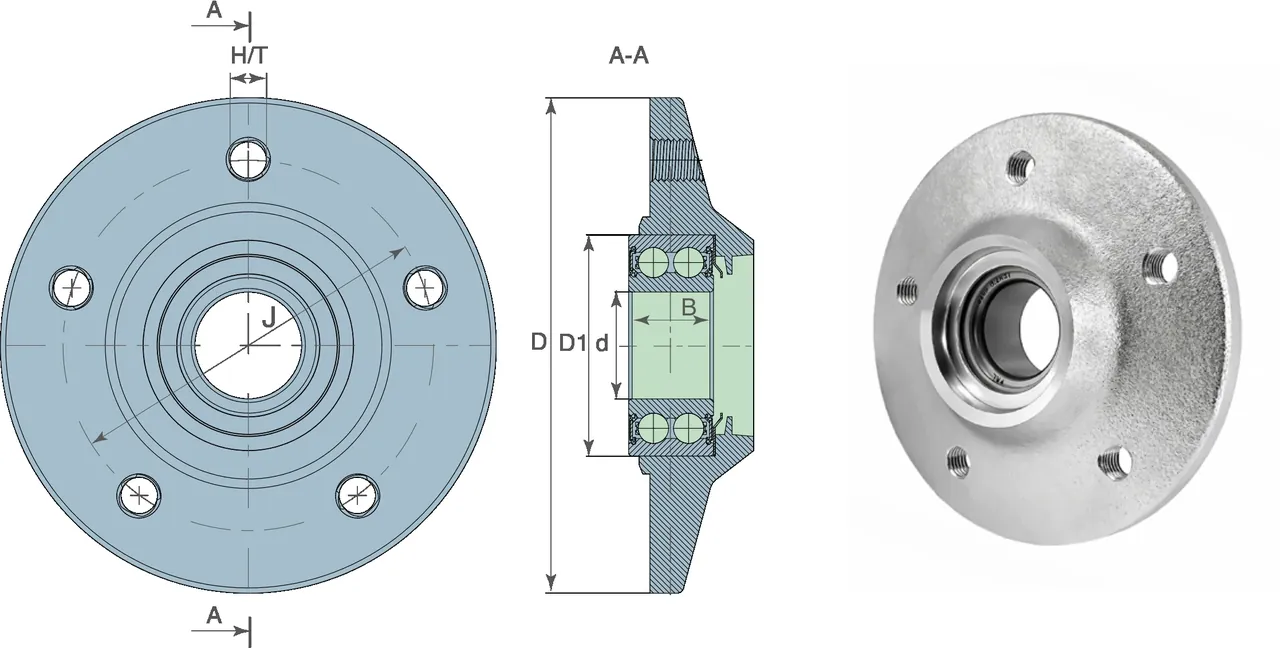

Seeder Hub Unit — Table 3

Bearing Designation	Brand	Cross analogues
PL-140	FKL	405814
SAH017	FBJ	418531
		420013
		420832 Vaderstad

Show only selectedShow details

Velnox Part No.	Flange bolt hole spacing J (mm)	Outside diameter D (mm)	Outside diameter D1 (mm)	Bore diameter d (mm)	Hole / Thread H/T	Total length L (mm)	Inner ring width B (mm)	Mass (kg)	Dynamic load rating Cdyn (kN)	Static load rating Co (kN)	Fatigue load limit Pᵤ (kN)
PL-140 VX3D	104	140	62	30	M12	35	23.8	1.5	31	22.2	0.932

Velnox Part No.	Bearing Designation	Brand	OEM	Flange bolt hole spacing J (mm)	Outside diameter D (mm)	Outside diameter D1 (mm)	Bore diameter d (mm)	Hole / Thread H/T	Total length L (mm)	Inner ring width B (mm)	Mass (kg)	Dynamic load rating Cdyn (kN)	Static load rating Co (kN)	Fatigue load limit Pᵤ (kN)
PL-140 VX3D	PL-140 SAH017	FKL FBJ	405814 418531 420013 420832 Vaderstad	104	140	62	30	M12	35	23.8	1.5	31	22.2	0.932

Ready for Integration

VELNOX hubs are a complete OEM solution requiring no changes to design documentation. All parameters are calculated and tested for real field conditions.
