PL-140 VX
Integrated seeder bearing hub with 4 M12 mounting holes on a bolt circle J = 104 mm and housing outer diameter D = 140 mm — geometric equivalent of FKL PL-140 / FBJ SAH017 assemblies. Shaft bore D1 = 62 mm, overall length L = 35 mm, width B = 23.8 mm; dynamic load rating Cdyn = 31 kN, static Co = 22.2 kN, mass 1.5 kg. The assembly is fitted with contact seals on both sides to protect against soil contamination and moisture in seeder operating conditions. Direct replacement for Vaderstad OEM assemblies (420832, 405814, 418531, 420013) and equivalents FKL PL-140, FBJ SAH017; used in Vaderstad Rapid, Spirit, Tempo series seeders.
Ready for integration into your project?
Get exact CAD models of the units in the required format or contact our engineers for customization to your operating environment.
| Flange bolt hole spacing J (mm) | 104 |
|---|---|
| Outside diameter D (mm) | 140 |
| Outside diameter D1 (mm) | 62 |
| Bore diameter d (mm) | 30 |
| Hole / Thread H/T | M12 |
| Inner ring width B (mm) | 23.8 |
| Total length L (mm) | 35 |
| Mass (kg) | 1.5 |
| Dynamic load rating Cdyn (kN) | 31 |
| Static load rating Co (kN) | 22.2 |
| Fatigue load limit Pᵤ (kN) | 0.932 |

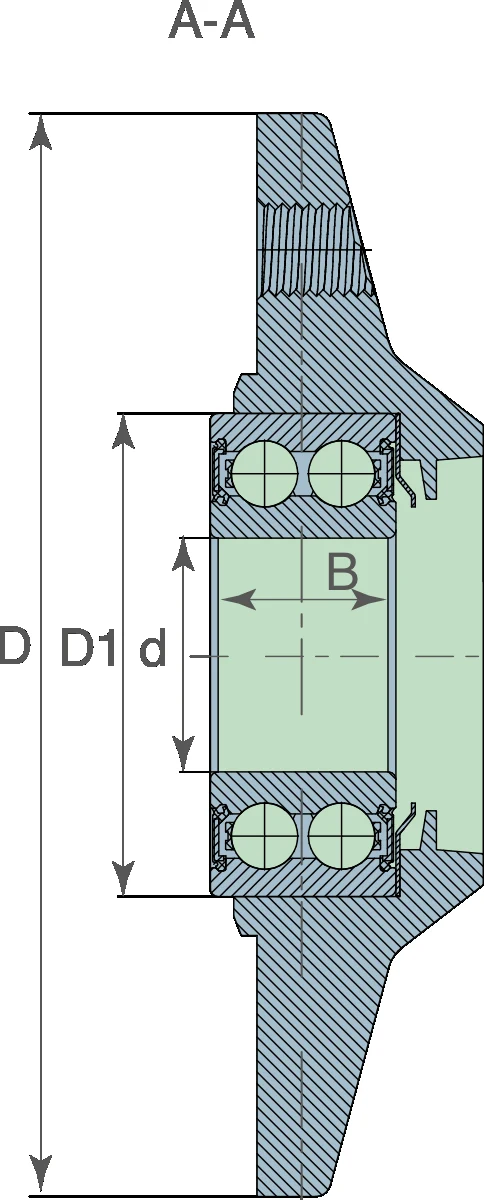

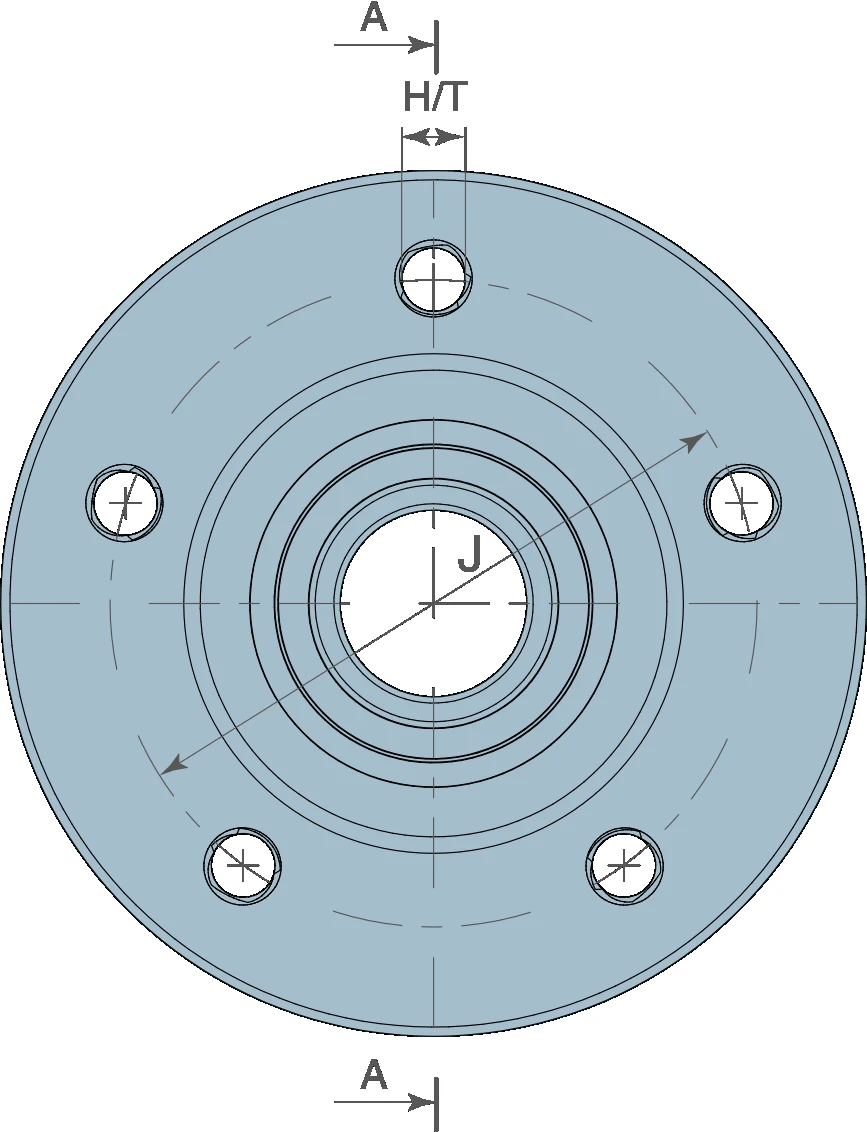

Interactive Drawing
| Flange bolt hole spacing J (mm) | 104 |
|---|---|
| Outside diameter D (mm) | 140 |
| Outside diameter D1 (mm) | 62 |
| Bore diameter d (mm) | 30 |
| Hole / Thread H/T | M12 |
| Total length L (mm) | 35 |
| Inner ring width B (mm) | 23.8 |
| Mass (kg) | 1.5 |
| Dynamic load rating Cdyn (kN) | 31 |
| Static load rating Co (kN) | 22.2 |
| Fatigue load limit Pᵤ (kN) | 0.932 |
