Agro Bearings

VELNOX Special Agro Bearings

Technical specifications and bearing parameters

VELNOX technical reference for selecting Series 1726 agro bearings. Full parameters and OEM cross-references.

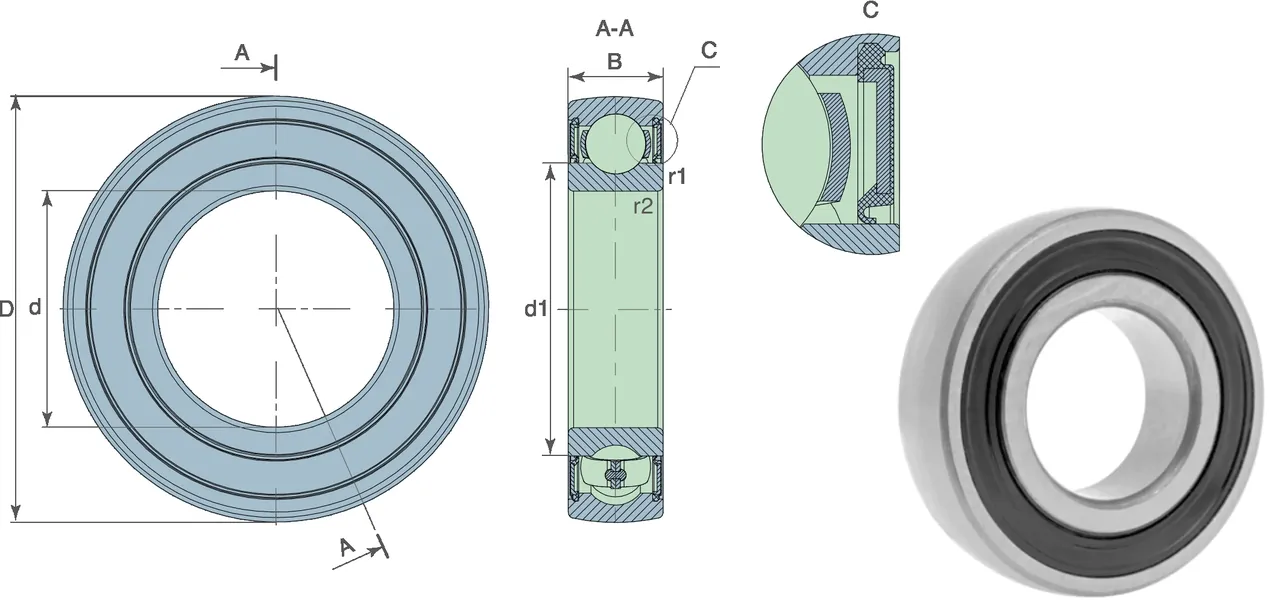

Series 1726 — Special Agro Bearings

Bearing Designation	Brand	Cross analogues
1726206 2RS	TIMKEN	10330 Dominoni
1726206 2RS	NSK-RHP	211156.0 CLAAS
1726206 2RS1	SKF	2152620 Rauch
206 NPPB	INA	81023064 KUHN
XG206NPPB	SKF	831087M1 AGCO
6206 S EE	SNR	JD10386 JD
CS 206 2RS	NTE	PMS-000005 Capello
CS 206 2RS	FBJ	VF06215766 Kverneland
UD 206	ZKL	YP800030 KUHN

Show only selectedShow details

Velnox Part No	Bore diameter d (mm)	Outside diameter D (mm)	Inner ring width B (mm)	Inner ring outside diameter d1 (mm)	Chamfer dimension r 1,2 (mm)	Dynamic load rating Cdyn (kN)	Static load rating Co (kN)	Fatigue load limit Pᵤ (kN)	Mass (kg)
1726206-2RS1 VX3D	30	62	16	39.7	1	19.5	11.2	0.48	0.18
1726207-2RS1 VX3D	35	72	17	46.1	1	25.5	15.3	0.25	0.66
1726208-2RS1 VX3D	40	80	18	52	1.1	30.7	19	0.8	0.32
1726209-2RS1 VX3D	45	85	19	56.6	1.1	32.5	20.4	0.92	0.37
1726210-2RS1 VX3D	50	90	20	62.5	1.1	35.1	23.2	0.98	0.41
1726306-2RS1 VX3D	30	72	19	44.6	1.1	28.1	16	0.67	0.3
1726309-2RS1 VX3D	45	100	25	62.1	1.5	52.7	31.5	1.34	0.73

Velnox Part No	Bearing Designation	Brand	Cross analogues	Bore diameter d (mm)	Outside diameter D (mm)	Inner ring width B (mm)	Inner ring outside diameter d1 (mm)	Chamfer dimension r 1,2 (mm)	Dynamic load rating Cdyn (kN)	Static load rating Co (kN)	Fatigue load limit Pᵤ (kN)	Mass (kg)
1726206-2RS1 VX3D	1726206 2RS 1726206 2RS 1726206 2RS1 206 NPPB XG206NPPB 6206 S EE CS 206 2RS CS 206 2RS UD 206	TIMKEN NSK-RHP SKF INA SKF SNR NTE FBJ ZKL	10330 Dominoni 211156.0 CLAAS 2152620 Rauch 81023064 KUHN 831087M1 AGCO JD10386 JD PMS-000005 Capello VF06215766 Kverneland YP800030 KUHN	30	62	16	39.7	1	19.5	11.2	0.48	0.18
1726207-2RS1 VX3D	1726207 2RS 1726207 2RS 1726207 2RS1 207 NPPB XG207NPPB 6207 SEE CS 207 2 RS G207-XL-NPPB	TIMKEN NSK-RHP SKF INA SKF SNR FBJ INA	03.2026.00 Capello 12-058340 Ziegler 1407629R91 CASE 3166063R91 CASE 4655.1 MONOSEM 81043576 Kuhn 831822M1 MF B96.00264	35	72	17	46.1	1	25.5	15.3	0.25	0.66
1726208-2RS1 VX3D	1726208 2RS 1726208 2RS1 XG208NPPB 6208 S EE CS 208 2RS G208-XL-NPPB UD 208	TIMKEN SKF SKF SNR FBJ INA ZKL	025292 Geringhoff 025293 Geringhoff 30161042 Monosem 4655.1A Monosem 730004600 LUK AZ23315 JD F04010184 GASPARDO	40	80	18	52	1.1	30.7	19	0.8	0.32
1726209-2RS1 VX3D	1726209 2RS 1726209 2RS 1726209 2RS1 209 NPPB XG209NPPB CS 209 2RS	TIMKEN NSK-RHP SKF INA SKF FBJ	000212102.0 Claas 02.1032.00 Capello 12-058421 Ziegler 340411240 NH 81004584 NH 831134M1 MF LA340411277 MF NWB00607 PMS-000007 Capello Z4009820 KUHN B96.00293 GRIMME	45	85	19	56.6	1.1	32.5	20.4	0.92	0.37
1726210-2RS1 VX3D	1726210 2RS 1726210 2RS 1726210 2RS1 210 NPPB XG210NPPB CS 210 2RS	TIMKEN NSK-RHP SKF INA SKF FBJ	11330 Dominoni 81005000 Kuhn 81005099 Kuhn	50	90	20	62.5	1.1	35.1	23.2	0.98	0.41
1726306-2RS1 VX3D	1726306 2RS1 CS306LLU CS306DDU 76306-2RS 1726306-2RS1 6306SEE 1726306-2RS 1726306 2S.T	SKF NTN NSK FAG SKF SNR RHP FKL	580306 K7C17	30	72	19	44.6	1.1	28.1	16	0.67	0.3
1726309-2RS1 VX3D	1726309 2RS 1726309 2RS 1726309 2RS1 CS309LLU CS309DDU 76309-2RS 61200120 1726309 2RS	TIMKEN NSK SKF NTN NSK FAG IMT SNR	309NPPB F04010225R GASPARDO MG43400468 GASPARDO 23400434 GASPARDO 76100409 GASPARDO 61100438 GASPARDO 43400468 GASPARDO 1726309 2RS1 ZARAMAK	45	100	25	62.1	1.5	52.7	31.5	1.34	0.73

SPECIAL AGRO BEARINGS

Engineered for operation in mud, shock loads, and misalignments.

VELNOX Special Agro Bearings are designed for the most demanding agricultural applications — tillage systems, disc harrows, and heavy machinery. Intended for environments where dust, mud, and shock loads are constant, not incidental.

Extended Service Life

Reinforced multi-lip sealing system
Optimized geometry for dynamic loads
High-precision raceways

Reinforced Housing Design

High-strength steel housing
Dimensional stability under shock loads
Reinforced mounting zones for heavy conditions

Proven Effectiveness

Designed for operation under misalignments
Resistant to manure, soil, and gross contamination
Stable operation under radial and axial loads

DHU — Disc Hub Units

Bearing Designation	Brand	Cross analogues
DHU 1 1/2 R209	TIMKEN	1934-12-0 KRAUSE
DHU 1 1/2 R209 FD209RB	CT-AGRI	40-109 KRAUSE
FD 209-1 1/2 RD	RBF	822-208C Great Plains
ST 491 B	PEER	AA53919 JD
PER.GFD209RPPB52	PEER	AN280333 JD
GWST209PPB38	FKL	Q4045130 KUHN

Show only selectedShow details

Velnox Part No	Bore diameter d (inch)	Bore diameter d (mm)	Inner ring width B (mm)	Outer ring width C (mm)	Centering diameter Da (mm)	Overall length L (mm)	Flange face to inner ring end face distance A (mm)	Flange thickness A1 (mm)	Bolt hole spacing J (mm)	Mounting hole size N (mm)	Radial load Fr (kN)	Axial load Fa (kN)	Dynamic load rating Cdyn (kN)	Static load rating Co (kN)	Mass (kg)
DHU 1 1/2R209 VX3D	1.5004	38.11	42.85	22	97	127	39	3.5	127	13.5	7.7	3.8	32.5	20.4	1.63

Velnox Part No	Bearing Designation	Brand	Cross analogues	Bore diameter d (inch)	Bore diameter d (mm)	Inner ring width B (mm)	Outer ring width C (mm)	Centering diameter Da (mm)	Overall length L (mm)	Flange face to inner ring end face distance A (mm)	Flange thickness A1 (mm)	Bolt hole spacing J (mm)	Mounting hole size N (mm)	Radial load Fr (kN)	Axial load Fa (kN)	Dynamic load rating Cdyn (kN)	Static load rating Co (kN)	Mass (kg)
DHU 1 1/2R209 VX3D	DHU 1 1/2 R209 DHU 1 1/2 R209 FD209RB FD 209-1 1/2 RD ST 491 B PER.GFD209RPPB52 GWST209PPB38	TIMKEN CT-AGRI RBF PEER PEER FKL	1934-12-0 KRAUSE 40-109 KRAUSE 822-208C Great Plains AA53919 JD AN280333 JD Q4045130 KUHN	1.5004	38.11	42.85	22	97	127	39	3.5	127	13.5	7.7	3.8	32.5	20.4	1.63

Table 3: Dimensional specifications of square bore hub unit for KRAUSE disc harrow

Bearing Designation	Brand	Cross analogues
DHU 1 1/4 S209	TIMKEN	40-128 KRAUSE
DHU 1 1/4 S209 FD209RK	CT-AGRI	822-209C Great Plains
DHU 1 1/4 S209	NTE	84151226 CASE
FD 209-1 1/4 SQ	RBF	FK311007 SUNFLOWER
FD 209-1 1/4 SQ GFD209SPPB51	PEER	Q4008320 KUHN
FD 209K51-1 1/4 SQ-A342	PEER	Q4044290 KUHN
GWST 209 PPB29	FKL

Show only selectedShow details

Velnox Part No	Bore diameter d (inch)	Bore diameter d (mm)	Inner ring width B (mm)	Outer ring width C (mm)	Square shaft dimension a (mm)	Centering diameter Da (mm)	Overall length L (mm)	Flange face to inner ring end face distance A (mm)	Flange thickness A1 (mm)	Bolt hole spacing J (mm)	Mounting hole size N (mm)	Mounting hole size M (mm)	Radial load Fr (kN)	Axial load Fa (kN)	Dynamic load rating Cdyn (kN)	Static load rating Co (kN)	Mass (kg)	Fatigue load limit Pᵤ (kN)
DHU 1 1/4 S209 VX3D	1.3976	35.5	42.85	22	32.8	97	127	39	3.5	127	13.5	17.5	7.7	3.8	32.5	20.4	1.63	0.857

Velnox Part No	Bearing Designation	Brand	Cross analogues	Bore diameter d (inch)	Bore diameter d (mm)	Inner ring width B (mm)	Outer ring width C (mm)	Square shaft dimension a (mm)	Centering diameter Da (mm)	Overall length L (mm)	Flange face to inner ring end face distance A (mm)	Flange thickness A1 (mm)	Bolt hole spacing J (mm)	Mounting hole size N (mm)	Mounting hole size M (mm)	Radial load Fr (kN)	Axial load Fa (kN)	Dynamic load rating Cdyn (kN)	Static load rating Co (kN)	Mass (kg)	Fatigue load limit Pᵤ (kN)
DHU 1 1/4 S209 VX3D	DHU 1 1/4 S209 DHU 1 1/4 S209 FD209RK DHU 1 1/4 S209 FD 209-1 1/4 SQ FD 209-1 1/4 SQ GFD209SPPB51 FD 209K51-1 1/4 SQ-A342 GWST 209 PPB29	TIMKEN CT-AGRI NTE RBF PEER PEER FKL	40-128 KRAUSE 822-209C Great Plains 84151226 CASE FK311007 SUNFLOWER Q4008320 KUHN Q4044290 KUHN	1.3976	35.5	42.85	22	32.8	97	127	39	3.5	127	13.5	17.5	7.7	3.8	32.5	20.4	1.63	0.857

Table 4: Dimensional specifications of AA30941 hub unit for John Deere machinery

Bearing Designation	Brand	Cross analogues
AA30941	CT-AGRI	A33968 Gasket
GWST 209 PPB13	FKL	A34792 Housing
GW209PPB13	FKL	A34793 Housing
P30941	KABAT	AA27172 Housing
ST 209-1 3/4	RBF	AA30941 JD – Assembly
		JD7806 Grease Nipple
		GW209PPB13 bearing

Show only selectedShow details

Velnox Part No	Bore diameter d (inch)	Bore diameter d (mm)	Inner ring width B (mm)	Overall length L (mm)	Flange thickness A1 (mm)	Outer ring width C (mm)	Centering diameter Da (mm)	Outside diameter D (mm)	Bolt hole spacing J (mm)	Mounting hole size N (mm)	Dynamic load rating Cdyn (kN)	Static load rating Co (kN)	Mass (kg)	Fatigue load limit Pᵤ (kN)
AA30941 VX	1.781	45.24	36.53	48.5	3.5	30.1	93	150	120.5	13.5	32.5	20.4	1.836	0.857

Velnox Part No	Bearing Designation	Brand	Cross analogues	Bore diameter d (inch)	Bore diameter d (mm)	Inner ring width B (mm)	Overall length L (mm)	Flange thickness A1 (mm)	Outer ring width C (mm)	Centering diameter Da (mm)	Outside diameter D (mm)	Bolt hole spacing J (mm)	Mounting hole size N (mm)	Dynamic load rating Cdyn (kN)	Static load rating Co (kN)	Mass (kg)	Fatigue load limit Pᵤ (kN)
AA30941 VX	AA30941 GWST 209 PPB13 GW209PPB13 P30941 ST 209-1 3/4	CT-AGRI FKL FKL KABAT RBF	A33968 Gasket A34792 Housing A34793 Housing AA27172 Housing AA30941 JD – Assembly JD7806 Grease Nipple GW209PPB13 bearing	1.781	45.24	36.53	48.5	3.5	30.1	93	150	120.5	13.5	32.5	20.4	1.836	0.857

Find the right agro bearing for your application

Free engineering consultation. Technical specs, 3D models, and cross-reference selection for your machine.
