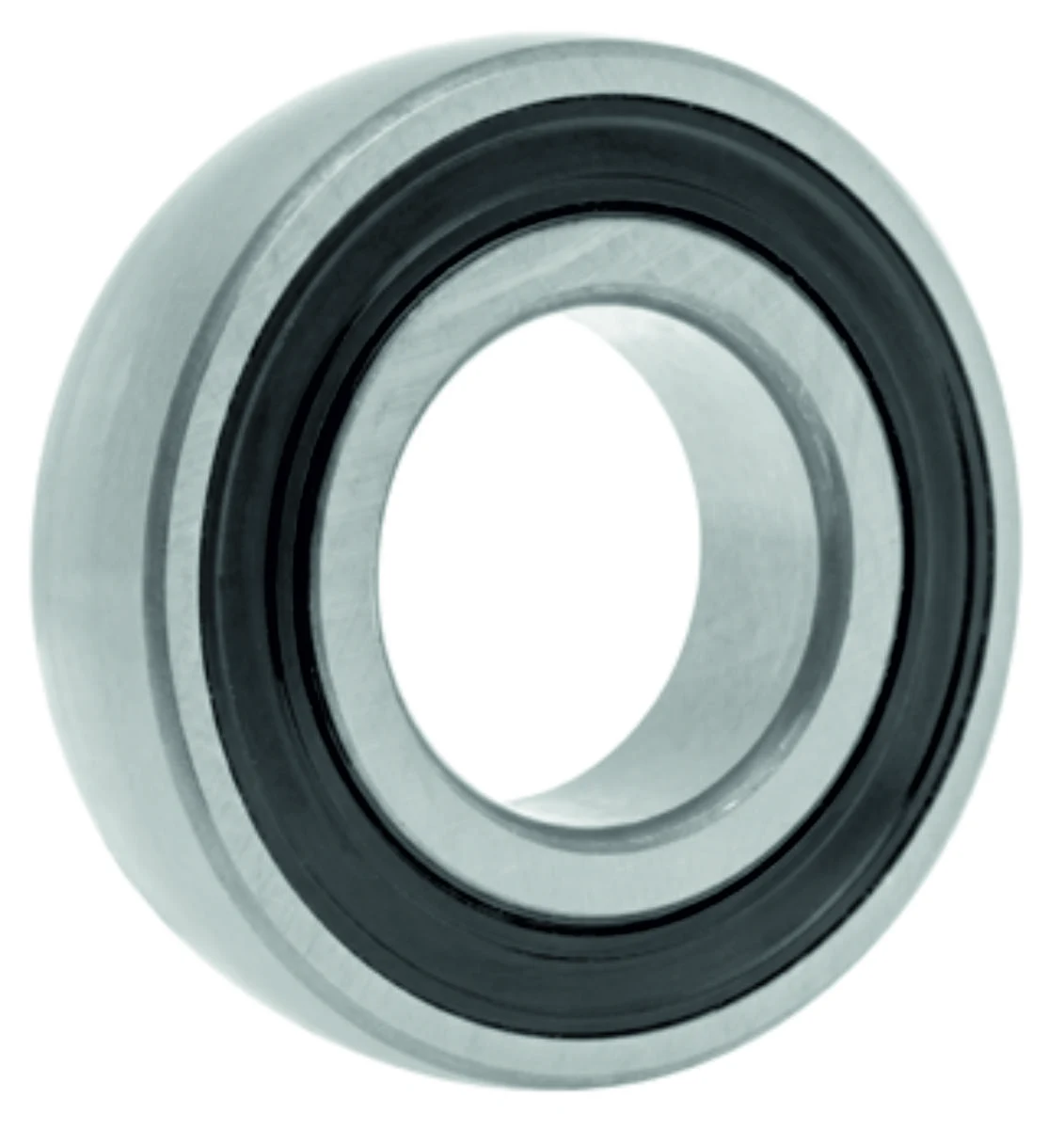

1726208-2RS1 VX
Radial ball bearing of the 1726 series (type 208) with an extended inner ring (d₁ = 52 mm) for loaded assemblies in header cutting mechanisms and seeder units. Bore diameter d = 40 mm, outer diameter D = 80 mm, inner ring width B = 18 mm; dynamic load rating — 30.7 kN, static — 19.0 kN. Symmetric double-sided contact seal 2RS1 provides full protection against abrasive particles and moisture. Direct replacement for SKF 1726208-2RS1, INA G208-XL-NPPB, TIMKEN 1726208 2RS, ZKL UD 208; substitutes OEM parts in Geringhoff headers (025292, 025293), Monosem seeders (4655.1A), John Deere (AZ23315) and Gaspardo (F04010184).
Ready for integration into your project?
Get exact CAD models of the units in the required format or contact our engineers for customization to your operating environment.
| Bore diameter d (mm) | 40 |
|---|---|
| D (mm) — housing outside diameter | 80 |
| Inner ring width B (mm) | 18 |
| Centering diameter d1 (mm) | 52 |
| Chamfer dimension r 1,2 (mm) | 1.1 |
| Dynamic load rating Cdyn (kN) | 30.7 |
| Static load rating Co (kN) | 19 |
| Fatigue load limit Pu (kN) | 0.8 |
| Mass | 0.32 |

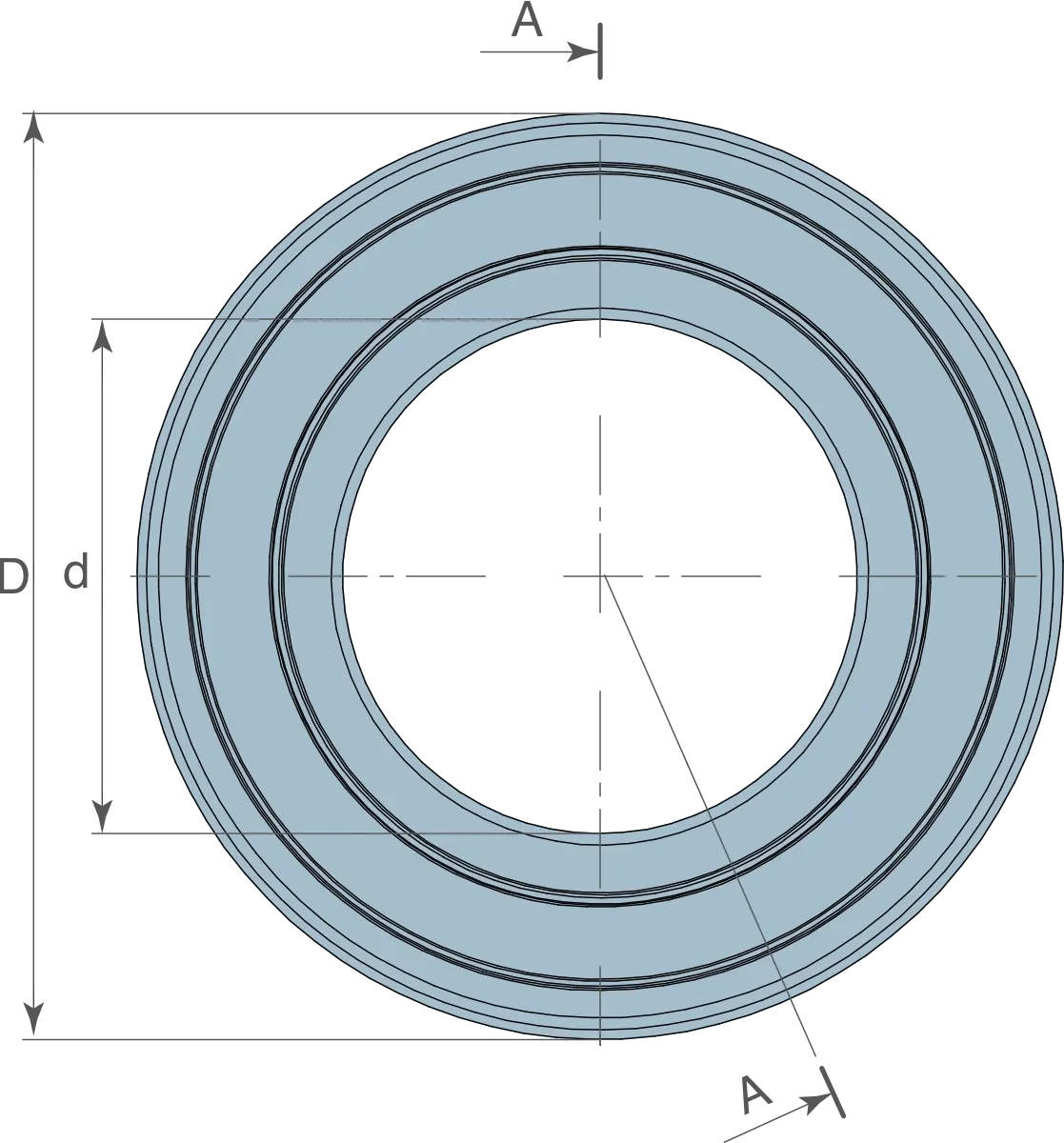

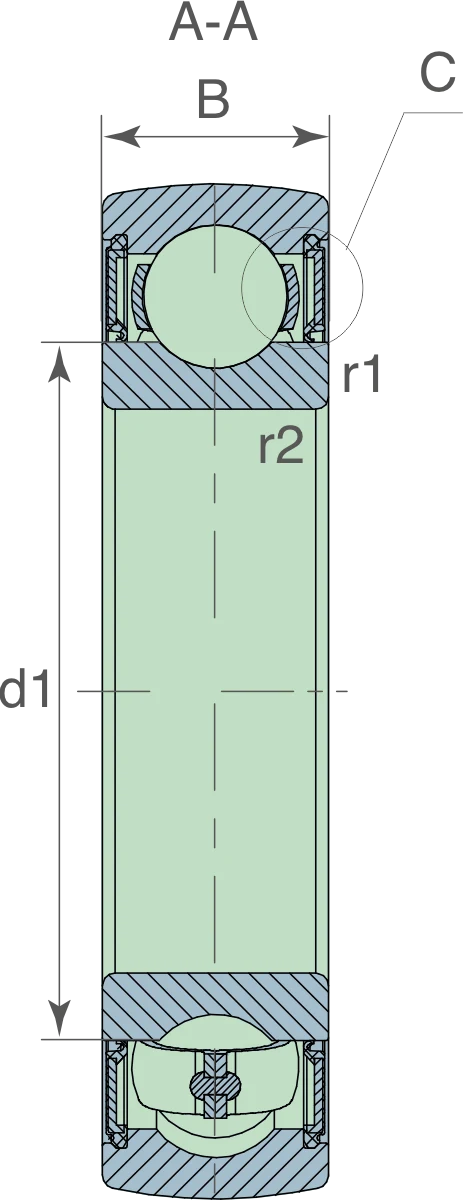

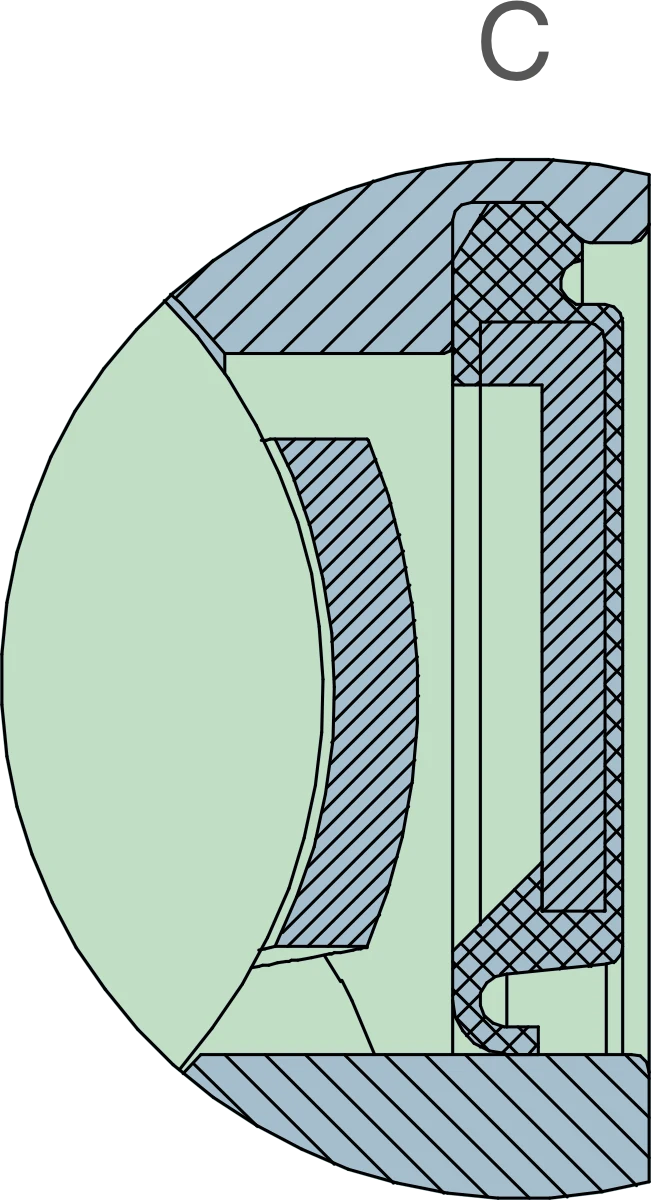

Interactive Drawing
| Bore diameter d (mm) | 40 |
|---|---|
| D (mm) — housing outside diameter | 80 |
| Inner ring width B (mm) | 18 |
| Centering diameter d1 (mm) | 52 |
| Chamfer dimension r 1,2 (mm) | 1.1 |
| Dynamic load rating Cdyn (kN) | 30.7 |
| Static load rating Co (kN) | 19 |
| Fatigue load limit Pu (kN) | 0.8 |
| Mass | 0.32 |
