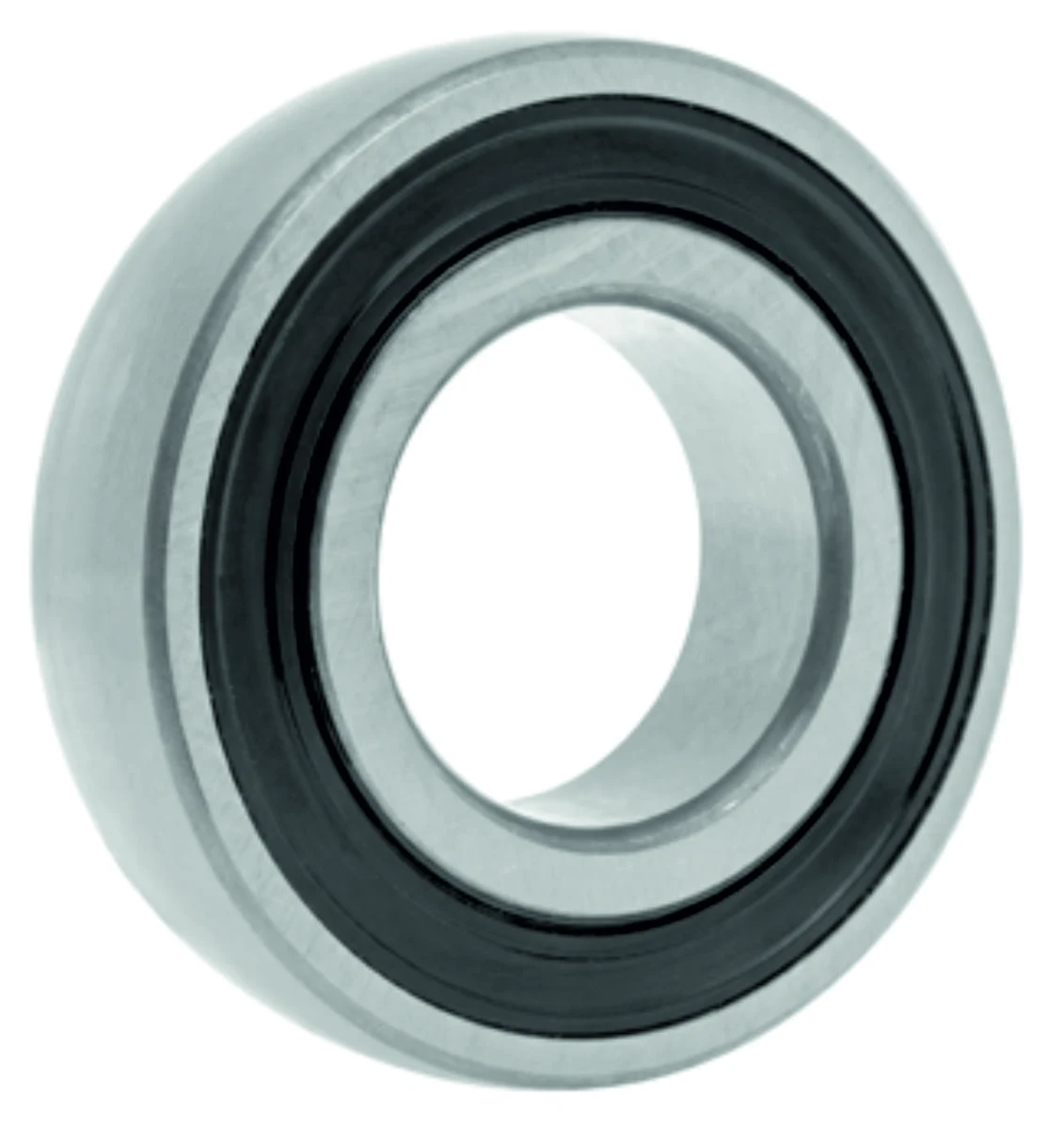

1726306-2RS1 VX
Radial ball bearing of the 1726 series type 306 with an extended inner ring (d₁ = 44.6 mm) — the larger outer diameter D = 72 mm at the same bore d = 30 mm delivers higher load capacity compared to type 1726206. Inner ring width B = 19 mm; dynamic load rating — 28.1 kN, static — 16.0 kN. Double-sided contact seal 2RS1 ensures sealing against soil moisture and abrasive dust. Interchangeable with SKF 1726306-2RS1, FAG 76306-2RS, NTN CS306LLU, NSK CS306DDU, SNR 6306SEE, RHP 1726306-2RS; used in high-radial-load agricultural assemblies (ref. 580306 K7C17).
Ready for integration into your project?
Get exact CAD models of the units in the required format or contact our engineers for customization to your operating environment.
| Bore diameter d (mm) | 30 |
|---|---|
| D (mm) — housing outside diameter | 72 |
| Inner ring width B (mm) | 19 |
| Centering diameter d1 (mm) | 44.6 |
| Chamfer dimension r 1,2 (mm) | 1.1 |
| Dynamic load rating Cdyn (kN) | 28.1 |
| Static load rating Co (kN) | 16 |
| Fatigue load limit Pu (kN) | 0.67 |
| Mass | 0.3 |

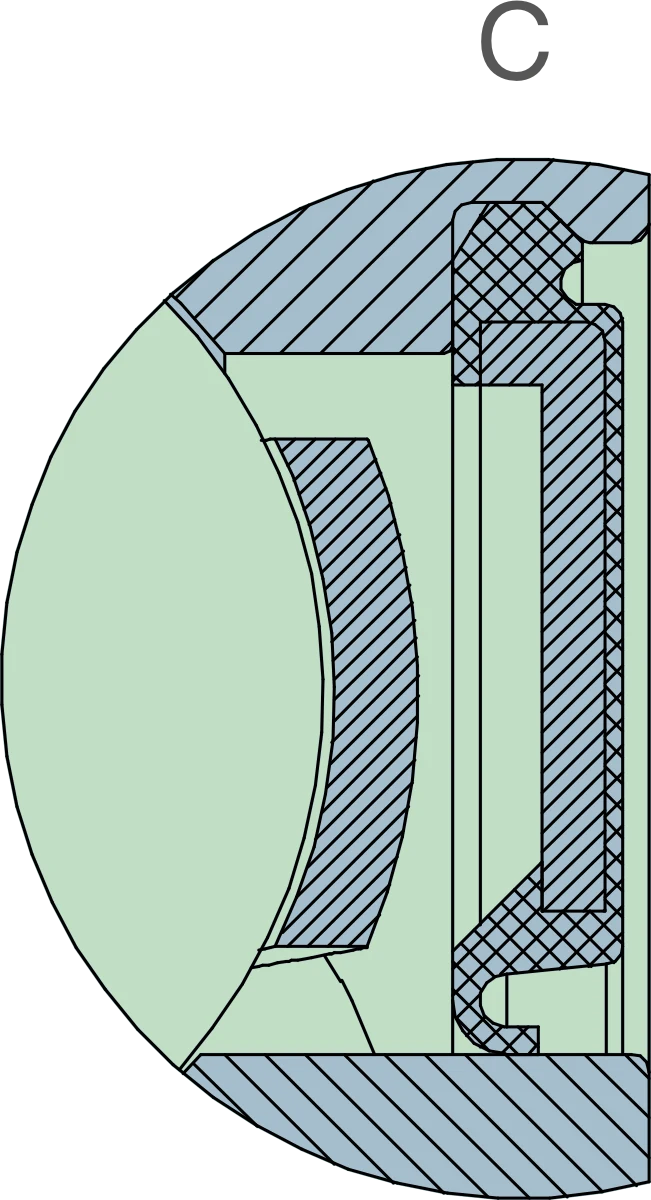

Interactive Drawing
| Bore diameter d (mm) | 30 |
|---|---|
| D (mm) — housing outside diameter | 72 |
| Inner ring width B (mm) | 19 |
| Centering diameter d1 (mm) | 44.6 |
| Chamfer dimension r 1,2 (mm) | 1.1 |
| Dynamic load rating Cdyn (kN) | 28.1 |
| Static load rating Co (kN) | 16 |
| Fatigue load limit Pu (kN) | 0.67 |
| Mass | 0.3 |
Cross References
SKF1726306 2RS1
NTNCS306LLU
NSKCS306DDU
FAG76306-2RS
SKF1726306-2RS1
SNR6306SEE
RHP1726306-2RS
FKL1726306 2S.T
580306 K7C17
