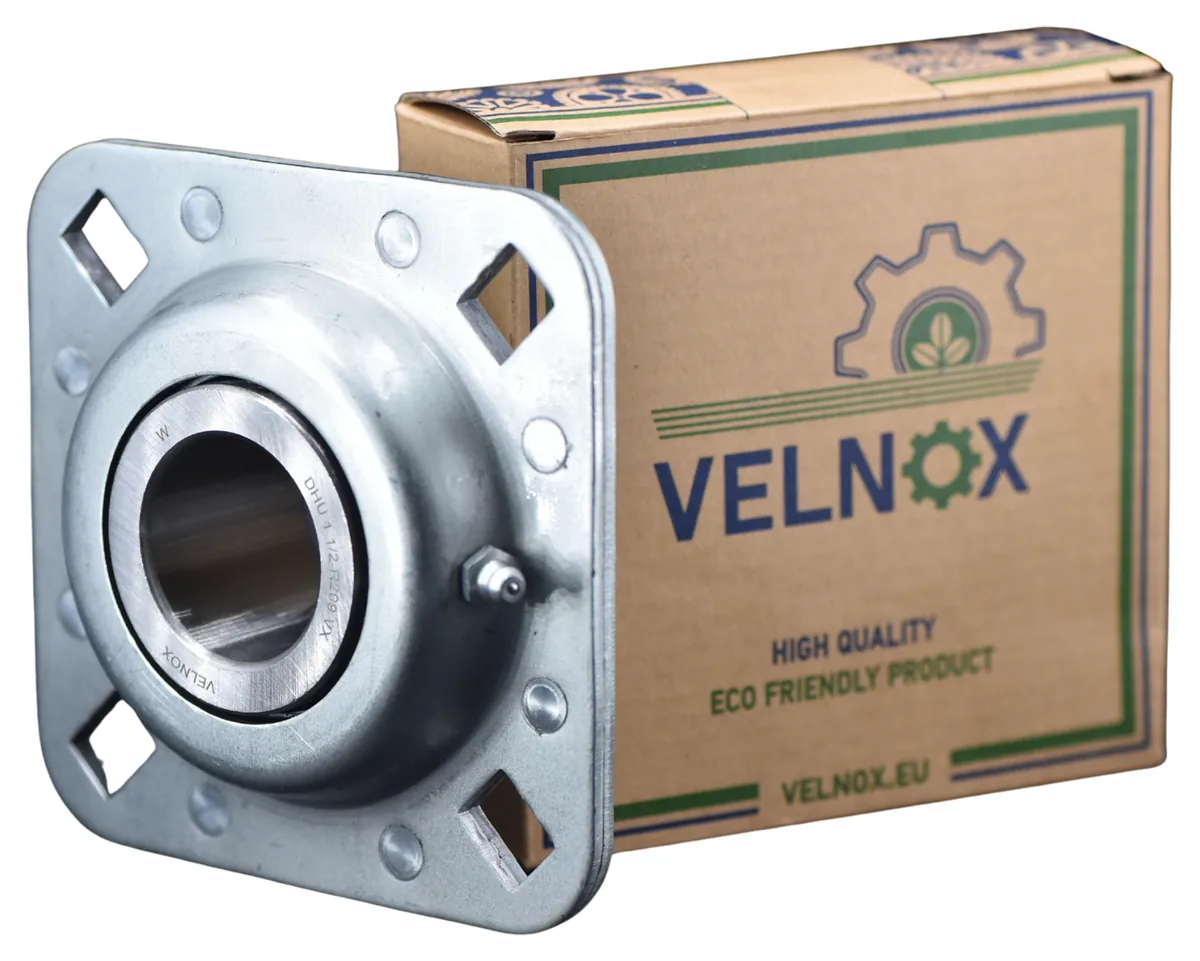

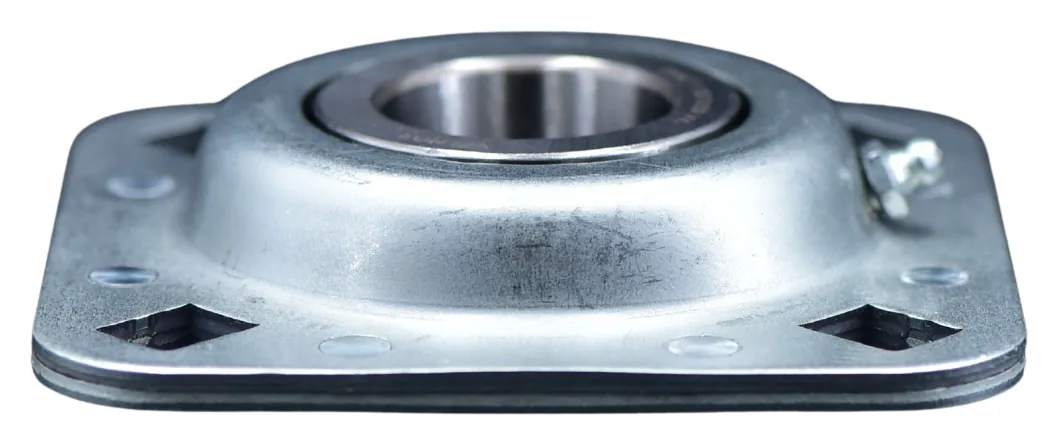

DHU 1 1/2R209 VX

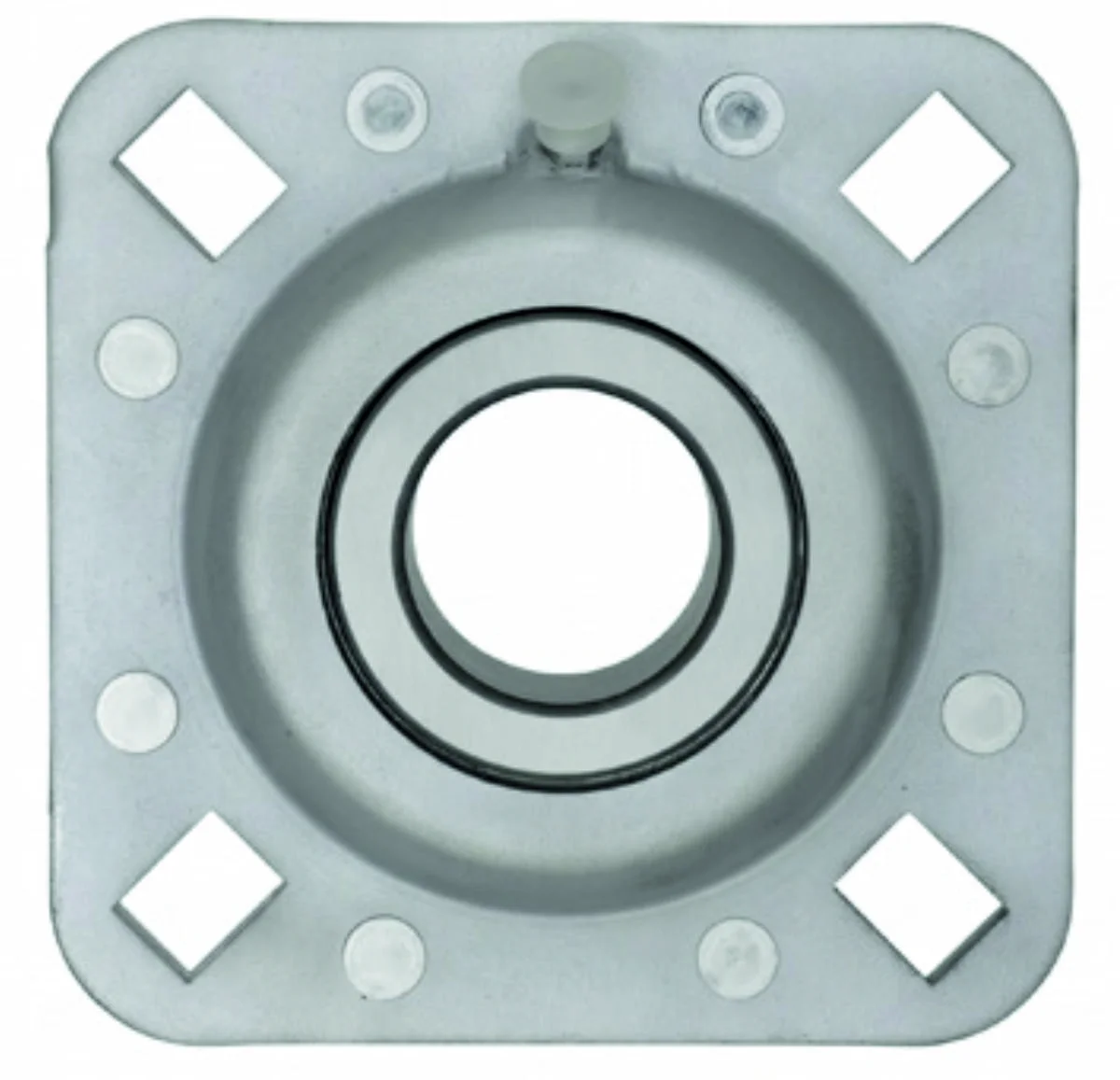

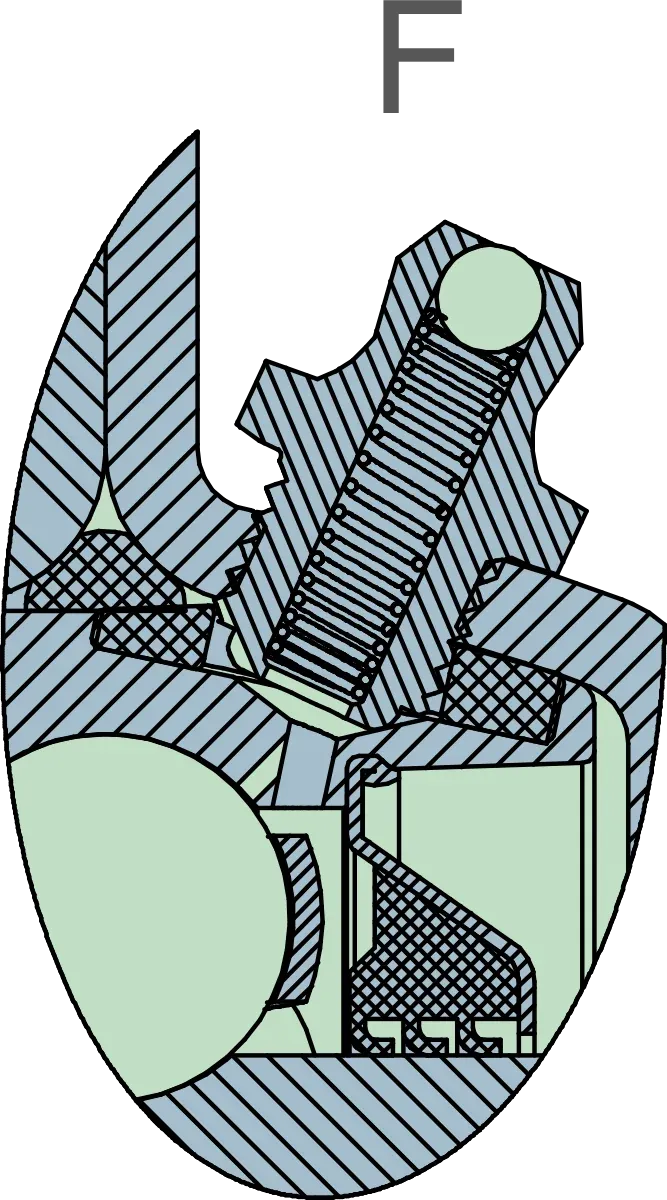

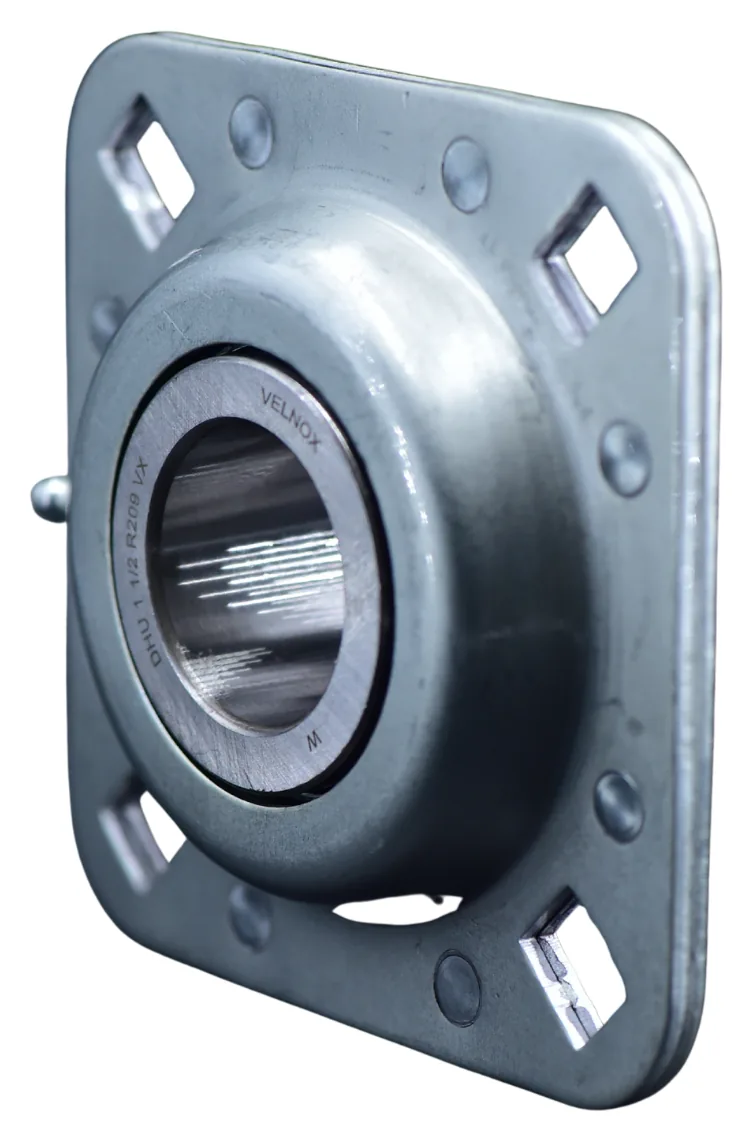

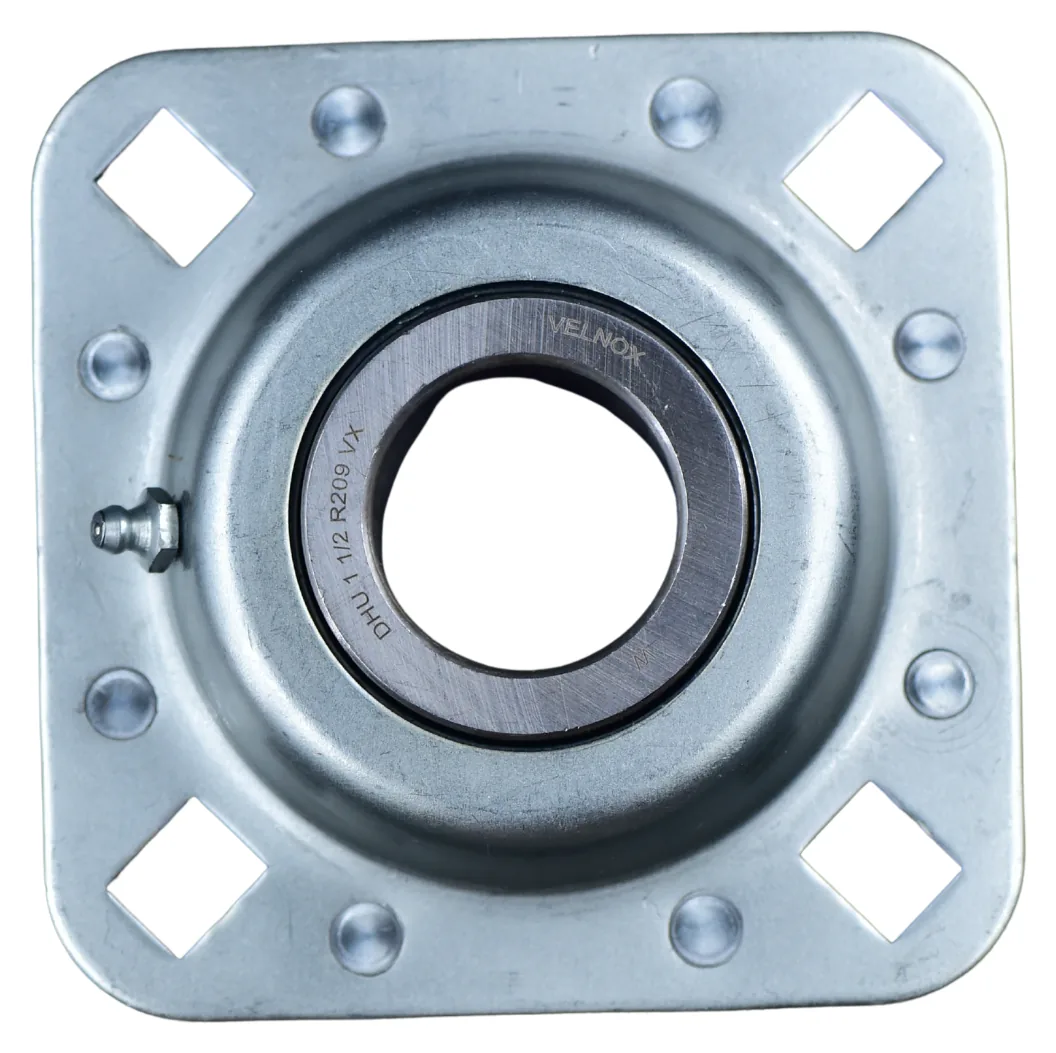

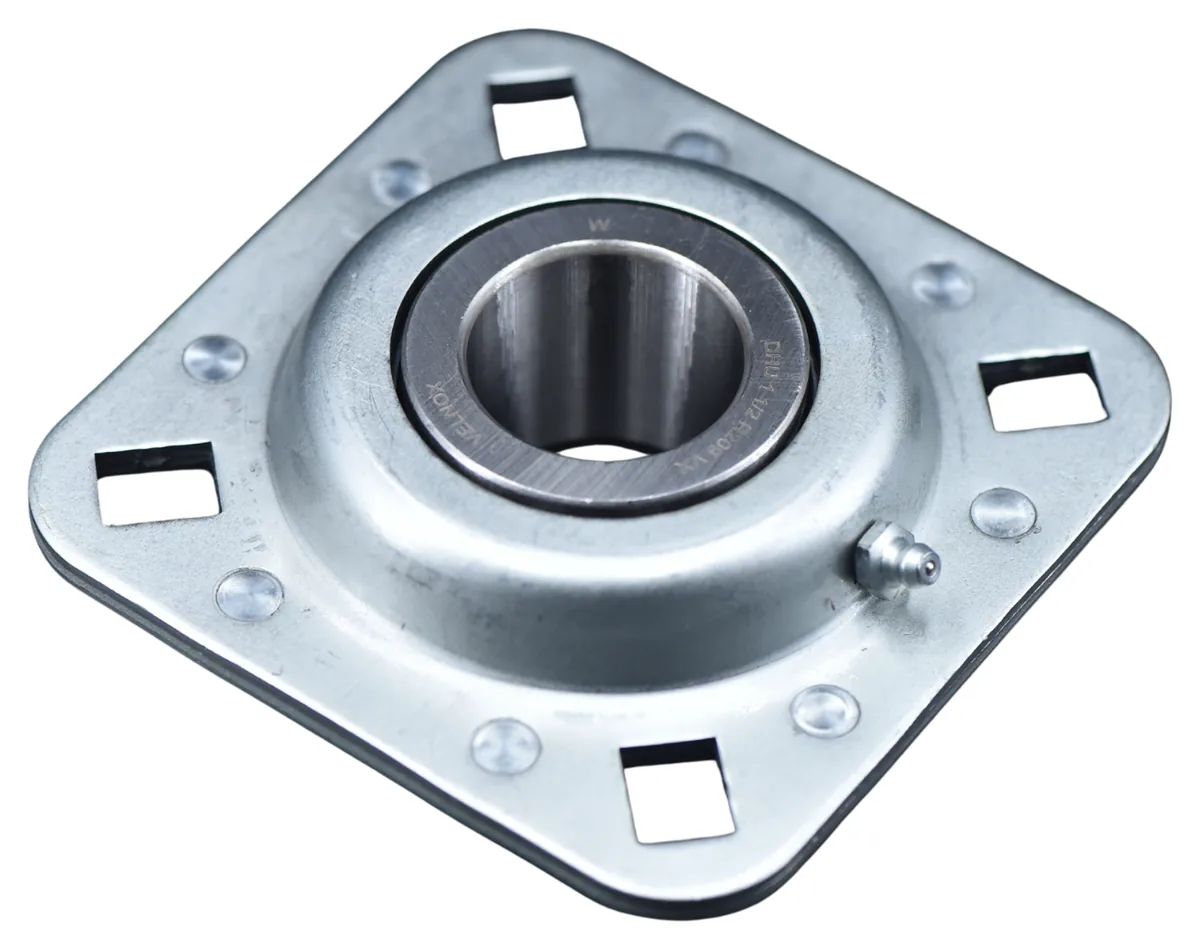

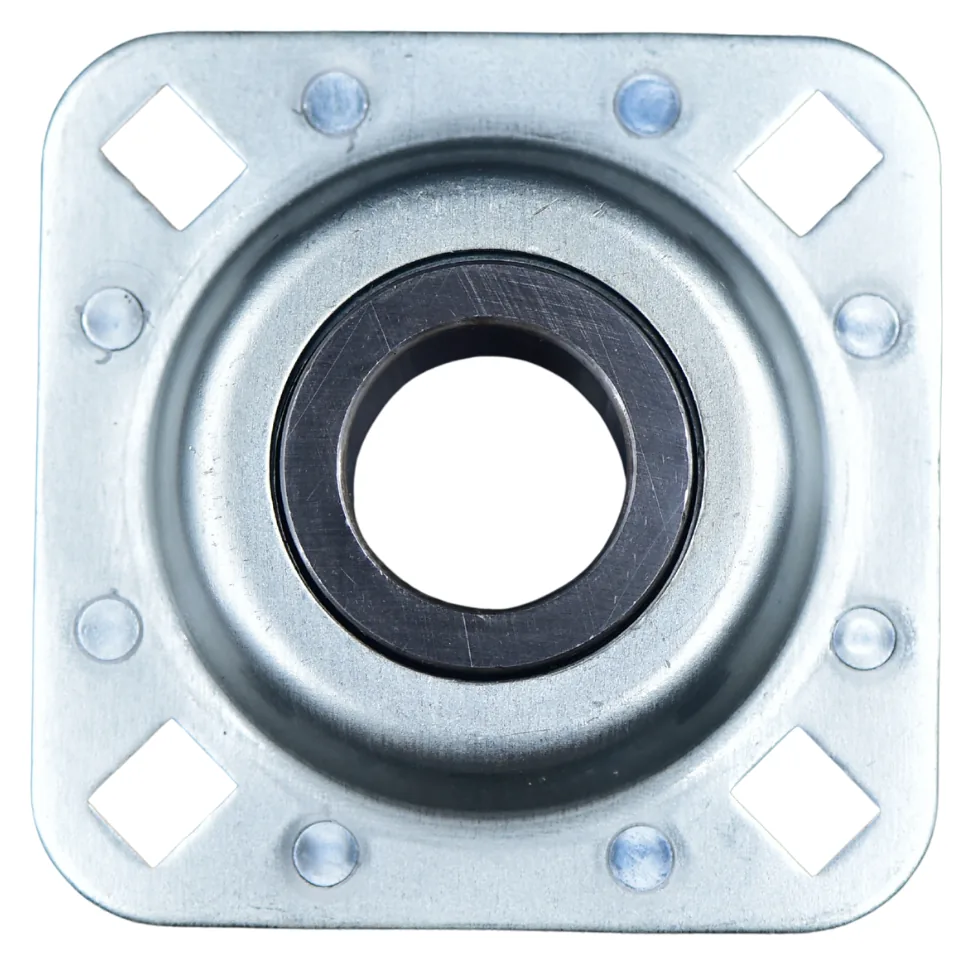

Disc flanged bearing unit with 4 mounting holes for disc harrows and tillage equipment with inch shaft fit. Bore d = 38.1 mm (1 1/2"), mounting base J = 127 mm, overall length L = 127 mm, centring diameter Da = 97 mm, inner ring width B = 42.85 mm, Cdyn = 32.5 kN, Co = 20.4 kN, mass 1.63 kg. VX sealing system — multi-lip contact seals on both sides of the bearing — ensures reliable protection of the rolling zone in direct contact with soil, dust and moisture. Direct replacement for TIMKEN DHU 1 1/2 R209, CT-AGRI FD209RB, RBF FD 209-1 1/2 RD, PEER ST 491 B and FKL GWST209PPB38; used in disc harrows and cultivators from KRAUSE (part no. 1934-12-0, 40-109), Great Plains (part no. 822-208C), John Deere (part no. AA53919, AN280333) and KUHN (part no. Q4045130).
Ready for integration into your project?
Get exact CAD models of the units in the required format or contact our engineers for customization to your operating environment.
| Bore diameter d (inch) | 1.5004 |
|---|---|
| Bore diameter d (mm) | 38.11 |
| Inner ring width B (mm) | 42.85 |
| Outer ring width C (mm) | 22 |
| Centering diameter Da (mm) | 97 |
| Overall length L (mm) | 127 |
| Overall housing width A1 (mm) | 3.5 |
| Bolt hole spacing J (mm) | 127 |
| Bolt hole diameter N (mm) | 13.5 |
| Flange face to inner ring end face distance A (mm) | 39 |
| Radial load Fr (kN) | 7.7 |
| Axial load Fa (kN) | 3.8 |
| Dynamic load rating Cdyn (kN) | 32.5 |
| Static load rating Co (kN) | 20.4 |
| Mass | 1.63 |

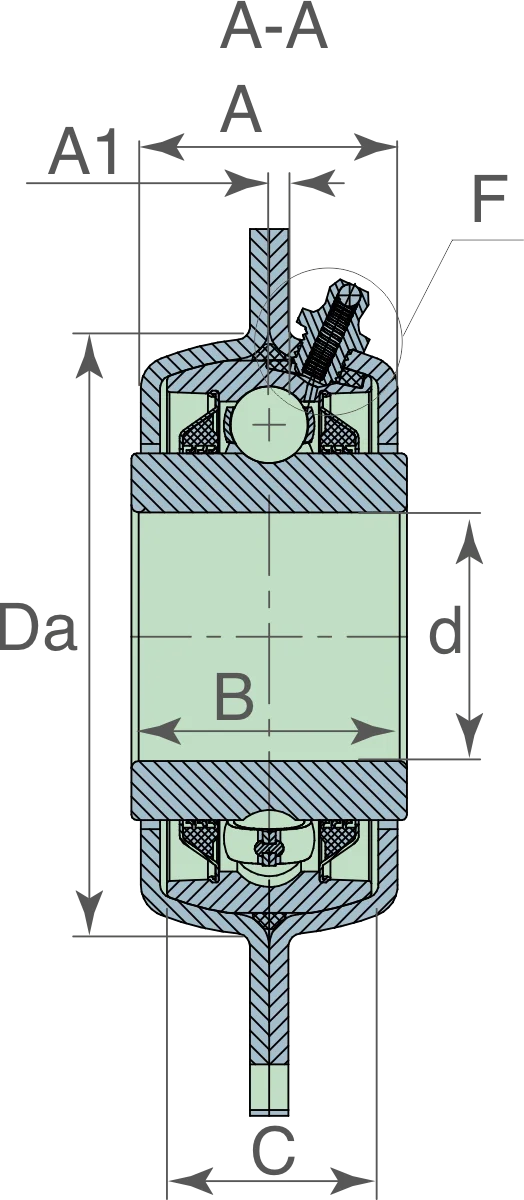

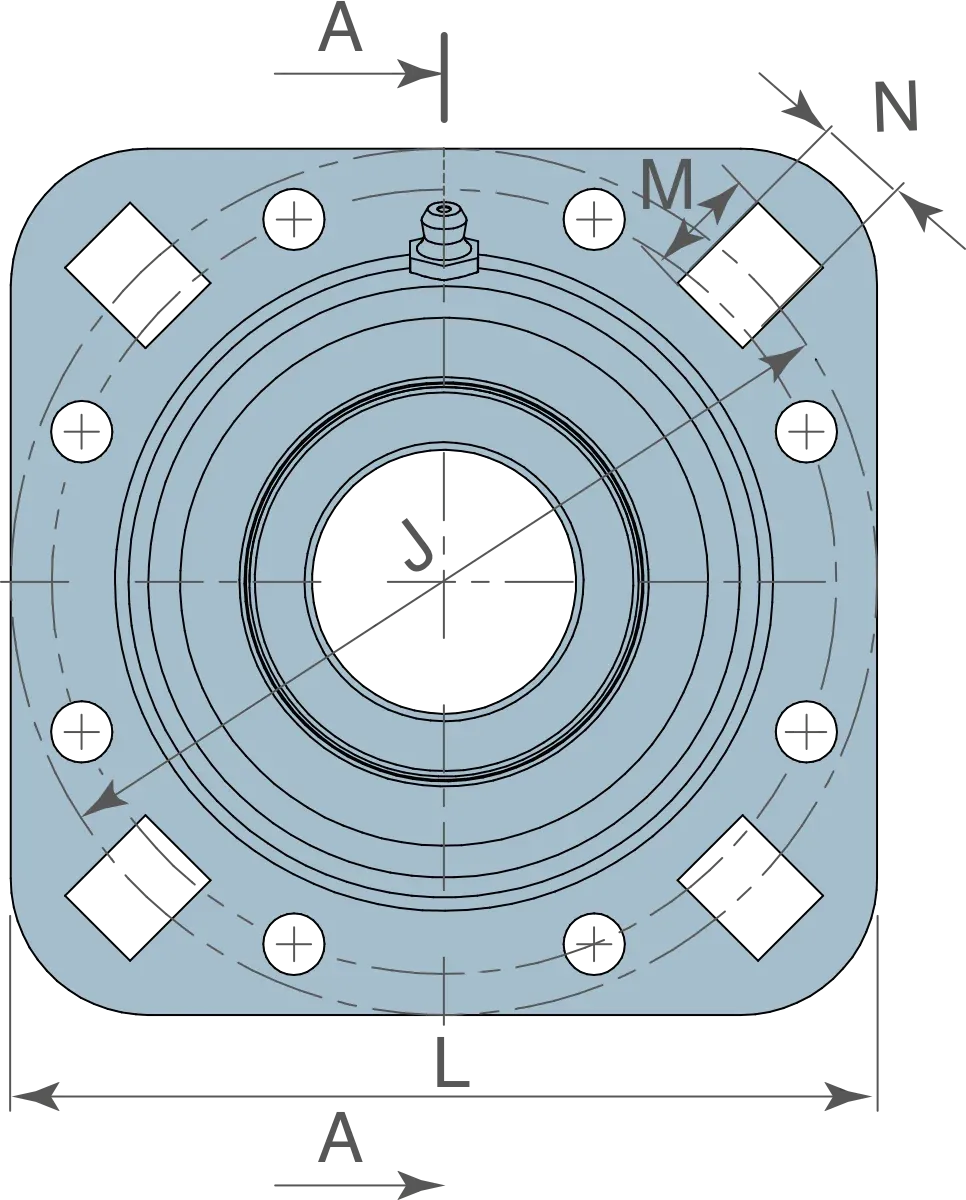

Interactive Drawing
| Bore diameter d (inch) | 1.5004 |
|---|---|
| Bore diameter d (mm) | 38.11 |
| Inner ring width B (mm) | 42.85 |
| Outer ring width C (mm) | 22 |
| Centering diameter Da (mm) | 97 |
| Overall length L (mm) | 127 |
| Overall housing width A1 (mm) | 3.5 |
| Bolt hole spacing J (mm) | 127 |
| Bolt hole diameter N (mm) | 13.5 |
| Flange face to inner ring end face distance A (mm) | 39 |
| Radial load Fr (kN) | 7.7 |
| Axial load Fa (kN) | 3.8 |
| Dynamic load rating Cdyn (kN) | 32.5 |
| Static load rating Co (kN) | 20.4 |
| Mass | 1.63 |
