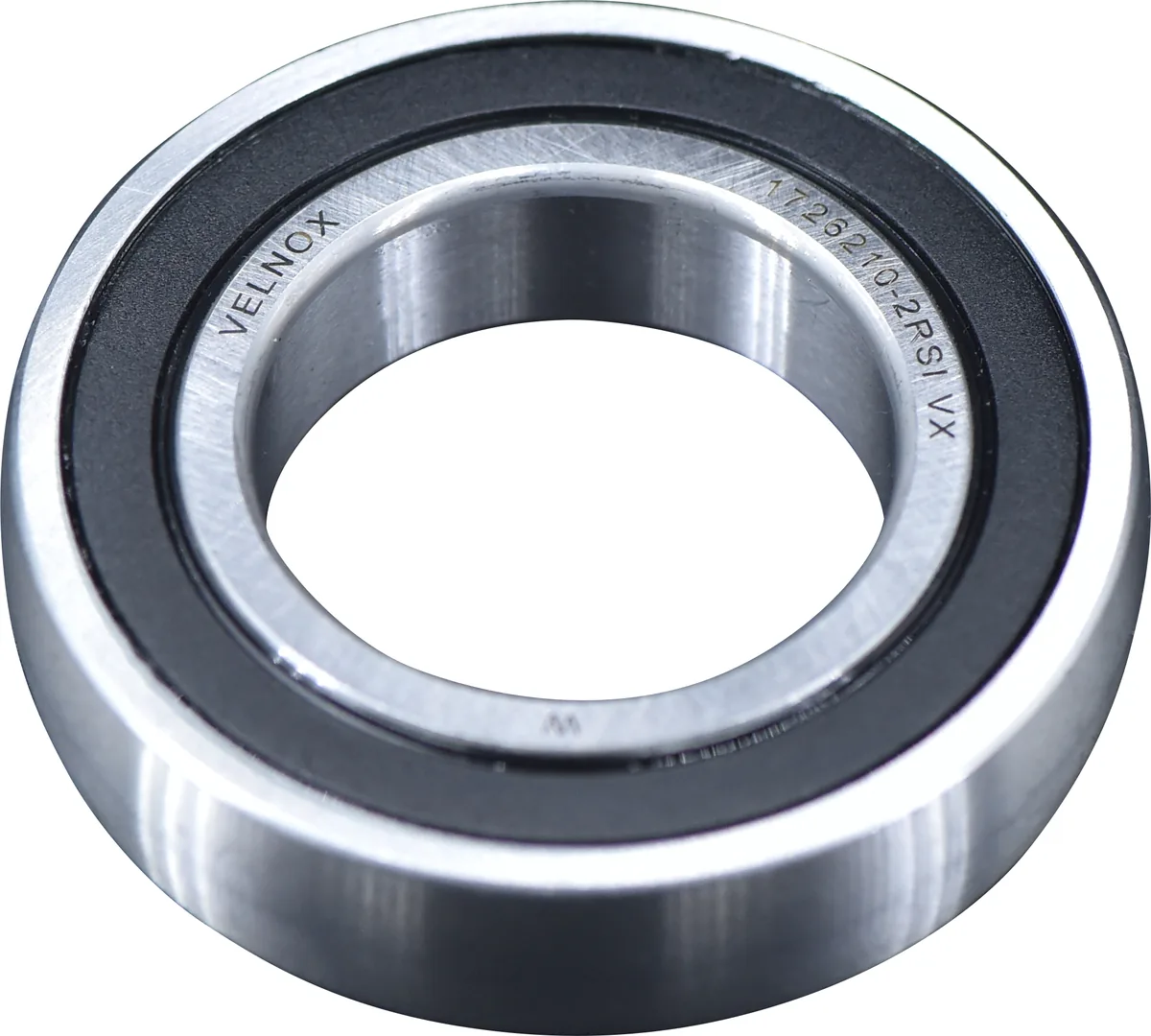

1726210-2RS1 VX

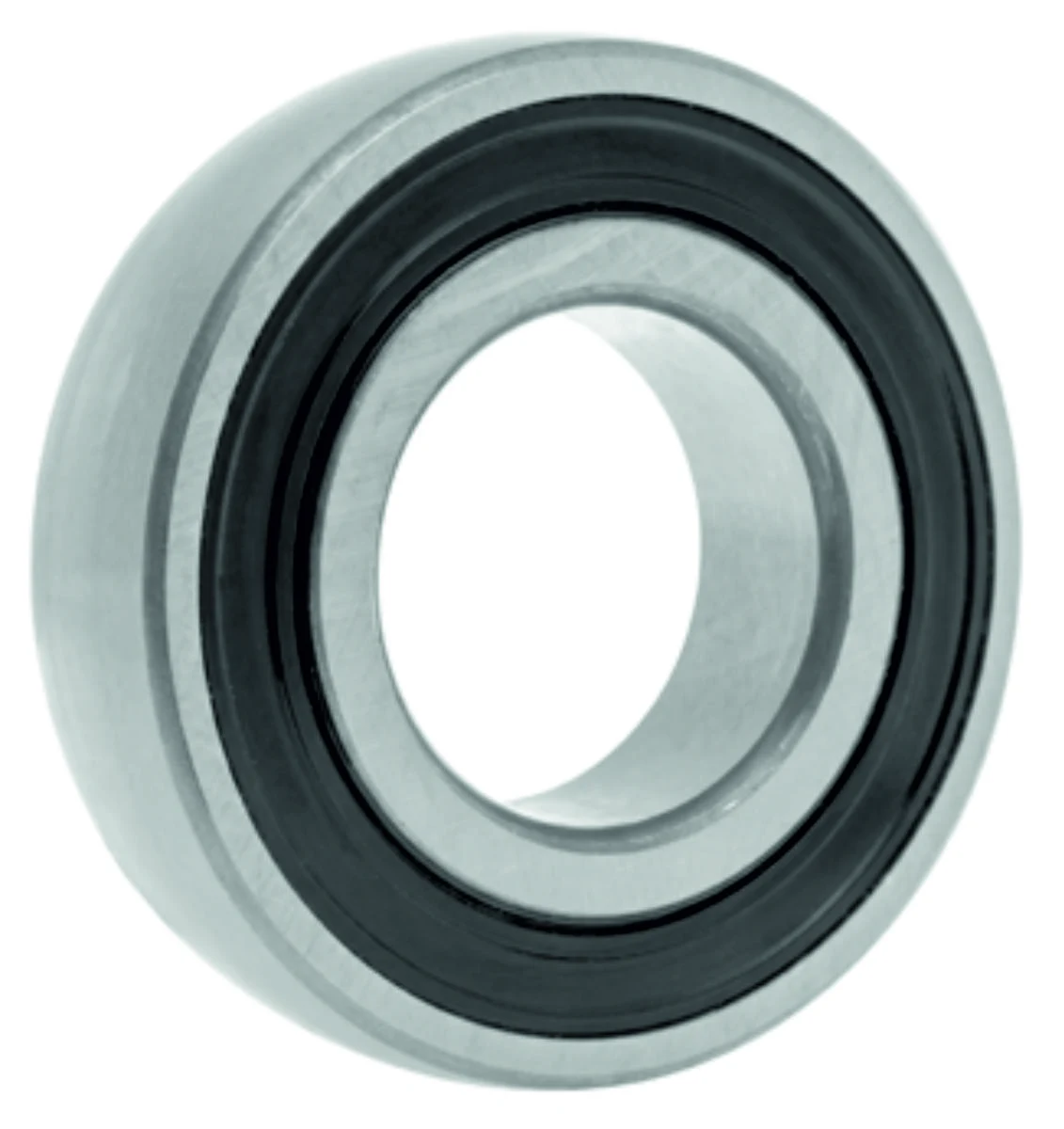

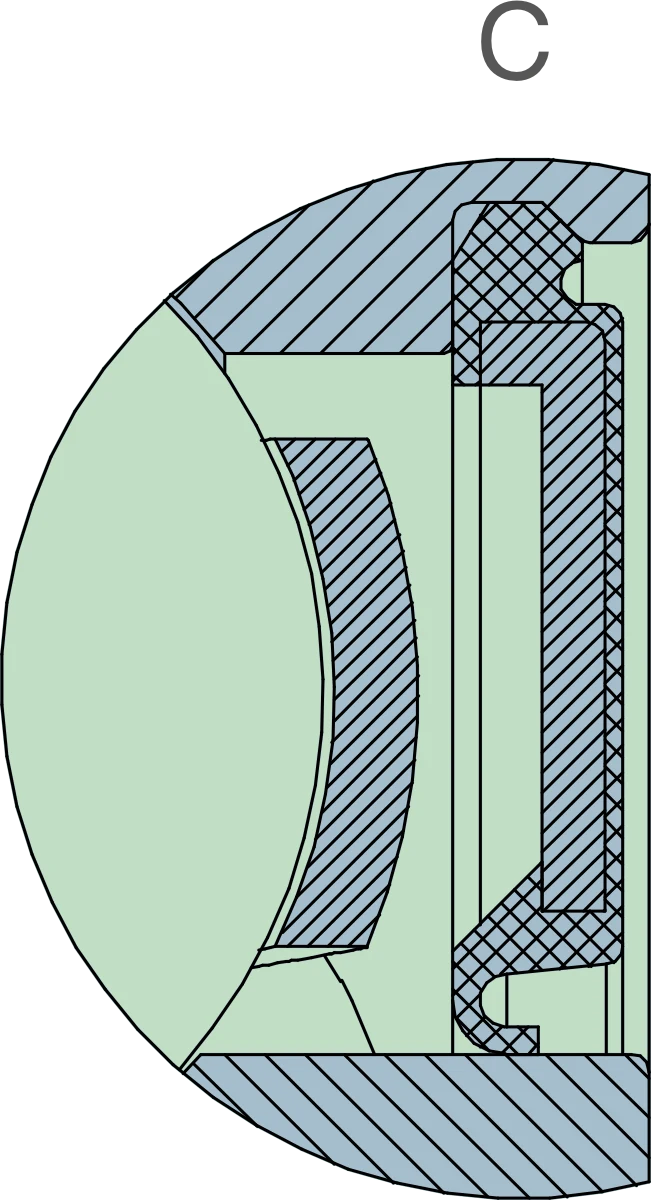

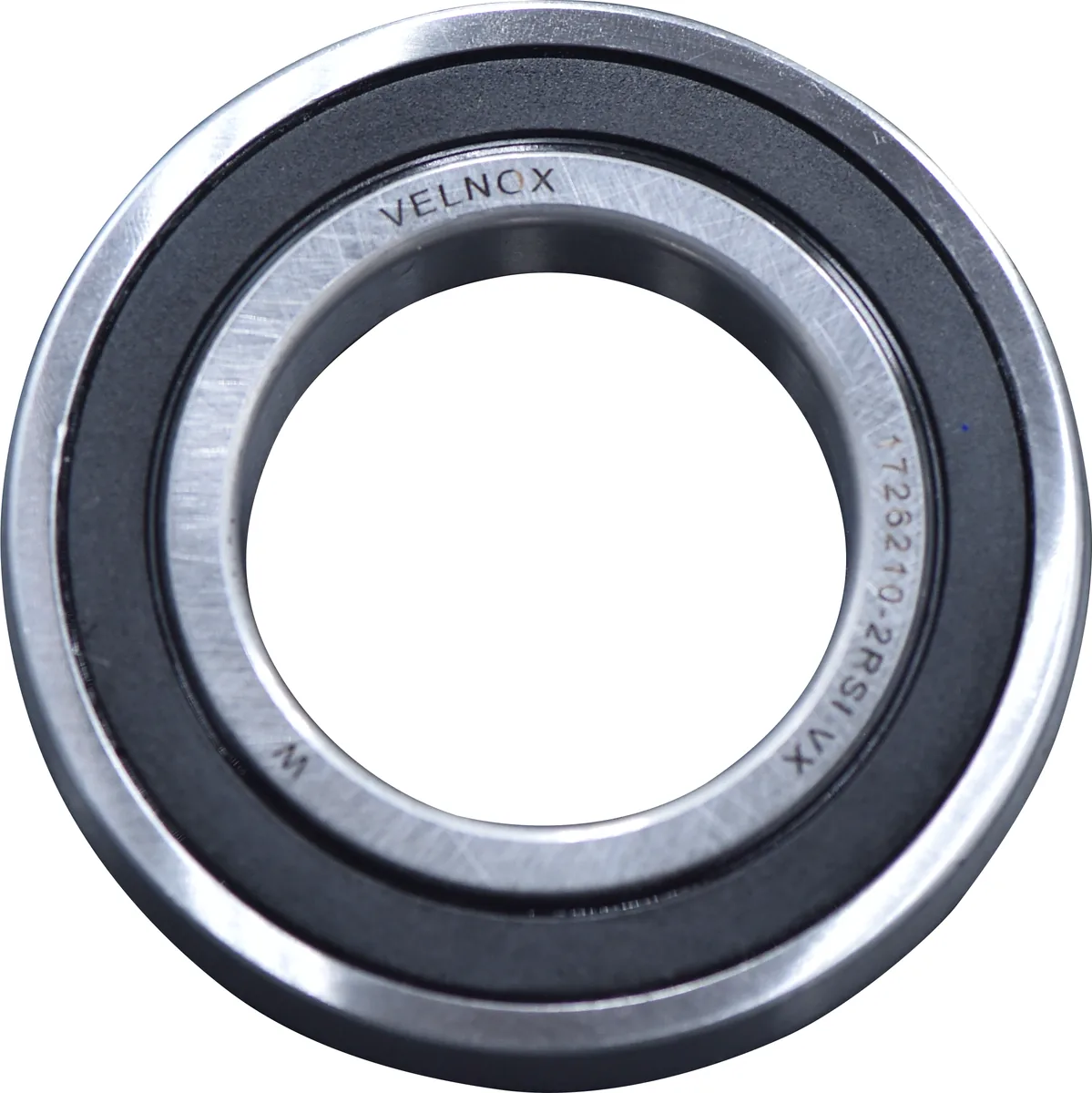

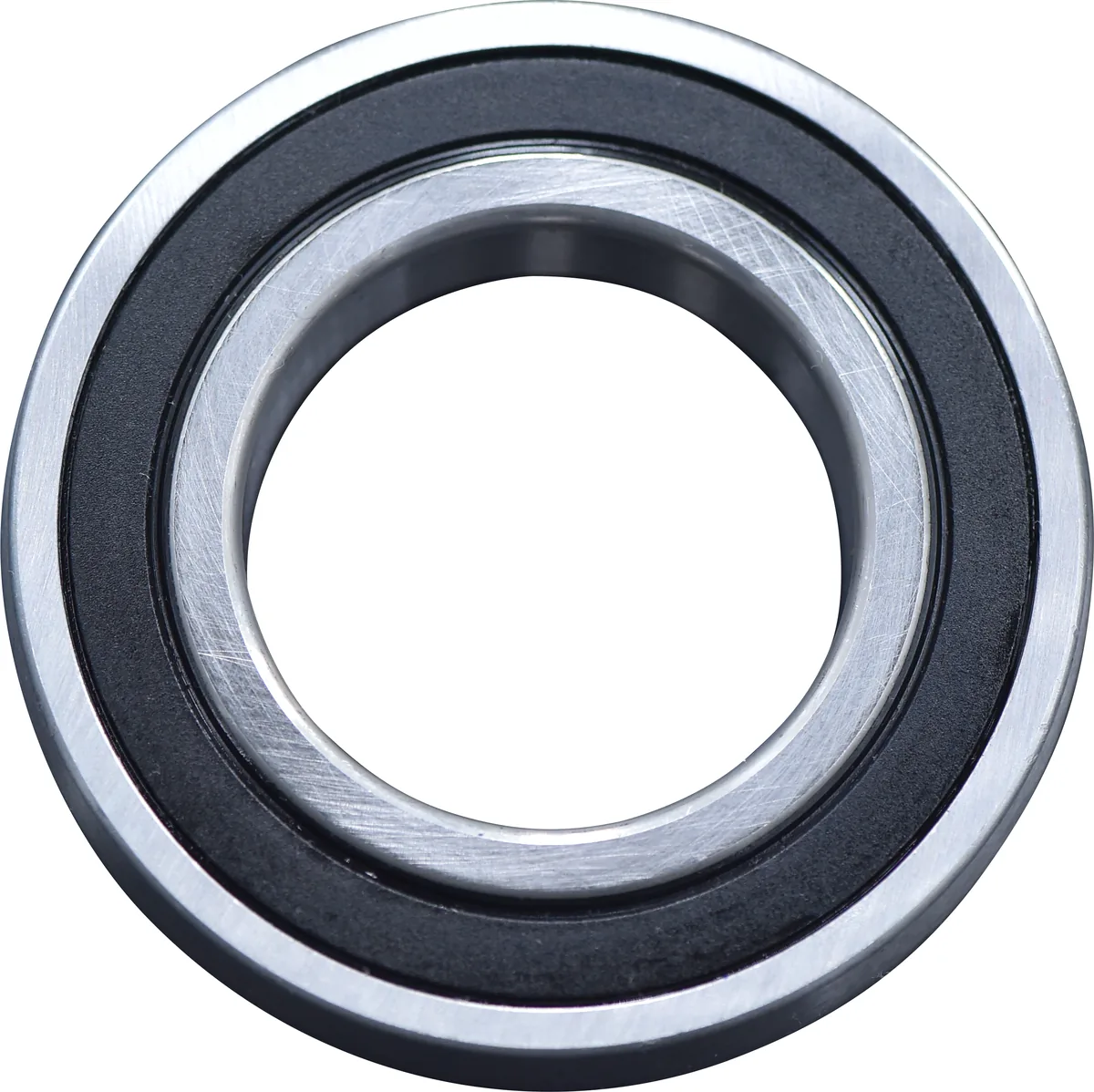

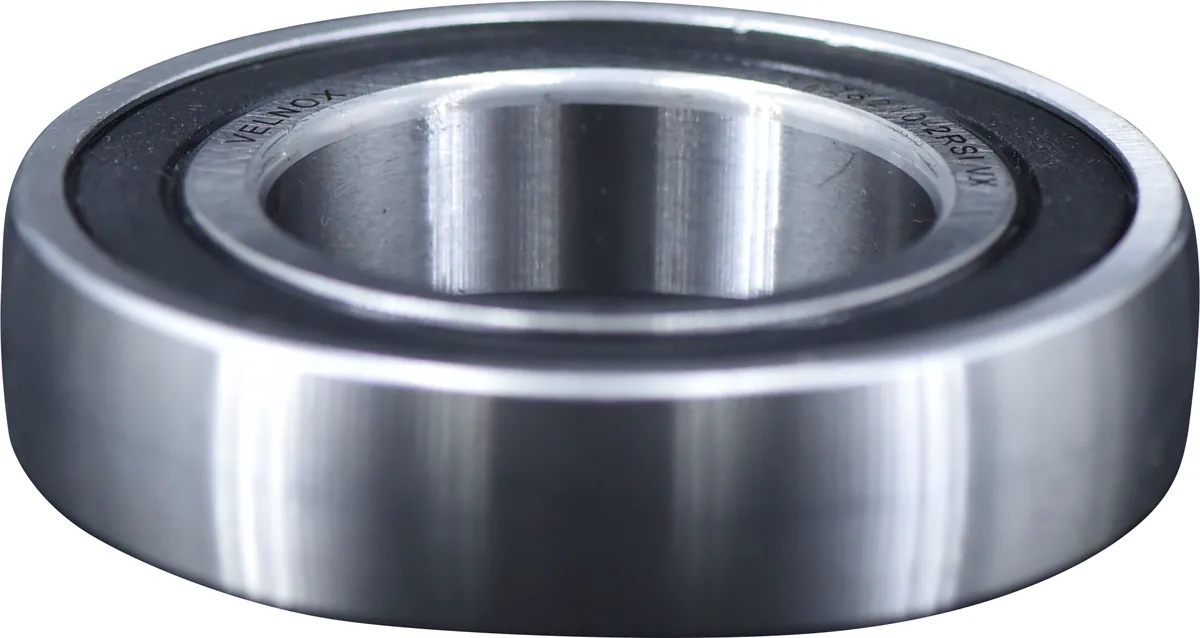

Radial ball bearing of the 1726 series (type 210) with an extended inner ring (d₁ = 62.5 mm) — the largest in the 172x200 range, designed for significant radial loads in tillage assemblies. Bore diameter d = 50 mm, outer diameter D = 90 mm, inner ring width B = 20 mm; dynamic load rating — 35.1 kN, static — 23.2 kN. Symmetric double-sided contact seal 2RS1 provides complete protection against mechanical contaminants and moisture under field conditions. Technical equivalent of SKF 1726210-2RS1, INA 210 NPPB, TIMKEN 1726210 2RS, FBJ CS 210 2RS; used in Dominoni (11330) and Kuhn (81005000, 81005099) assemblies.
Ready for integration into your project?
Get exact CAD models of the units in the required format or contact our engineers for customization to your operating environment.
| Bore diameter d (mm) | 50 |
|---|---|
| D (mm) — housing outside diameter | 90 |
| Inner ring width B (mm) | 20 |
| Centering diameter d1 (mm) | 62.5 |
| Chamfer dimension r 1,2 (mm) | 1.1 |
| Dynamic load rating Cdyn (kN) | 35.1 |
| Static load rating Co (kN) | 23.2 |
| Fatigue load limit Pu (kN) | 0.98 |
| Mass | 0.41 |
Interactive Drawing
| Bore diameter d (mm) | 50 |
|---|---|
| D (mm) — housing outside diameter | 90 |
| Inner ring width B (mm) | 20 |
| Centering diameter d1 (mm) | 62.5 |
| Chamfer dimension r 1,2 (mm) | 1.1 |
| Dynamic load rating Cdyn (kN) | 35.1 |
| Static load rating Co (kN) | 23.2 |
| Fatigue load limit Pu (kN) | 0.98 |
| Mass | 0.41 |
Cross References
TIMKEN1726210 2RS
NSK-RHP1726210 2RS
SKF1726210 2RS1
INA210 NPPB
SKFXG210NPPB
FBJCS 210 2RS
Dominoni11330
Kuhn81005000
Kuhn81005099
