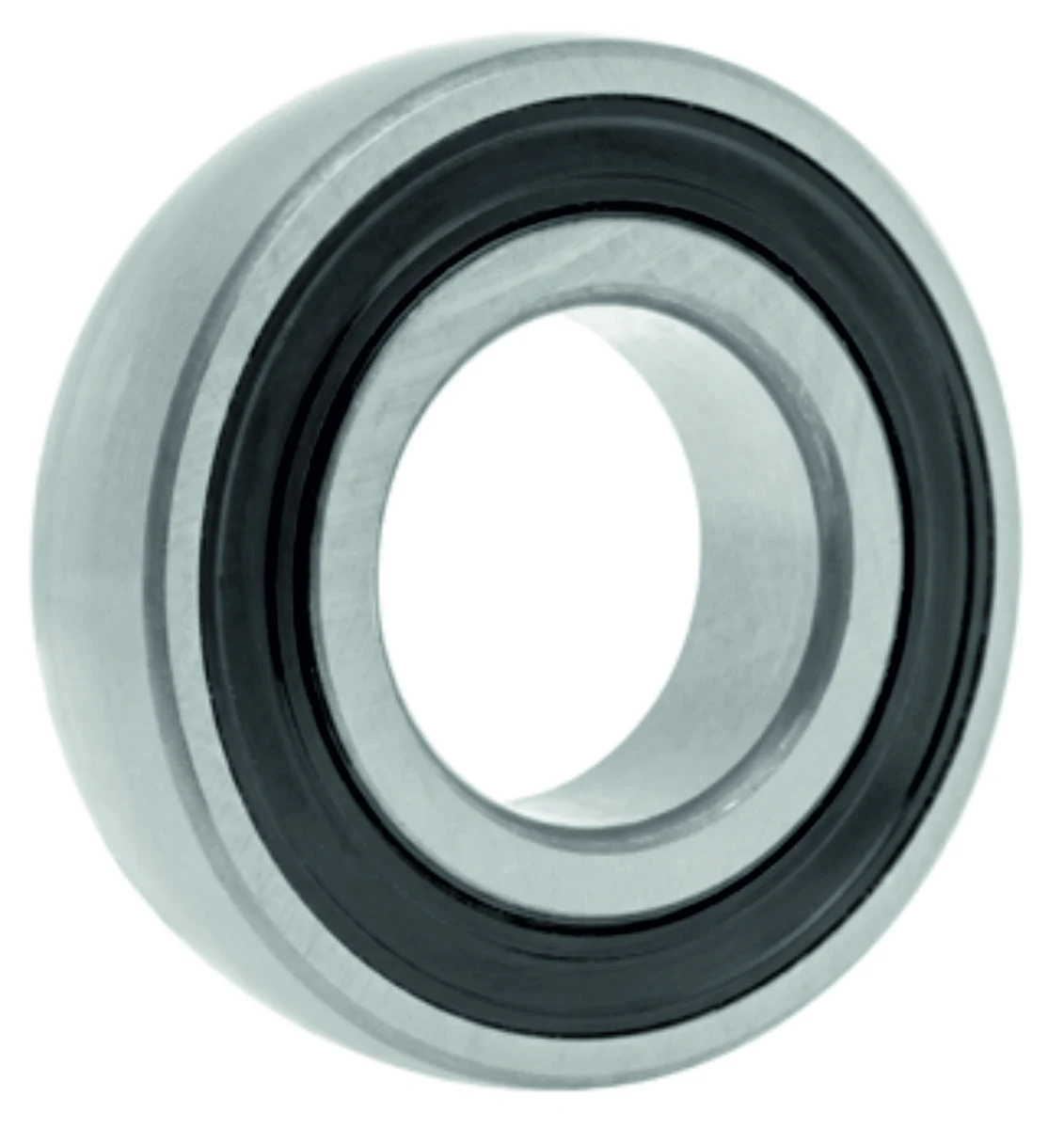

1726207-2RS1 VX

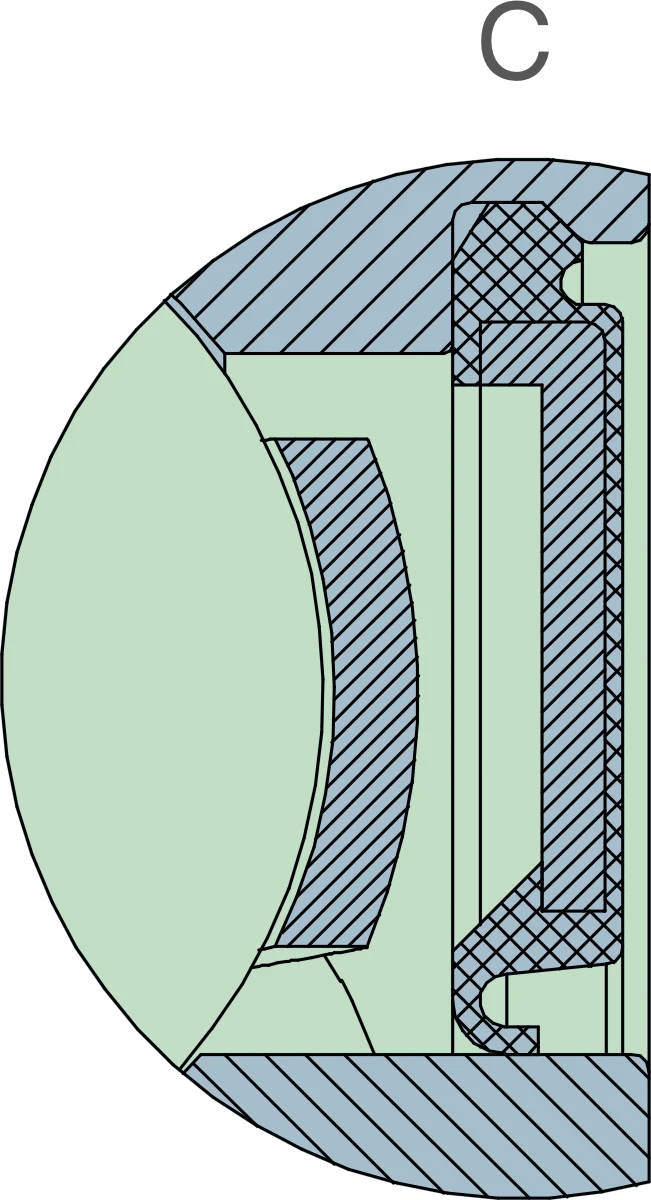

Radial ball bearing of the 1726 series (type 207) with an extended inner ring (d₁ = 46.1 mm) for medium-size assemblies in seeder and tillage equipment. Bore diameter d = 35 mm, outer diameter D = 72 mm, inner ring width B = 17 mm; dynamic load rating — 25.5 kN, static — 15.3 kN. Double-sided contact seal 2RS1 — rubber lip on both sides — effectively blocks ingress of soil particles. Interchangeable with SKF 1726207-2RS1, INA G207-XL-NPPB, TIMKEN 1726207 2RS, SNR 6207 SEE; used in OEM assemblies of MONOSEM seeders (4655.1), Kuhn (81043576), CASE (1407629R91, 3166063R91) and Capello harvesters (03.2026.00).
Ready for integration into your project?
Get exact CAD models of the units in the required format or contact our engineers for customization to your operating environment.
| Bore diameter d (mm) | 35 |
|---|---|
| D (mm) — housing outside diameter | 72 |
| Inner ring width B (mm) | 17 |
| Centering diameter d1 (mm) | 46.1 |
| Chamfer dimension r 1,2 (mm) | 1 |
| Dynamic load rating Cdyn (kN) | 25.5 |
| Static load rating Co (kN) | 15.3 |
| Fatigue load limit Pu (kN) | 0.25 |
| Mass | 0.66 |

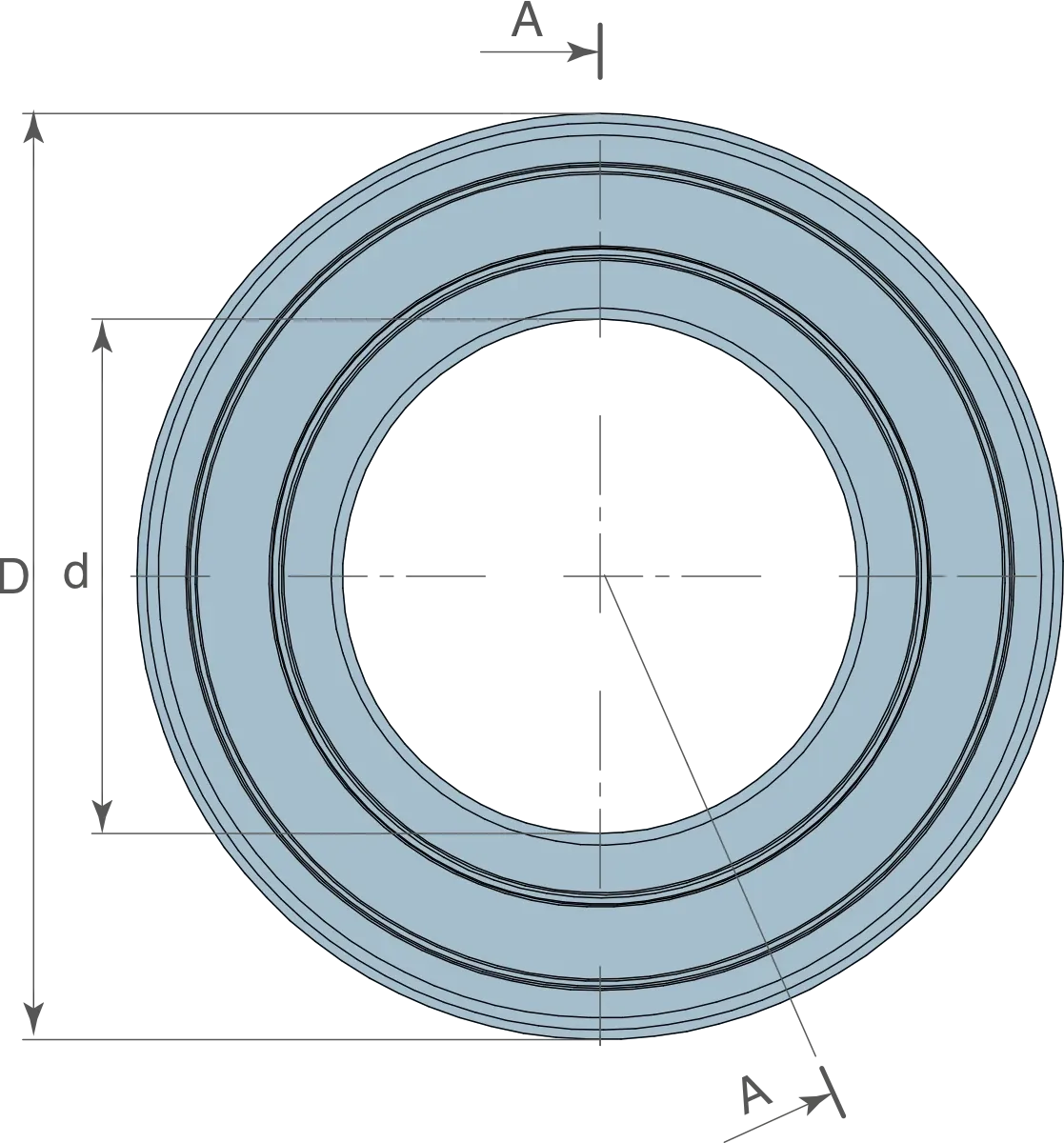

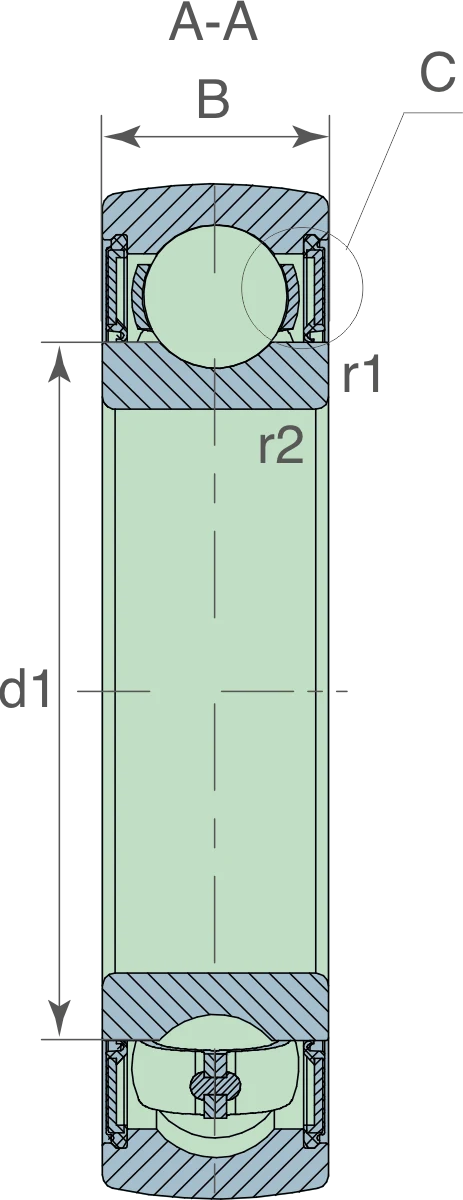

Interactive Drawing
| Bore diameter d (mm) | 35 |
|---|---|
| D (mm) — housing outside diameter | 72 |
| Inner ring width B (mm) | 17 |
| Centering diameter d1 (mm) | 46.1 |
| Chamfer dimension r 1,2 (mm) | 1 |
| Dynamic load rating Cdyn (kN) | 25.5 |
| Static load rating Co (kN) | 15.3 |
| Fatigue load limit Pu (kN) | 0.25 |
| Mass | 0.66 |
Cross References
TIMKEN1726207 2RS
NSK-RHP1726207 2RS
SKF1726207 2RS1
INA207 NPPB
SKFXG207NPPB
SNR6207 SEE
FBJCS 207 2 RS
INAG207-XL-NPPB
Capello03.2026.00
Ziegler12-058340
CASE1407629R91
CASE3166063R91
MONOSEM4655.1
Kuhn81043576
MF831822M1
B96.00264
