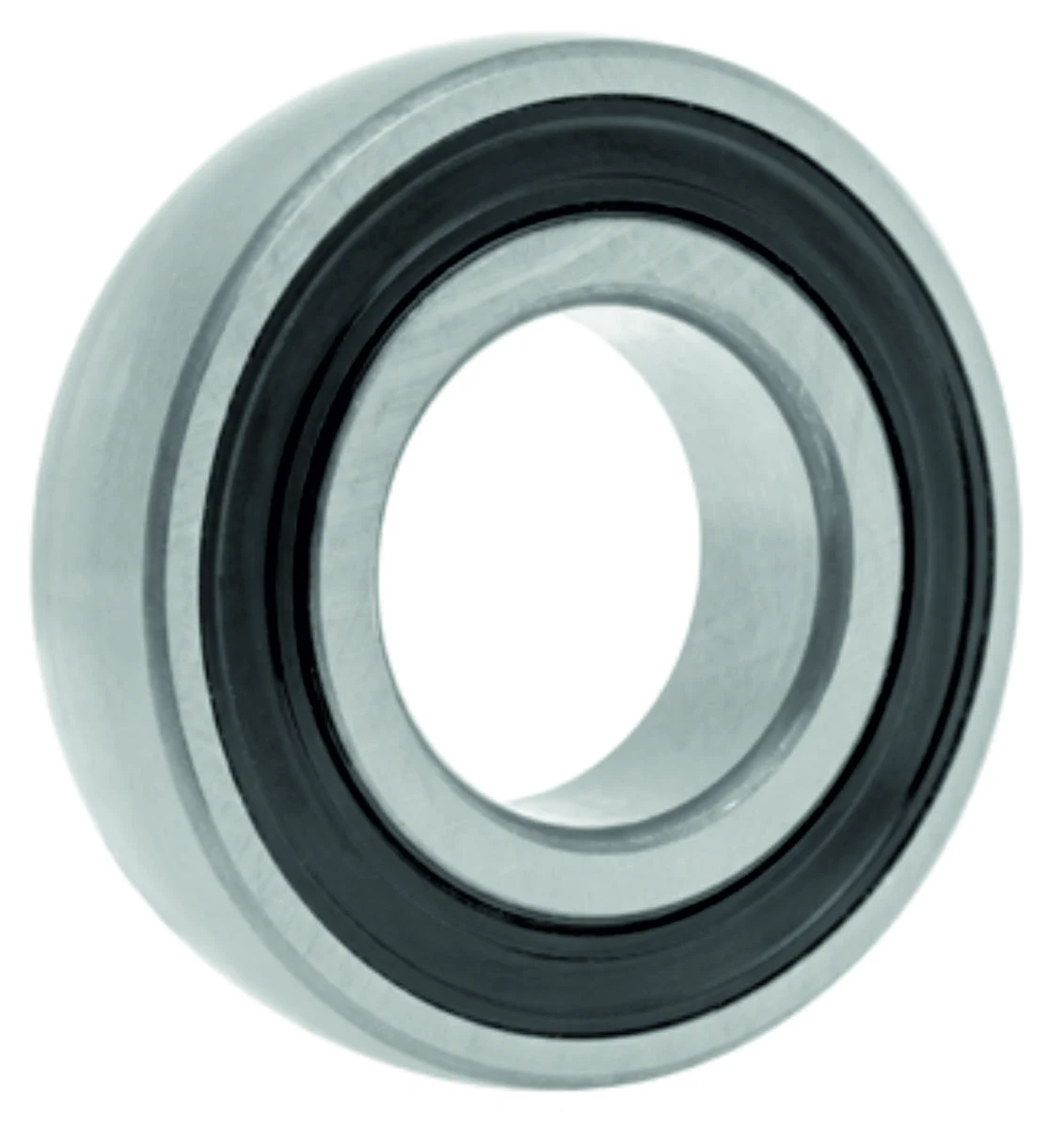

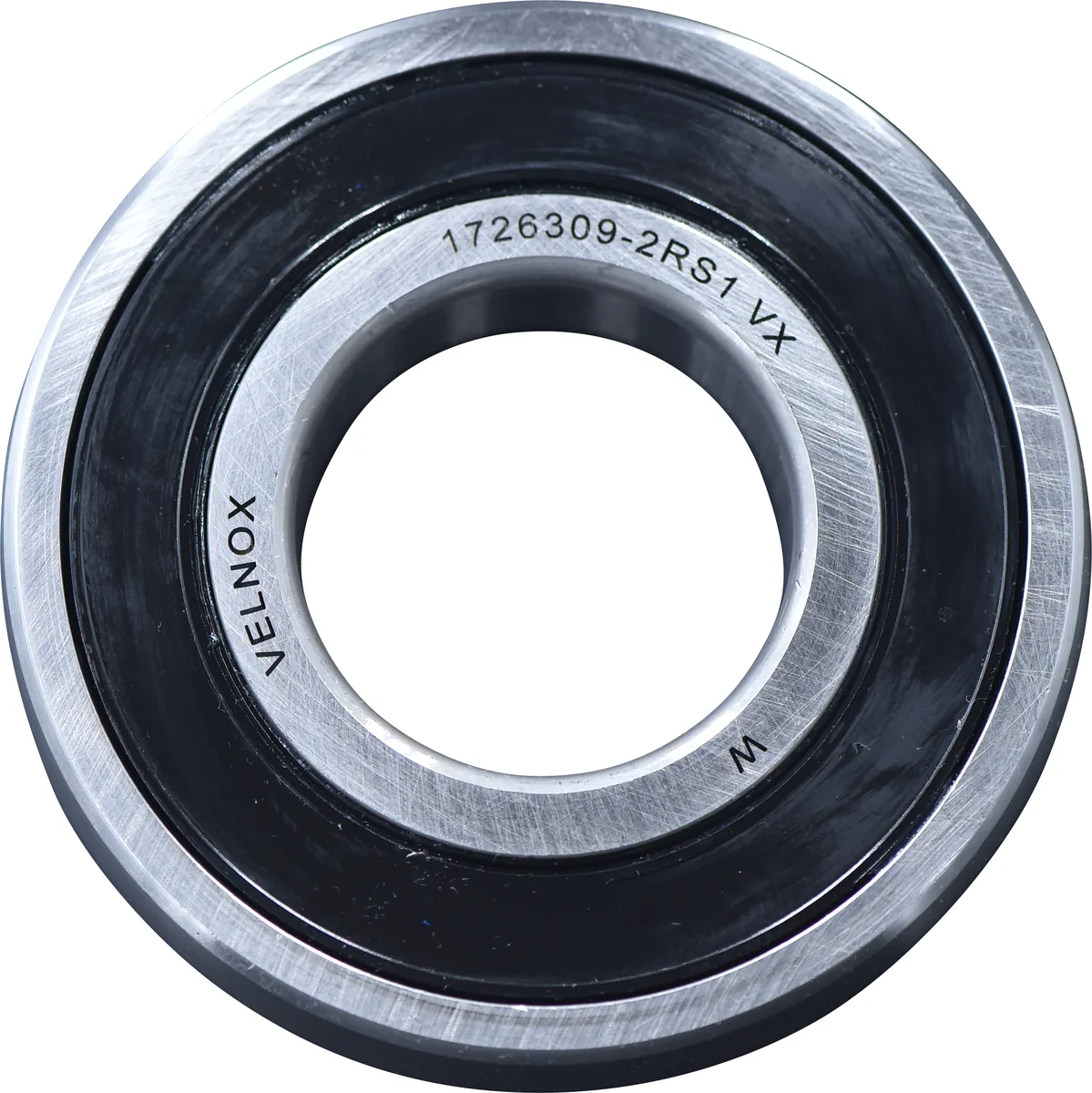

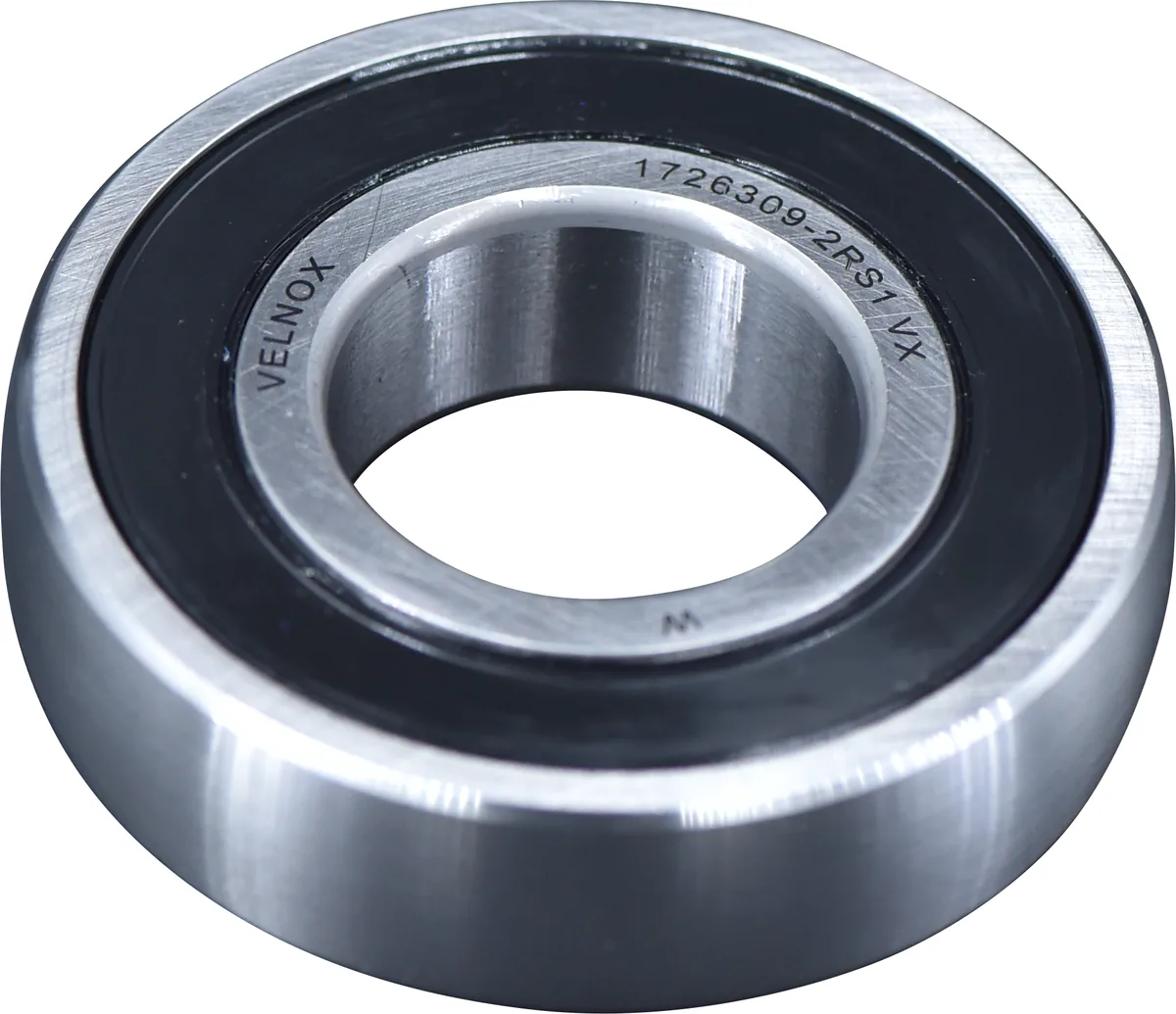

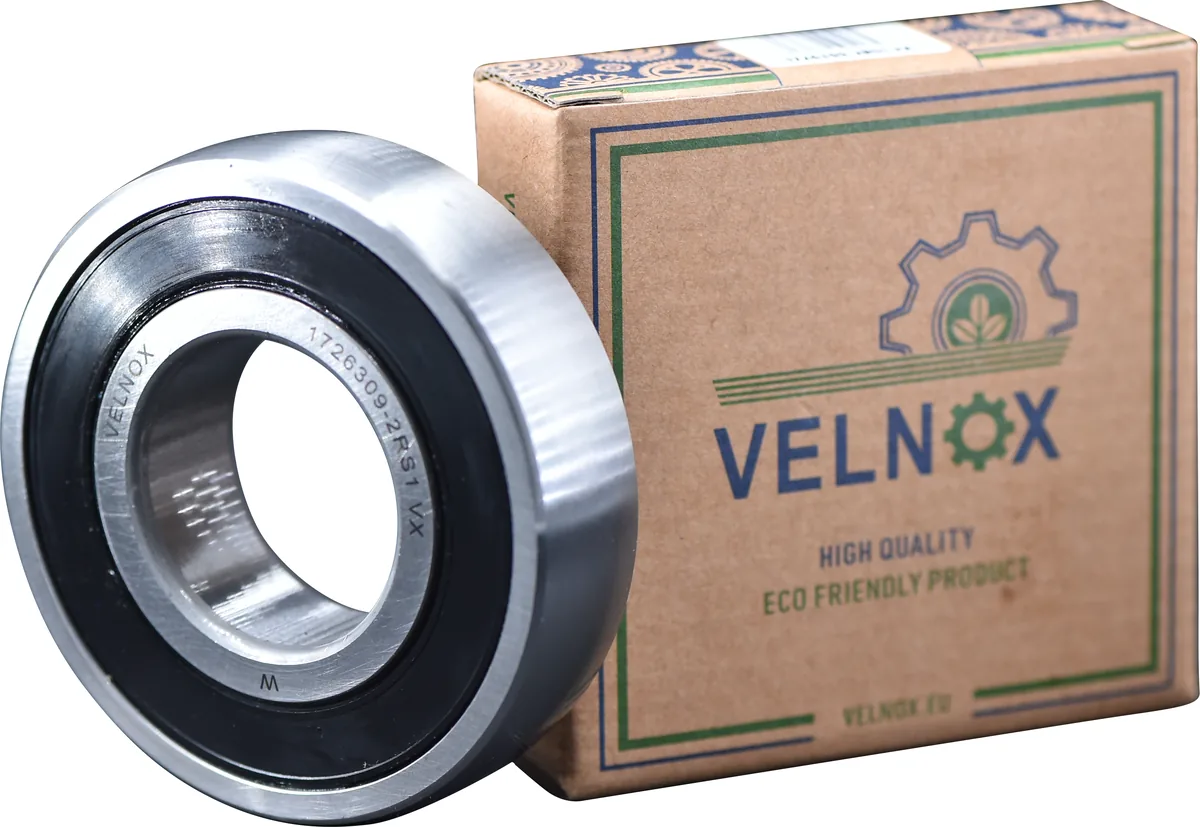

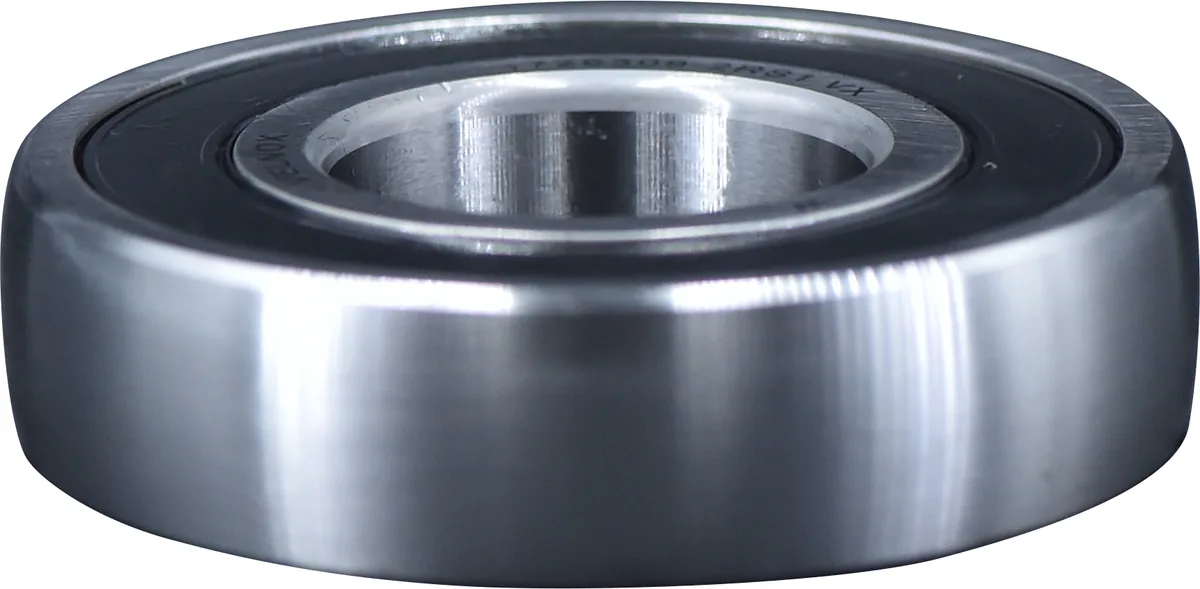

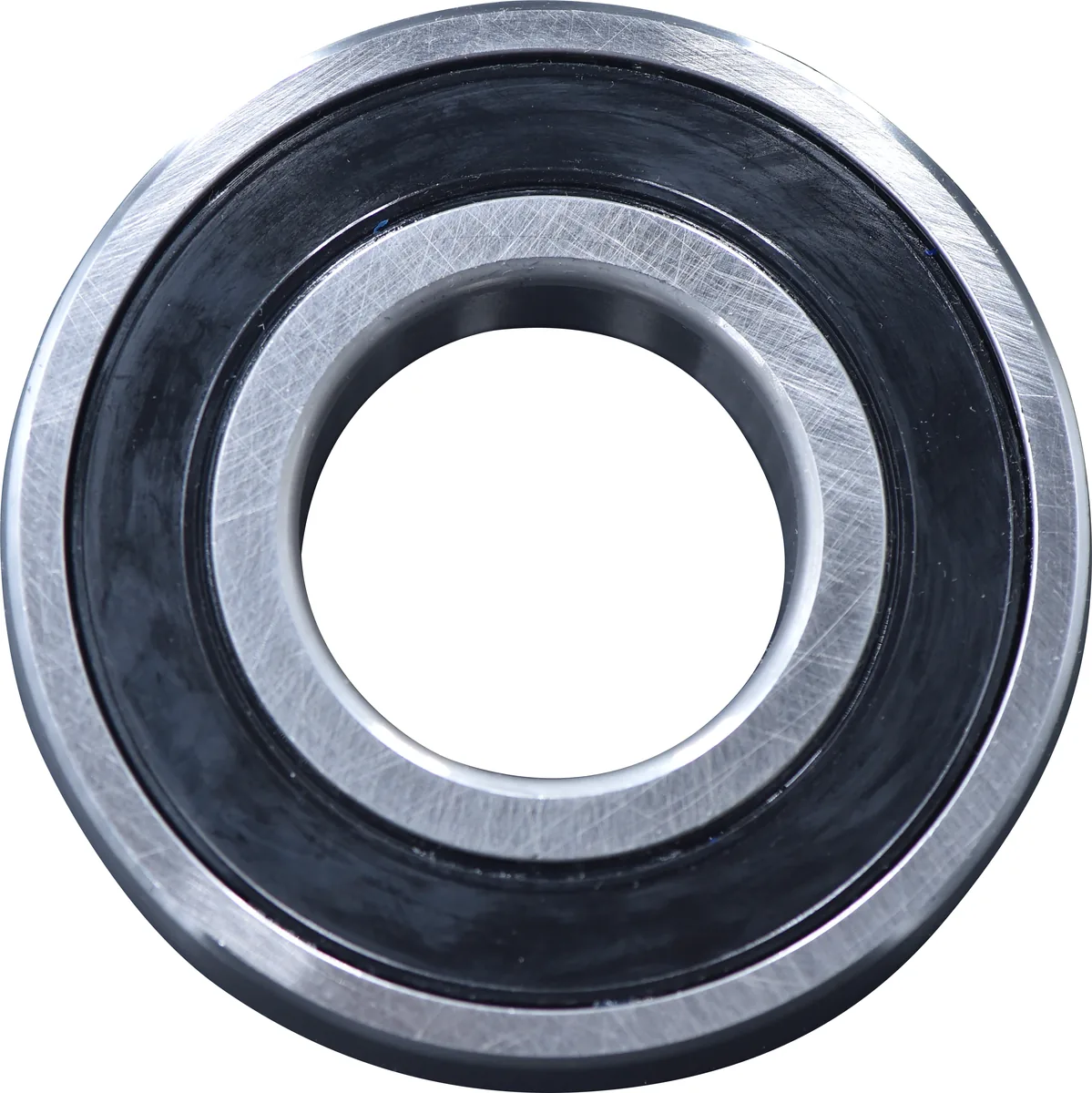

1726309-2RS1 VX
Radial ball bearing of the 1726 series type 309 with an extended inner ring (d₁ = 62.1 mm) — the larger outer diameter D = 100 mm at bore d = 45 mm delivers significantly higher load capacity compared to type 1726209. Inner ring width B = 25 mm; dynamic load rating — 52.7 kN, static — 31.5 kN. Double-sided contact seal 2RS1 provides field-condition protection against all types of contamination. Direct replacement for SKF 1726309-2RS1, FAG 76309-2RS, NTN CS309LLU, NSK CS309DDU, TIMKEN 1726309 2RS; primary OEM substitute in Gaspardo seeders (F04010225R, MG43400468, 23400434, 76100409) and ZARAMAK assemblies (1726309 2RS1).
Ready for integration into your project?
Get exact CAD models of the units in the required format or contact our engineers for customization to your operating environment.
| Bore diameter d (mm) | 45 |
|---|---|
| D (mm) — housing outside diameter | 100 |
| Inner ring width B (mm) | 25 |
| Centering diameter d1 (mm) | 62.1 |
| Chamfer dimension r 1,2 (mm) | 1.5 |
| Dynamic load rating Cdyn (kN) | 52.7 |
| Static load rating Co (kN) | 31.5 |
| Fatigue load limit Pu (kN) | 1.34 |
| Mass | 0.73 |

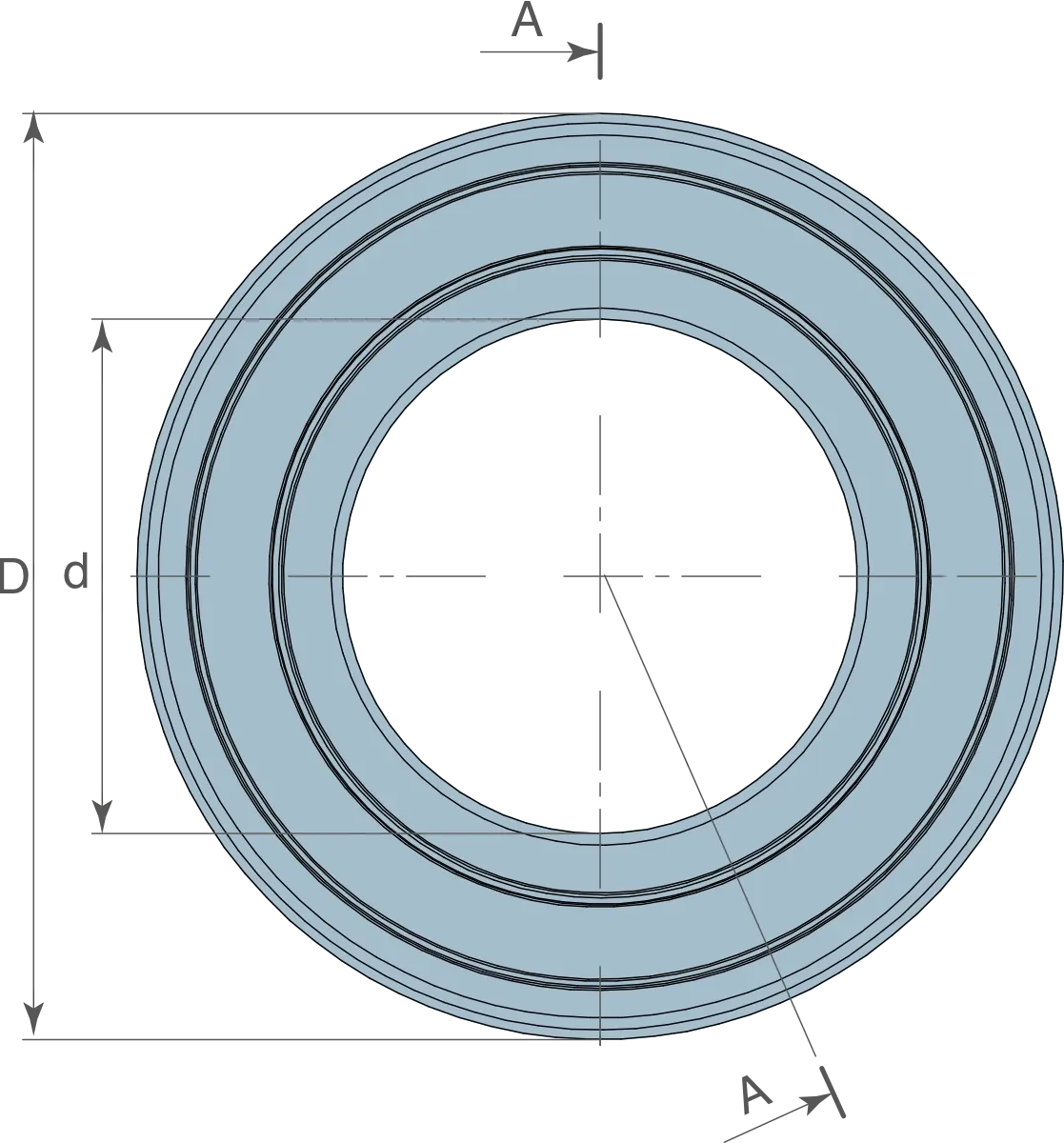

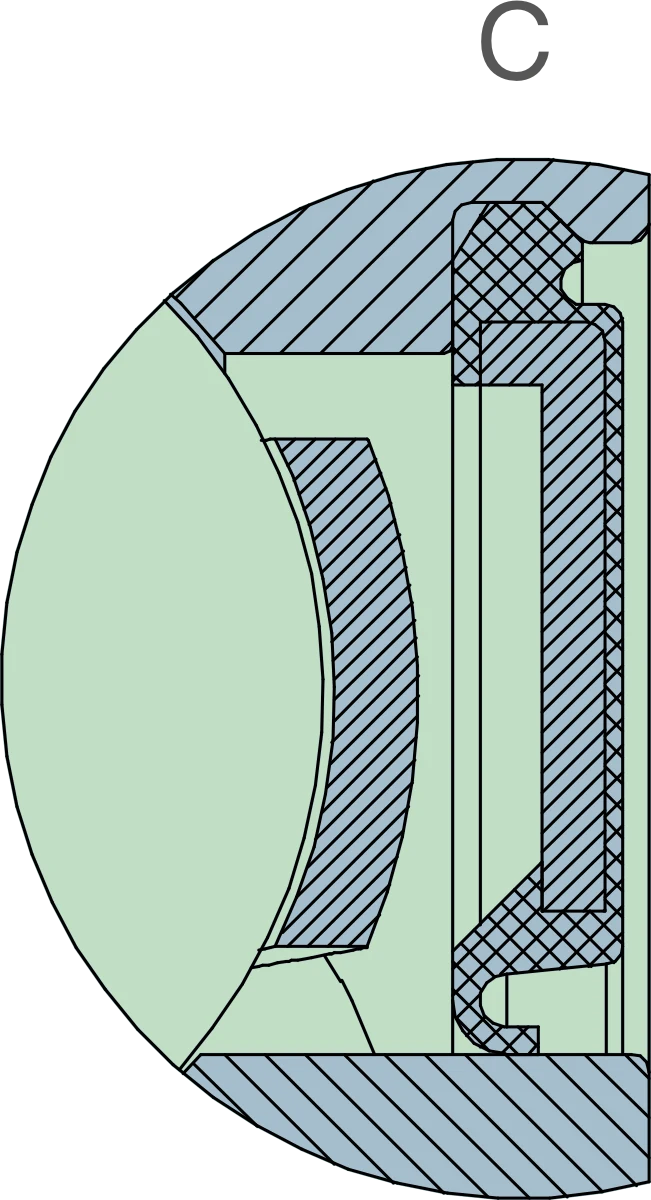

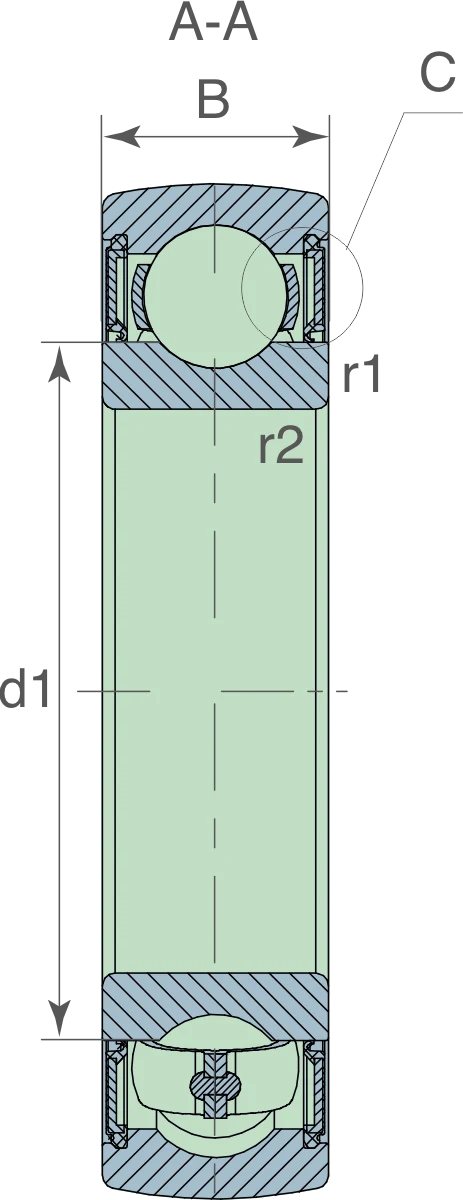

Interactive Drawing
| Bore diameter d (mm) | 45 |
|---|---|
| D (mm) — housing outside diameter | 100 |
| Inner ring width B (mm) | 25 |
| Centering diameter d1 (mm) | 62.1 |
| Chamfer dimension r 1,2 (mm) | 1.5 |
| Dynamic load rating Cdyn (kN) | 52.7 |
| Static load rating Co (kN) | 31.5 |
| Fatigue load limit Pu (kN) | 1.34 |
| Mass | 0.73 |
