AA30941 VX

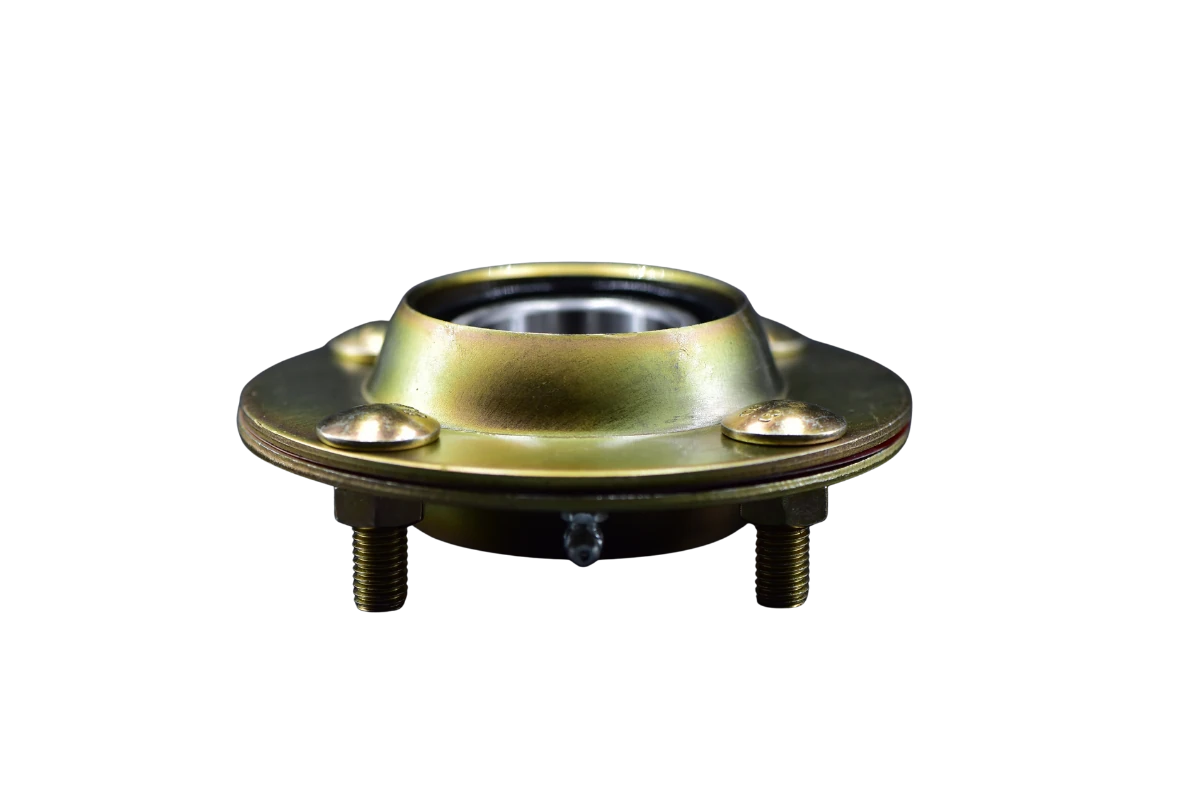

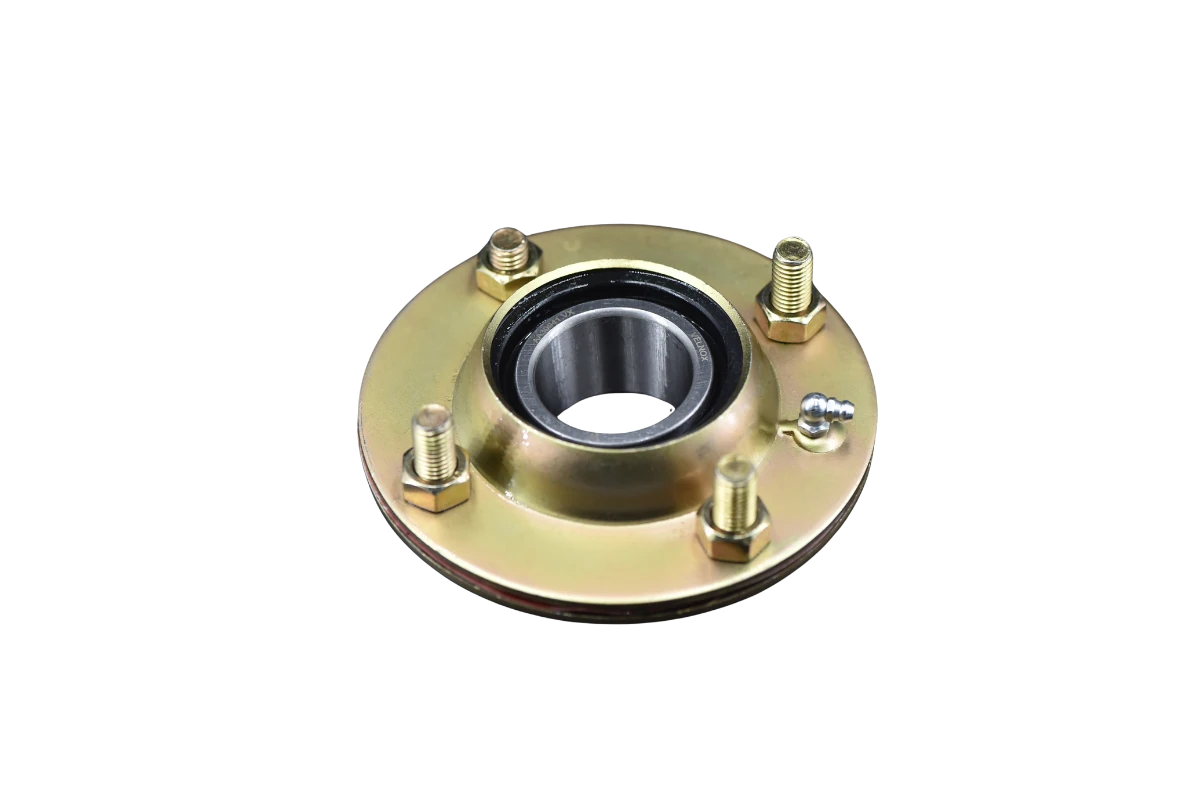

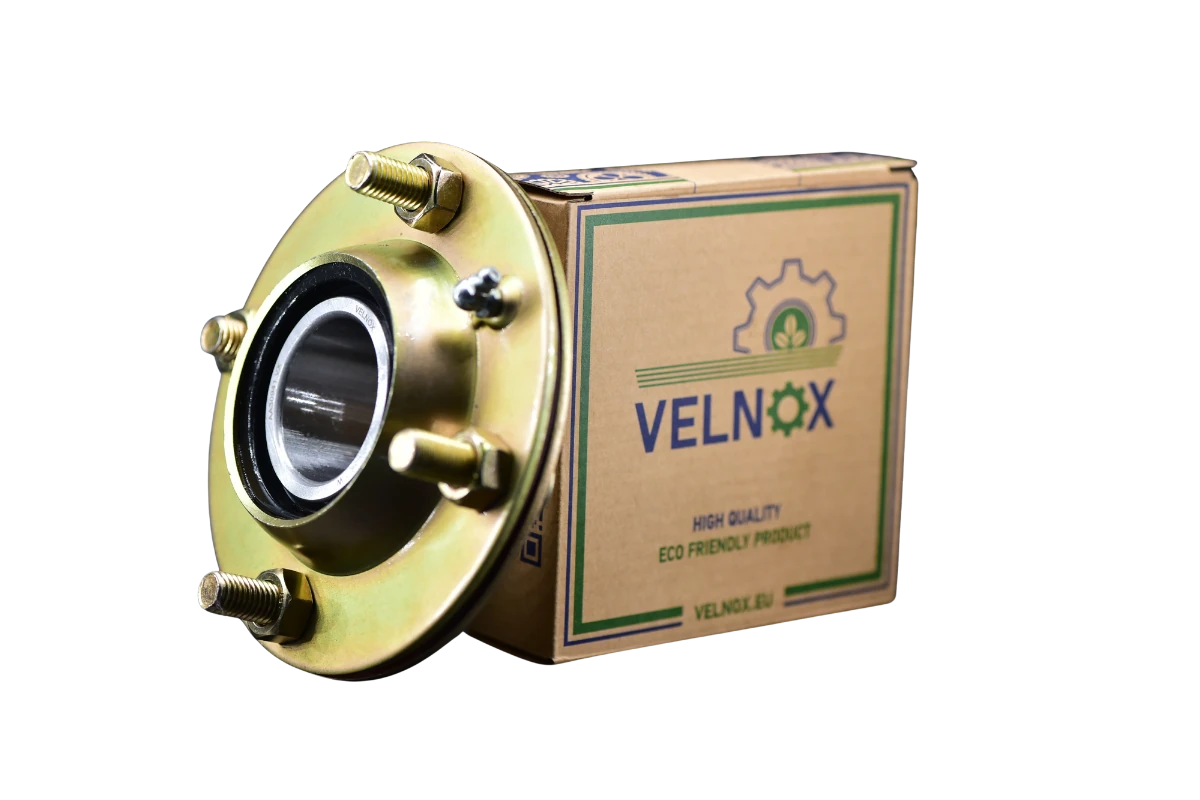

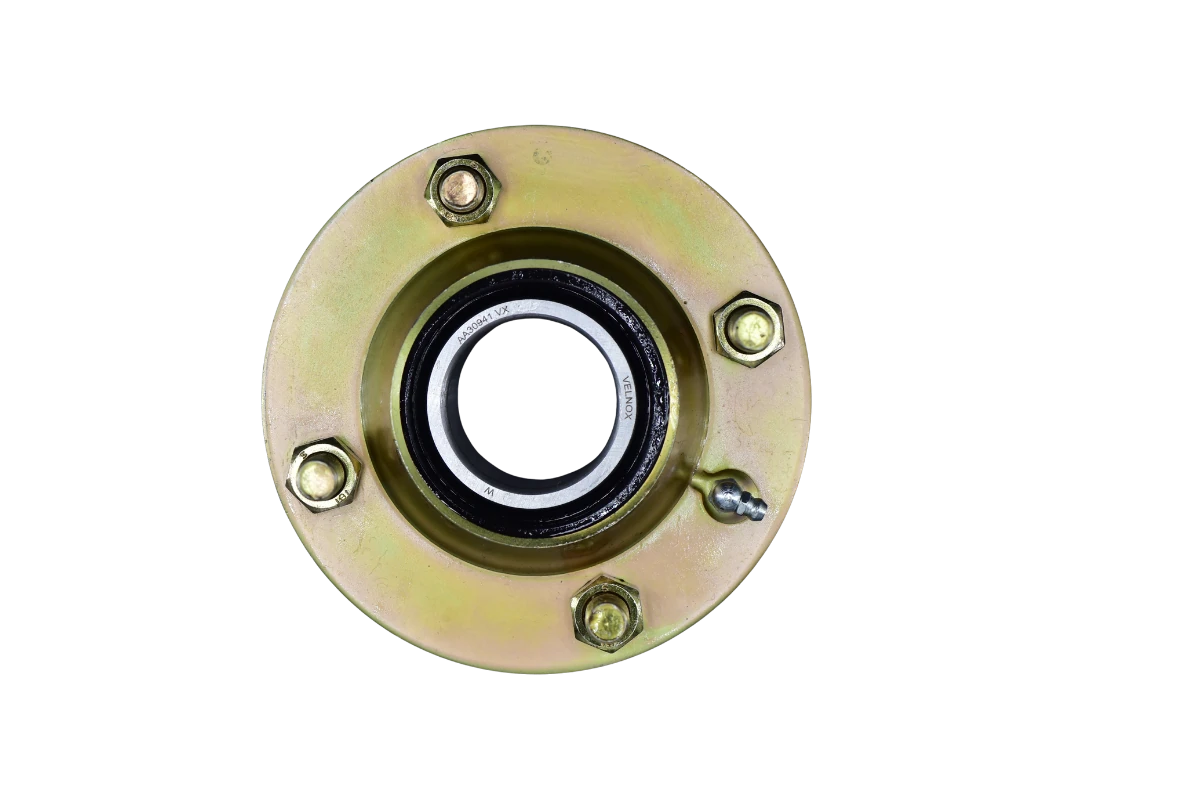

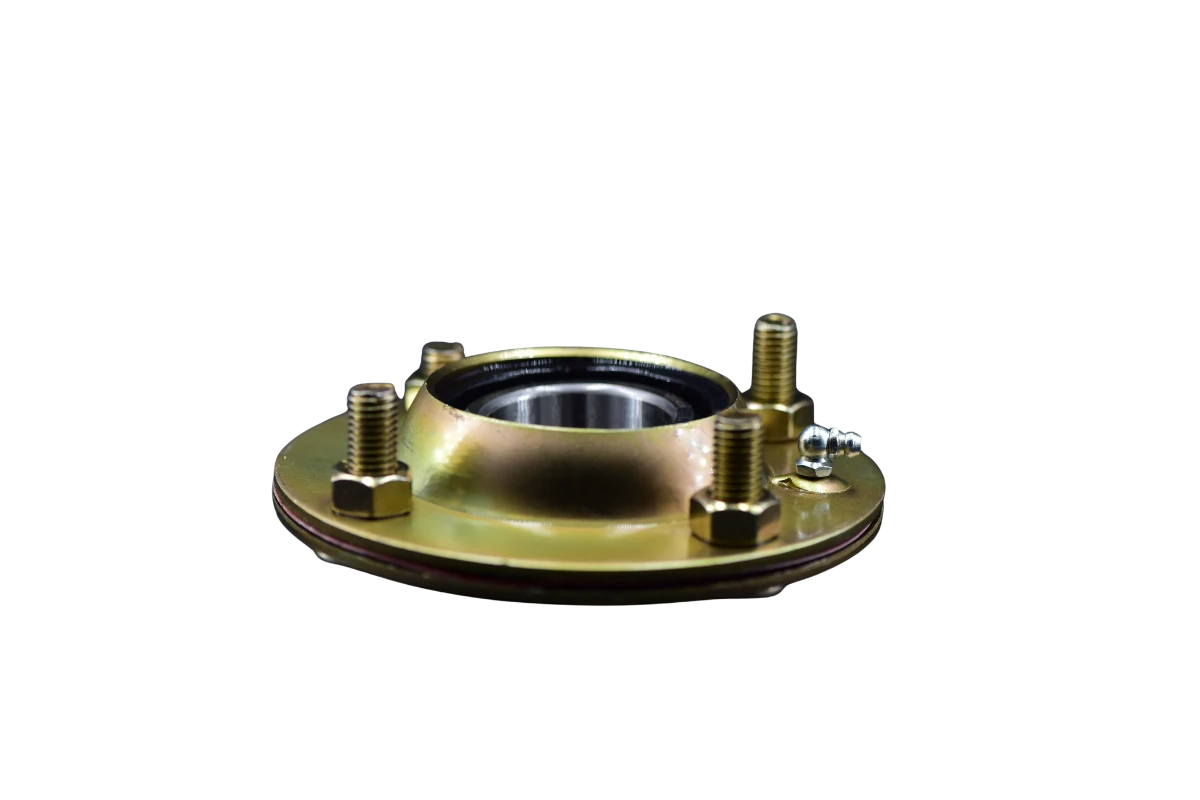

Disc hub unit AA30941 for John Deere disc seeders and tillage equipment, bore d = 45.24 mm (1.781"). Housing outer diameter D = 150 mm, centering diameter Da = 93 mm, bolt circle J = 120.5 mm, bolt hole diameter N = 13.5 mm, overall length L = 48.5 mm, width C = 30.1 mm, weight 1.836 kg; Cdyn = 32.5 kN, Co = 20.4 kN, Pu = 0.857 kN. Round housing with centering on diameter Da — OEM geometry for John Deere disc sections. Direct replacement for CT-AGRI AA30941, FKL GWST 209 PPB13 / GW209PPB13, KABAT P30941, RBF ST 209-1 3/4; matches John Deere OEM references A33968, A34792, A34793, AA27172, AA30941, JD7806.
Ready for integration into your project?
Get exact CAD models of the units in the required format or contact our engineers for customization to your operating environment.
| Bore diameter d (inch) | 1.781 |
|---|---|
| Bore diameter d (mm) | 45.24 |
| Inner ring width B (mm) | 36.53 |
| Overall length L (mm) | 48.5 |
| Overall housing width A1 (mm) | 3.5 |
| Outer ring width C (mm) | 30.1 |
| Centering diameter Da (mm) | 93 |
| D (mm) — housing outside diameter | 150 |
| Bolt hole spacing J (mm) | 120.5 |
| Bolt hole diameter N (mm) | 13.5 |
| Dynamic load rating Cdyn (kN) | 32.5 |
| Static load rating Co (kN) | 20.4 |
| Mass | 1.836 |
| Fatigue load limit Pu (kN) | 0.857 |

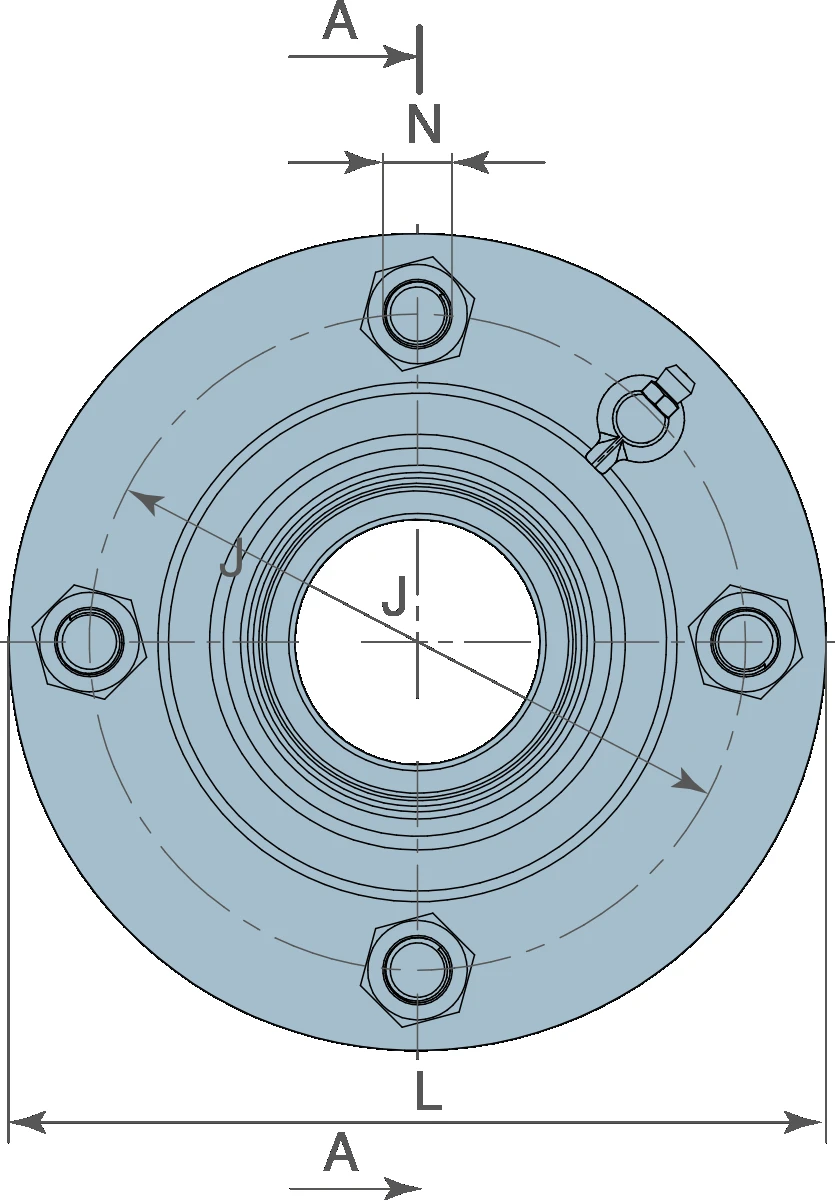

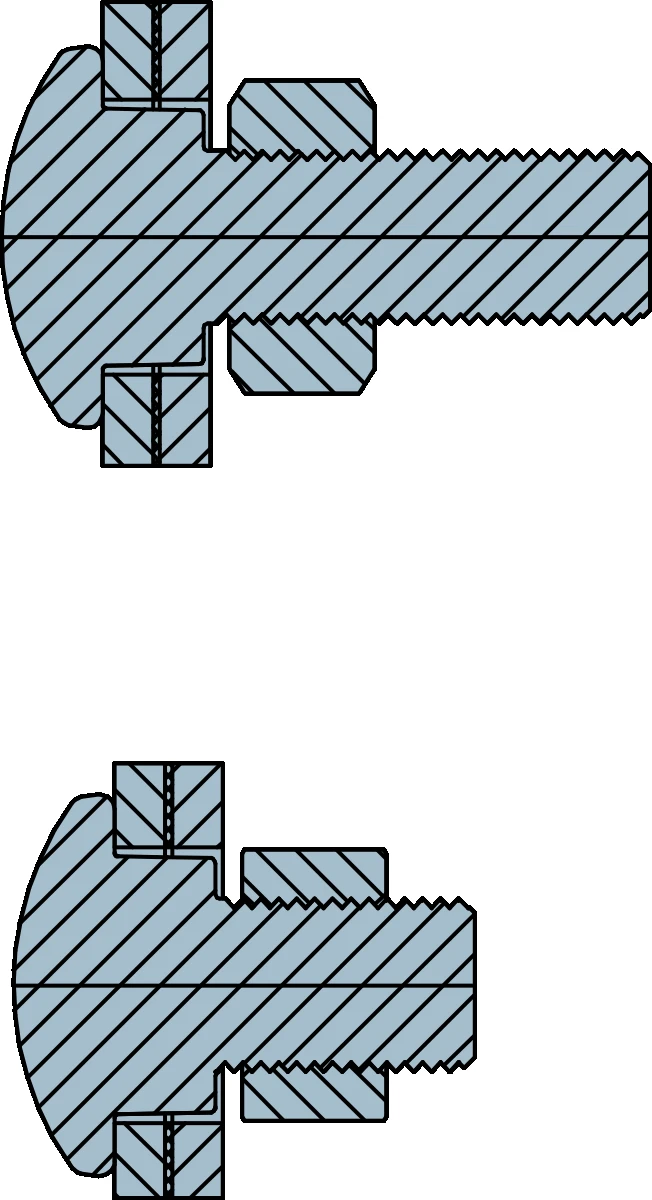

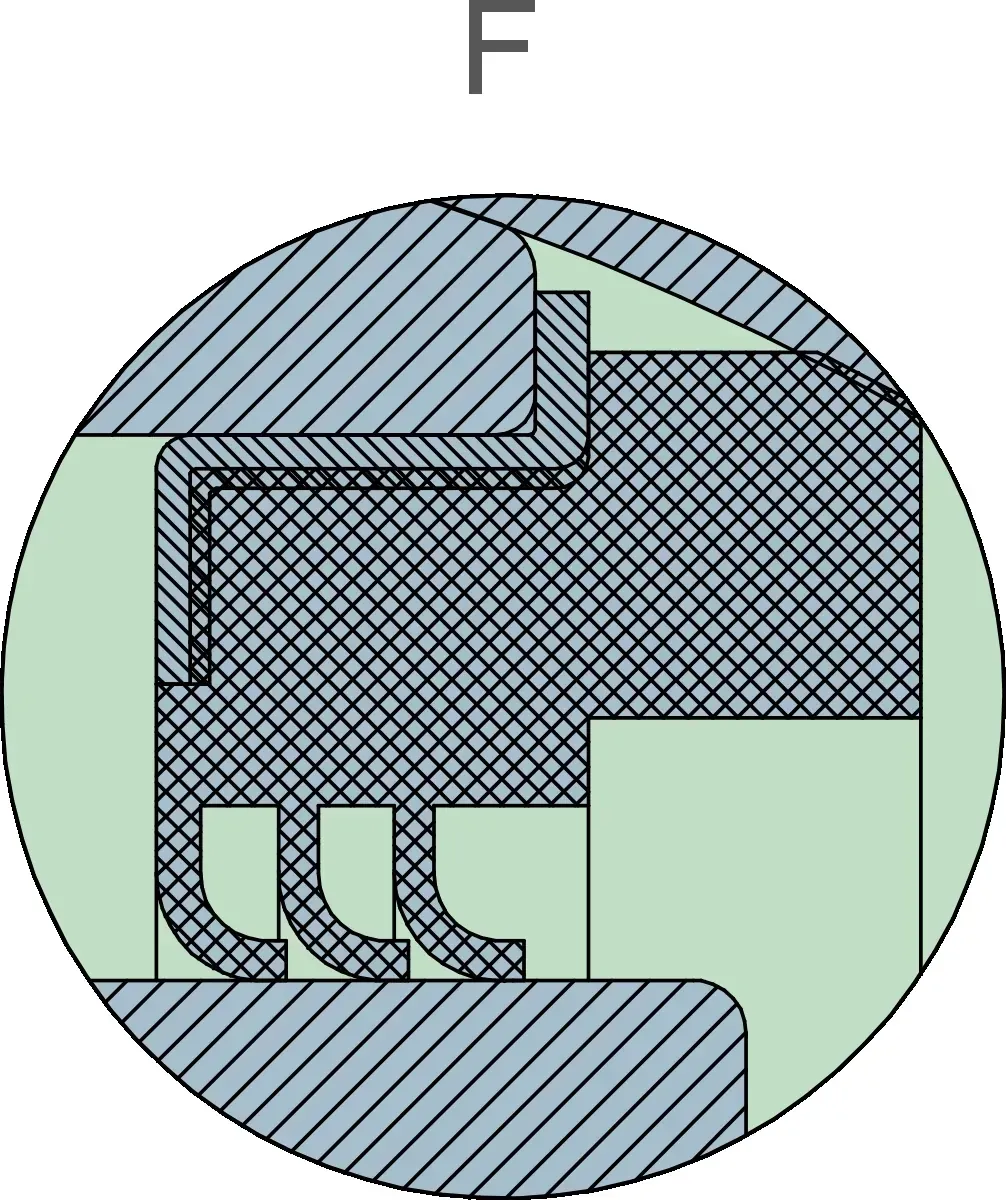

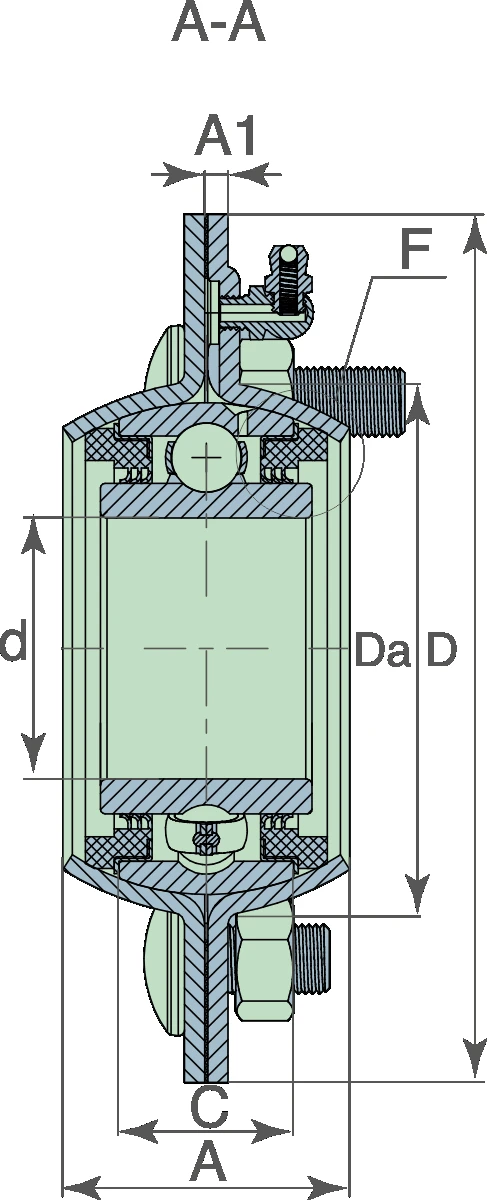

Interactive Drawing
| Bore diameter d (inch) | 1.781 |
|---|---|
| Bore diameter d (mm) | 45.24 |
| Inner ring width B (mm) | 36.53 |
| Overall length L (mm) | 48.5 |
| Overall housing width A1 (mm) | 3.5 |
| Outer ring width C (mm) | 30.1 |
| Centering diameter Da (mm) | 93 |
| D (mm) — housing outside diameter | 150 |
| Bolt hole spacing J (mm) | 120.5 |
| Bolt hole diameter N (mm) | 13.5 |
| Dynamic load rating Cdyn (kN) | 32.5 |
| Static load rating Co (kN) | 20.4 |
| Mass | 1.836 |
| Fatigue load limit Pu (kN) | 0.857 |
Cross References
CT-AGRIAA30941
FKLGWST 209 PPB13
FKLGW209PPB13
KABATP30941
RBFST 209-1 3/4
GasketA33968
HousingA34792
HousingA34793
HousingAA27172
JD – AssemblyAA30941
Grease NippleJD7806
bearingGW209PPB13
