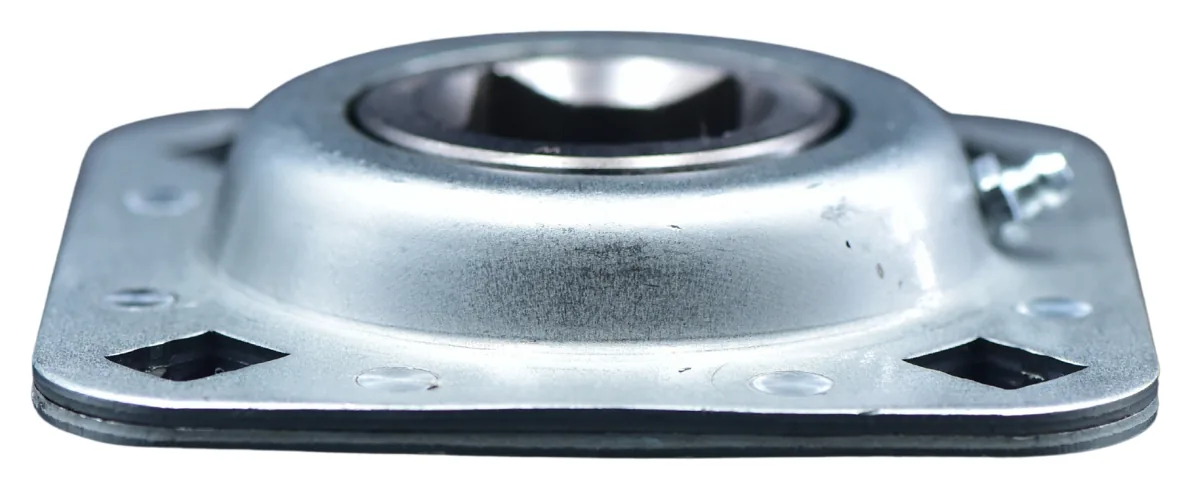

DHU 1 1/4 S209 VX

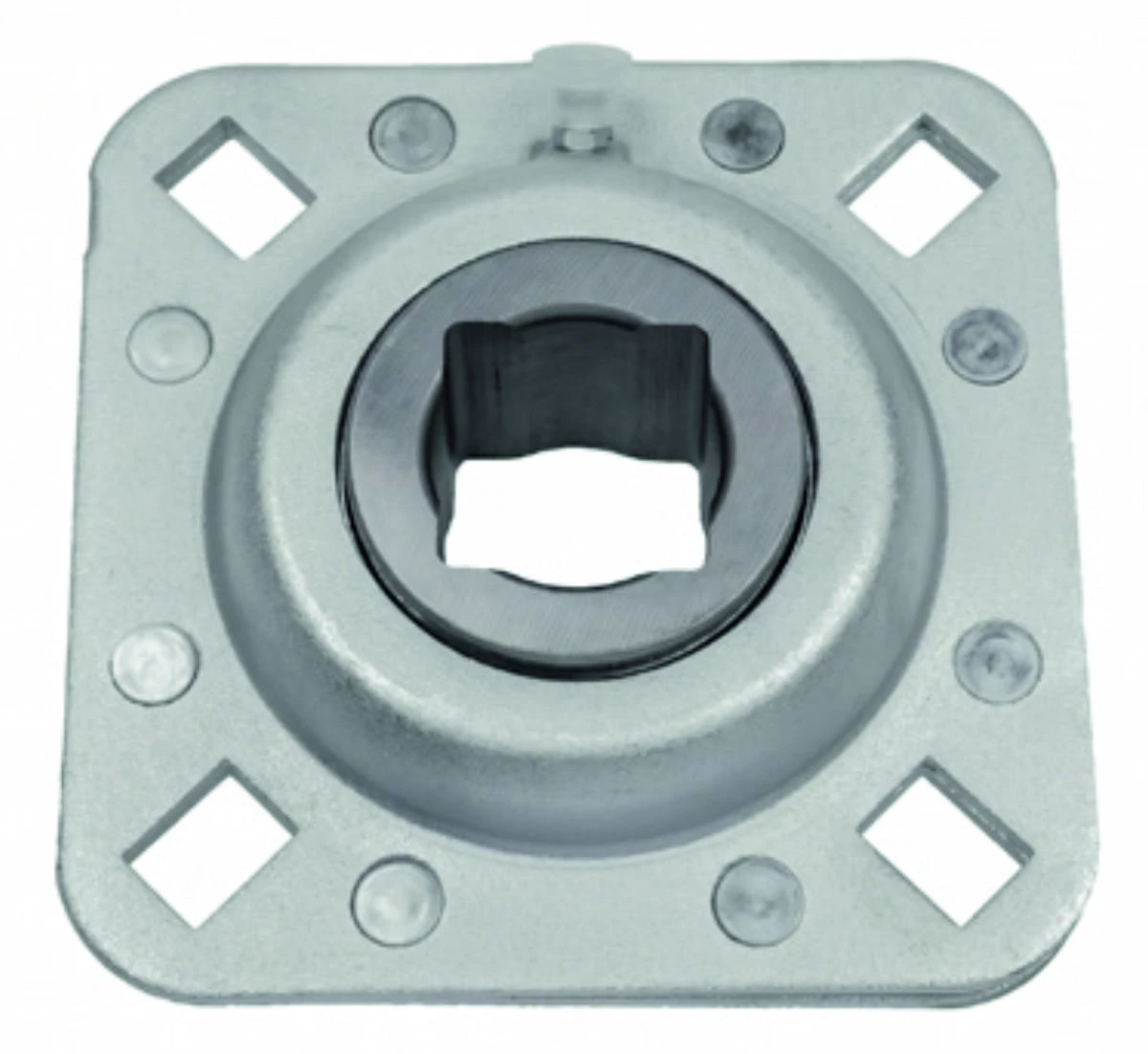

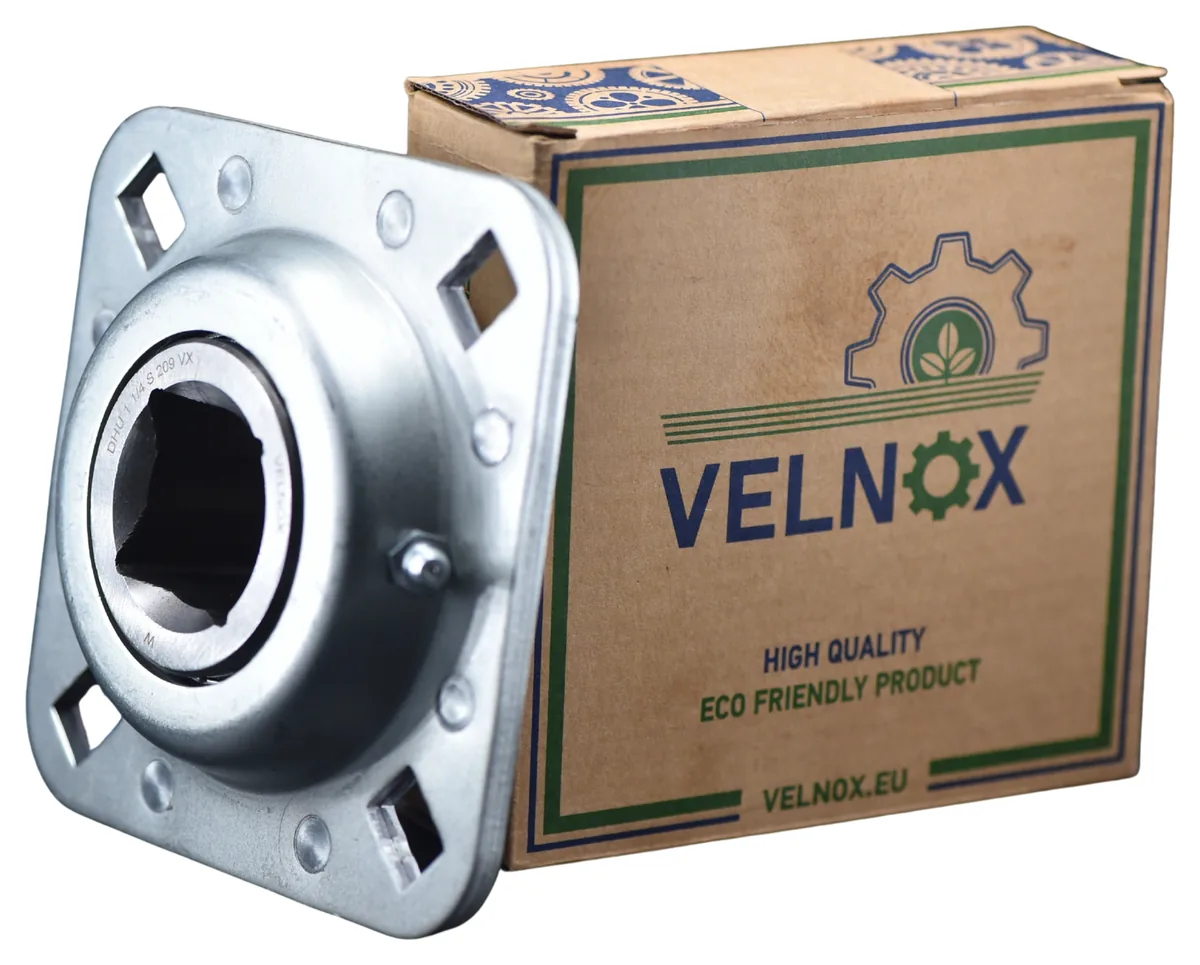

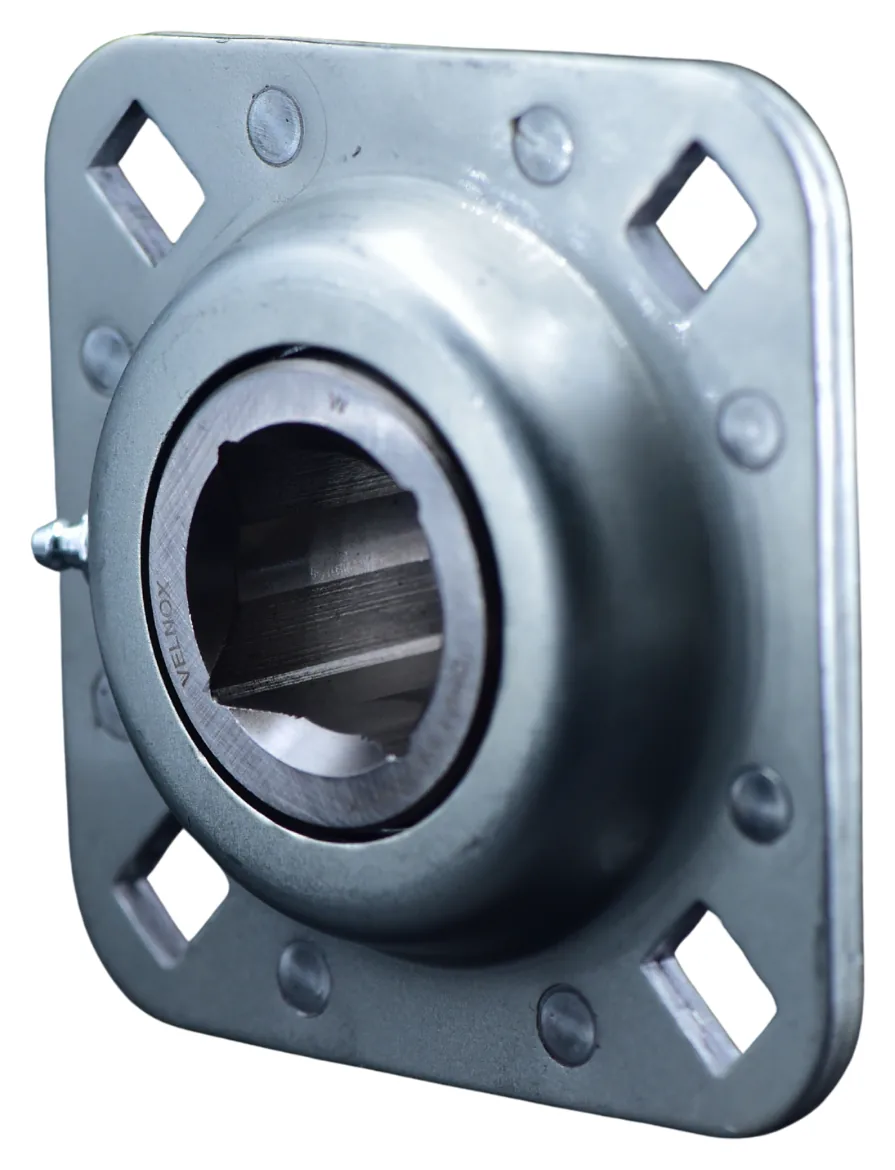

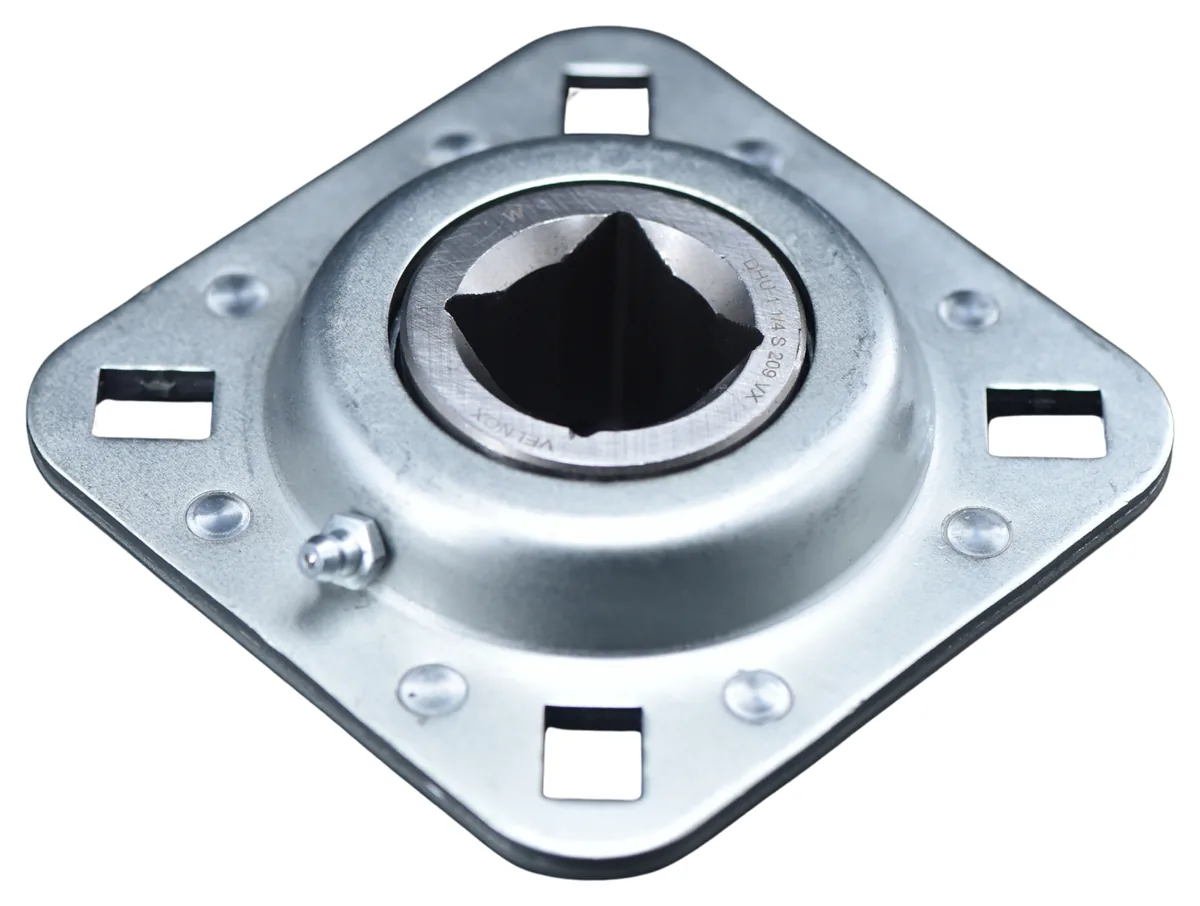

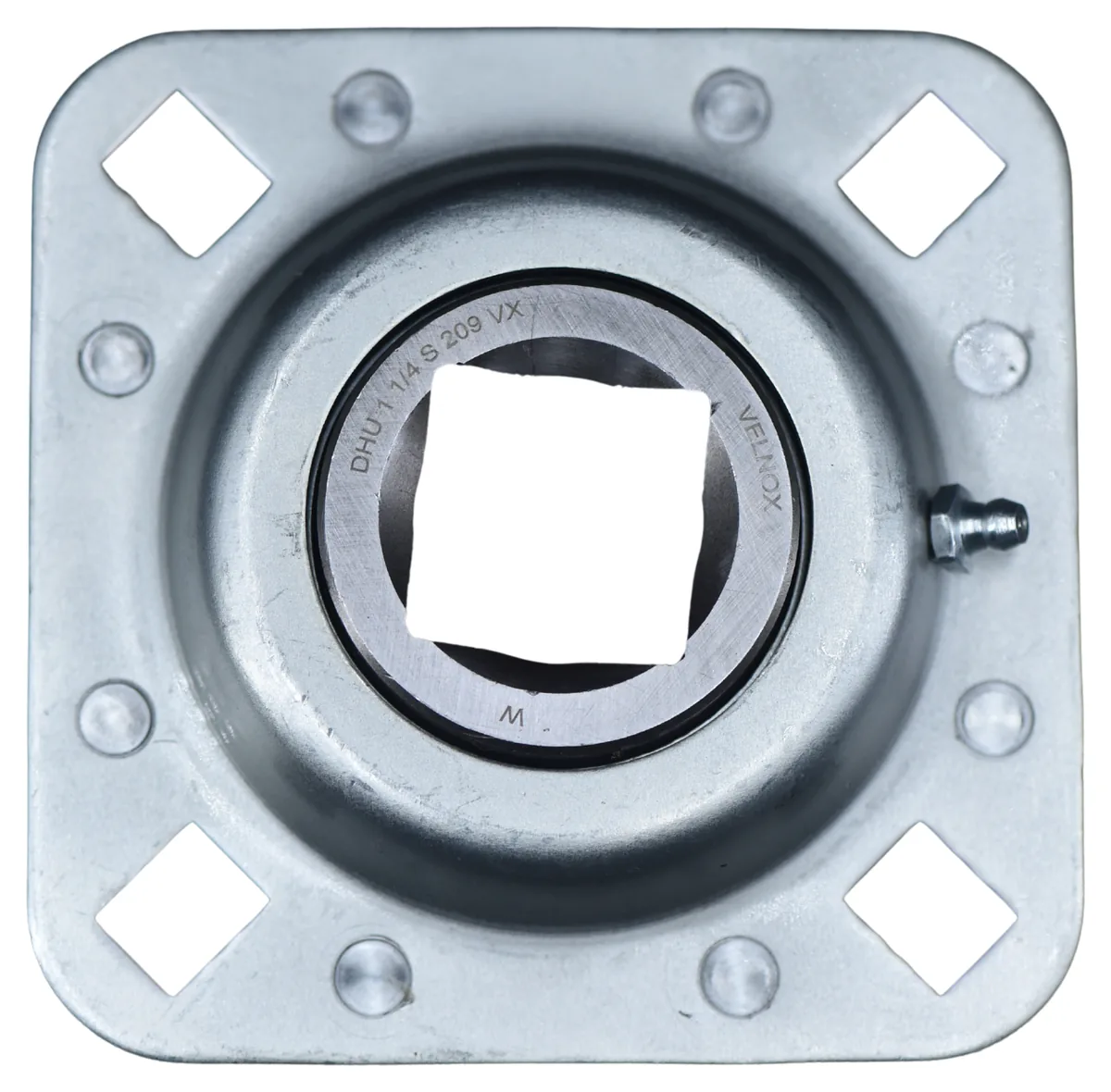

Disc flange hub unit type DHU S with square bore (M = 17.5 mm) for 1 1/4" square shaft. Bearing bore d = 35.5 mm (1.3976"), bolt circle J = 127 mm, bolt hole diameter N = 13.5 mm, overall length L = 127 mm, Da = 97 mm, Cdyn = 32.5 kN, Co = 20.4 kN, weight 1.63 kg. Designed for radial and axial loads (Fr = 7.7 kN, Fa = 3.8 kN) in disc harrow hubs subject to impact loading and abrasive conditions. Direct replacement for TIMKEN DHU 1 1/4 S209, NTE DHU 1 1/4 S209, RBF FD 209-1 1/4 SQ, PEER FD 209-1 1/4 SQ GFD209SPPB51, FKL GWST 209 PPB29; fits KRAUSE (40-128), Great Plains (822-209C), CASE (84151226), SUNFLOWER (FK311007), KUHN (Q4008320, Q4044290).
Ready for integration into your project?
Get exact CAD models of the units in the required format or contact our engineers for customization to your operating environment.
| Bore diameter d (inch) | 1.3976 |
|---|---|
| Bore diameter d (mm) | 35.5 |
| Inner ring width B (mm) | 42.85 |
| Outer ring width C (mm) | 22 |
| Centering diameter Da (mm) | 97 |
| Overall length L (mm) | 127 |
| Overall housing width A1 (mm) | 3.5 |
| Bolt hole spacing J (mm) | 127 |
| Bolt hole diameter N (mm) | 13.5 |
| Rectangular hole size M (mm) | 17.5 |
| Shaft dimension a (mm) | 32.8 |
| Flange face to inner ring end face distance A (mm) | 39 |
| Radial load Fr (kN) | 7.7 |
| Axial load Fa (kN) | 3.8 |
| Dynamic load rating Cdyn (kN) | 32.5 |
| Static load rating Co (kN) | 20.4 |
| Mass | 1.63 |
| Fatigue load limit Pu (kN) | 0.857 |

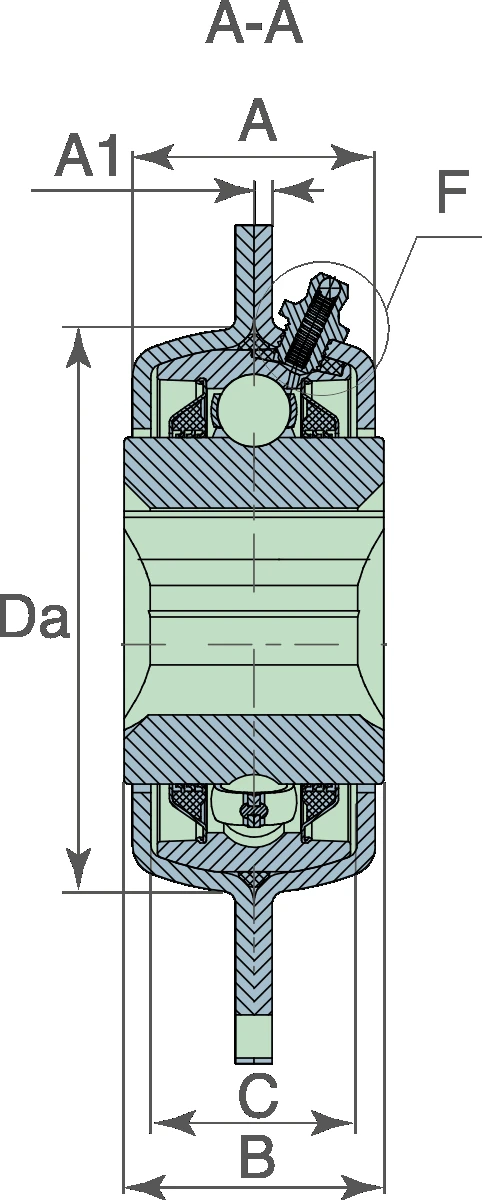

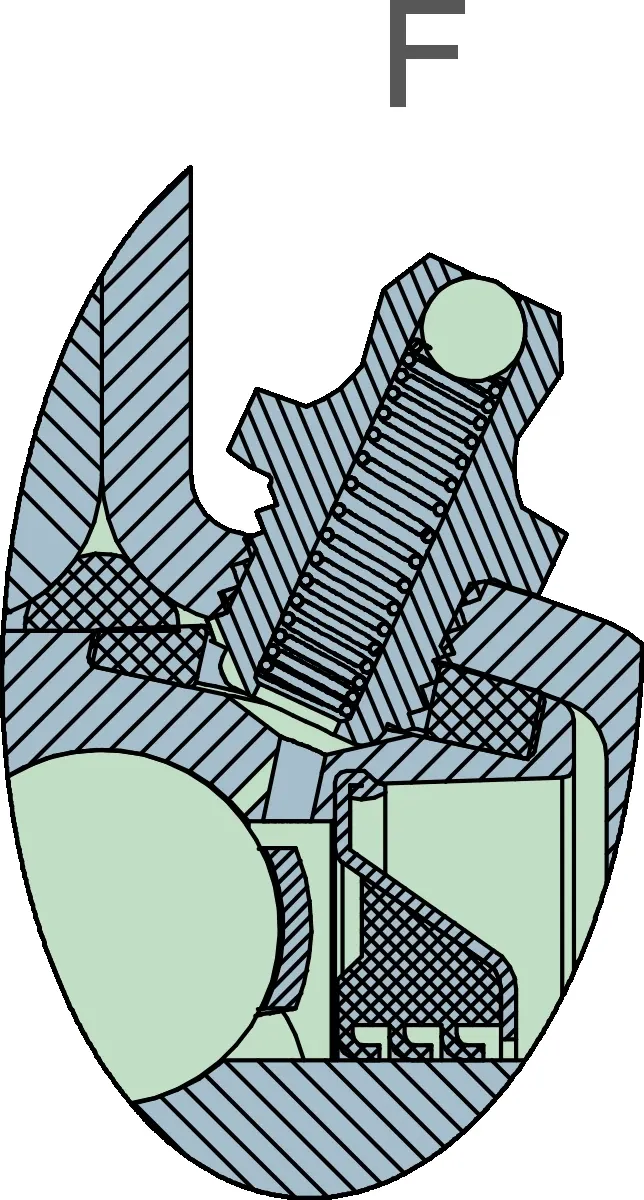

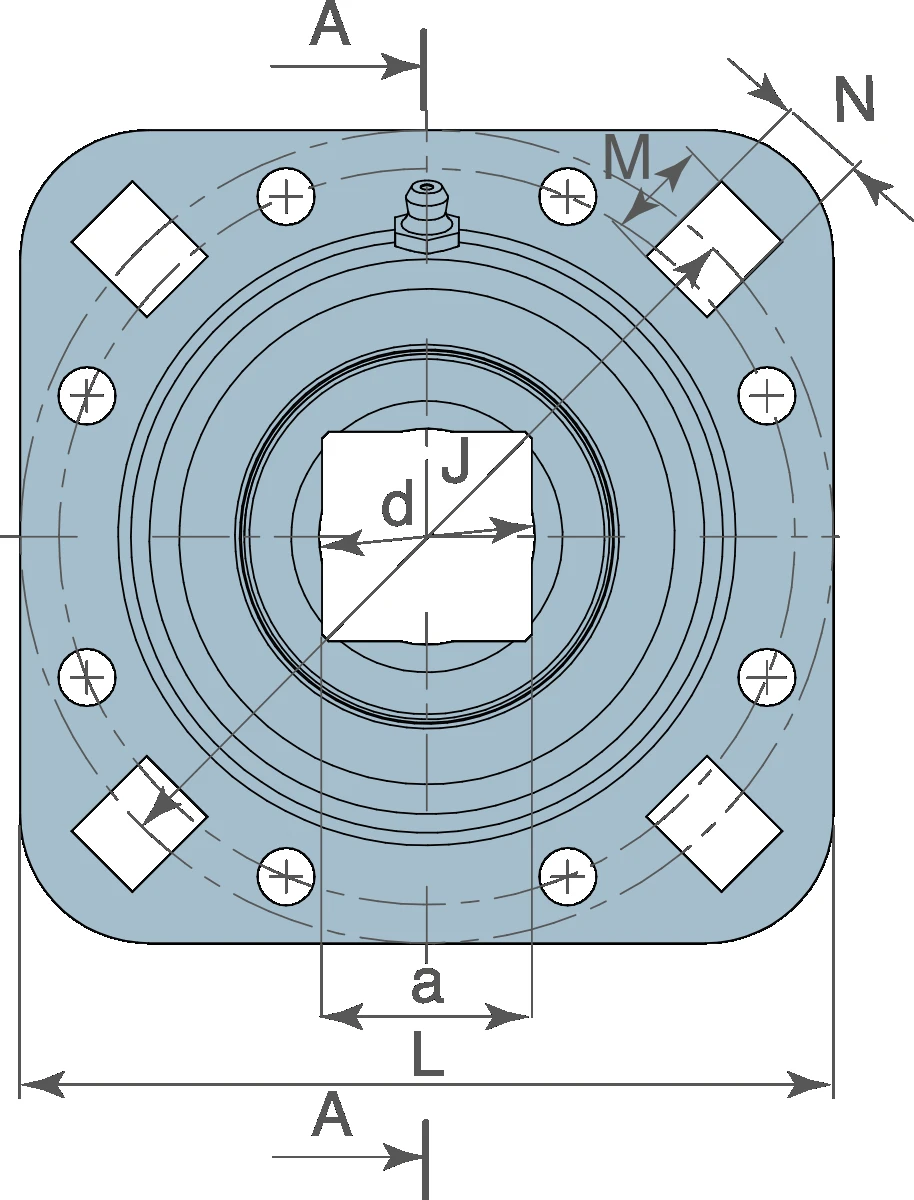

Interactive Drawing
| Bore diameter d (inch) | 1.3976 |
|---|---|
| Bore diameter d (mm) | 35.5 |
| Inner ring width B (mm) | 42.85 |
| Outer ring width C (mm) | 22 |
| Centering diameter Da (mm) | 97 |
| Overall length L (mm) | 127 |
| Overall housing width A1 (mm) | 3.5 |
| Bolt hole spacing J (mm) | 127 |
| Bolt hole diameter N (mm) | 13.5 |
| Rectangular hole size M (mm) | 17.5 |
| Shaft dimension a (mm) | 32.8 |
| Flange face to inner ring end face distance A (mm) | 39 |
| Radial load Fr (kN) | 7.7 |
| Axial load Fa (kN) | 3.8 |
| Dynamic load rating Cdyn (kN) | 32.5 |
| Static load rating Co (kN) | 20.4 |
| Mass | 1.63 |
| Fatigue load limit Pu (kN) | 0.857 |
