1726209-2RS1 VX

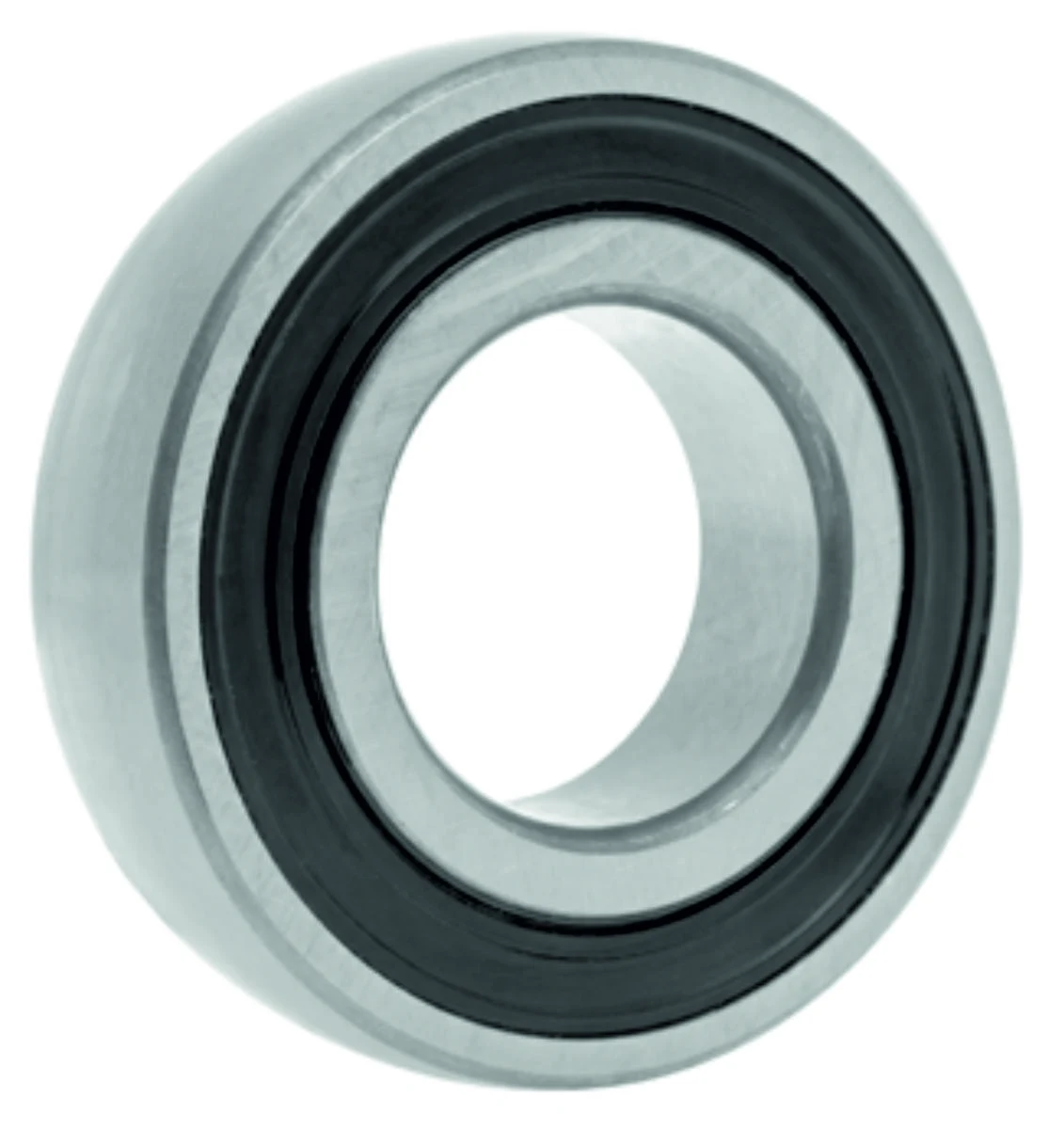

Radial ball bearing of the 1726 series (type 209) with an extended inner ring (d₁ = 56.6 mm) for assemblies in harvesting and seeding machines with elevated radial loads. Bore diameter d = 45 mm, outer diameter D = 85 mm, inner ring width B = 19 mm; dynamic load rating — 32.5 kN, static — 20.4 kN. Double-sided rubber contact seal 2RS1 provides full closure of the raceway in soil-contaminated field conditions. Cross-reference for SKF 1726209-2RS1, INA 209 NPPB, TIMKEN 1726209 2RS, FBJ CS 209 2RS; used in OEM assemblies of CLAAS (000212102.0), New Holland (81004584), Massey Ferguson (831134M1, LA340411277) and Capello (02.1032.00, PMS-000007).
Ready for integration into your project?
Get exact CAD models of the units in the required format or contact our engineers for customization to your operating environment.
| Bore diameter d (mm) | 45 |
|---|---|
| D (mm) — housing outside diameter | 85 |
| Inner ring width B (mm) | 19 |
| Centering diameter d1 (mm) | 56.6 |
| Chamfer dimension r 1,2 (mm) | 1.1 |
| Dynamic load rating Cdyn (kN) | 32.5 |
| Static load rating Co (kN) | 20.4 |
| Fatigue load limit Pu (kN) | 0.92 |
| Mass | 0.37 |

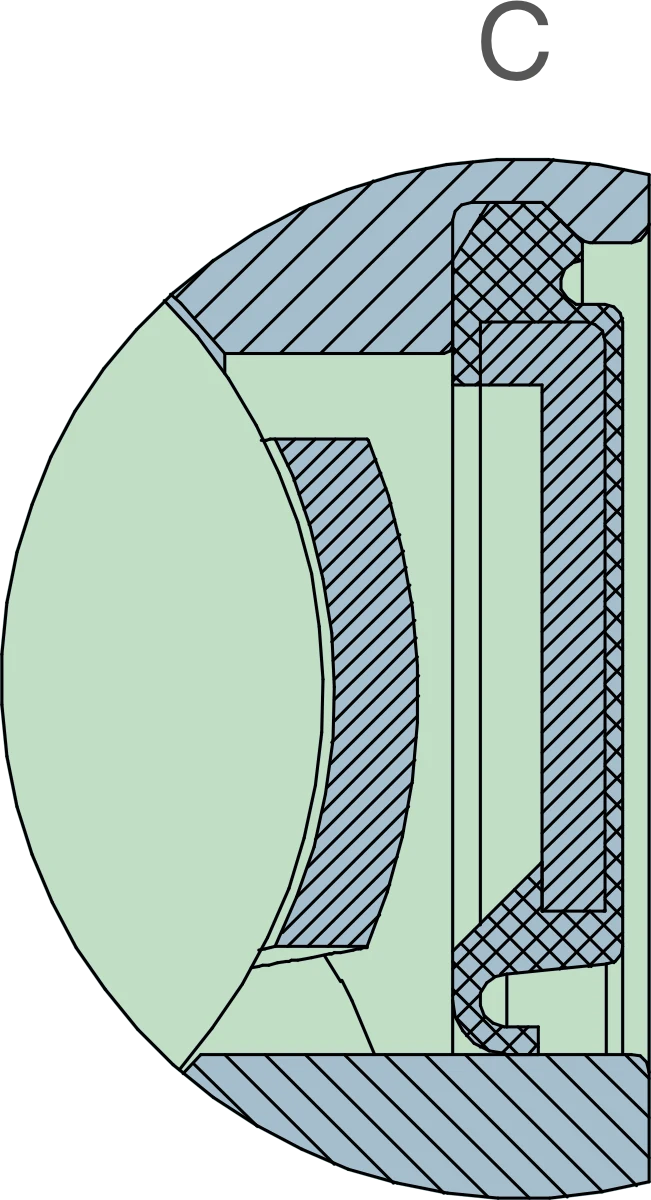

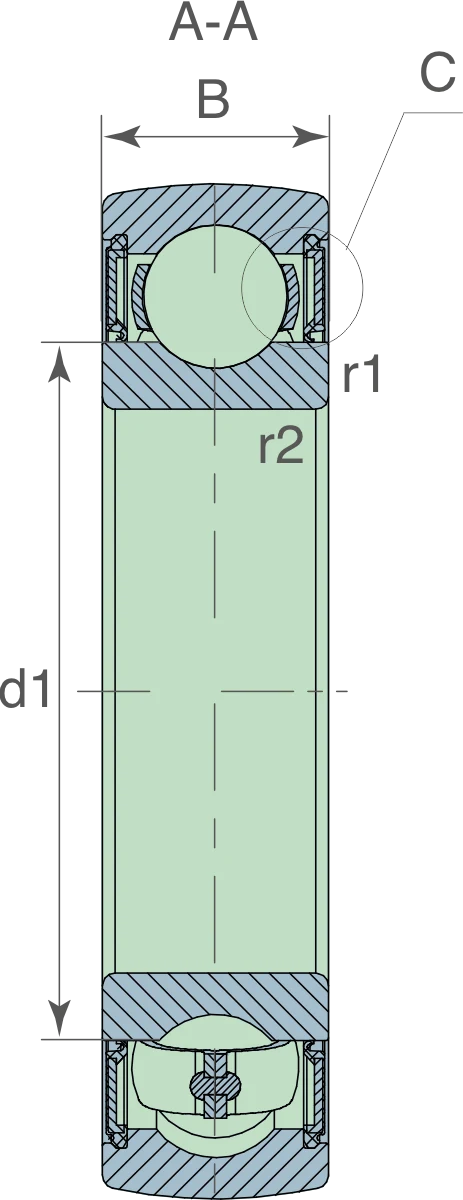

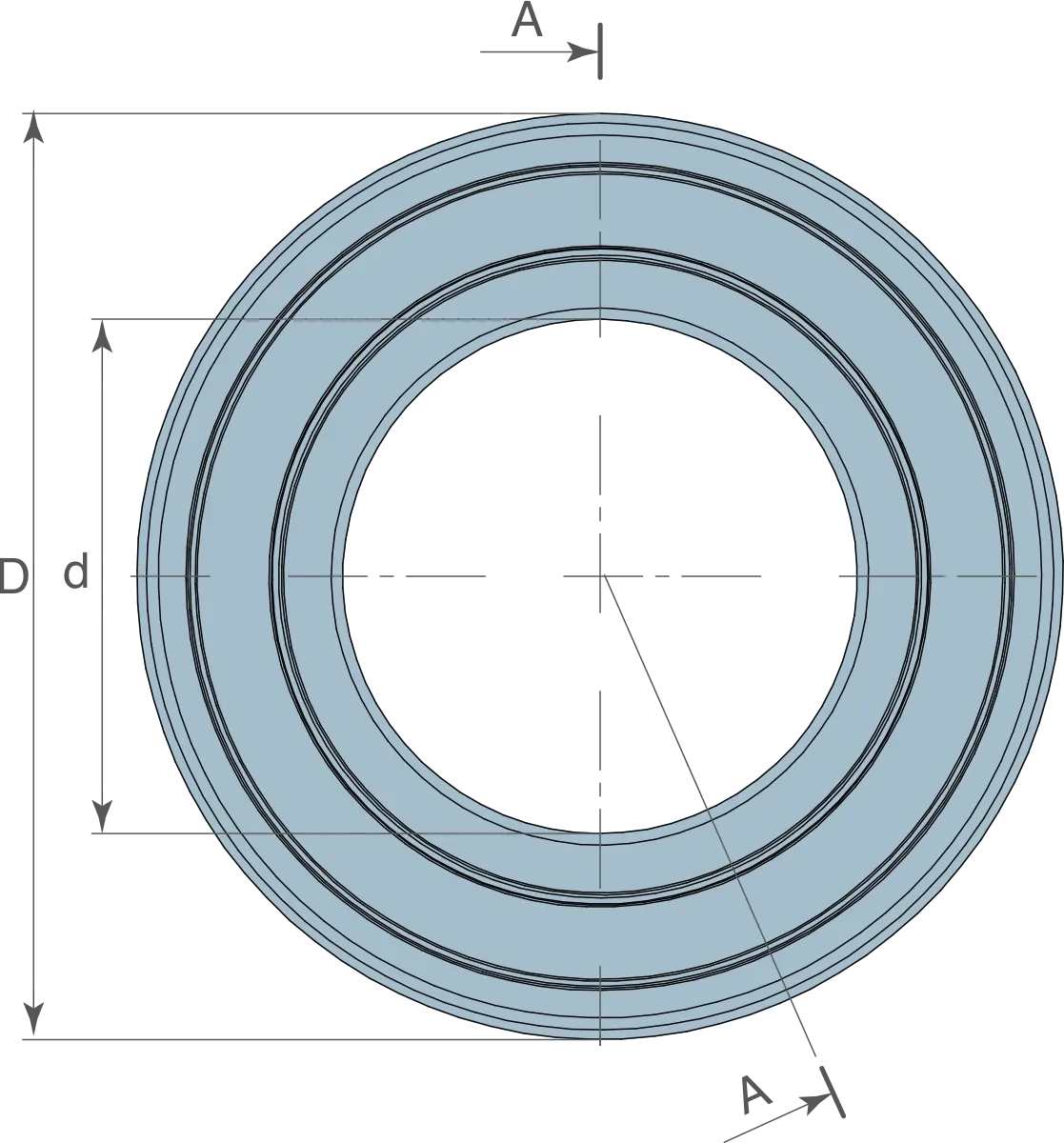

Interactive Drawing
| Bore diameter d (mm) | 45 |
|---|---|
| D (mm) — housing outside diameter | 85 |
| Inner ring width B (mm) | 19 |
| Centering diameter d1 (mm) | 56.6 |
| Chamfer dimension r 1,2 (mm) | 1.1 |
| Dynamic load rating Cdyn (kN) | 32.5 |
| Static load rating Co (kN) | 20.4 |
| Fatigue load limit Pu (kN) | 0.92 |
| Mass | 0.37 |
