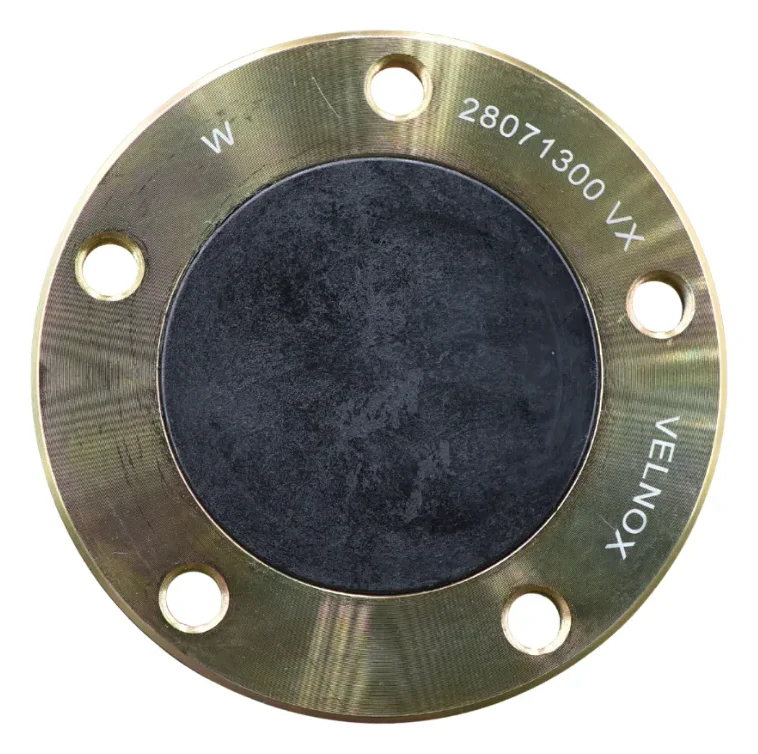

28071300 VX

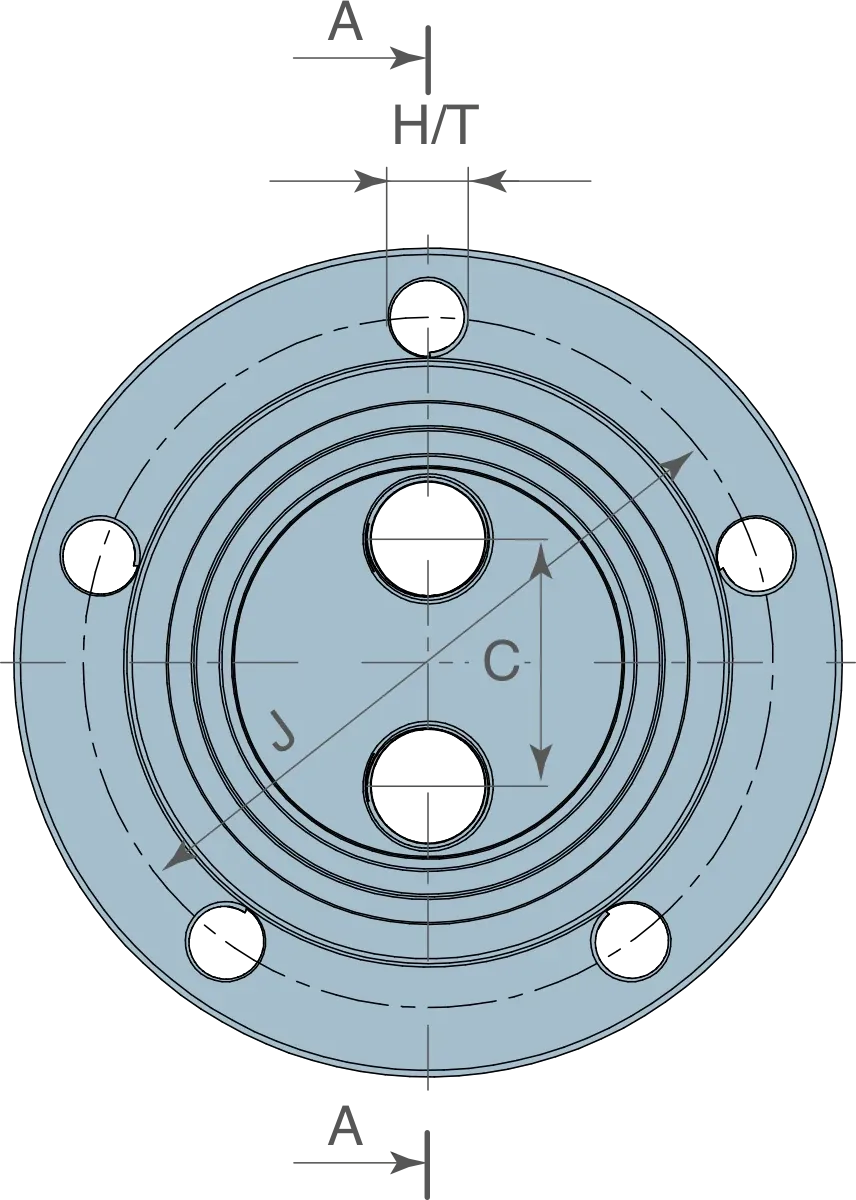

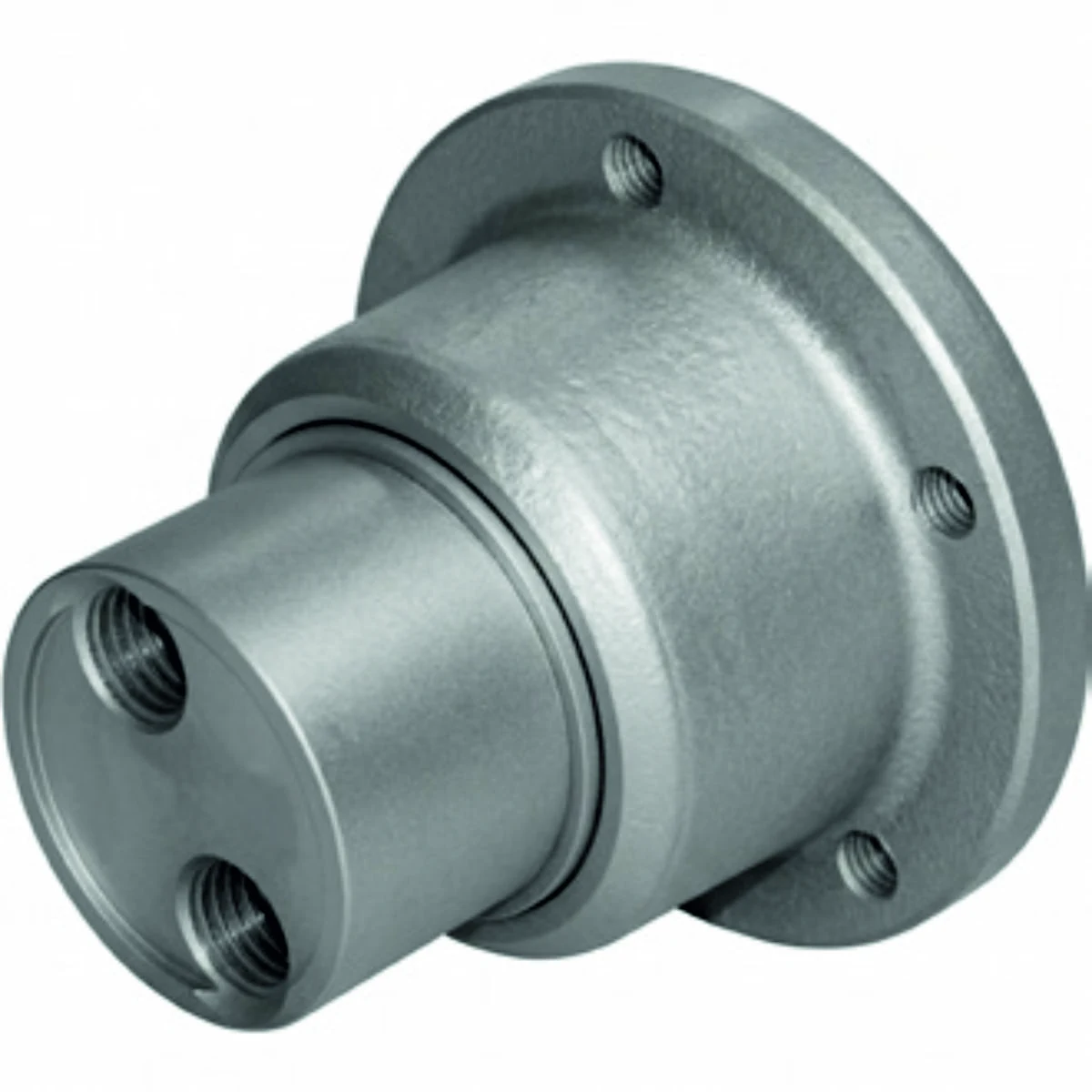

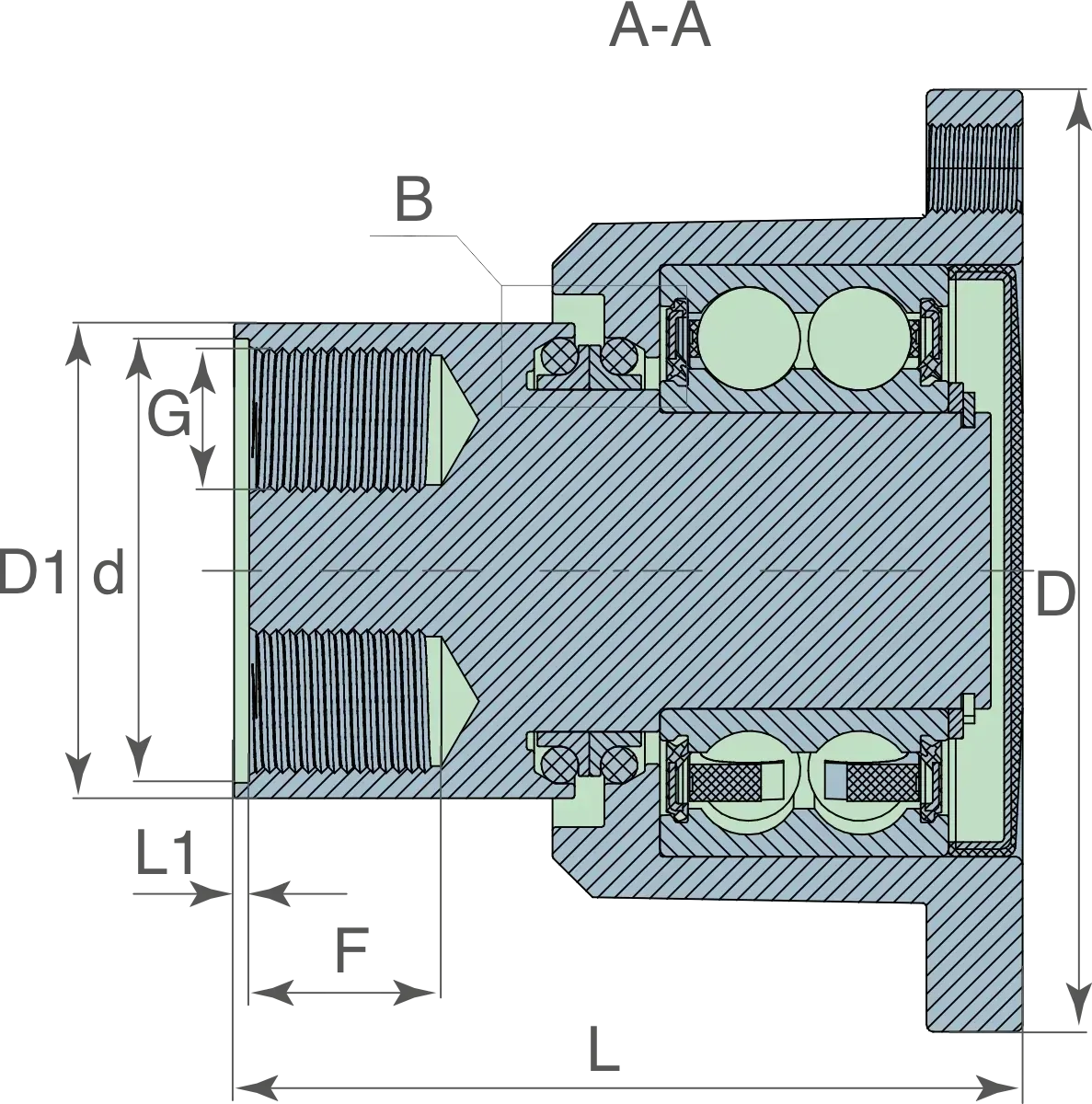

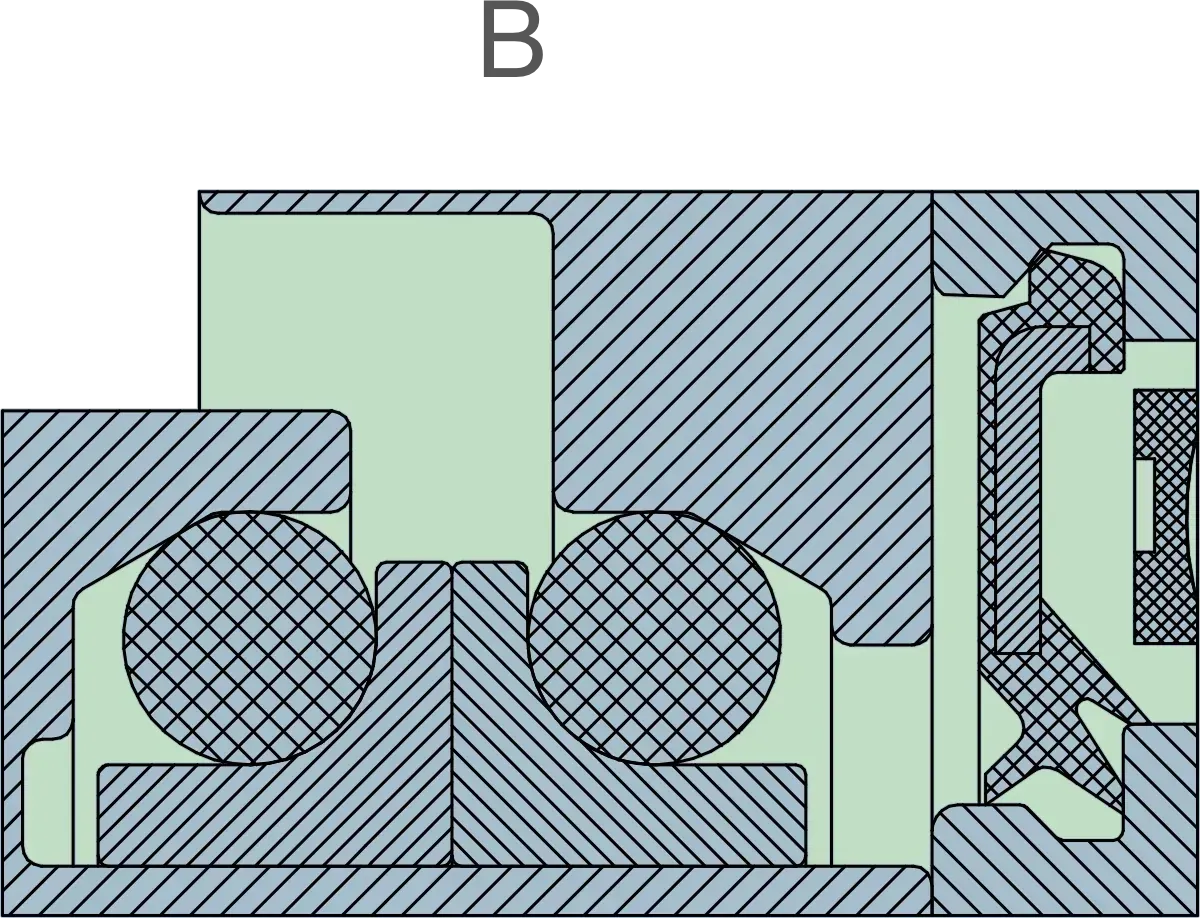

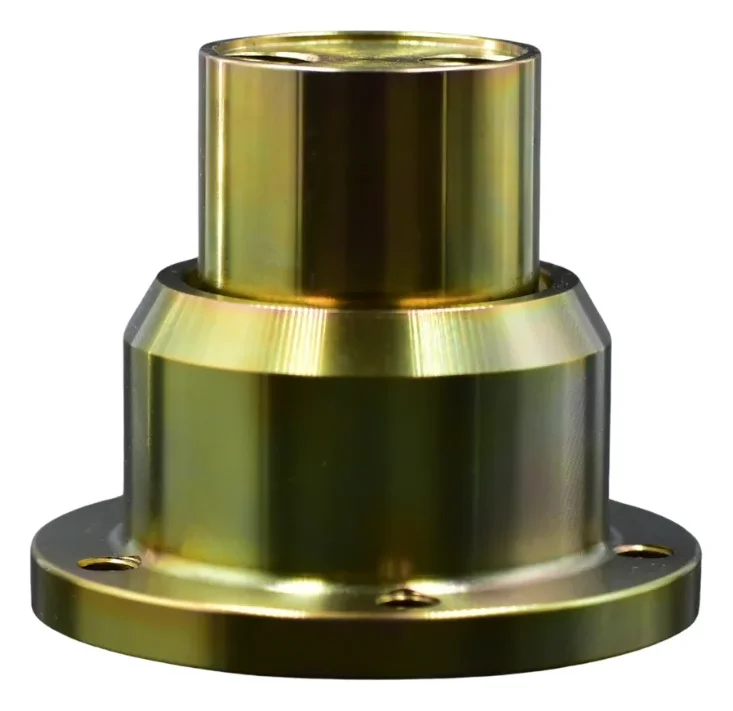

Hub bearing unit in a round flanged housing for HORSCH Focus / Joker tillage equipment with shaft bore d = 55.7 mm and housing outer diameter D = 127.3 mm; flange bolt circle J = 106 mm for M12 fastening, hole spacing C = 38 mm. Overall length L = 106.5 mm, two grease nipples G 2×M20, dynamic load rating Cdyn = 48.8 kN, static Co = 35.3 kN, weight 3.81 kg. Sealing system — double-lip contact seal on the field disc side combined with a metal dirt deflector on the front face, designed for high abrasive and impact loads in tillage conditions. Direct equivalent of HORSCH 28071300, 28077800, 28077900, 28085600 and PN60041; fitted to disc coulters and discs on HORSCH Focus and Joker series cultivators.
Ready for integration into your project?
Get exact CAD models of the units in the required format or contact our engineers for customization to your operating environment.
| Pitch circle diameter J (mm) | 106 |
|---|---|
| Outside diameter D (mm) | 127.3 |
| Outside diameter D1 (mm) | 64.2 |
| Bore diameter d (mm) | 55.7 |
| Distance C (mm) | 38 |
| Hole / Thread H/T | M12 |
| Thread G | 2xM20 |
| Total length L (mm) | 106.5 |
| Bore depth L1 (mm) | 2 |
| Thread length F (mm) | 25 |
| Mass | 3.81 |
| Dynamic load rating Cdyn (kN) | 48.8 |
| Static load rating Co (kN) | 35.3 |
| Fatigue load limit Pu (kN) | 1.483 |
