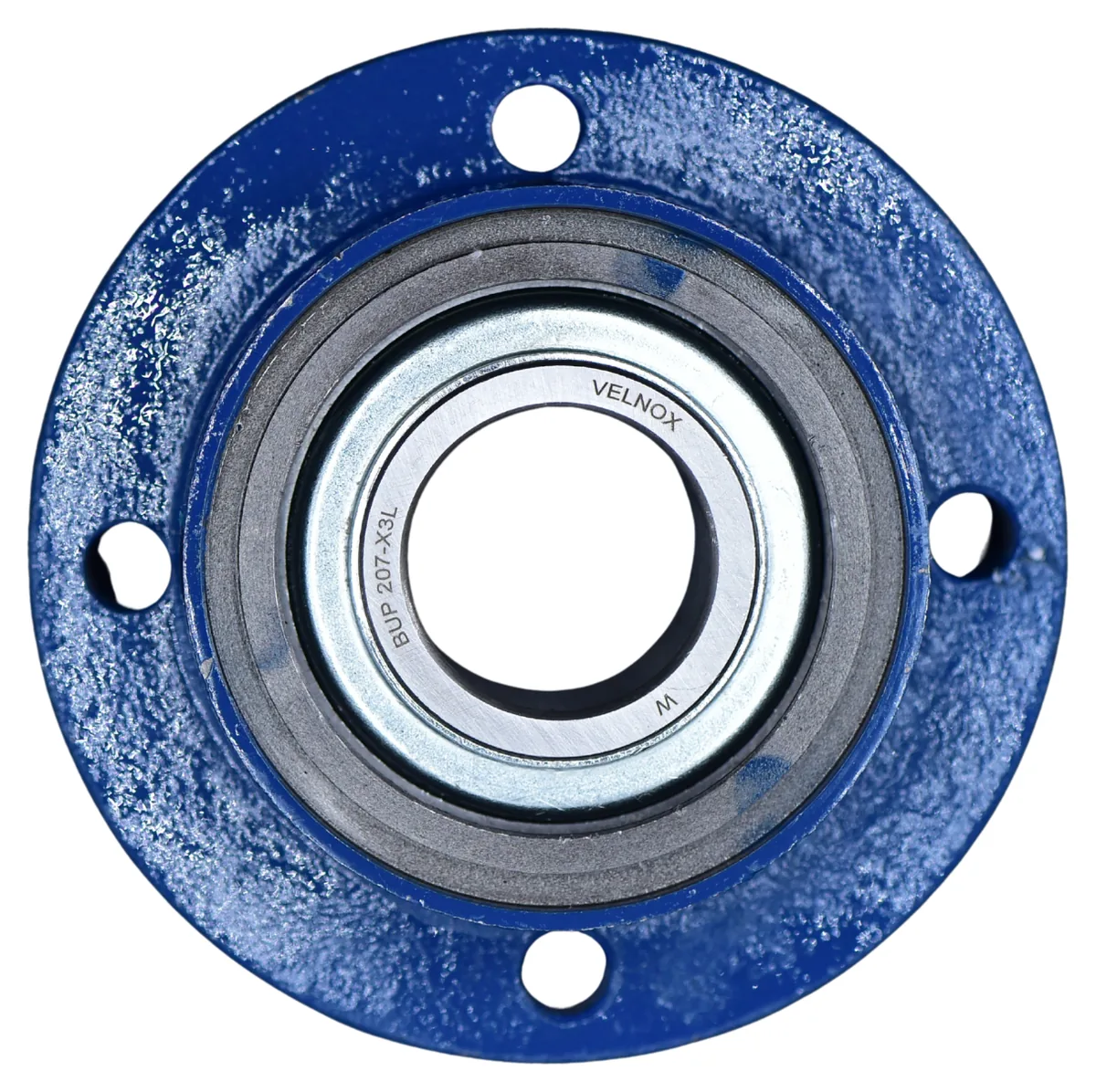

BUP 207-X3L

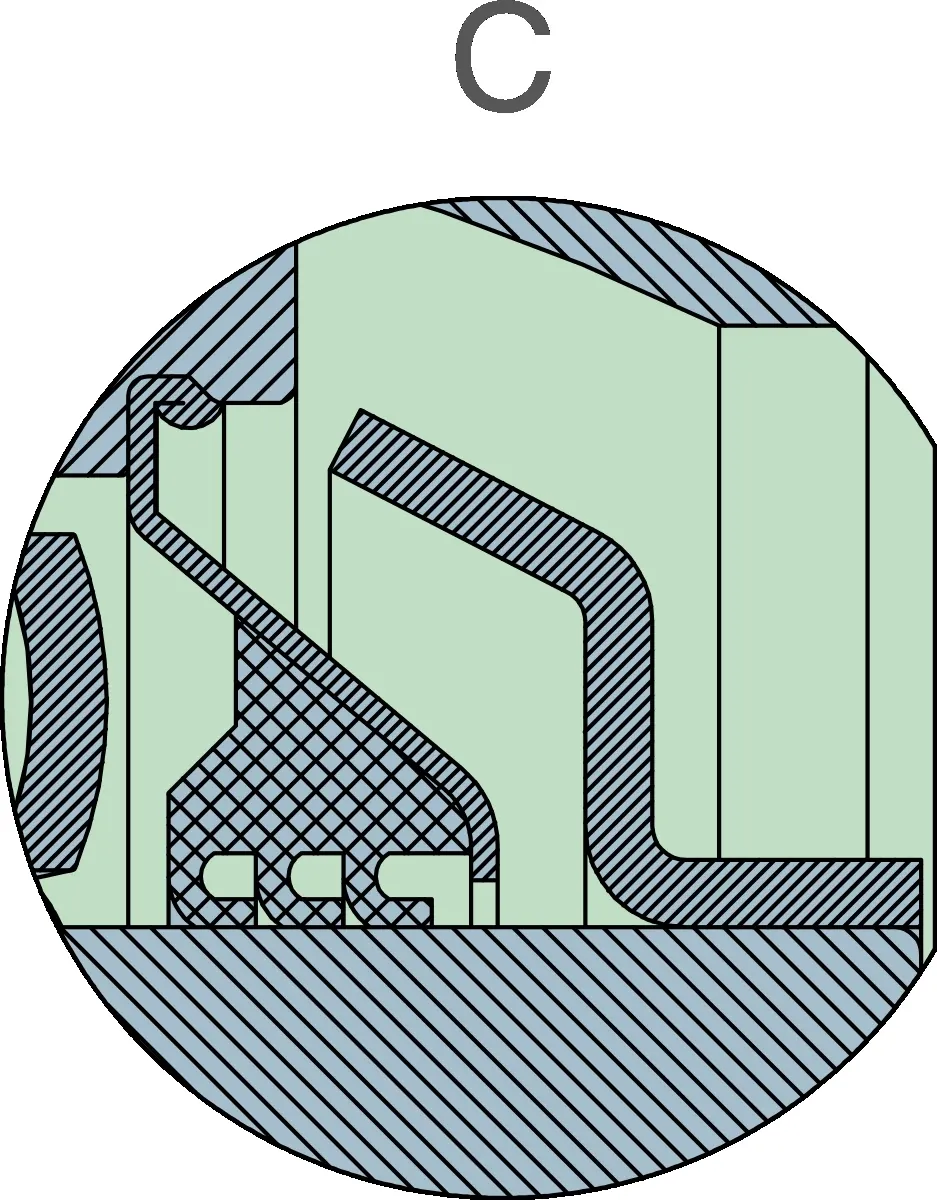

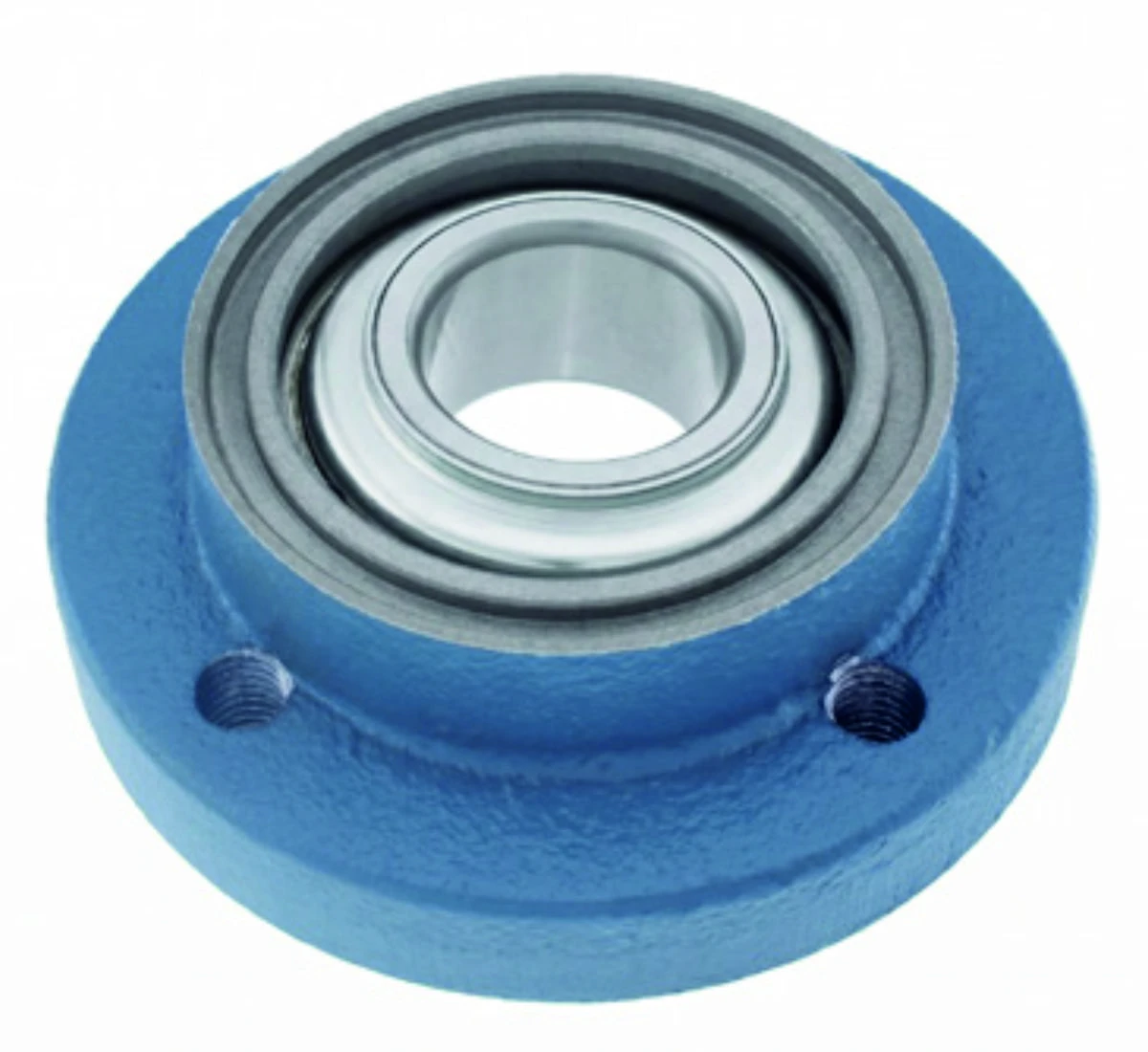

Bearing unit in a round flanged housing type RCJ 35 / UC 207 X1 for Lemken tillage equipment with bore diameter d = 35 mm and housing outer diameter D = 125 mm. Mounting base J = 100 mm for M12 bolts, overall width A = 40 mm, inner ring width B = 28.3 mm, Cdyn = 25.5 kN, Co = 15.3 kN, weight 1.7 kg. Protection system — multi-lip seal series X3L (triple-lip contact seal on the base side + reinforced frontal seal), designed for impact loads of a tillage disc. Full geometric equivalent of Lemken 31910034 / 3199372, Opall Agri 3421370, INA/FAG F232812-0200, PEER 207XTR-R-DFC-A534 and SNR UC 207 X1; used in Lemken disc harrows of the Rubin, Heliodor and Kristall series.
Ready for integration into your project?
Get exact CAD models of the units in the required format or contact our engineers for customization to your operating environment.
| Bore diameter d (mm) | 35 |
|---|---|
| D (mm) — housing outside diameter | 125 |
| Bolt hole spacing J (mm) | 100 |
| Overall width A (mm) | 40 |
| Housing flange thickness A2 (mm) | 20 |
| Inner ring width B (mm) | 28.3 |
| Hole / Thread H/T | M12 |
| Mass | 1.7 |
| Static load rating Co (kN) | 15.3 |
| Dynamic load rating Cdyn (kN) | 25.5 |
| Fatigue load limit Pu (kN) | 0.643 |

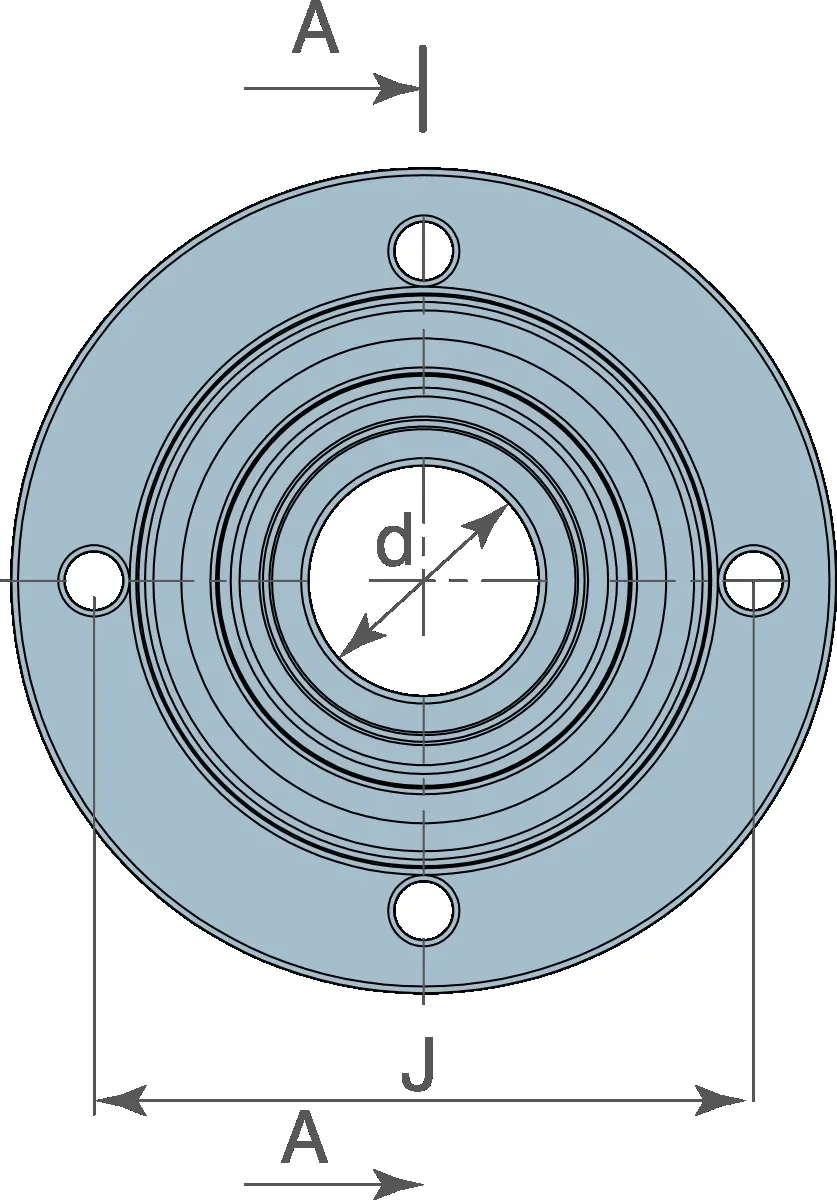

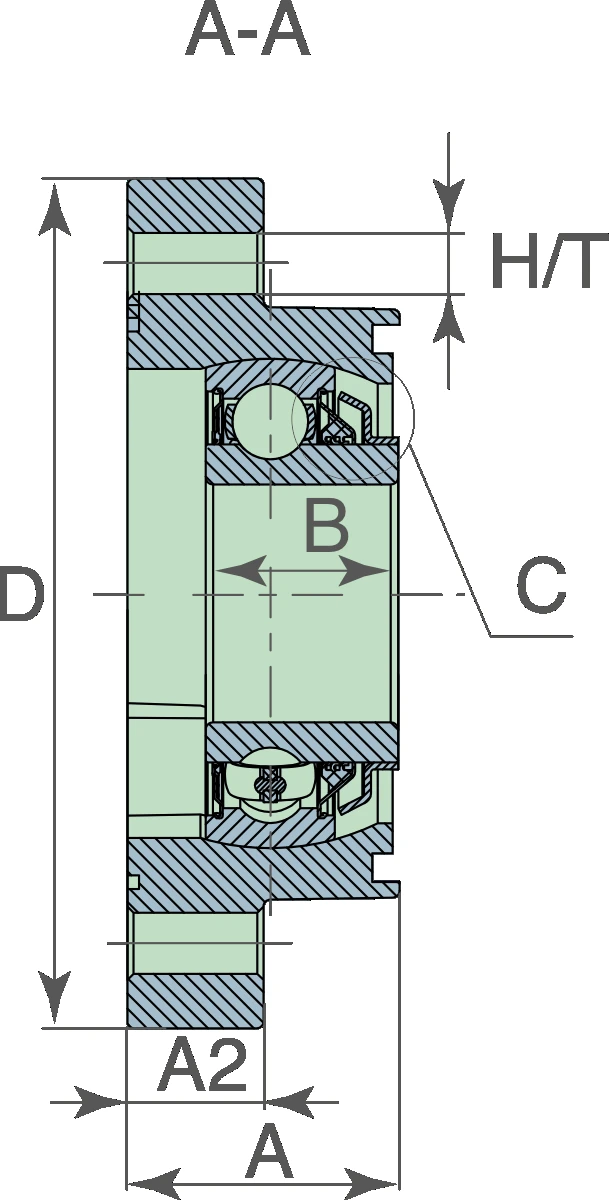

Interactive Drawing
| Bore diameter d (mm) | 35 |
|---|---|
| D (mm) — housing outside diameter | 125 |
| Bolt hole spacing J (mm) | 100 |
| Overall width A (mm) | 40 |
| Housing flange thickness A2 (mm) | 20 |
| Inner ring width B (mm) | 28.3 |
| Hole / Thread H/T | M12 |
| Mass | 1.7 |
| Static load rating Co (kN) | 15.3 |
| Dynamic load rating Cdyn (kN) | 25.5 |
| Fatigue load limit Pu (kN) | 0.643 |
