BUCR-SG-309-S2

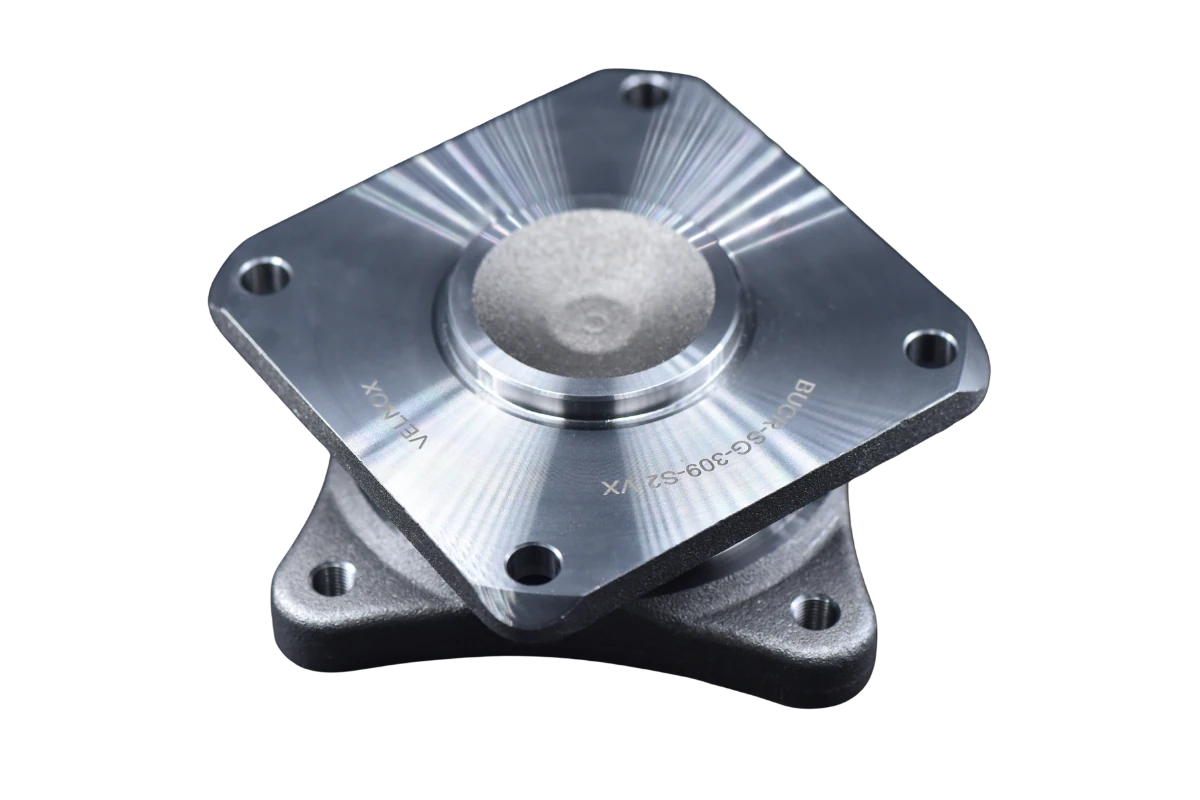

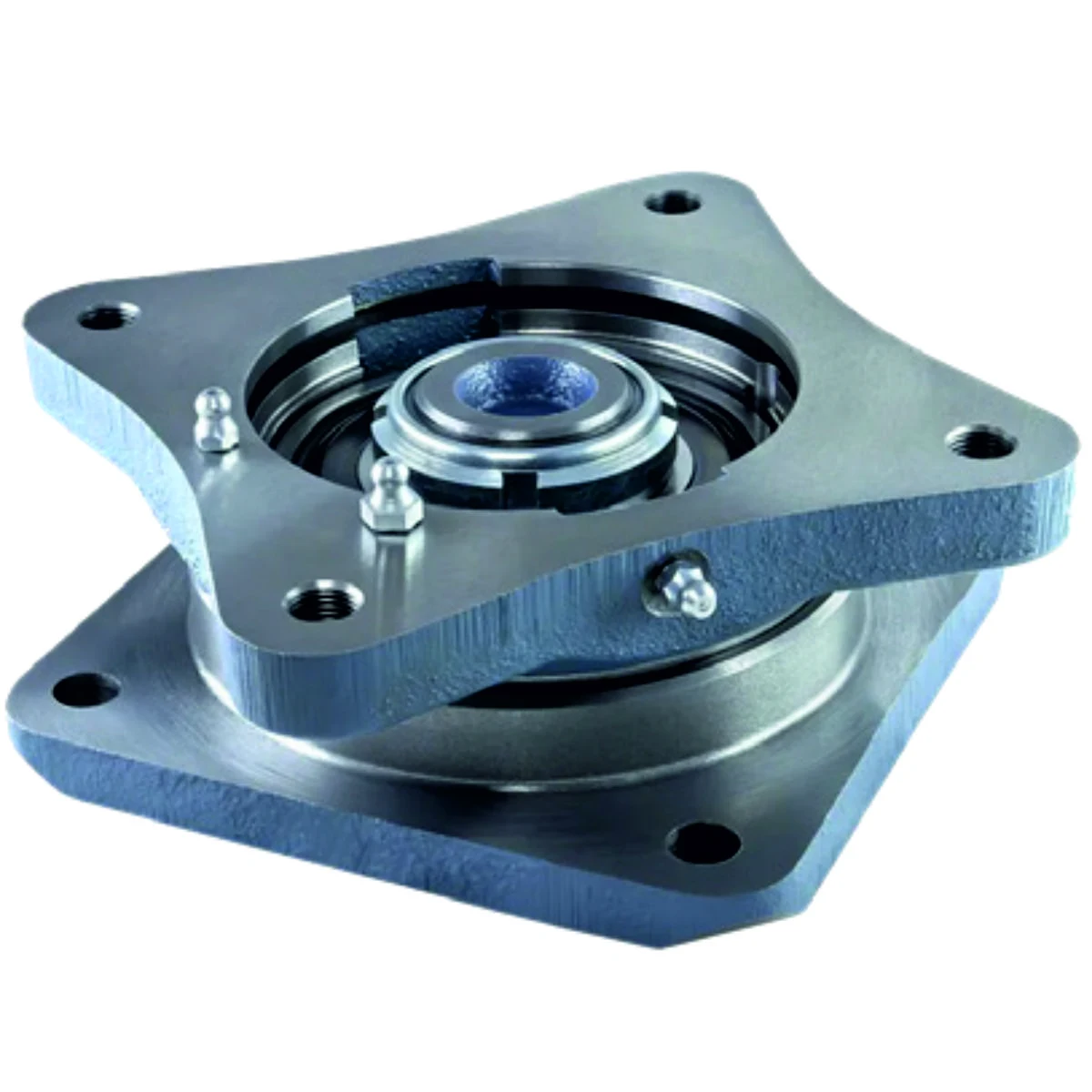

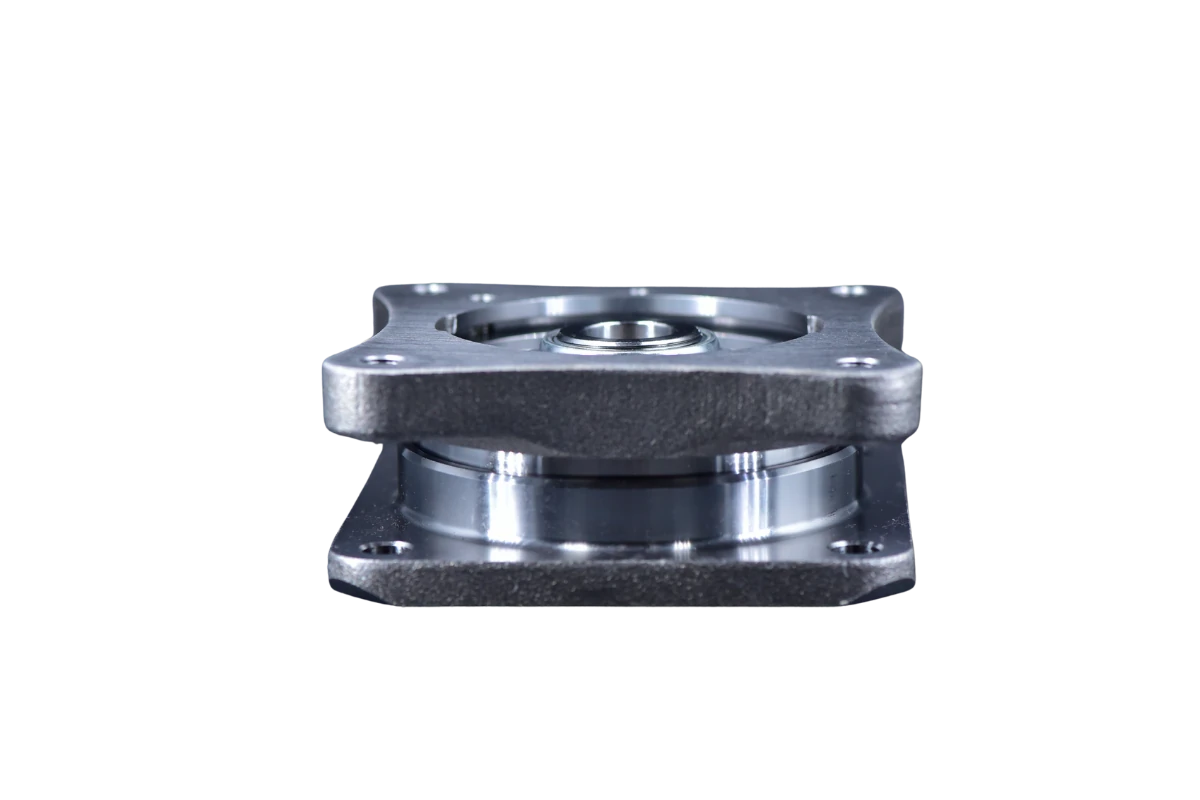

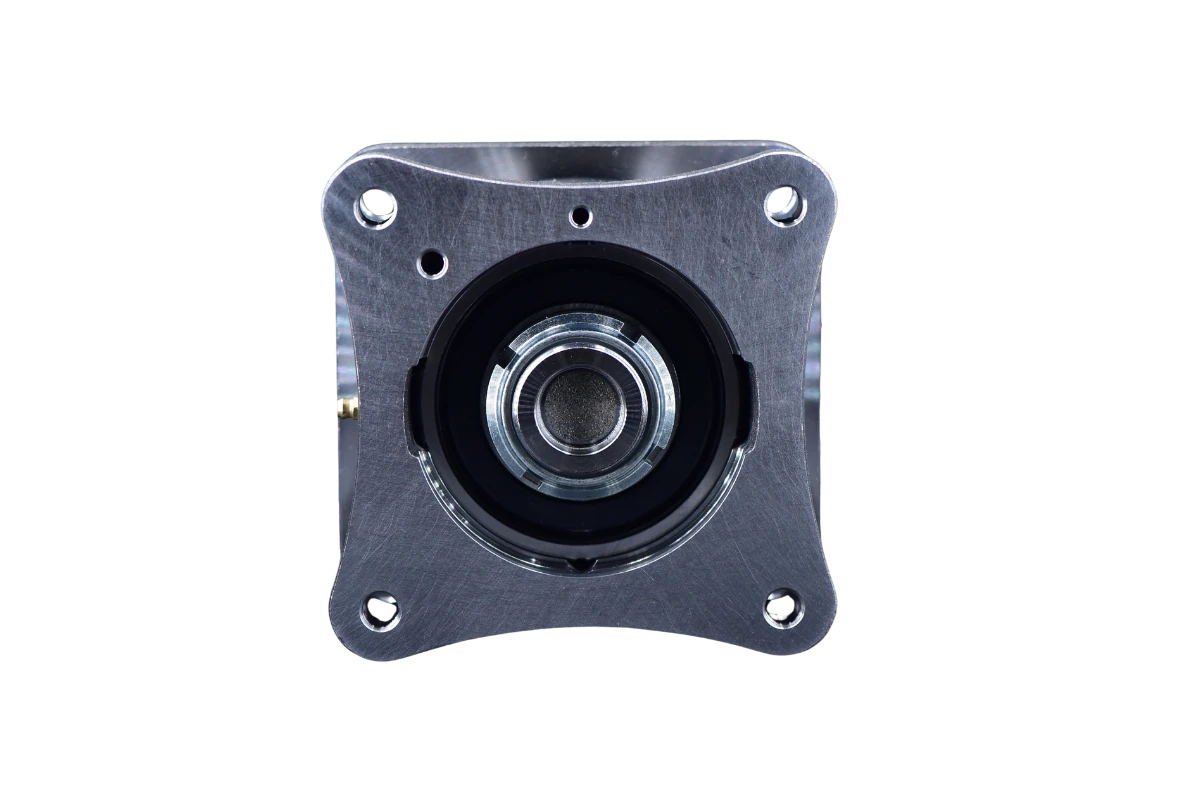

Tandem (double) Gaspardo-type bearing unit with two symmetrical housing sections (L1 = 152 mm, L2 = 150 mm), bore diameter d = 45 mm, housing diameter d1 = 74 mm, weight 5.6 kg. Mounting bases J1 = J2 = 120 mm, fastening 4×M12×1.25 per side, height A = 66.9 mm; design is intended for asymmetric loading of sectional assemblies in seeding and tillage equipment. The reinforced multi-lip sealing system protects the bearing from soil moisture, seed dust and abrasives during continuous field operation. Direct replacement for Gaspardo OEM units (p/n 17014180, M23400435, M23400436, M43400413, M43400468, M43400468R, R17015300), FKL ZGKU 309 2S and RBF PN00102; used in seeding sections and press wheels of Gaspardo/Maschio equipment.
Ready for integration into your project?
Get exact CAD models of the units in the required format or contact our engineers for customization to your operating environment.
| Bore diameter d (mm) | 45 |
|---|---|
| Overall width A (mm) | 66.9 |
| Overall housing width A1 (mm) | 18 |
| Housing flange thickness A2 (mm) | 12 |
| Centering diameter d1 (mm) | 74 |
| Housing overall width L1 (mm) | 152 |
| Distance between holes J1 (mm) | 120 |
| Housing overall width L2 (mm) | 150 |
| Distance between holes J2 (mm) | 120 |
| Centering diameter height A3 (mm) | 7 |
| Threaded hole size T | 4хM12x1.25 |
| Hole diameter H (mm) | 4x12.3 |
| Mass | 5.6 |
| Dynamic load rating Cdyn (kN) | 52.7 |
| Static load rating Co (kN) | 31.5 |
| Fatigue load limit Pu (kN) | 1.32 |

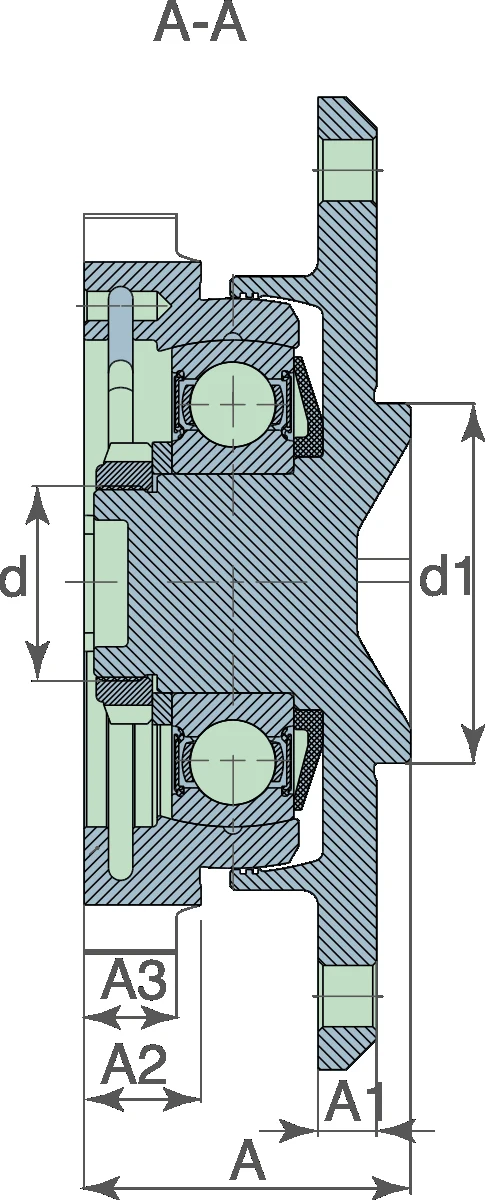

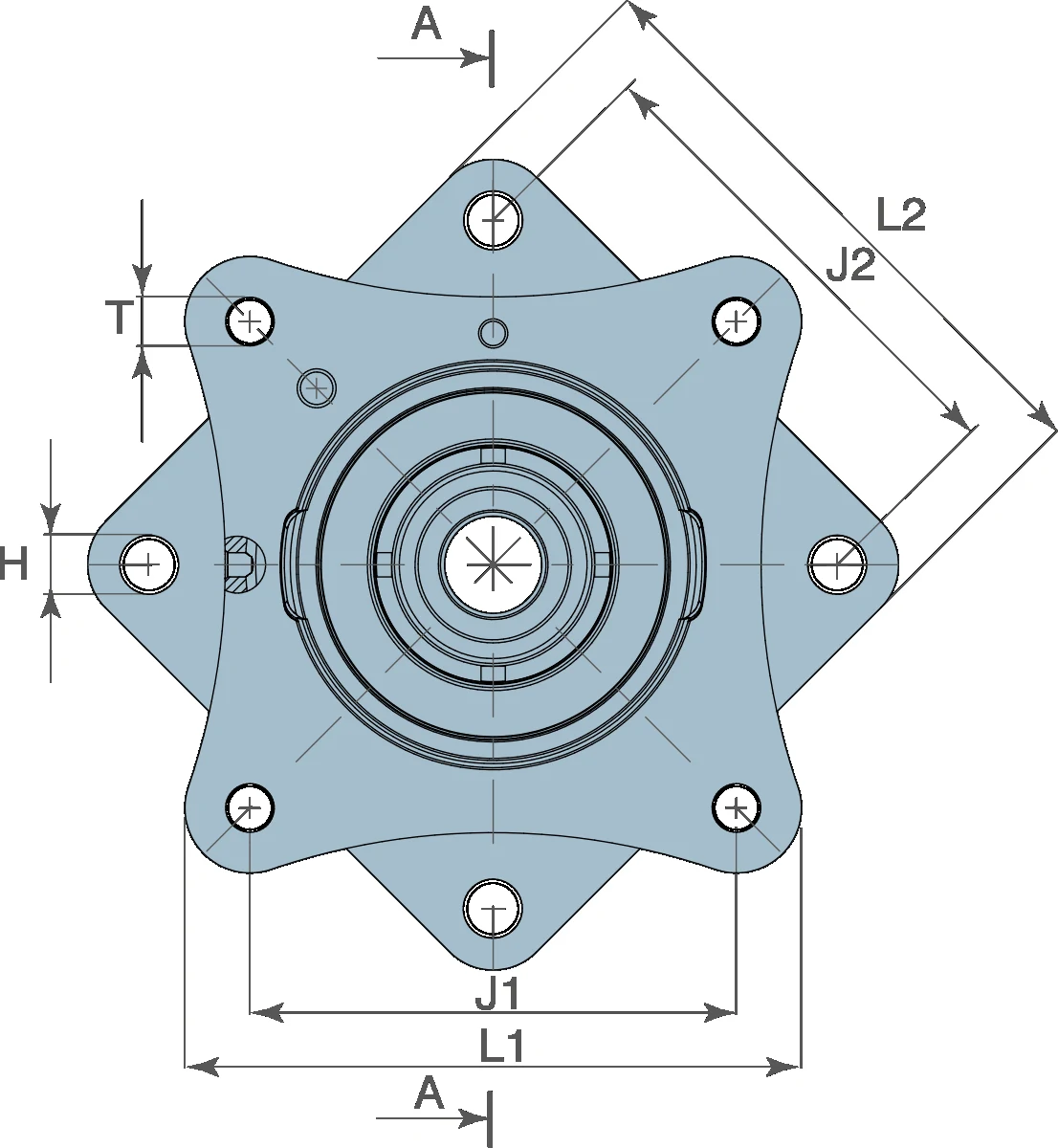

Interactive Drawing
