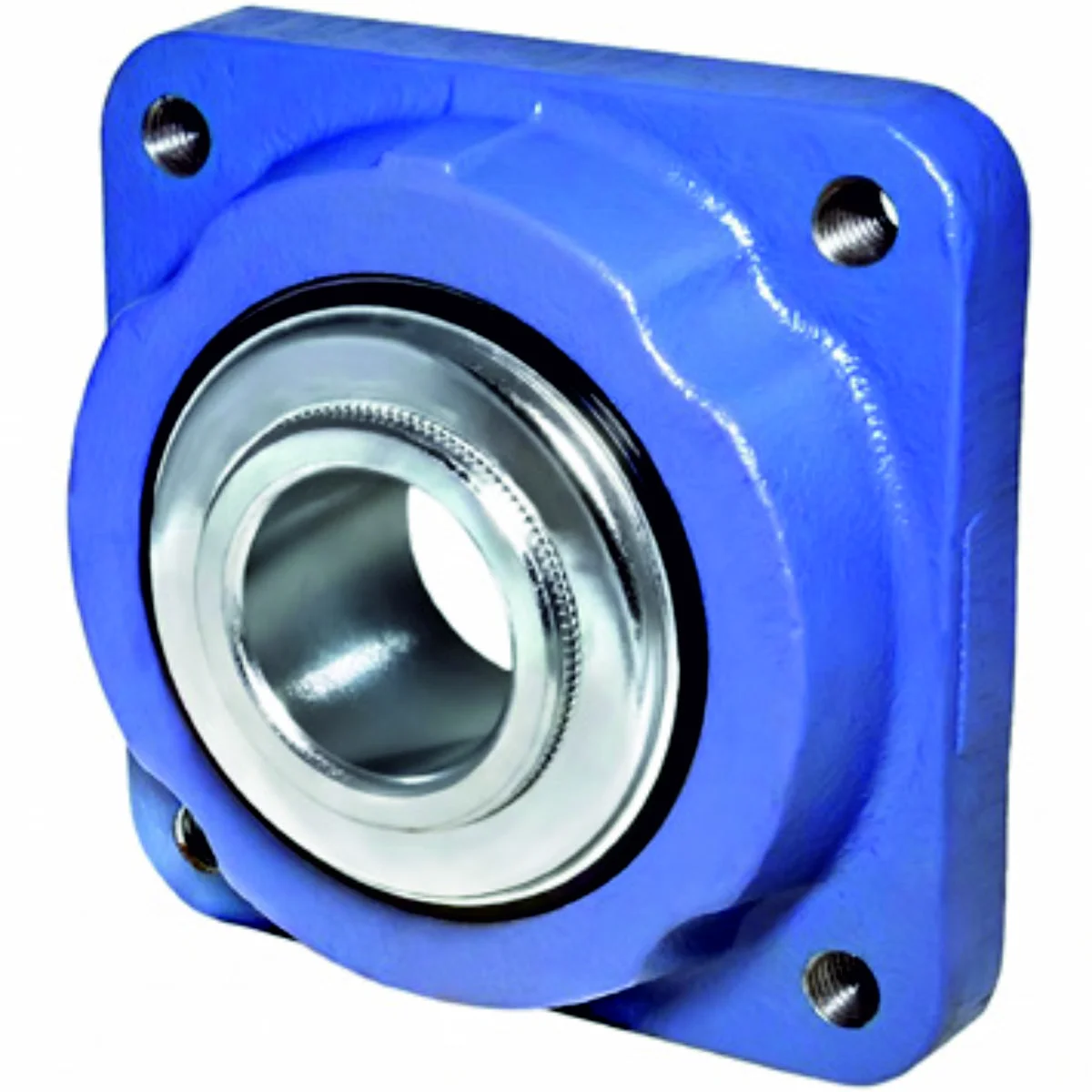

BUQ-308-2T3H-DS

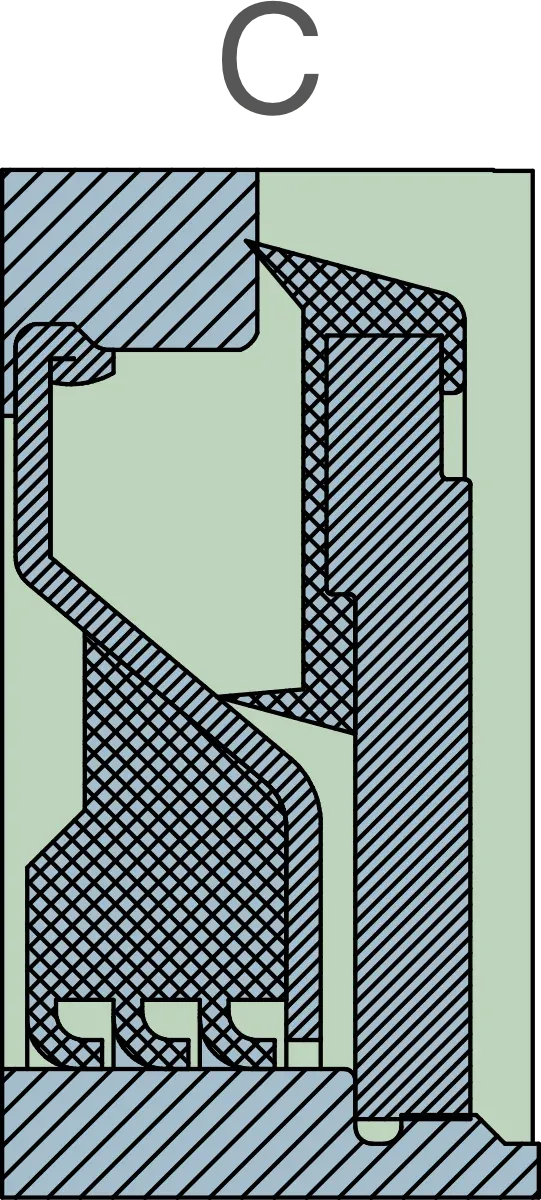

Heavy-duty square flange bearing unit with 4 mounting holes for press wheels (equivalent to UCF 308 / UC 308 X1), bore diameter d = 40 mm. Mounting base J = 101.5 mm, housing length L = 130 mm, thread H/T = M12, Cdyn = 62.3 kN, Co = 45.2 kN, Pu = 1.898 kN, weight 2.5 kg. The reinforced combined sealing system (-DS) provides sealed protection of the rolling zone against soil dust, moisture and abrasives under continuous soil contact. Direct replacement for SNR CE066, FKL LSQFR308 TBT.H.T., PEER W308-40MM-FDT-MF-AP-SP1 and SNR UCF308 A01X1; used in AMAZONE press wheels (part no. 957305, CE066, CE078) and other European tillage equipment.
Ready for integration into your project?
Get exact CAD models of the units in the required format or contact our engineers for customization to your operating environment.
| Bore diameter d (mm) | 40 |
|---|---|
| Overall housing width A1 (mm) | 40.6 |
| Housing flange thickness A2 (mm) | 19 |
| Bolt hole spacing J (mm) | 101.5 |
| Overall length L (mm) | 130 |
| Overall width A (mm) | 51.4 |
| Hole / Thread H/T | M12 |
| Mass | 2.5 |
| Dynamic load rating Cdyn (kN) | 62.3 |
| Static load rating Co (kN) | 45.2 |
| Fatigue load limit Pu (kN) | 1.898 |

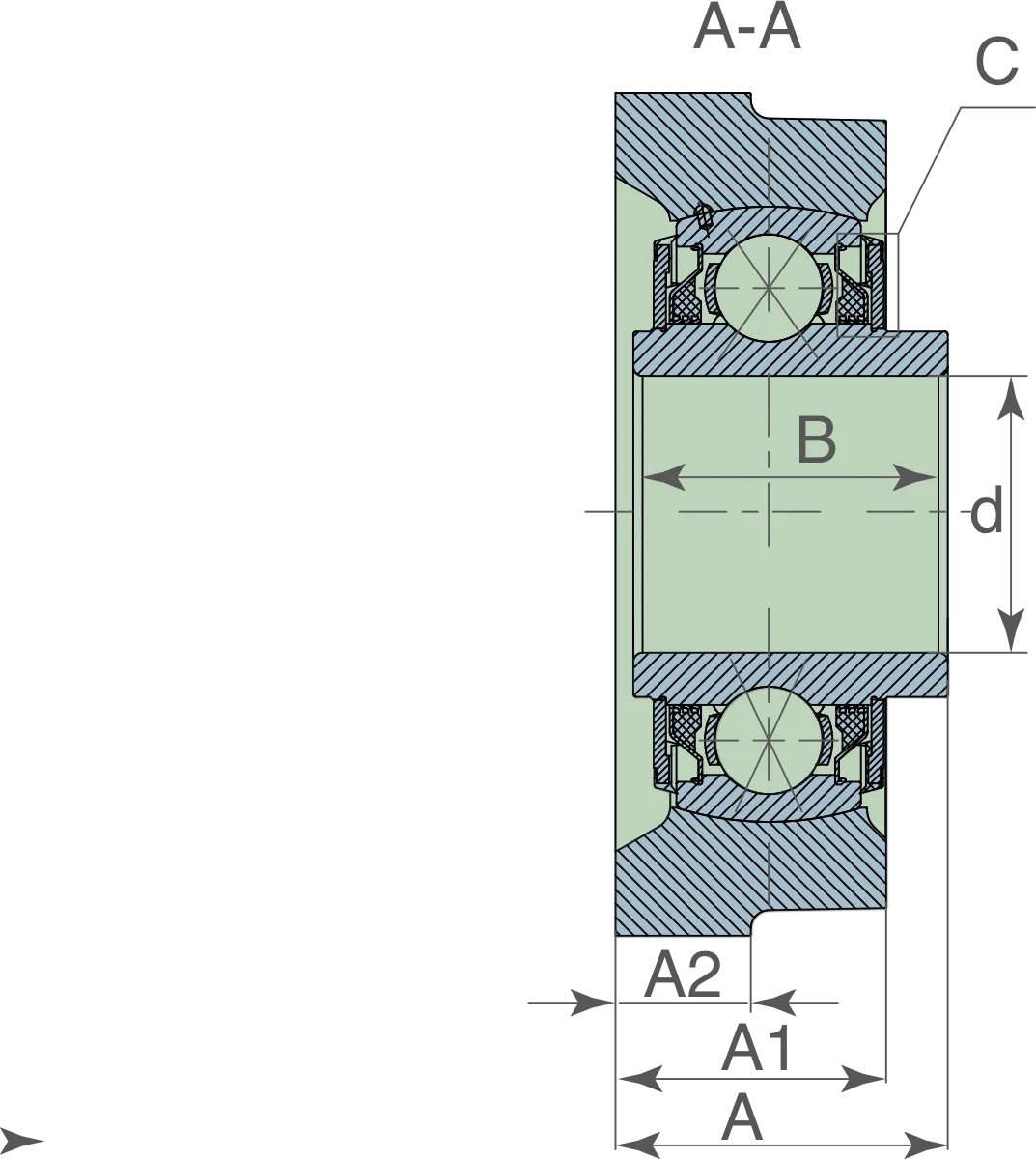

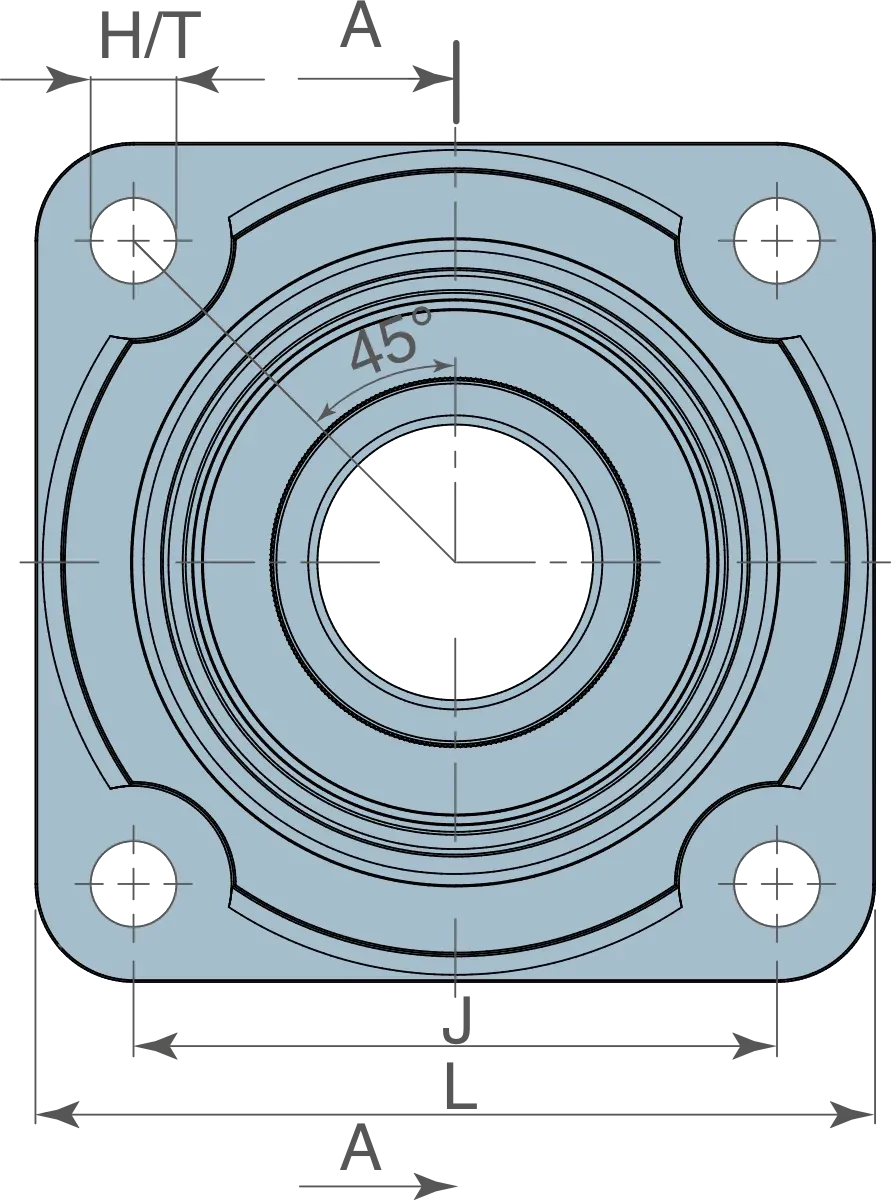

Interactive Drawing
| Bore diameter d (mm) | 40 |
|---|---|
| Overall housing width A1 (mm) | 40.6 |
| Housing flange thickness A2 (mm) | 19 |
| Bolt hole spacing J (mm) | 101.5 |
| Overall length L (mm) | 130 |
| Overall width A (mm) | 51.4 |
| Hole / Thread H/T | M12 |
| Mass | 2.5 |
| Dynamic load rating Cdyn (kN) | 62.3 |
| Static load rating Co (kN) | 45.2 |
| Fatigue load limit Pu (kN) | 1.898 |
