BUQ 309-2T3H

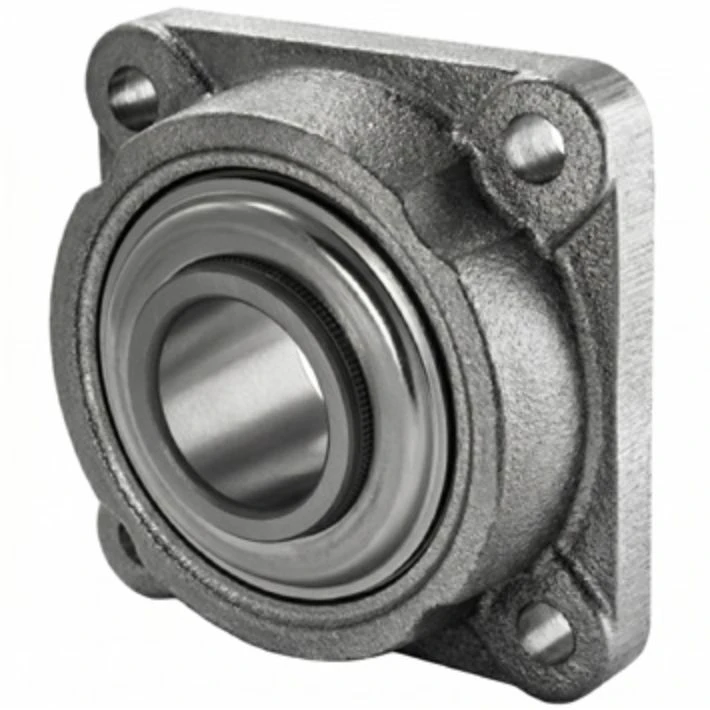

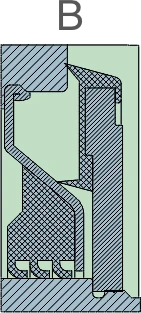

Square flange bearing unit with 4 mounting holes, 309 series, for press wheels, bore diameter d = 45 mm. Mounting base J = 105 mm, housing length L = 137 mm, inner ring width B = 51.1 mm, Cdyn = 59.6 kN, Co = 80.8 kN, Pu = 2.503 kN. Reinforced sealing — triple-lip seal paired with a double-lip seal on each side — ensures service life in assemblies subject to impact loads and abrasive environments. Direct replacement for FKL LSQFR 309 2TB.H.T and the CJI 309 GGG+19000509 assembly; used in Farmet press wheels (part no. 4000412, M14581, 15626ND, 18888ND, M10257, M13082ND, M15626, M17627, M24607, R17015300).
Ready for integration into your project?
Get exact CAD models of the units in the required format or contact our engineers for customization to your operating environment.
| Bore diameter d (mm) | 45 |
|---|---|
| Overall length L (mm) | 137 |
| Bolt hole spacing J (mm) | 105 |
| Overall width A (mm) | 54 |
| Overall housing width A1 (mm) | 44 |
| Housing flange thickness A2 (mm) | 22 |
| Inner ring width B (mm) | 51.1 |
| Hole / Thread H/T | 14 |
| Mass | 3.4 |
| Dynamic load rating Cdyn (kN) | 59.6 |
| Static load rating Co (kN) | 80.8 |
| Fatigue load limit Pu (kN) | 2.503 |

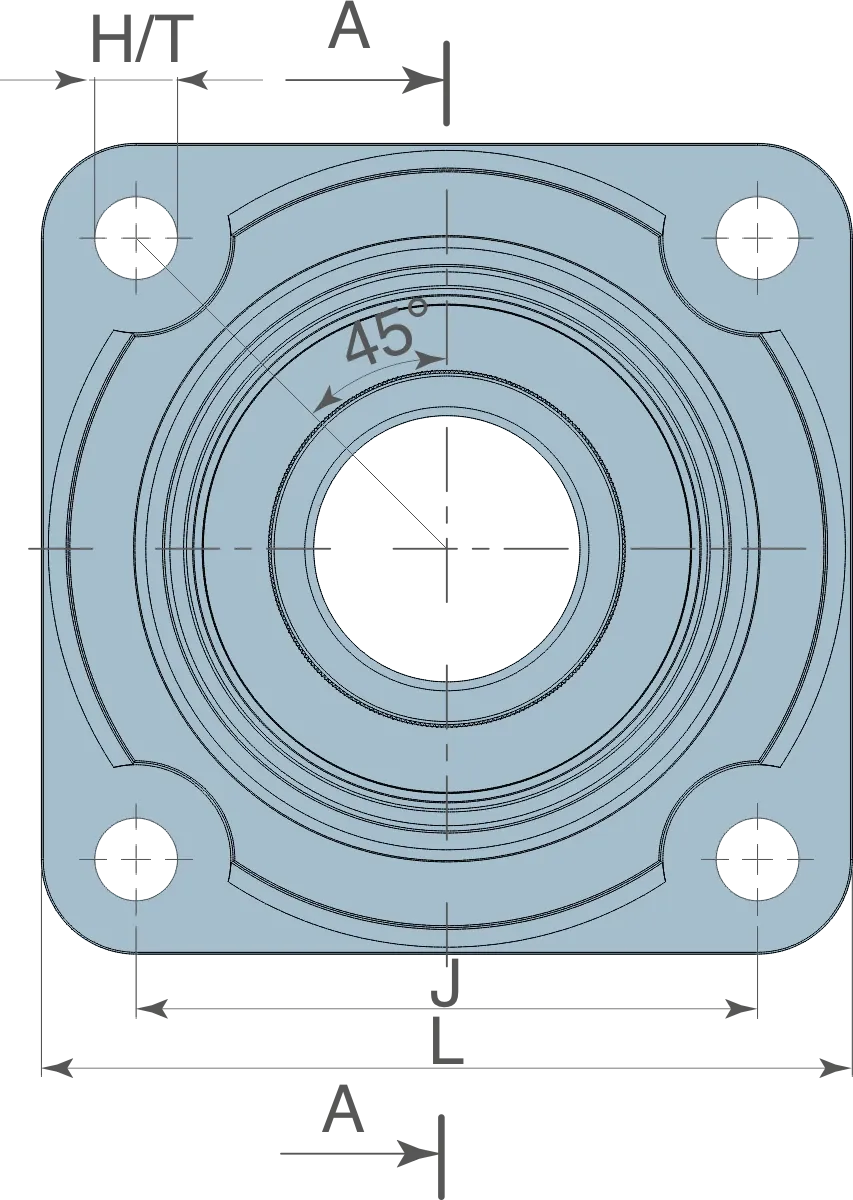

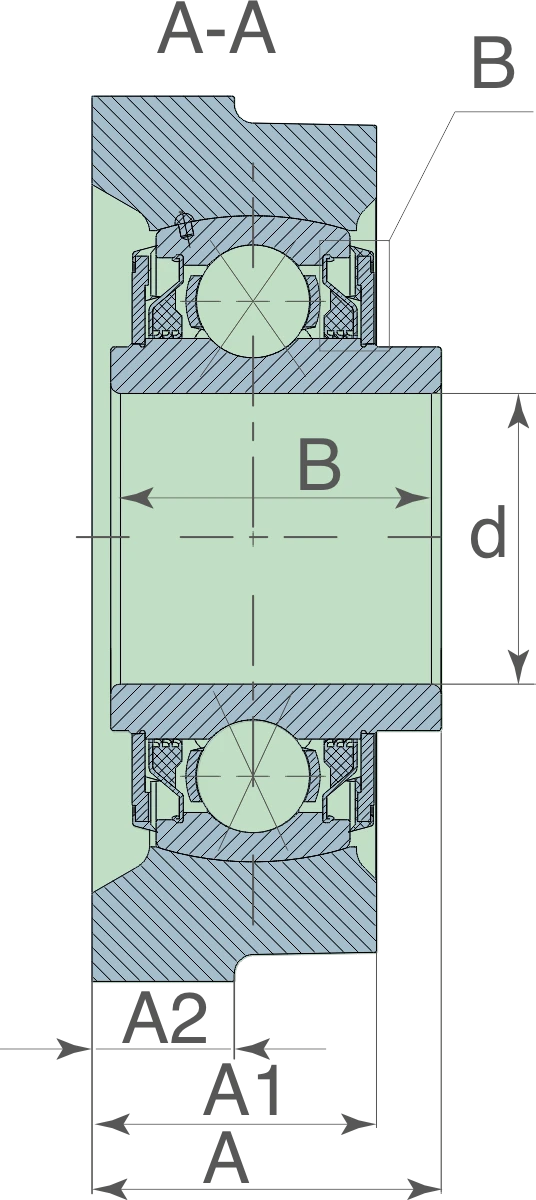

Interactive Drawing
| Bore diameter d (mm) | 45 |
|---|---|
| Overall length L (mm) | 137 |
| Bolt hole spacing J (mm) | 105 |
| Overall width A (mm) | 54 |
| Overall housing width A1 (mm) | 44 |
| Housing flange thickness A2 (mm) | 22 |
| Inner ring width B (mm) | 51.1 |
| Hole / Thread H/T | 14 |
| Mass | 3.4 |
| Dynamic load rating Cdyn (kN) | 59.6 |
| Static load rating Co (kN) | 80.8 |
| Fatigue load limit Pu (kN) | 2.503 |
Cross References
CT-AGRICJI 309 GGG+19000509 (Assy)
FKLLSQFR 309-2TB.H.T
CT-AGRILSQFR 309-2TB.H.T
Farmet4000412
FarmetM14581
Farmet15626ND
Farmet18888ND
FarmetM10257
FarmetM13082ND
FarmetM15626
FarmetM17627
FarmetM24607
19000509АCJI309GGG+
FKLLEFG 209 TDT
