203KRR2-R3 VX

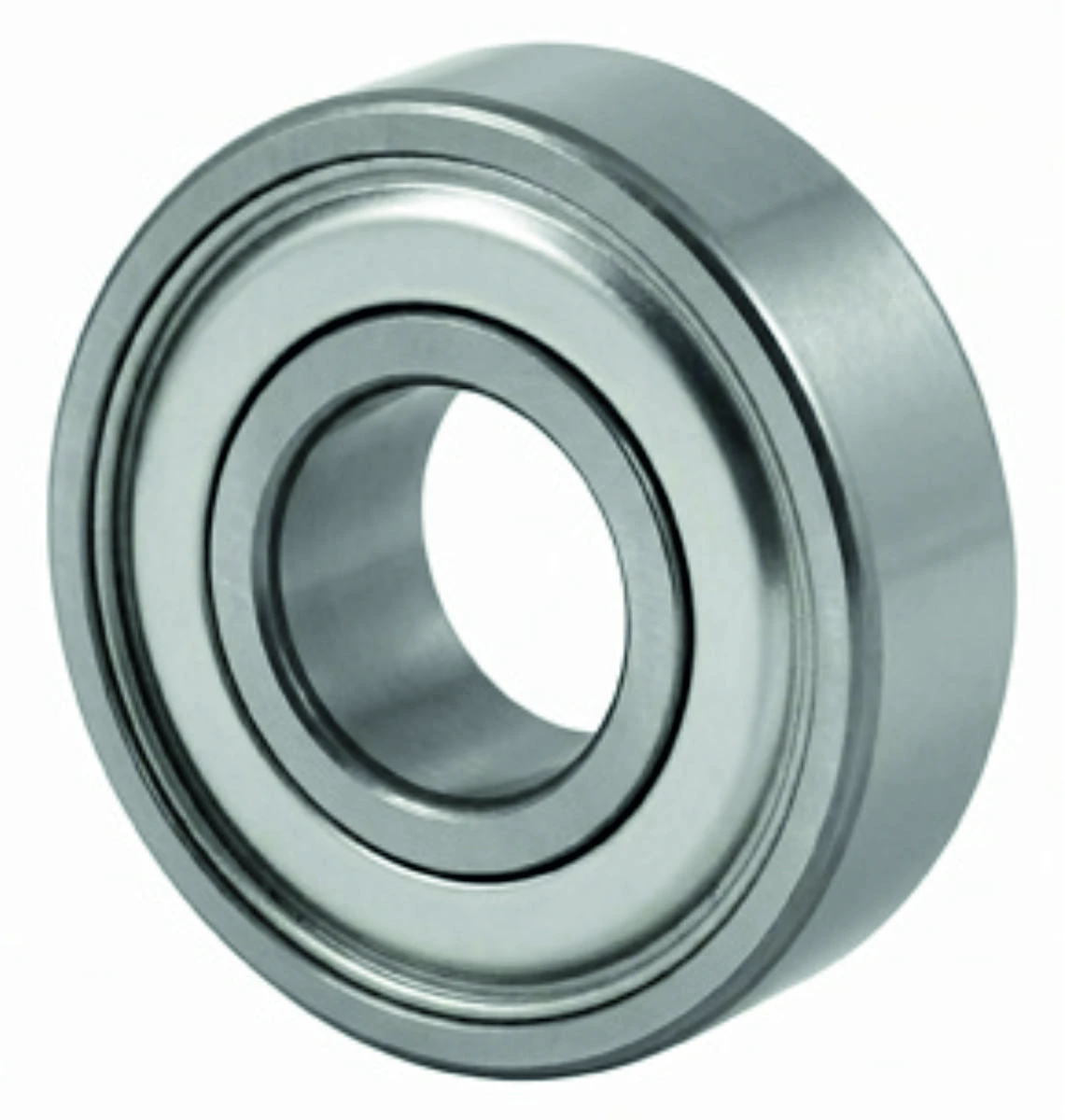

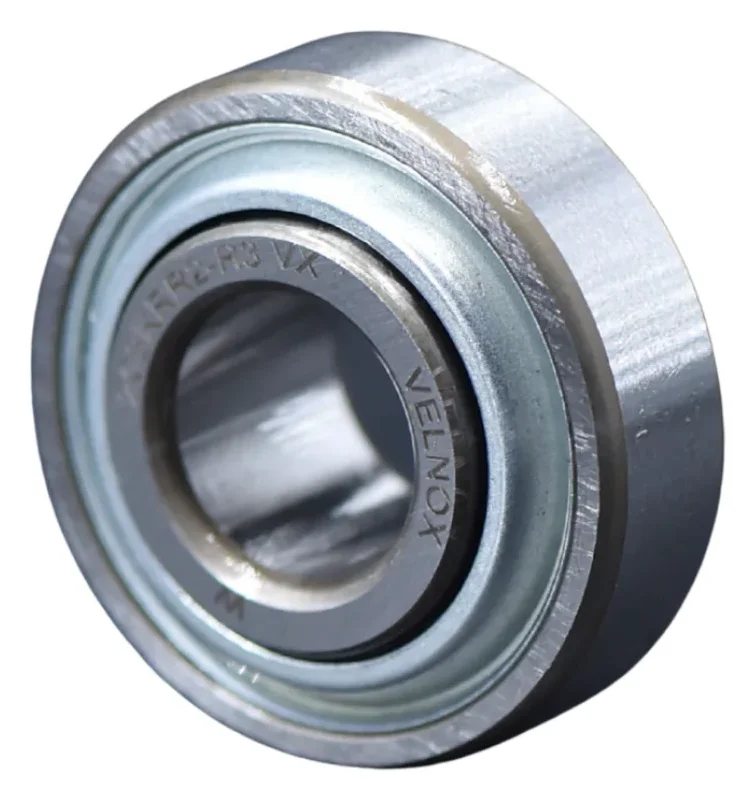

The 203KRR2-R3 VX is a single-row radial ball bearing with a D-shaped bore (d = 16.26 mm) designed for secure shaft retention without set screws in agricultural machinery. Double rubber seals protect against moisture and field contamination. Outer diameter D = 40 mm, inner ring width B = 18.29 mm, outer ring width C = 12 mm. Dynamic load capacity Cdyn = 9.5 kN, static Co = 4.75 kN. Compatible with CASE, John Deere, AGCO, Gehl, Grimme and Great Plains equipment.
Ready for integration into your project?
Get exact CAD models of the units in the required format or contact our engineers for customization to your operating environment.
| Bore diameter d (mm) | 16.26 |
|---|---|
| D (mm) — housing outside diameter | 40 |
| Inner ring width B (mm) | 18.29 |
| Outer ring width C (mm) | 12 |
| Mass | 0.07 |
| Dynamic load rating Cdyn (kN) | 9.5 |
| Static load rating Co (kN) | 4.75 |
| Fatigue load limit Pu (kN) | 0.2 |

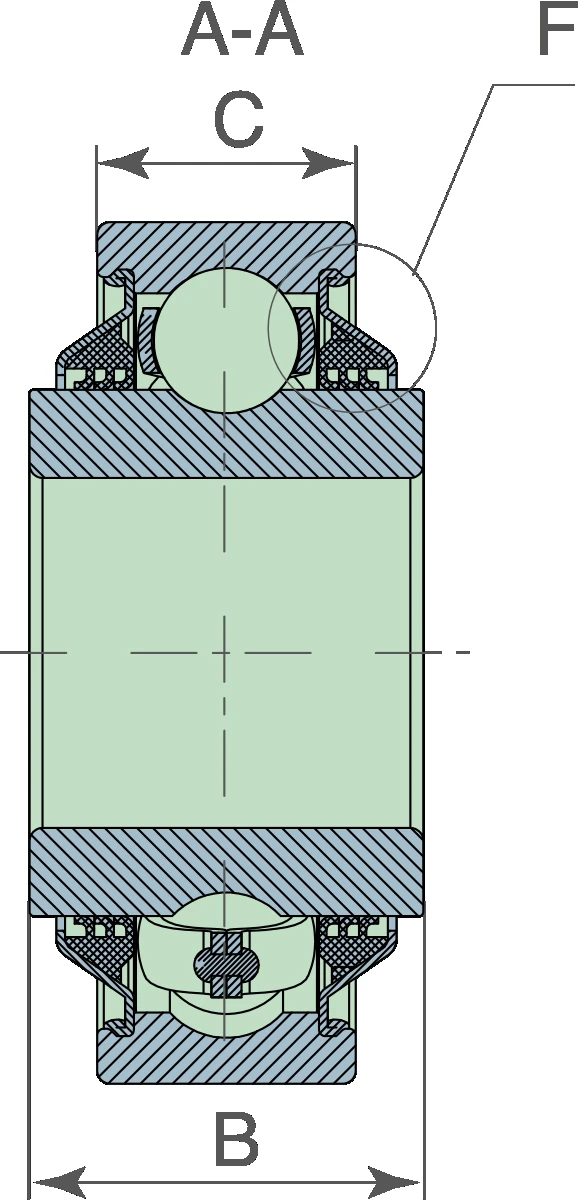

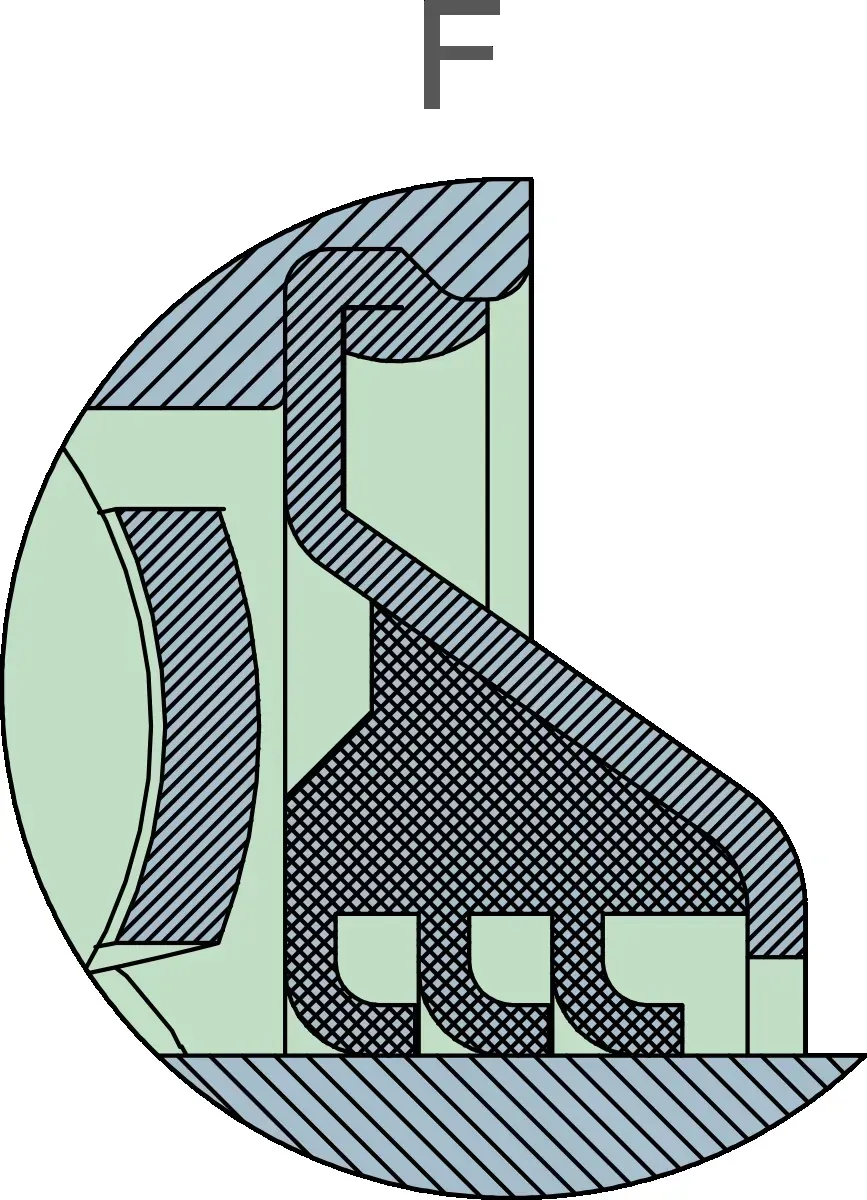

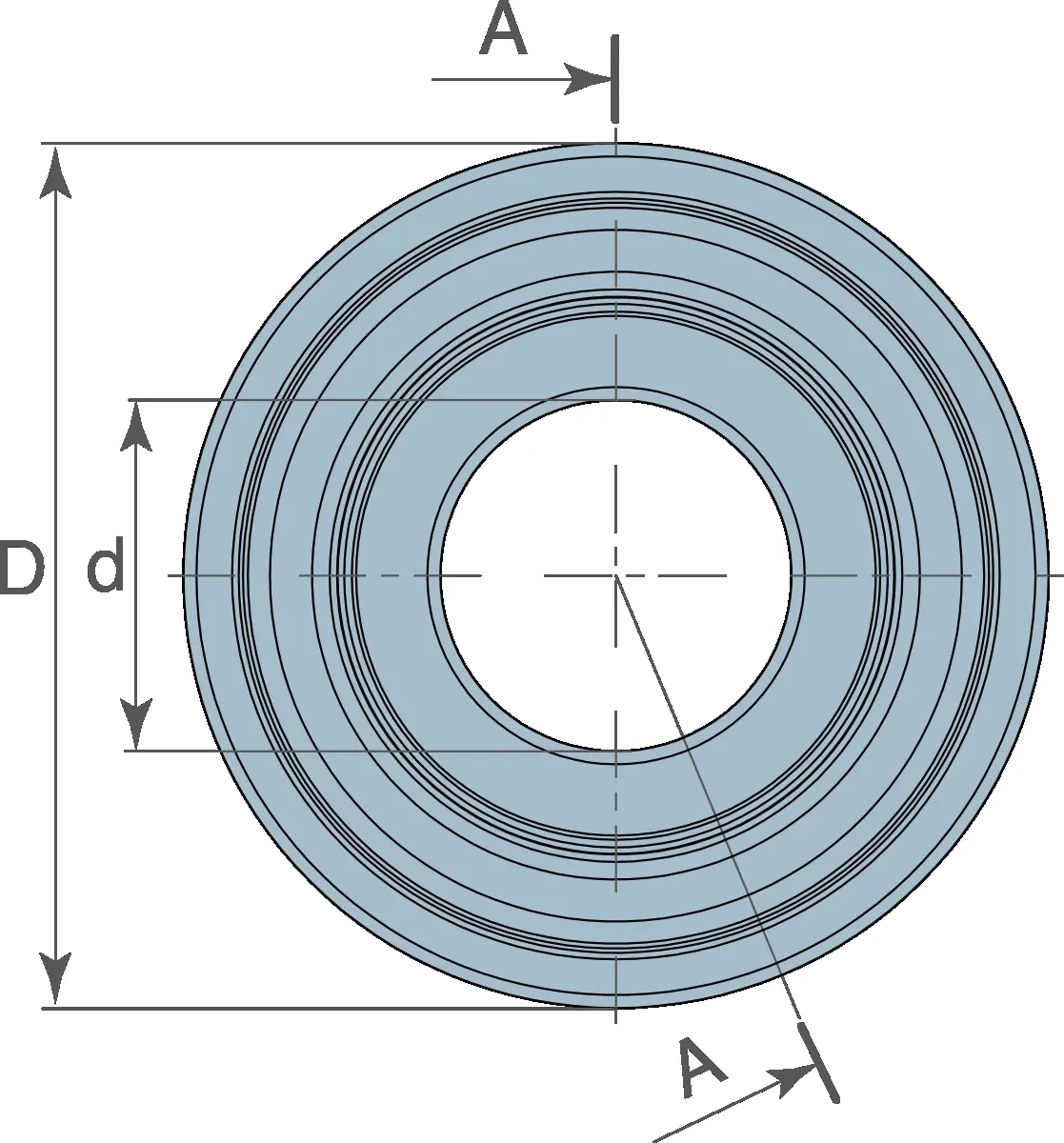

Interactive Drawing
| Bore diameter d (mm) | 16.26 |
|---|---|
| D (mm) — housing outside diameter | 40 |
| Inner ring width B (mm) | 18.29 |
| Outer ring width C (mm) | 12 |
| Mass | 0.07 |
| Dynamic load rating Cdyn (kN) | 9.5 |
| Static load rating Co (kN) | 4.75 |
| Fatigue load limit Pu (kN) | 0.2 |
Cross References
FKL203 KRR AH02
INA203 KRR AH02
RBF203 KRR2
CT-AGRI203 KRR2
PEER203 KRR2FD (PER.203RRY2)
CT-AGRI203 KRR2-R3
TIMKEN203 RR2
TIMKENBB203 RR2
PEERBB203RR2FD
CASE144819C91
CASE149261C91
Will rich23091
AGCO3643380M1
Gehl520117
CASE666624R91
Great Plains822-095C
JOHN DEEREAN100425
GrimmeB96.00410
JOHN DEEREJD9214
