204PY3 VX

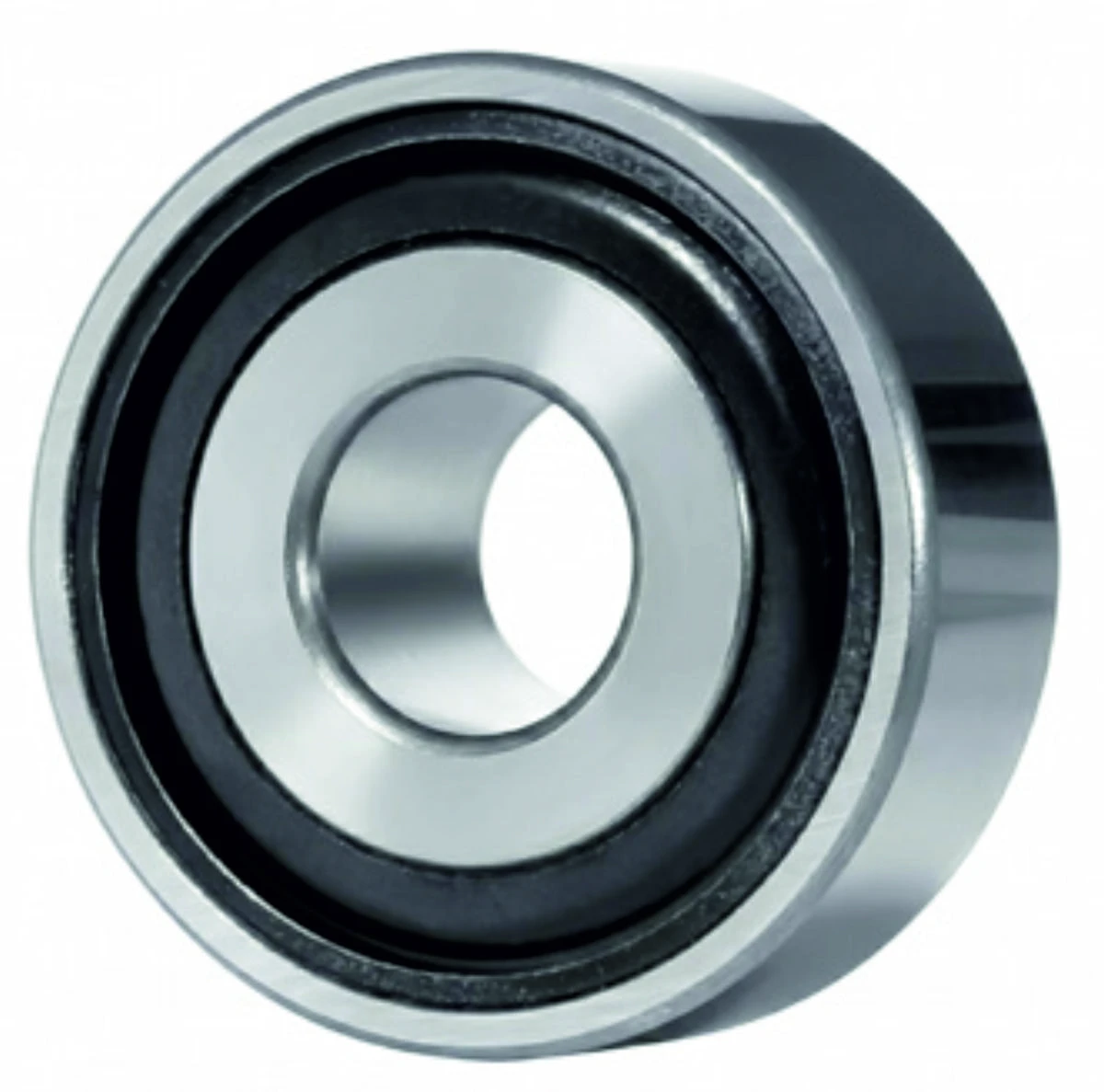

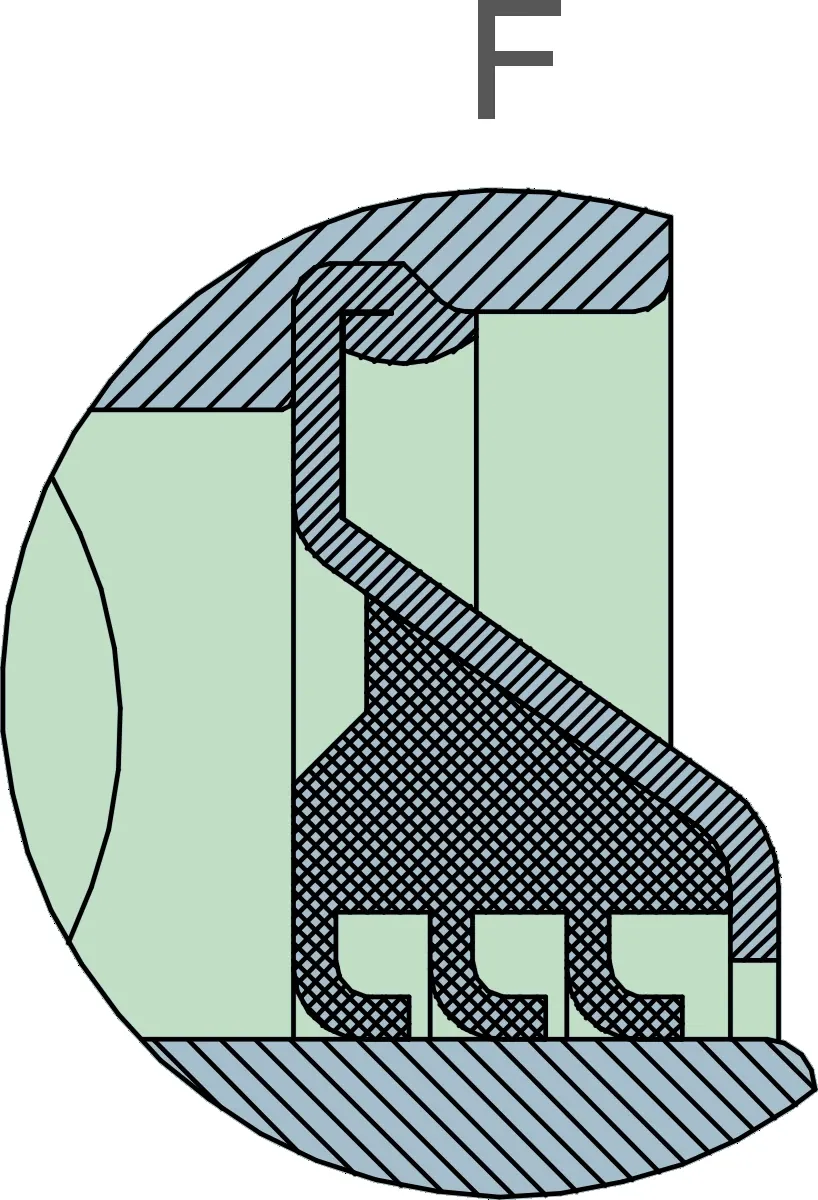

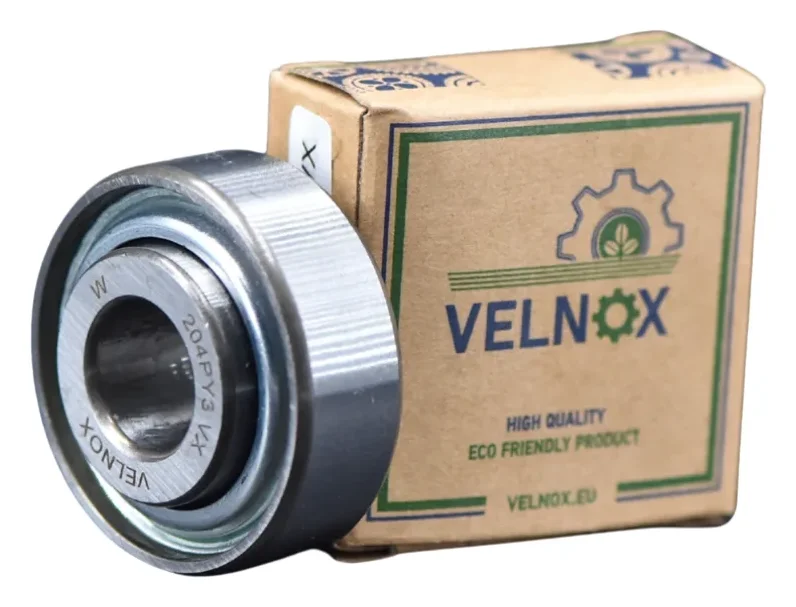

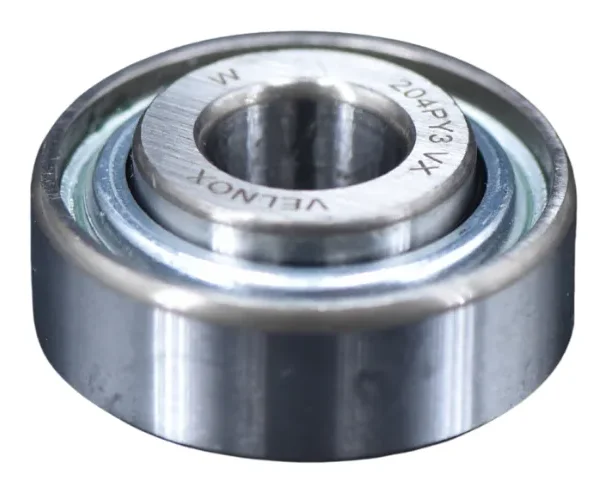

The 204PY3 VX is a single-row radial ball bearing with a round bore (d = 16 mm) for precision mounting in seeding and tillage sections. Double rubber seals protect against dust and moisture. Outer diameter D = 45.2 mm, inner ring width B = 18.67 mm, outer ring width C = 15.4 mm, weight 0.13 kg. Dynamic load capacity Cdyn = 12.84 kN, static Co = 6.65 kN. Direct replacement for TIMKEN 204 PY2 / BB204RRY3, PEER 204 PF3, FKL 06C04 2Z. Compatible with HORSCH, CASE, Vaderstad, Great Plains, John Deere, AMAZONE, KINZE and KUHN equipment.
Ready for integration into your project?
Get exact CAD models of the units in the required format or contact our engineers for customization to your operating environment.
| Bore diameter d (mm) | 16 |
|---|---|
| D (mm) — housing outside diameter | 45.2 |
| Inner ring width B (mm) | 18.67 |
| Outer ring width C (mm) | 15.4 |
| Mass | 0.13 |
| Dynamic load rating Cdyn (kN) | 12.84 |
| Static load rating Co (kN) | 6.65 |

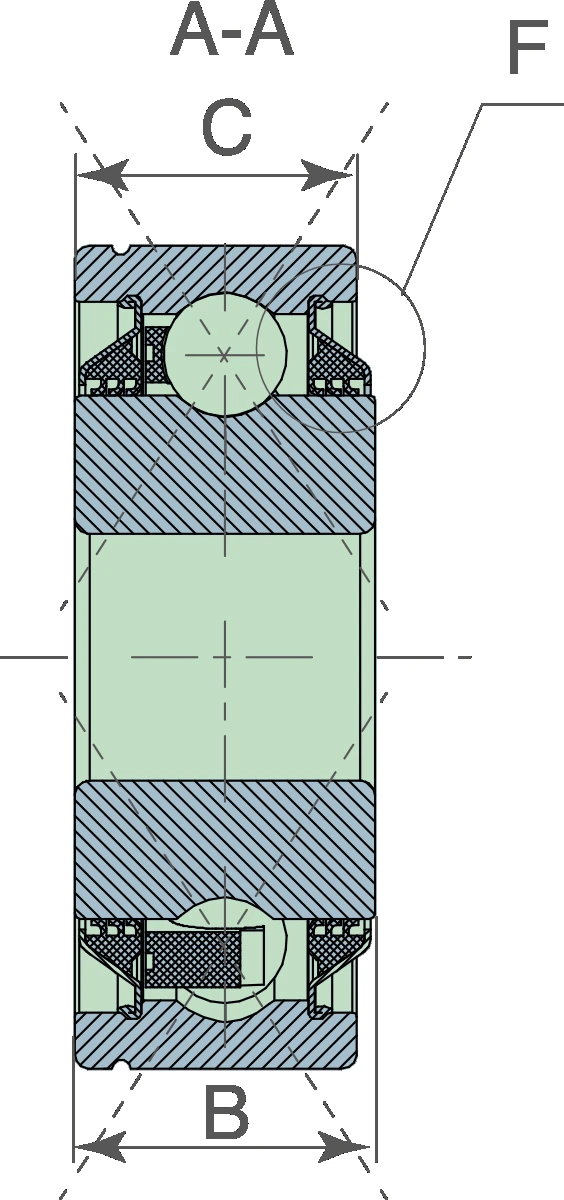

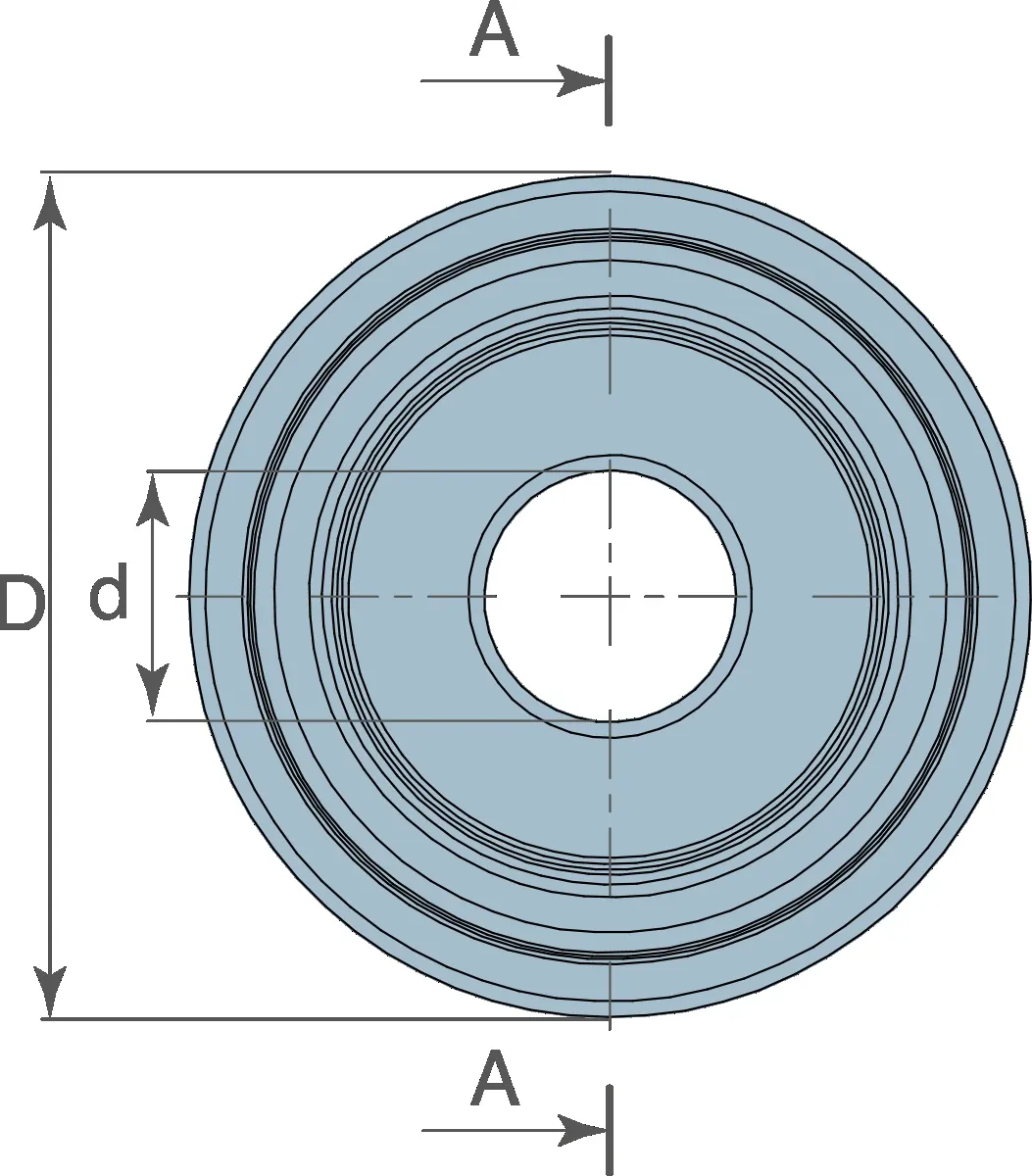

Interactive Drawing
| Bore diameter d (mm) | 16 |
|---|---|
| D (mm) — housing outside diameter | 45.2 |
| Inner ring width B (mm) | 18.67 |
| Outer ring width C (mm) | 15.4 |
| Mass | 0.13 |
| Dynamic load rating Cdyn (kN) | 12.84 |
| Static load rating Co (kN) | 6.65 |
Cross References
PEER204 PF3 (PER.BB204RRP3-A)
TIMKEN204 PY2
CT-AGRI204 PY3
RBF204 PY3
TIMKEN204 PY3 (BB204RRY3)
PEER204 PY3
FKL06C04 2Z
HORSCH00240199
HORSCH00310104
CASE1260817R91
Vaderstad466635
GP820-003C
GP822-011C
GP822-067C
JDAA21480
AMAZONECA139
KINZEGA2014
KUHNK3030210
