5203KYY3 VX

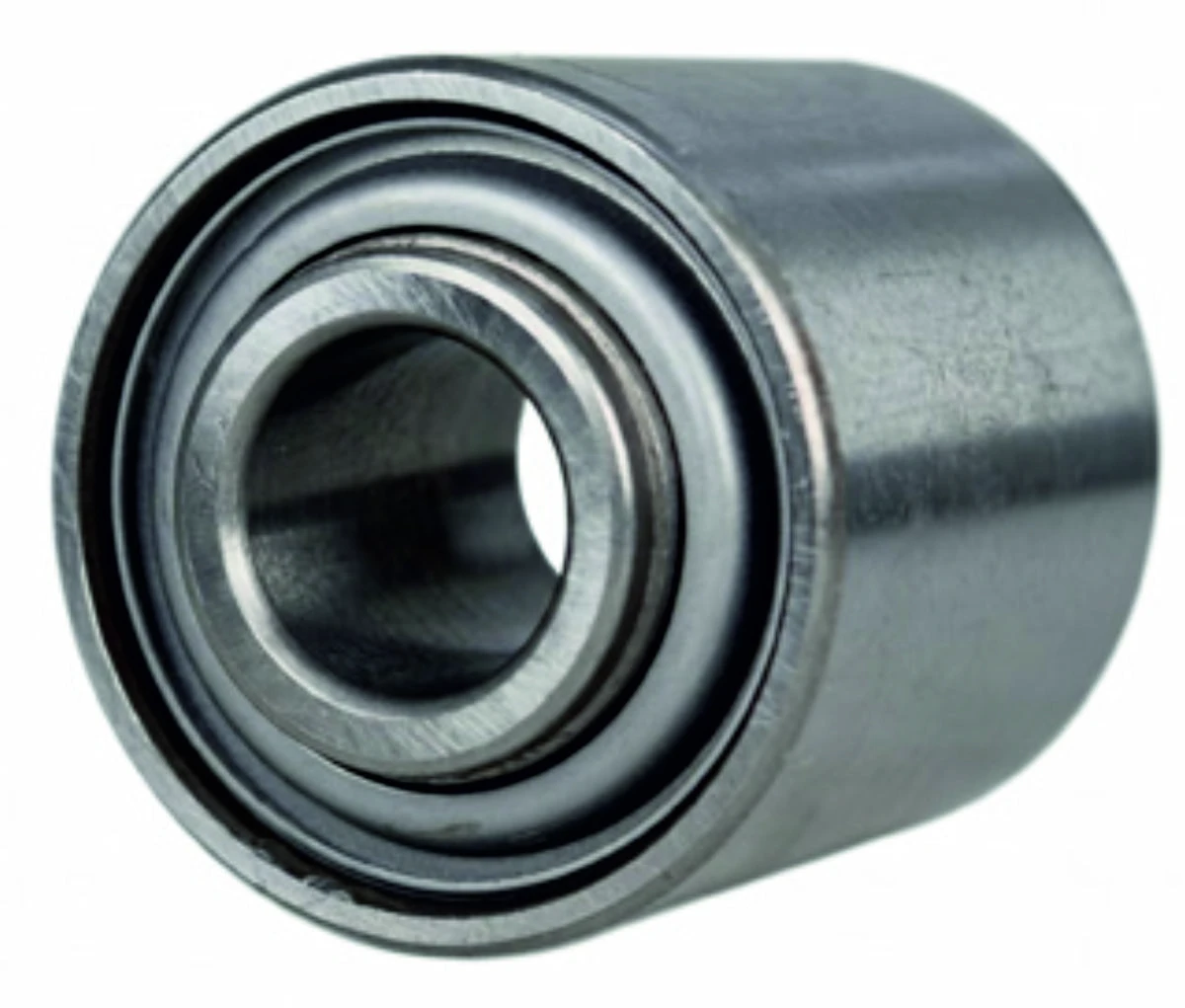

The 5203KYY3 VX is a double-row angular contact ball bearing with a round bore (d = 16.256 mm) and contact angle α = 30°. Designed for combined radial and axial loads in seeding sections and disc tillage equipment. Outer diameter D = 40 mm, inner ring width B = 44.12 mm, outer ring width C = 39.12 mm, shoulder diameter d1 = 23.5 mm, weight 0.218 kg. Dynamic load capacity Cdyn = 14.2 kN, static Co = 8.8 kN, Pu = 0.37 kN. Direct replacement for TIMKEN/RBF/CT-AGRI 5203 KYY2, FKL SL-5203 2T, NSK-RHP DAC 164044 2RS. Compatible with GASPARDO, KRAUSE, KINZE, Great Plains, AMAZONE, SUNFLOWER, MONOSEM, John Deere, KUHN, HORSCH and KVERNELAND equipment.
Ready for integration into your project?
Get exact CAD models of the units in the required format or contact our engineers for customization to your operating environment.
| Bore diameter d (mm) | 16.256 |
|---|---|
| D (mm) — housing outside diameter | 40 |
| Inner ring width B (mm) | 44.12 |
| Outer ring width C (mm) | 39.12 |
| Centering diameter d1 (mm) | 23.5 |
| Mass | 0.218 |
| Dynamic load rating Cdyn (kN) | 14.2 |
| Static load rating Co (kN) | 8.8 |
| Fatigue load limit Pu (kN) | 0.37 |

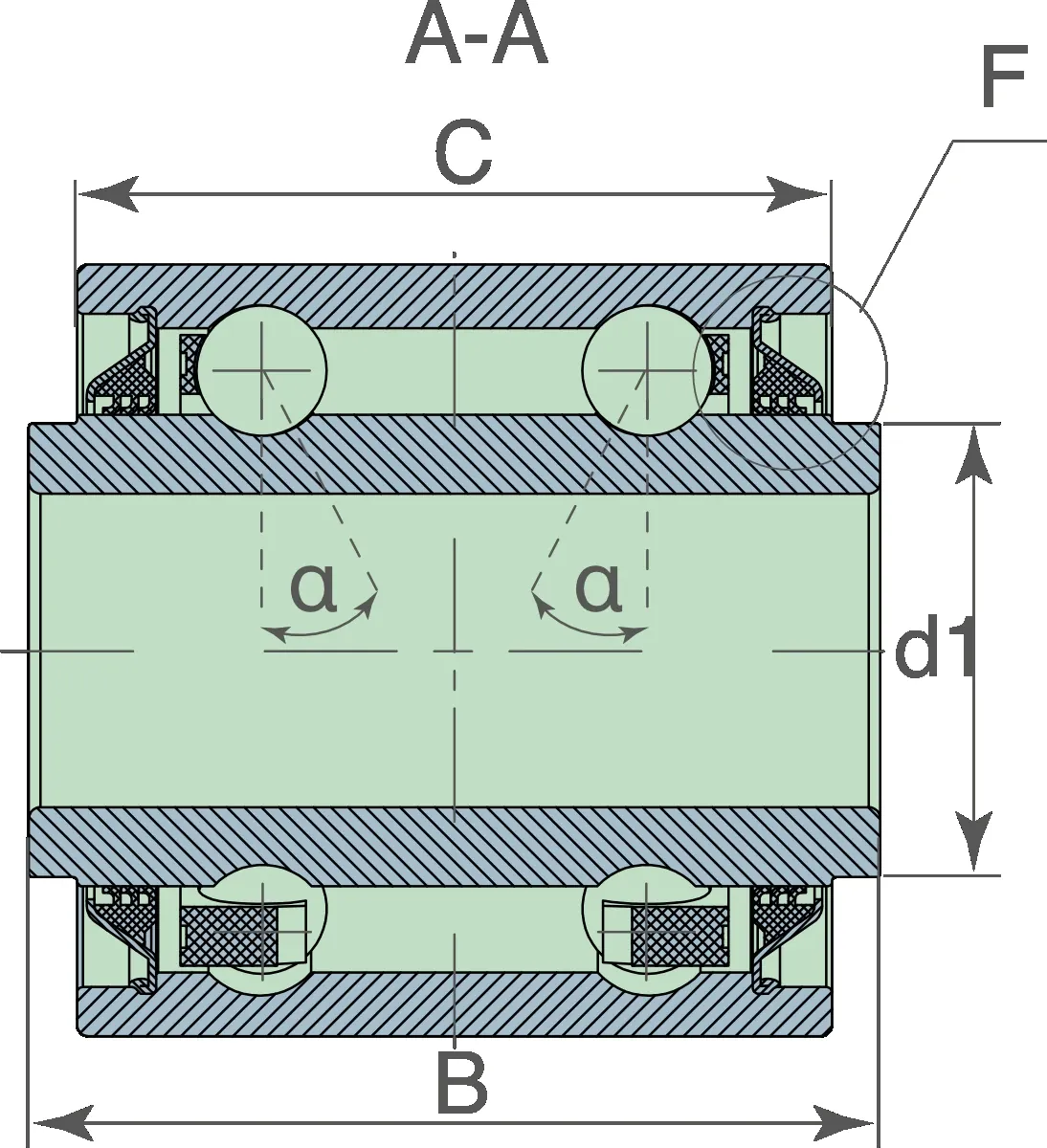

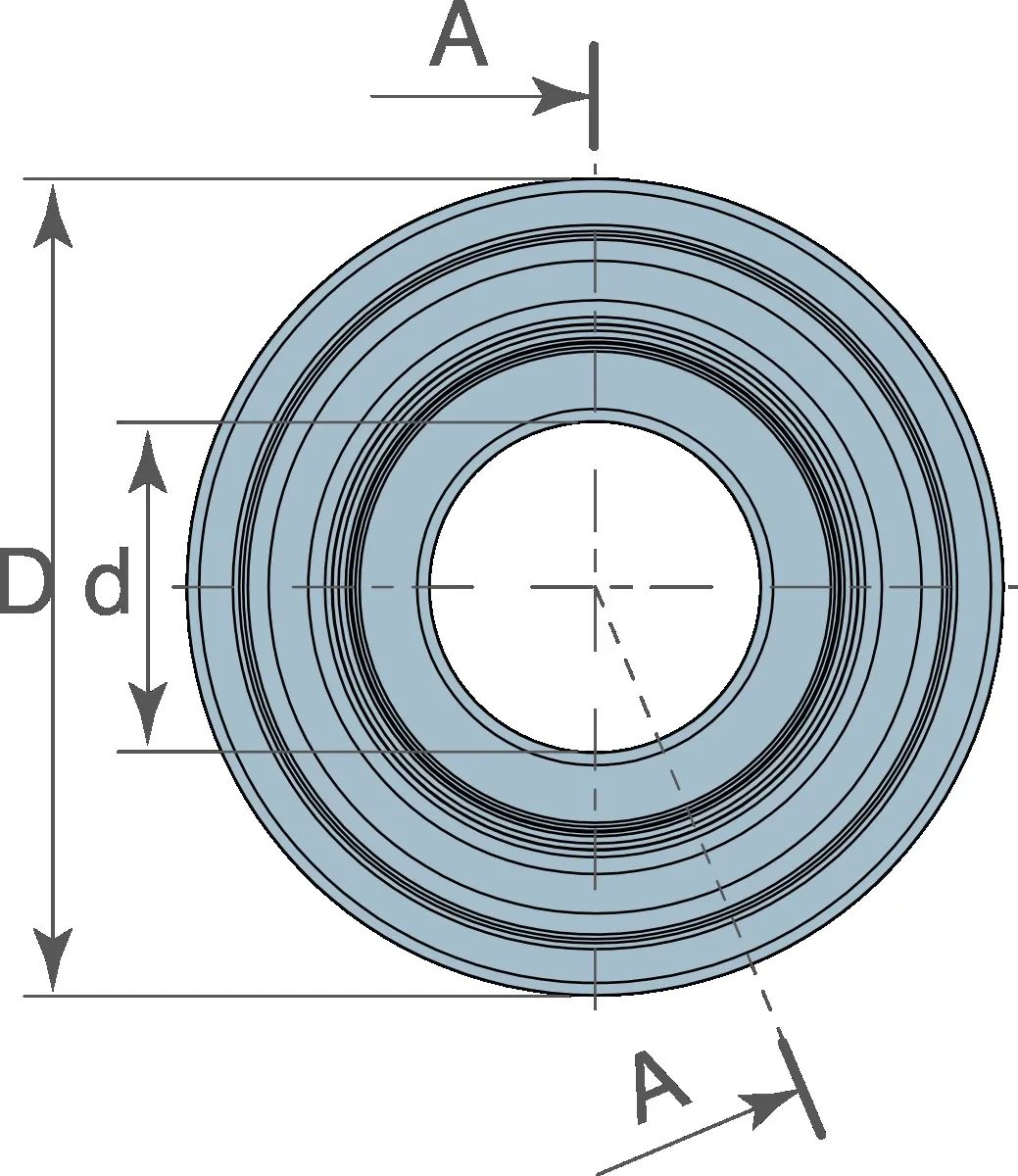

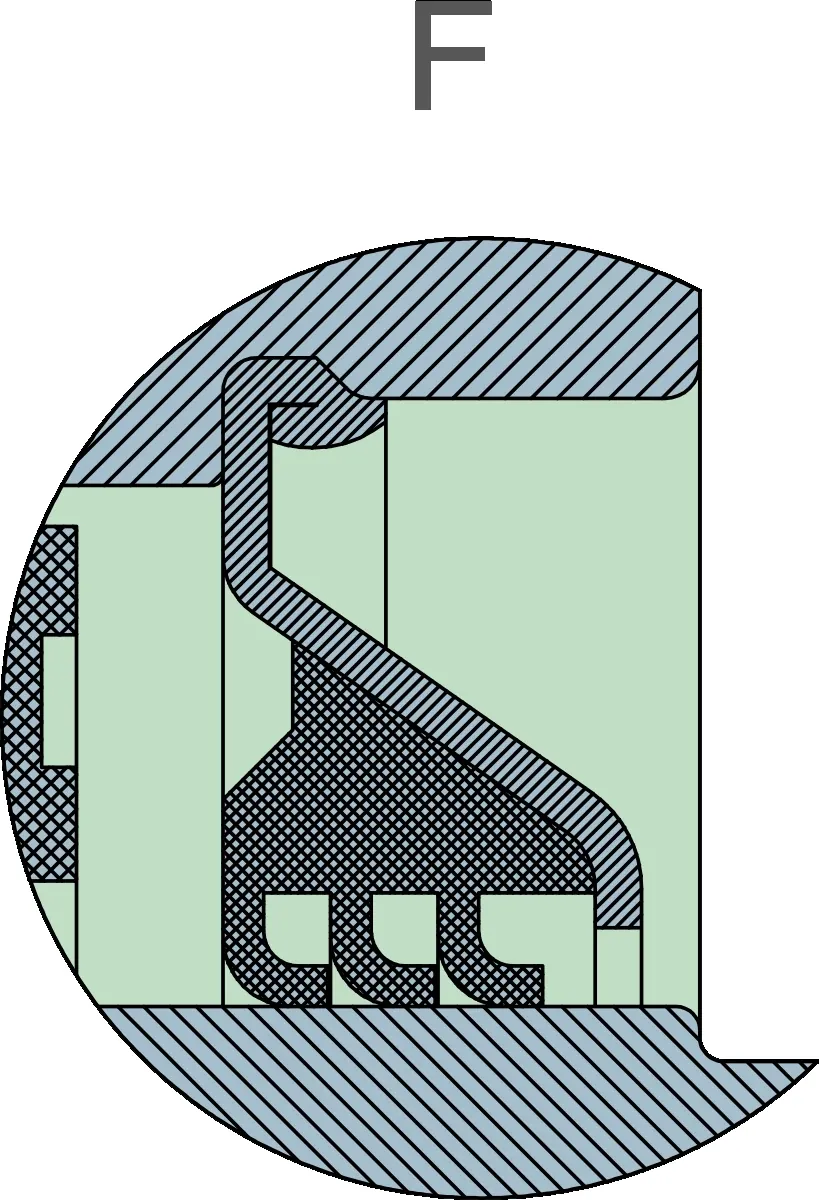

Interactive Drawing
