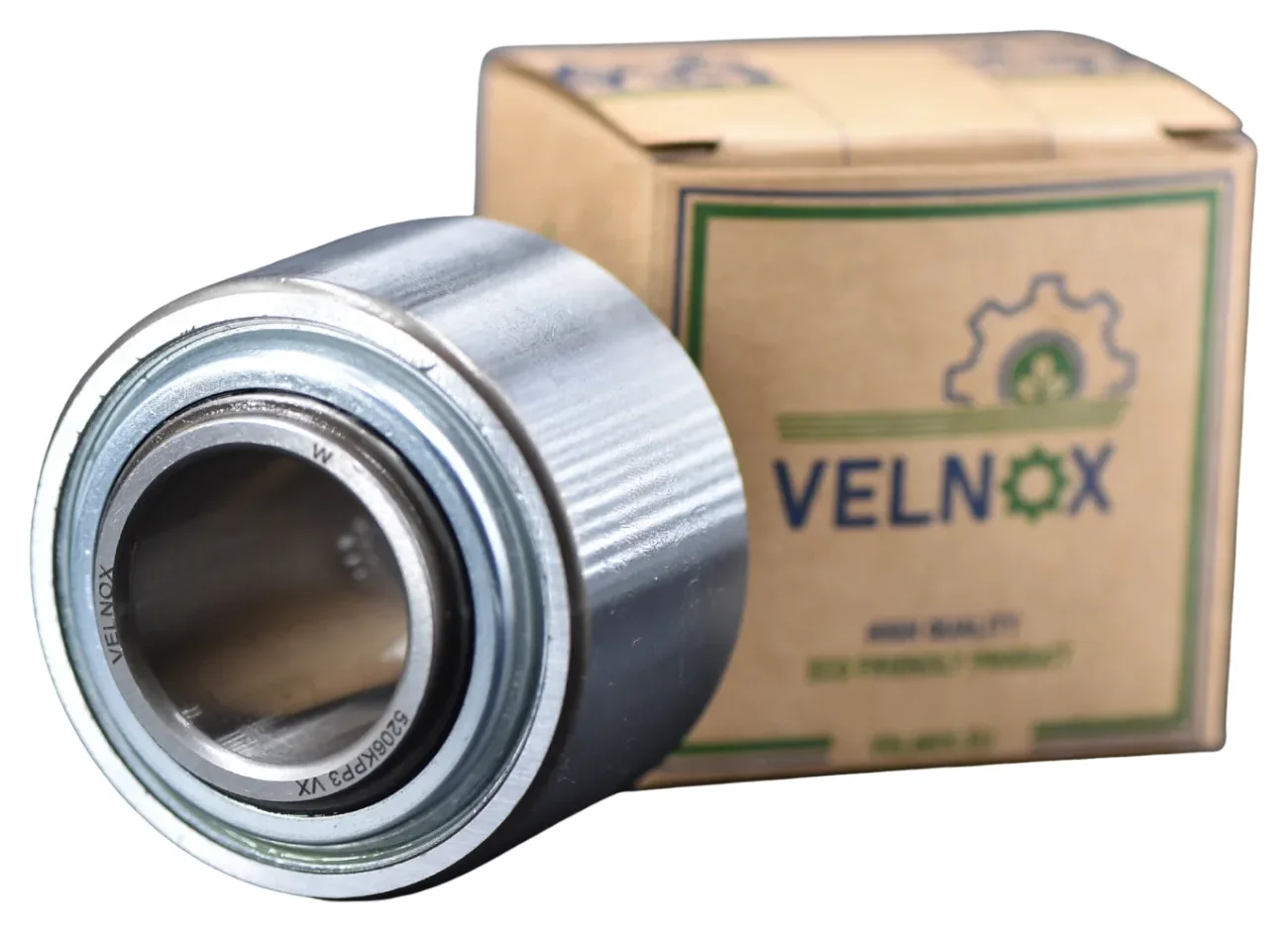

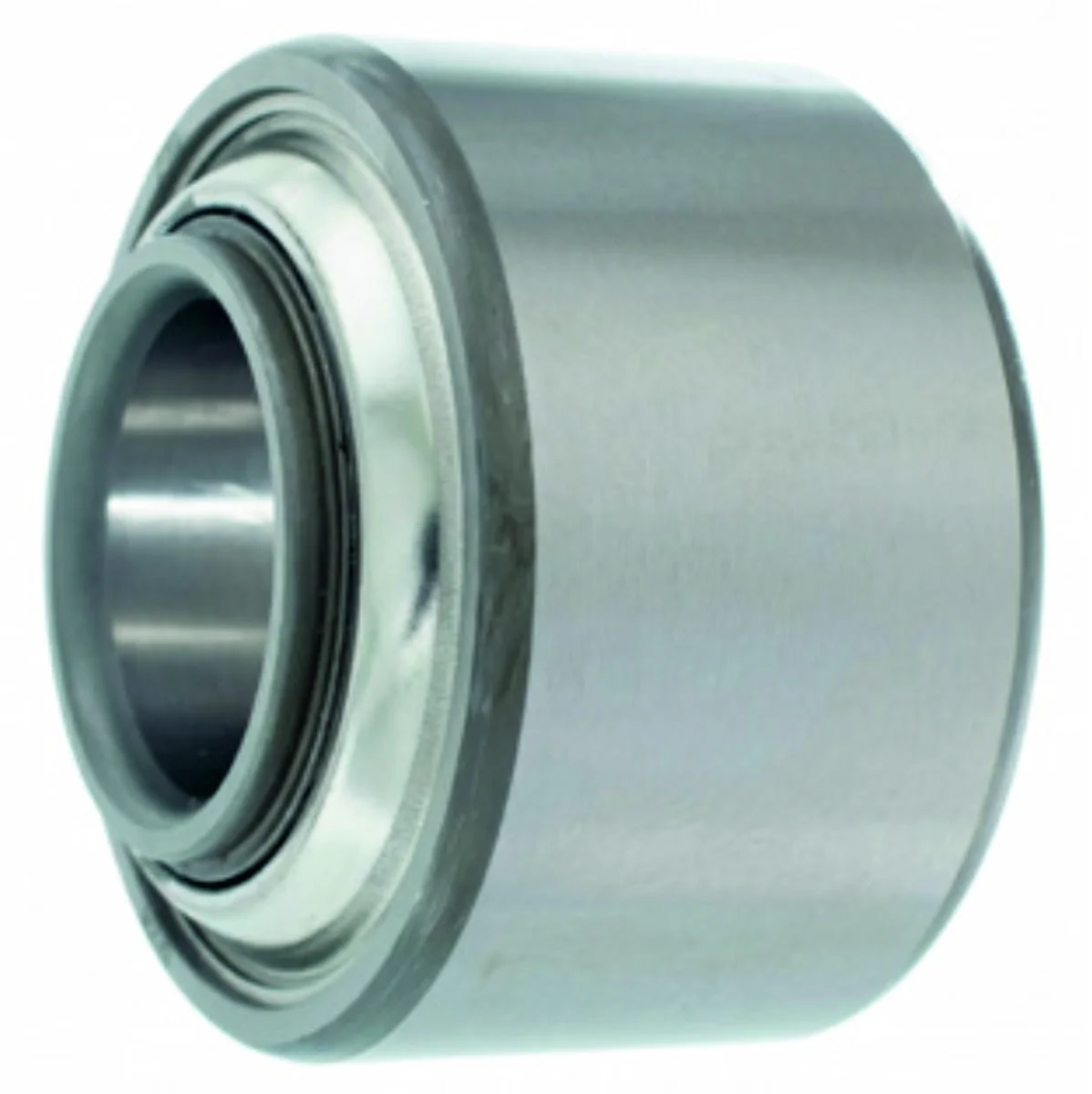

5206KPP3 VX
The 5206KPP3 VX is a double-row angular contact ball bearing with a D-shaped bore (d = 30.15 mm) and contact angle α = 25°. The D-bore design ensures secure shaft retention without additional locking elements. Outer diameter D = 62 mm, inner ring width B = 50 mm, outer ring width C = 37 mm, weight 0.5 kg. Dynamic load capacity Cdyn = 28.7 kN, static Co = 21.8 kN. Direct replacement for PFI/TIMKEN/RBF/CT-AGRI/FKL 5206 KPP3, PEER 5206RPP3. Compatible with Great Plains (822-215C), CASE (87283953), John Deere (AN261766/AN261637) and KINZE (GA8603, GA8641) equipment.
Ready for integration into your project?
Get exact CAD models of the units in the required format or contact our engineers for customization to your operating environment.
| Outside diameter D (mm) | 62 |
|---|---|
| Bore diameter d (mm) | 30.15 |
| Outer ring width C (mm) | 37 |
| Inner ring width B (mm) | 50 |
| Contact angle α (°) | 25 |
| Dynamic load rating Cdyn (kN) | 28.7 |
| Static load rating Co (kN) | 21.8 |
| Mass (kg) | 0.5 |

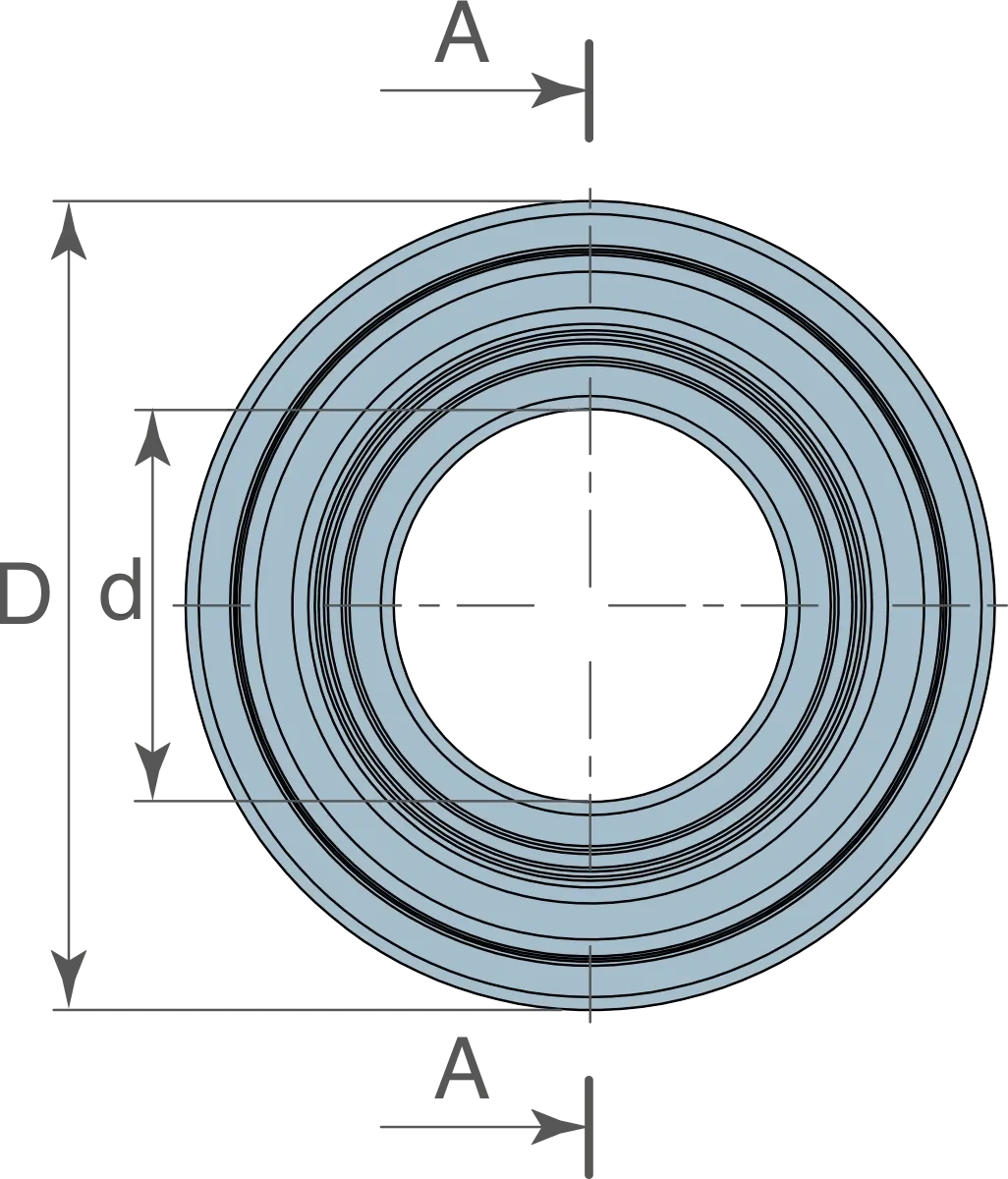

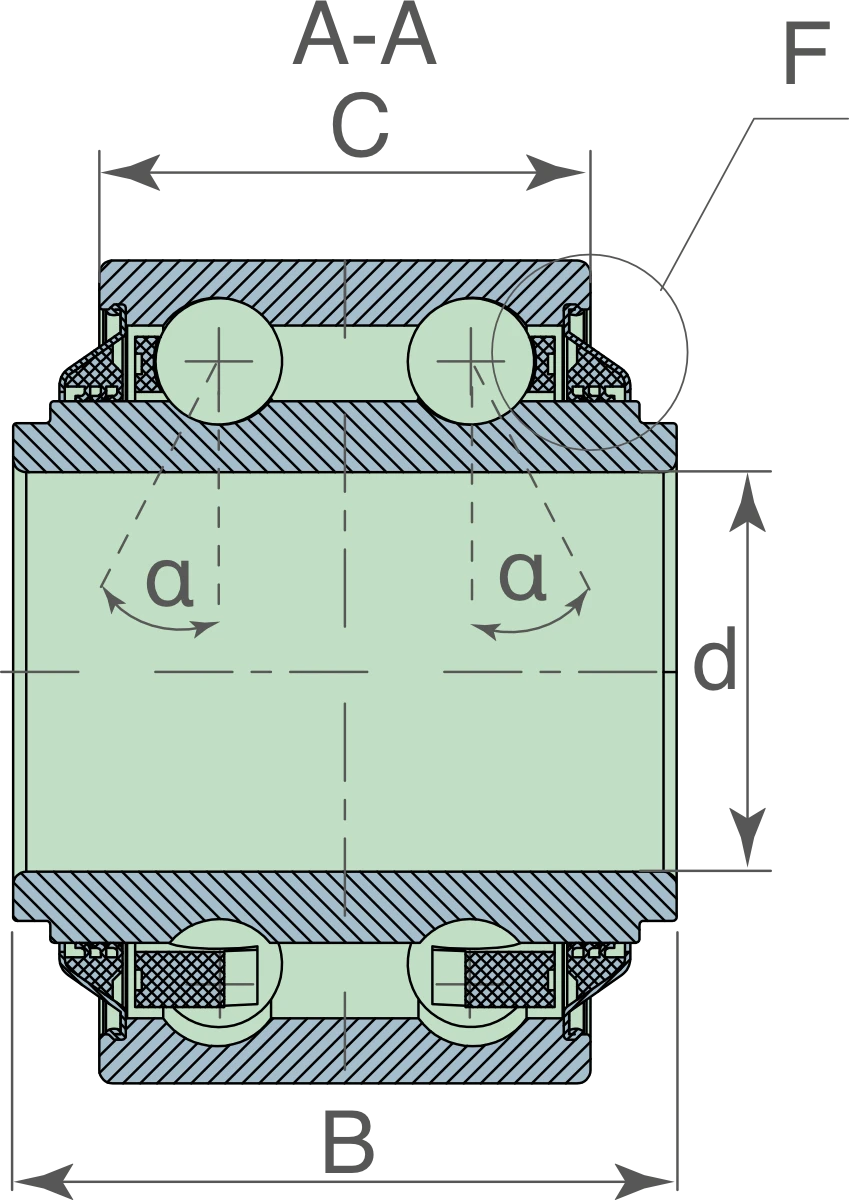

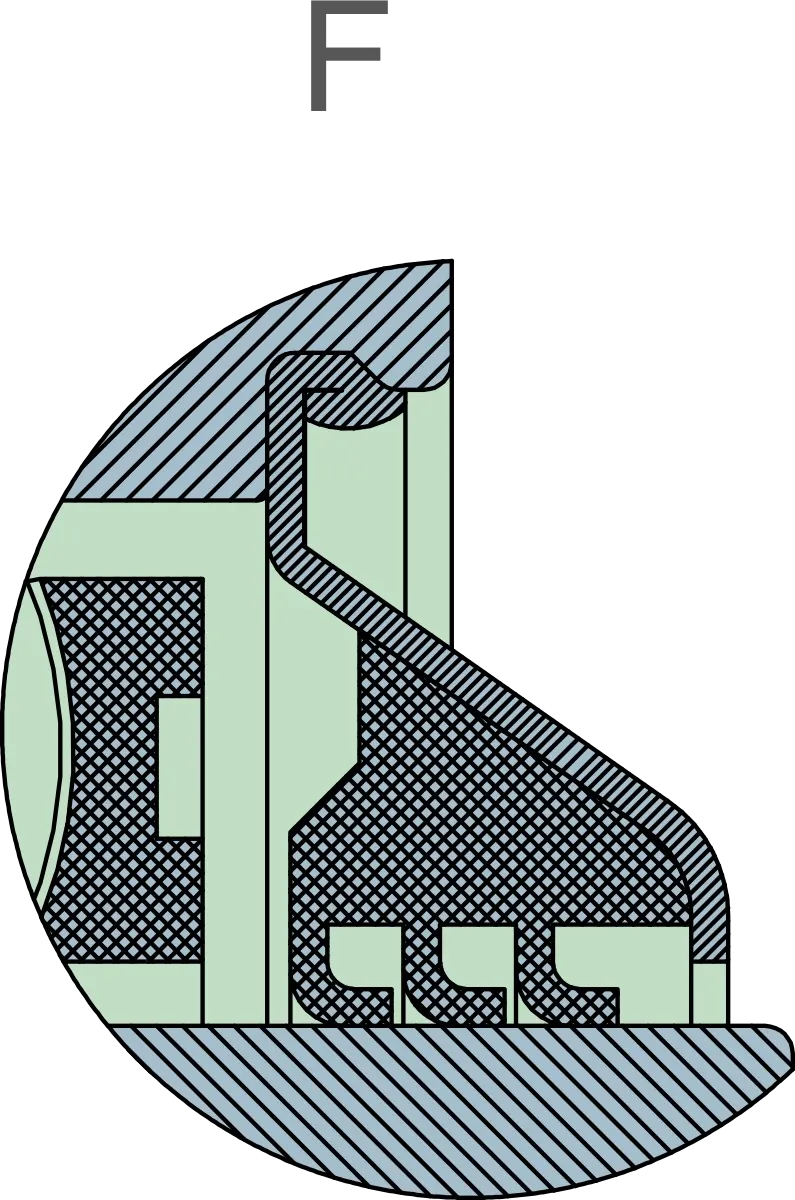

Interactive Drawing
| Outside diameter D (mm) | 62 |
|---|---|
| Bore diameter d (mm) | 30.15 |
| Outer ring width C (mm) | 37 |
| Inner ring width B (mm) | 50 |
| Dynamic load rating Cdyn (kN) | 28.7 |
| Static load rating Co (kN) | 21.8 |
| Mass (kg) | 0.5 |
| Contact angle α (°) | 25 |
Cross References
PFI5206 KPP3
TIMKEN5206 KPP3
RBF5206 KPP3
CT-AGRI5206 KPP3
FKL5206 KPP3
PEER5206 KPP3 (PER.5206RPP3)
GREAT PLAINS822-215C
CASE87283953
JDAN261766/AN261637
KINZE 3000GA8603
KINZEGA8641
