885154B VX

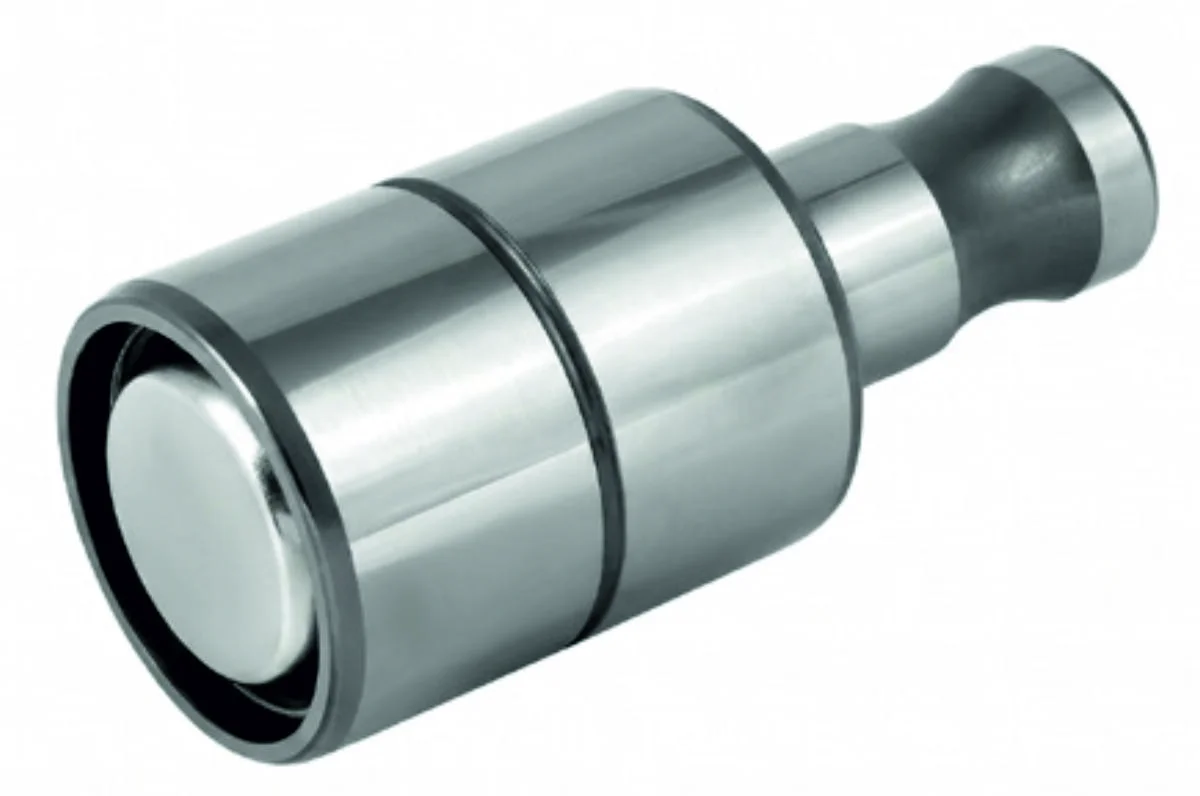

The 885154B VX is a special needle bearing with bore diameter d = 15.88 mm and inner race diameter d1 = 12 mm. Outer diameter D = 30 mm, length L = 69 mm, outer ring width C = 38.8 mm, shoulder distance E = 5 mm, weight 0.183 kg. Dynamic load capacity Cdyn = 5.15 kN, static Co = 2.94 kN, Pu = 0.124 kN. The needle roller design provides high radial load capacity with minimal radial cross-section. Direct replacement for CT-AGRI 885154B, RBF/JTEKT (Koyo) IB06930 SRS, RBF PN 00043, PEER WP5203-KRP2-N-A217. Compatible with Horsch (00310131, 96140018), CASE (201765C91, 227914R91), Great Plains (822-023C) and John Deere (885154B, AN131668, AN131688) equipment.
Ready for integration into your project?
Get exact CAD models of the units in the required format or contact our engineers for customization to your operating environment.
| Bore diameter d (mm) | 15.88 |
|---|---|
| Outside diameter D (mm) | 30 |
| Overall length L (mm) | 69 |
| Outer ring width C (mm) | 38.8 |
| Shaft diameter at snap ring groove d1 (mm) | 12 |
| Distance from end face to groove E (mm) | 5 |
| Mass (kg) | 0.183 |
| Dynamic load rating Cdyn (kN) | 5.15 |
| Static load rating Co (kN) | 2.94 |
| Fatigue load limit Pᵤ (kN) | 0.124 |

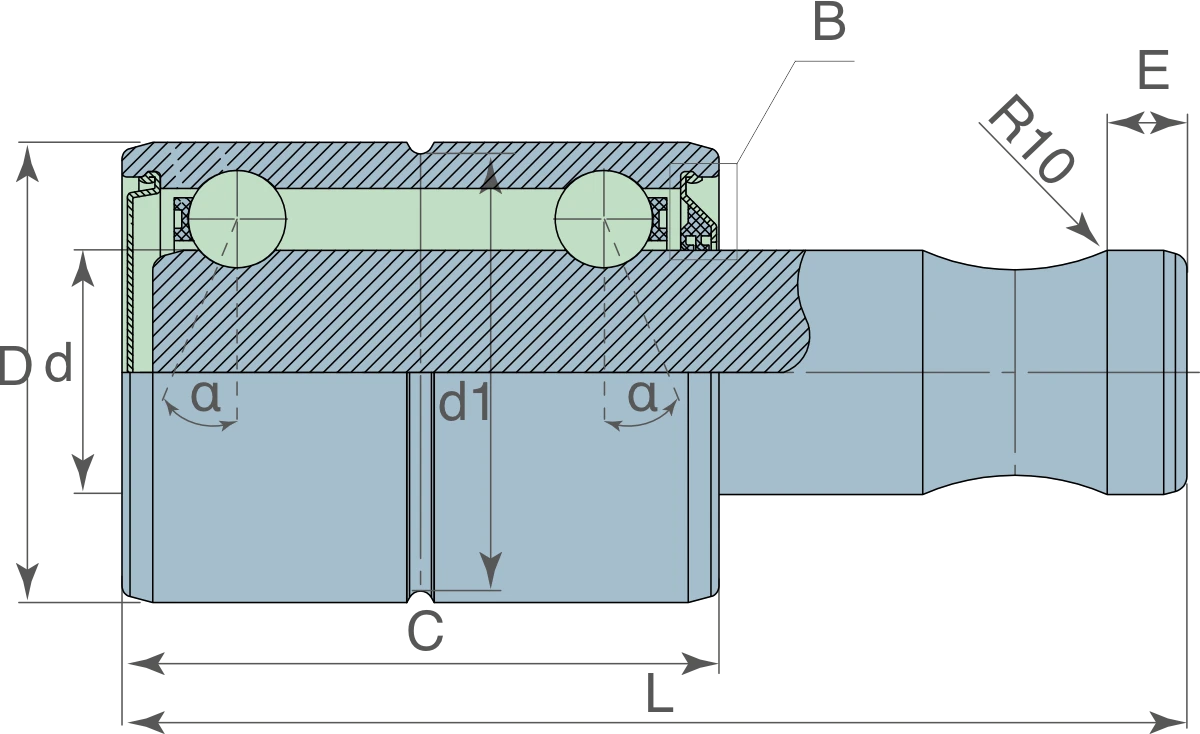

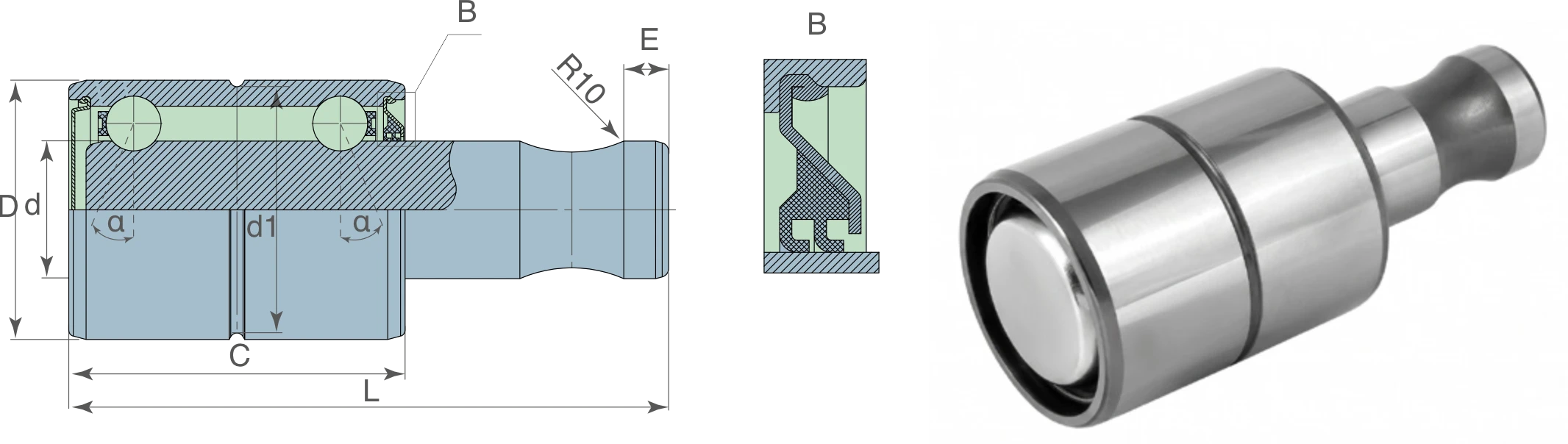

Interactive Drawing
| d_mm | 15.88 |
|---|---|
| D_mm | 30 |
| L_mm | 69 |
| C_mm | 38.8 |
| needle_d1_mm | 12 |
| E_mm | 5 |
| mass_kg | 0.183 |
| cdyn_kn | 5.15 |
| co_kn | 2.94 |
| pu_kn | 0.124 |
