AA205DD VX

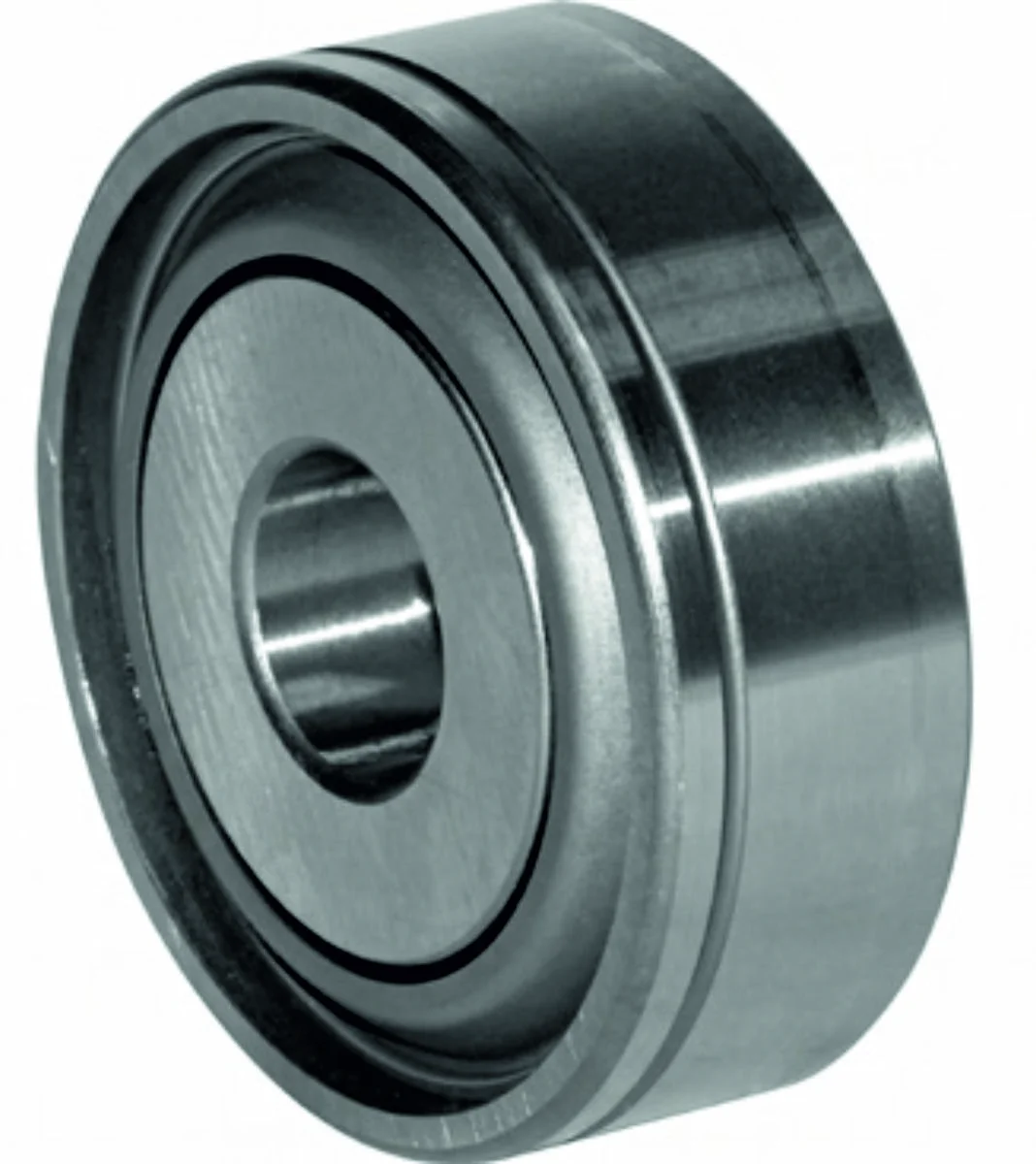

The AA205DD VX is a radial ball bearing with a D-shaped bore (d = 16 mm) and contact angle α = 25° for Great Plains seeding sections. Shoulder diameter d1 = 33.74 mm, outer diameter D = 53.086 mm, inner ring width B = 19.4 mm, outer ring width C = 18.288 mm, weight 0.21 kg. Dynamic load capacity Cdyn = 14.02 kN, static Co = 7.82 kN, Pu = 0.328 kN. Direct replacement for Great Plains 188-001V / 205 GP, RBF 205 PP13, PEER BB205RPP13, HARP 376905 EKL19, FKL SL5316-2T. Compatible with Great Plains seeders (822-236C) and KRAUSE (40-172) equipment.
Ready for integration into your project?
Get exact CAD models of the units in the required format or contact our engineers for customization to your operating environment.
| Bore diameter d (mm) | 16 |
|---|---|
| D (mm) — housing outside diameter | 53.086 |
| Inner ring width B (mm) | 19.4 |
| Outer ring width C (mm) | 18.288 |
| Centering diameter d1 (mm) | 33.74 |
| Mass | 0.21 |
| Dynamic load rating Cdyn (kN) | 14.02 |
| Static load rating Co (kN) | 7.82 |
| Fatigue load limit Pu (kN) | 0.328 |

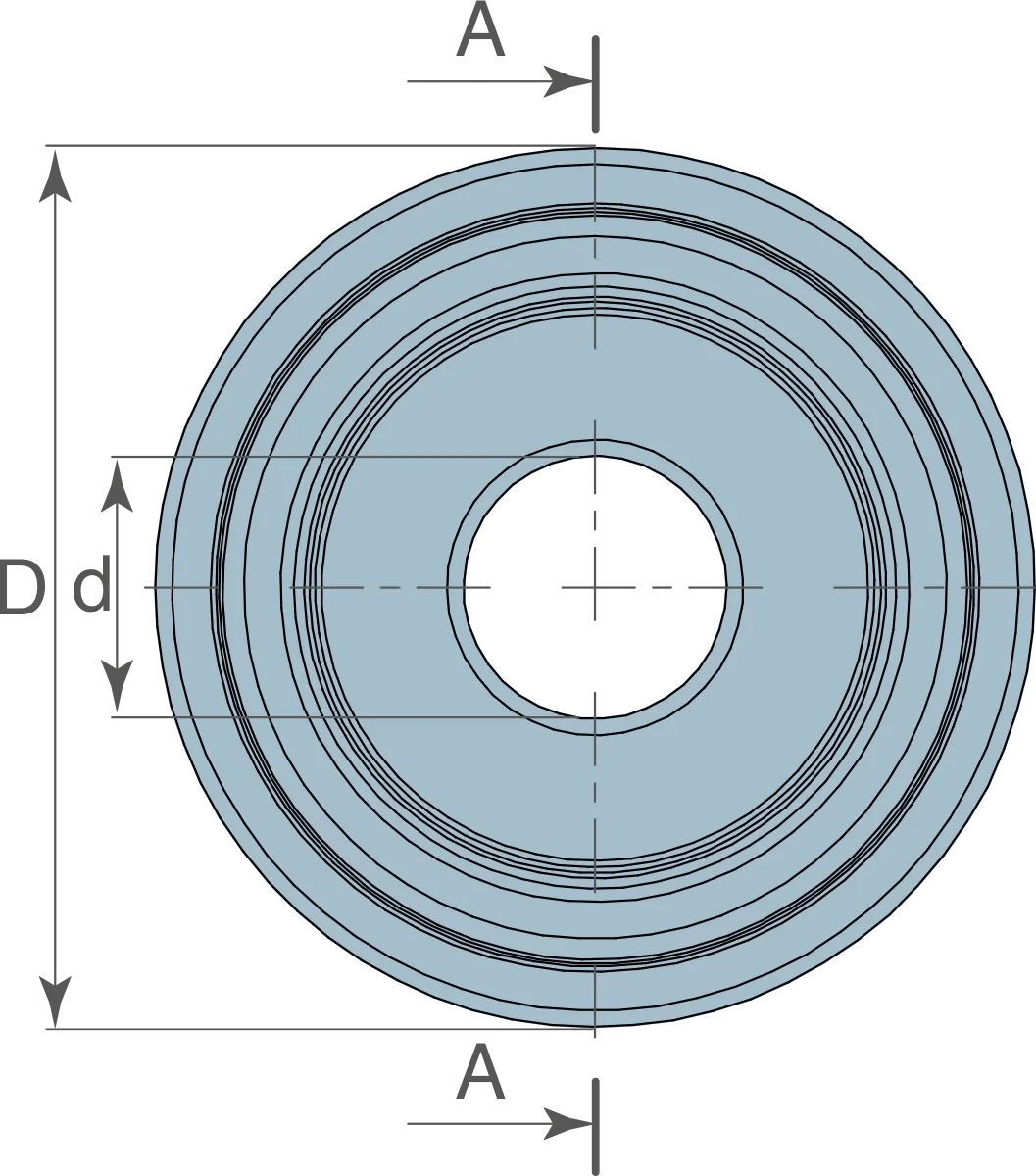

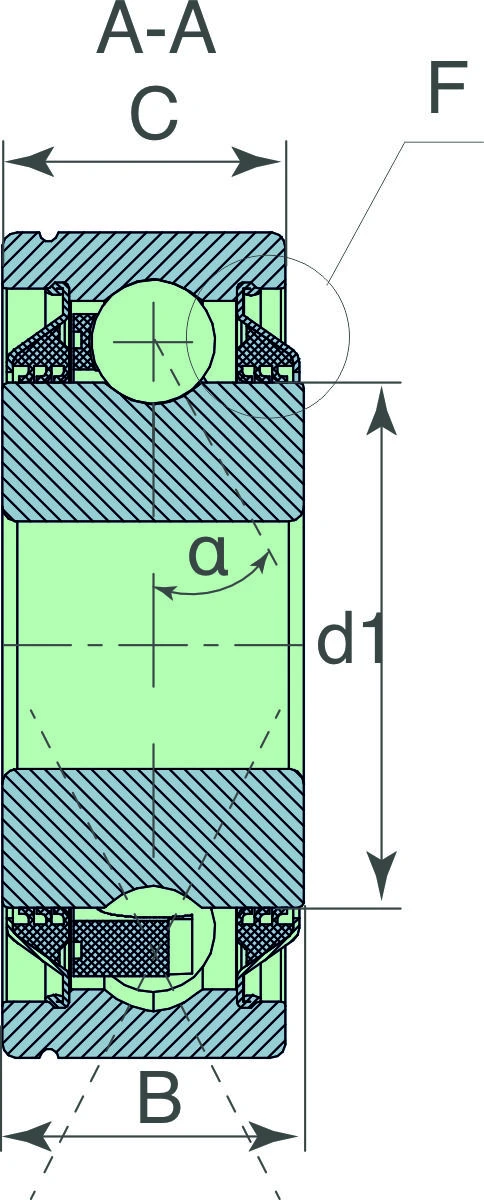

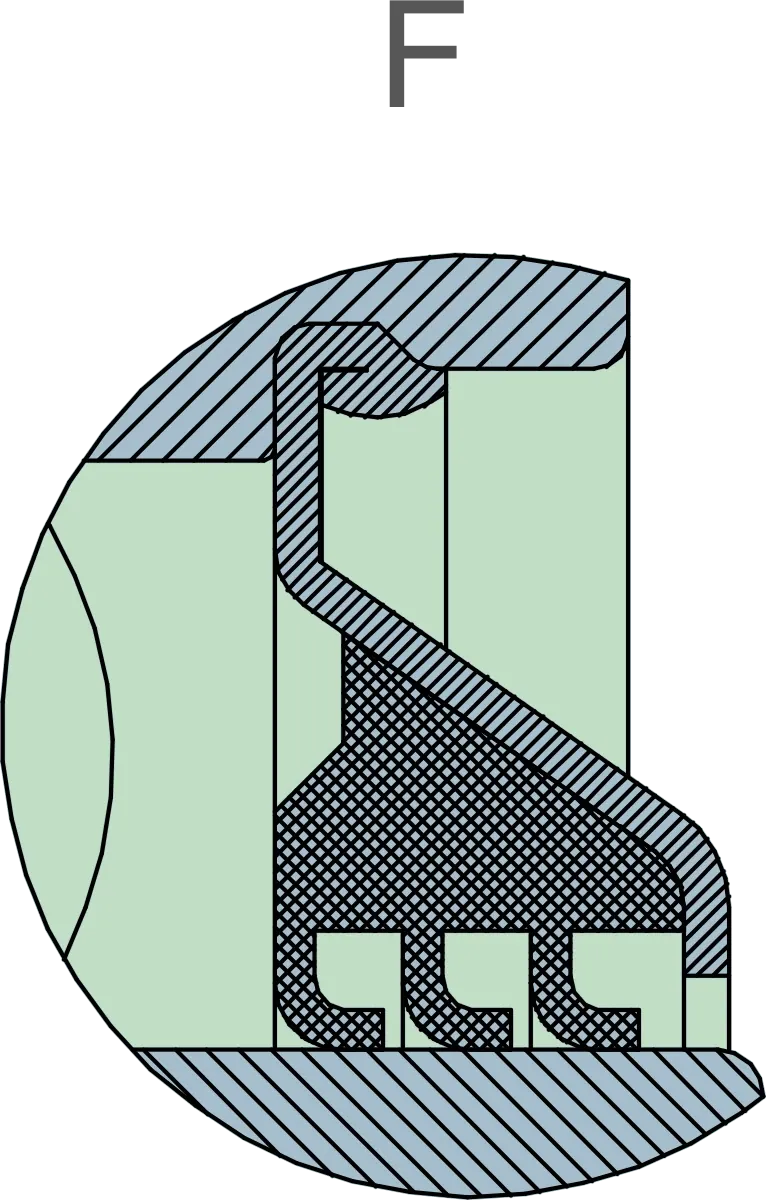

Interactive Drawing
| Bore diameter d (mm) | 16 |
|---|---|
| D (mm) — housing outside diameter | 53.086 |
| Inner ring width B (mm) | 19.4 |
| Outer ring width C (mm) | 18.288 |
| Centering diameter d1 (mm) | 33.74 |
| Mass | 0.21 |
| Dynamic load rating Cdyn (kN) | 14.02 |
| Static load rating Co (kN) | 7.82 |
| Fatigue load limit Pu (kN) | 0.328 |
Cross References
Great Plains188-001V (AA 205 DD)
Great Plains205 GP
RBF205 PP13
PEERPER.BB205RPP13
RBKAA 205 DD
CT-AGRIAA 205 DD
HARPAA 205 DD (376905 EKL19)
FKLAA 205 DD (SL5316-2T)
100-001V
188-001V
205DDS5/8
205GP
205VVH1
KRAUSE40-172
GP822-236C
PEERBB 205 RPP13
