AA59196 VX

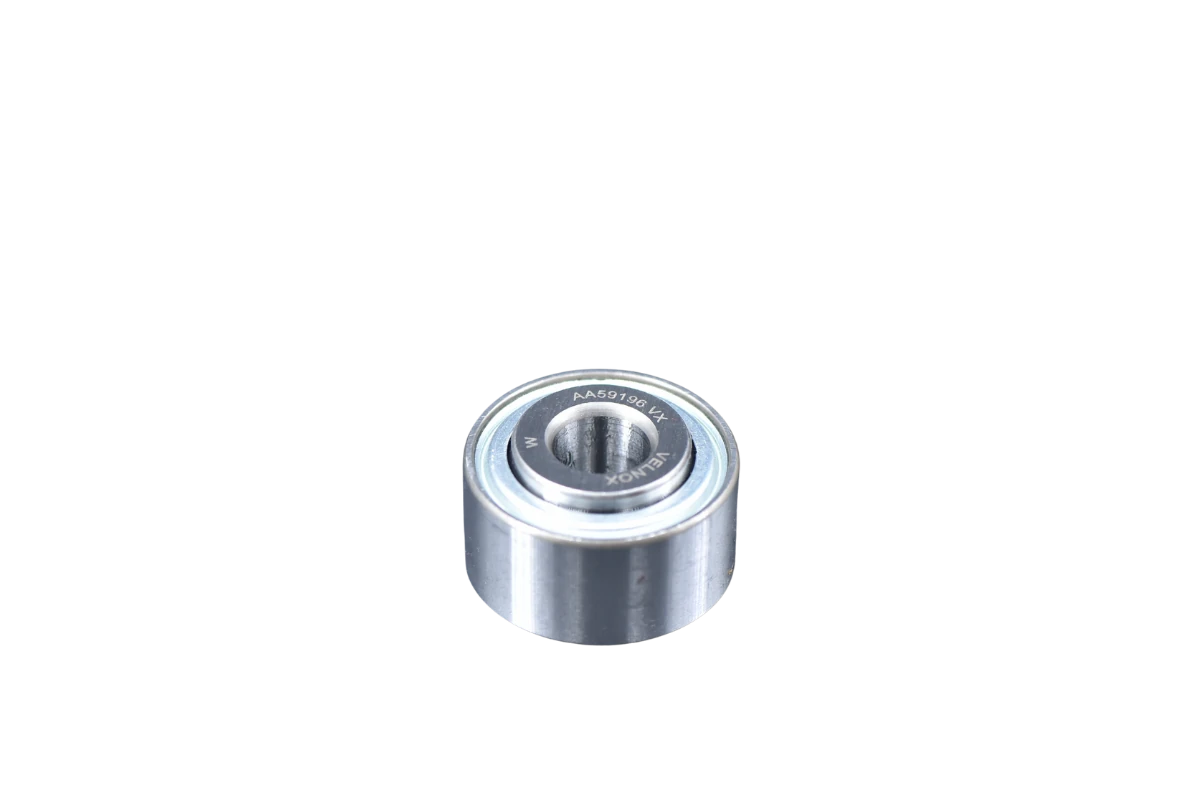

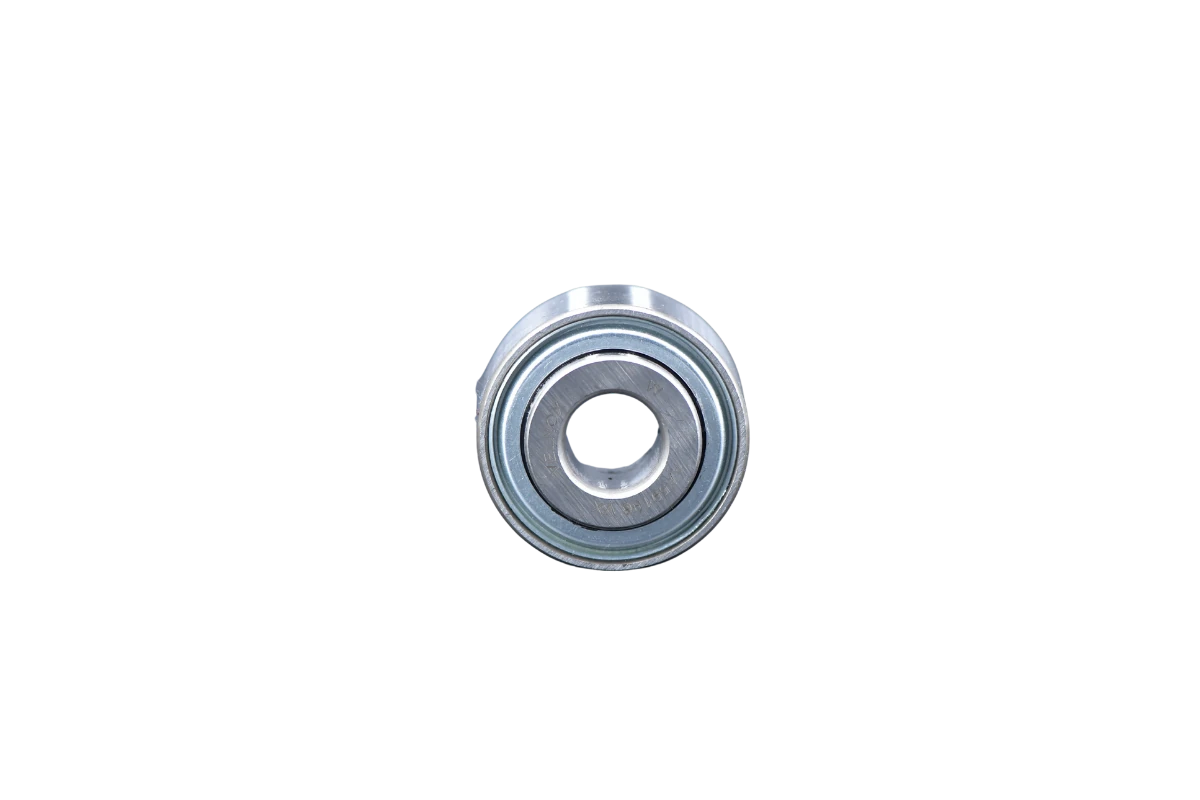

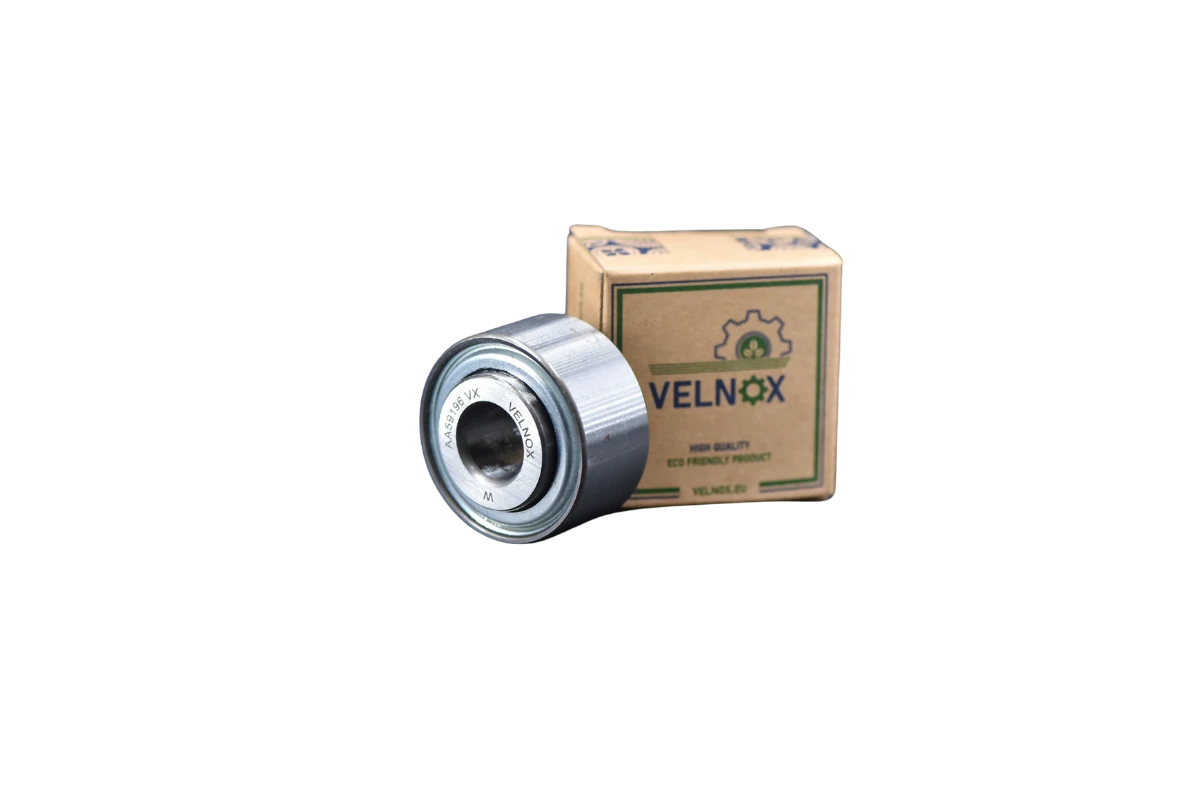

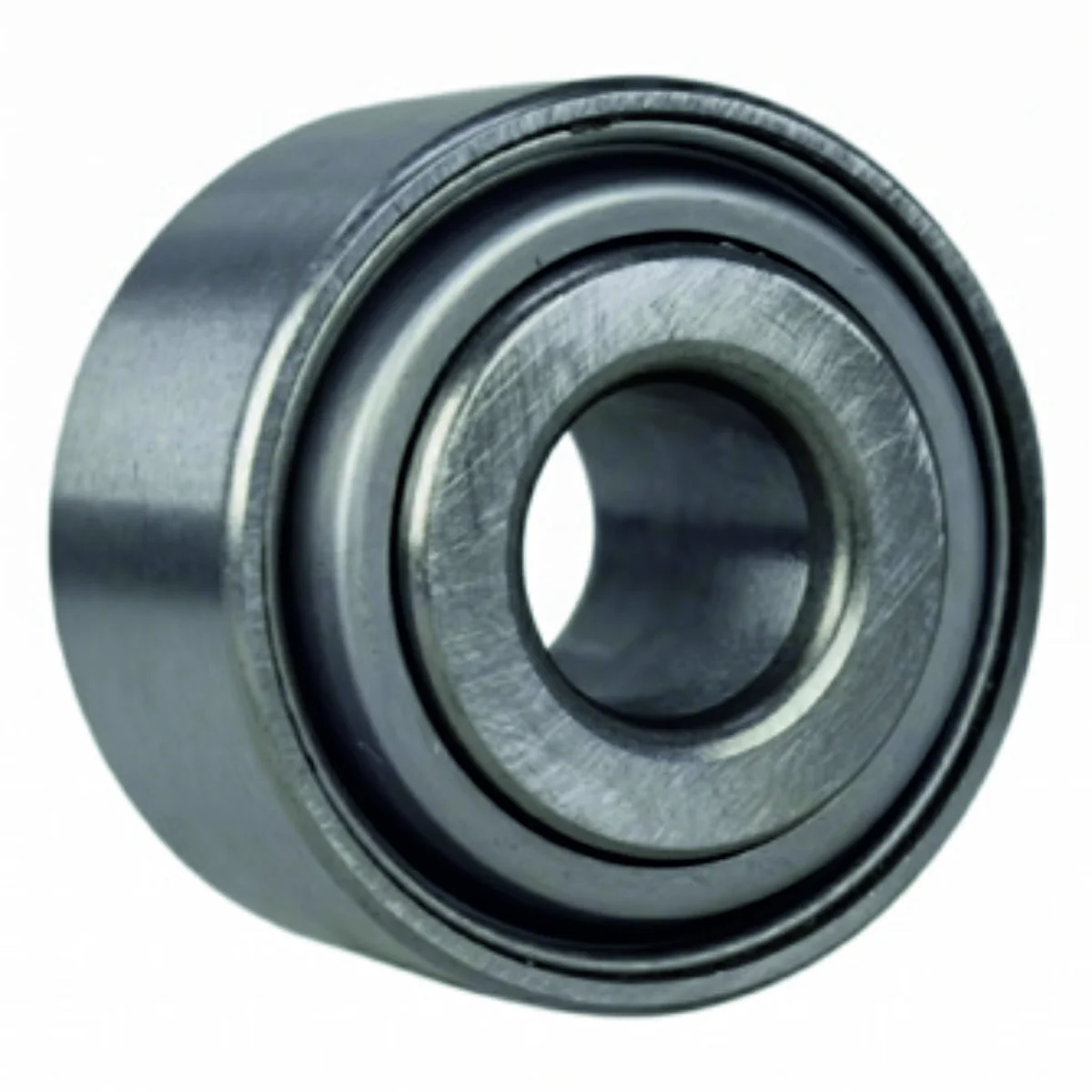

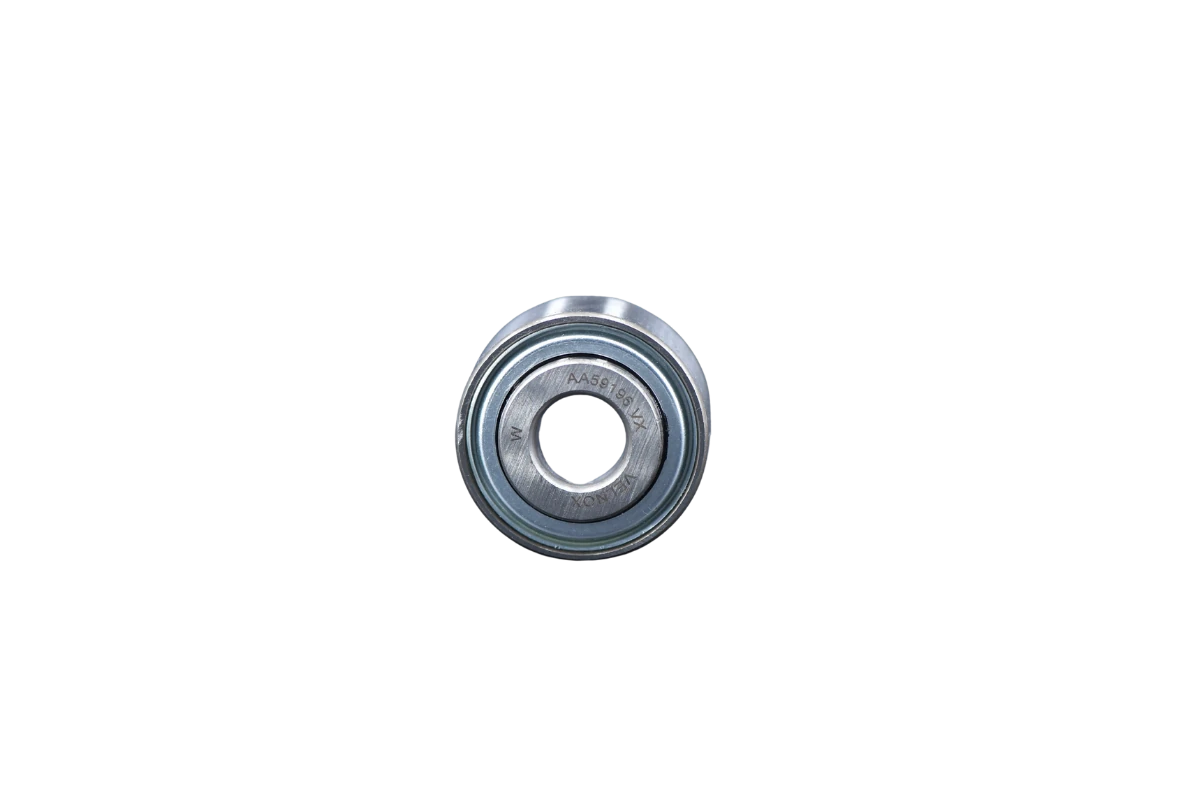

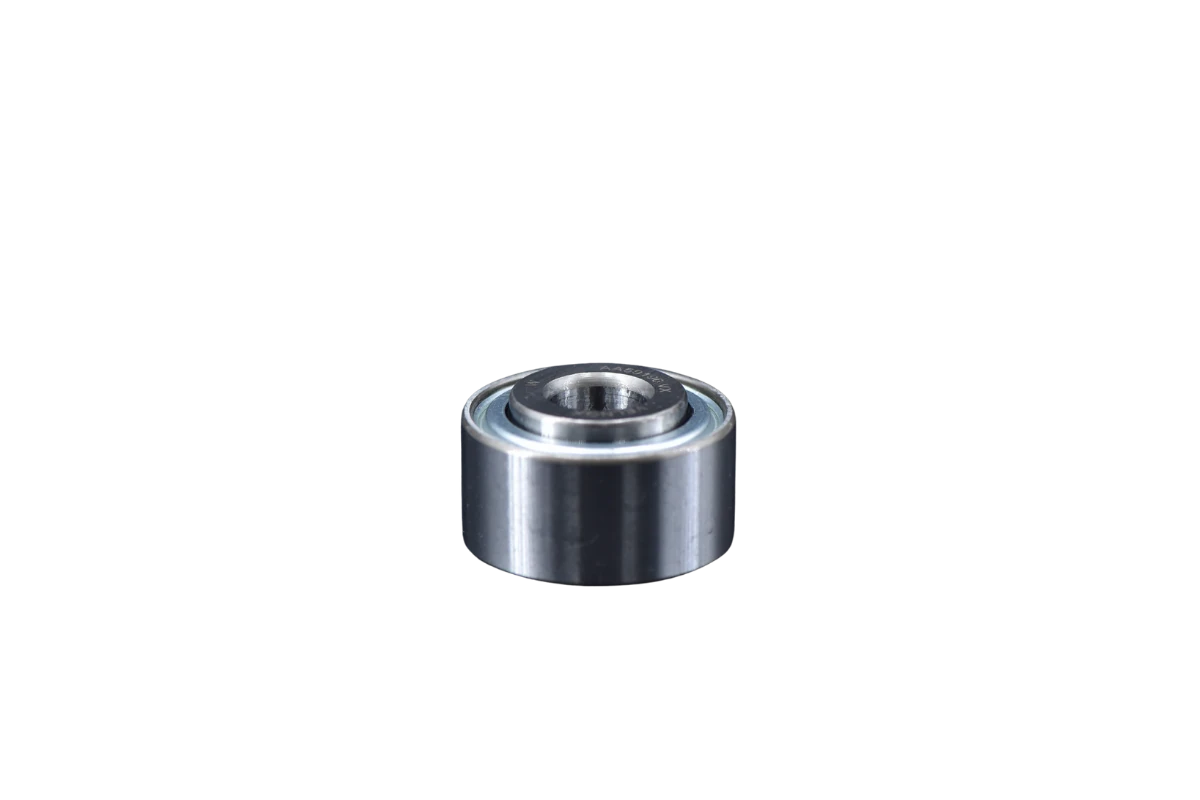

The AA59196 VX is a double-row angular contact ball bearing with a round bore (d = 16.027 mm) and contact angle α = 20°. The double-row design provides increased axial rigidity in seeding sections and press wheel assemblies. Outer diameter D = 45.225 mm, inner ring width B = 26 mm, outer ring width C = 22.82 mm, weight 0.19 kg. Dynamic load capacity Cdyn = 16.3 kN, static Co = 10.9 kN, Pu = 0.458 kN. Direct replacement for PEER 5204 KRY2-R-A268, RBF 5204 РУ3, CT-AGRI A59196, KABAT P59196. Compatible with HORSCH (60021679, 60054734), John Deere (AA104813, AA59196) and KINZE (GA26920) equipment.
Ready for integration into your project?
Get exact CAD models of the units in the required format or contact our engineers for customization to your operating environment.
| Bore diameter d (mm) | 16.027 |
|---|---|
| D (mm) — housing outside diameter | 45.225 |
| Inner ring width B (mm) | 26 |
| Outer ring width C (mm) | 22.82 |
| Mass | 0.19 |
| Dynamic load rating Cdyn (kN) | 16.3 |
| Static load rating Co (kN) | 10.9 |
| Fatigue load limit Pu (kN) | 0.458 |

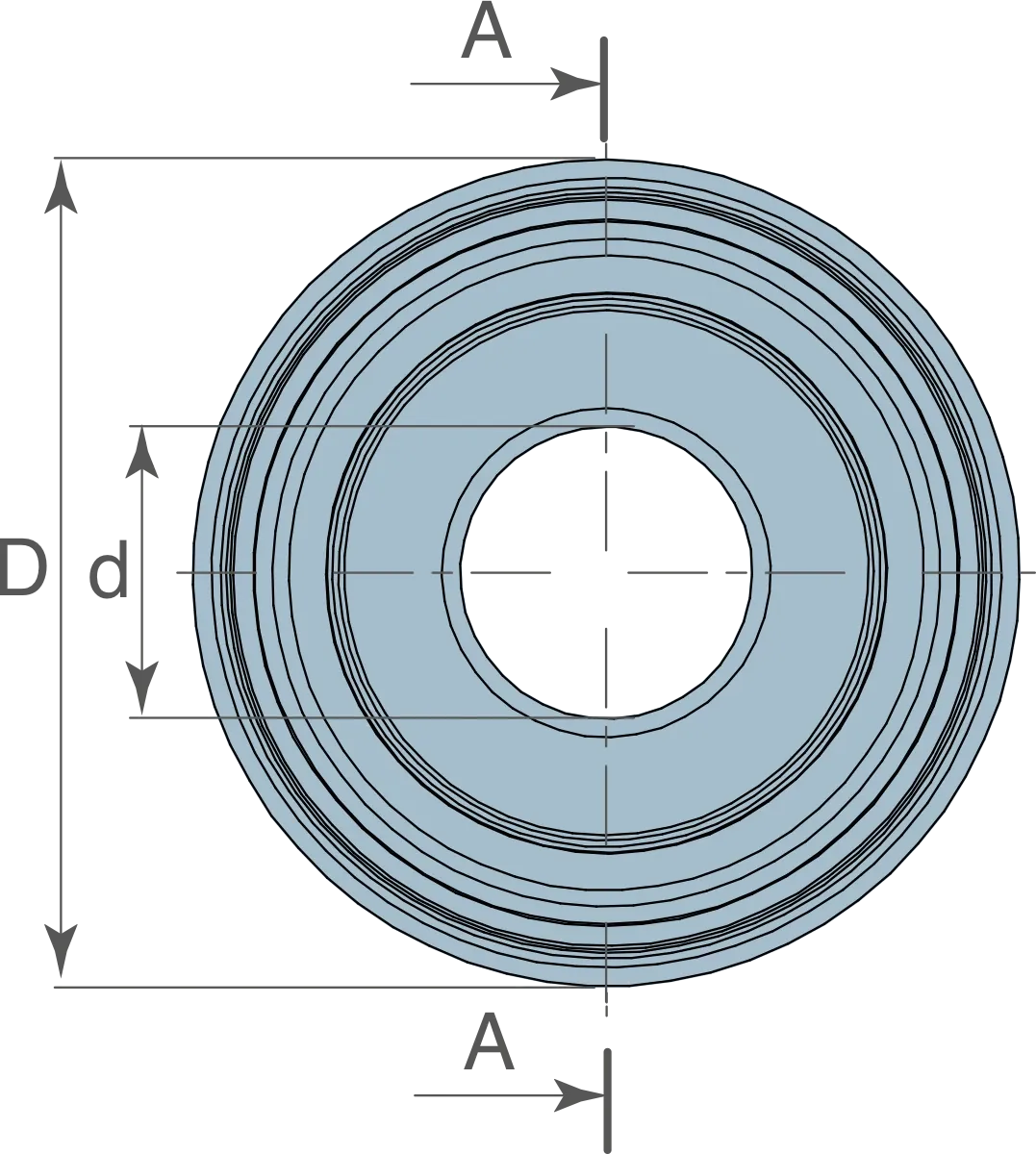

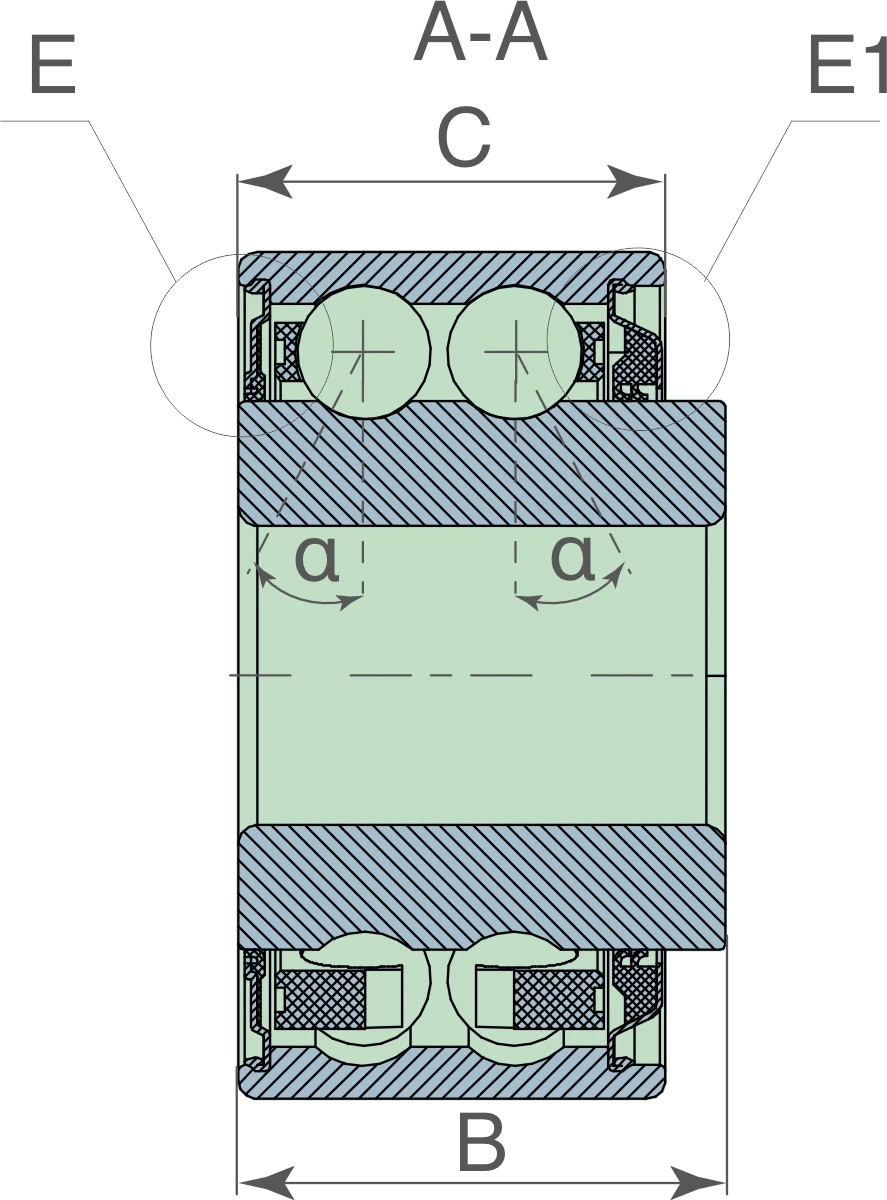

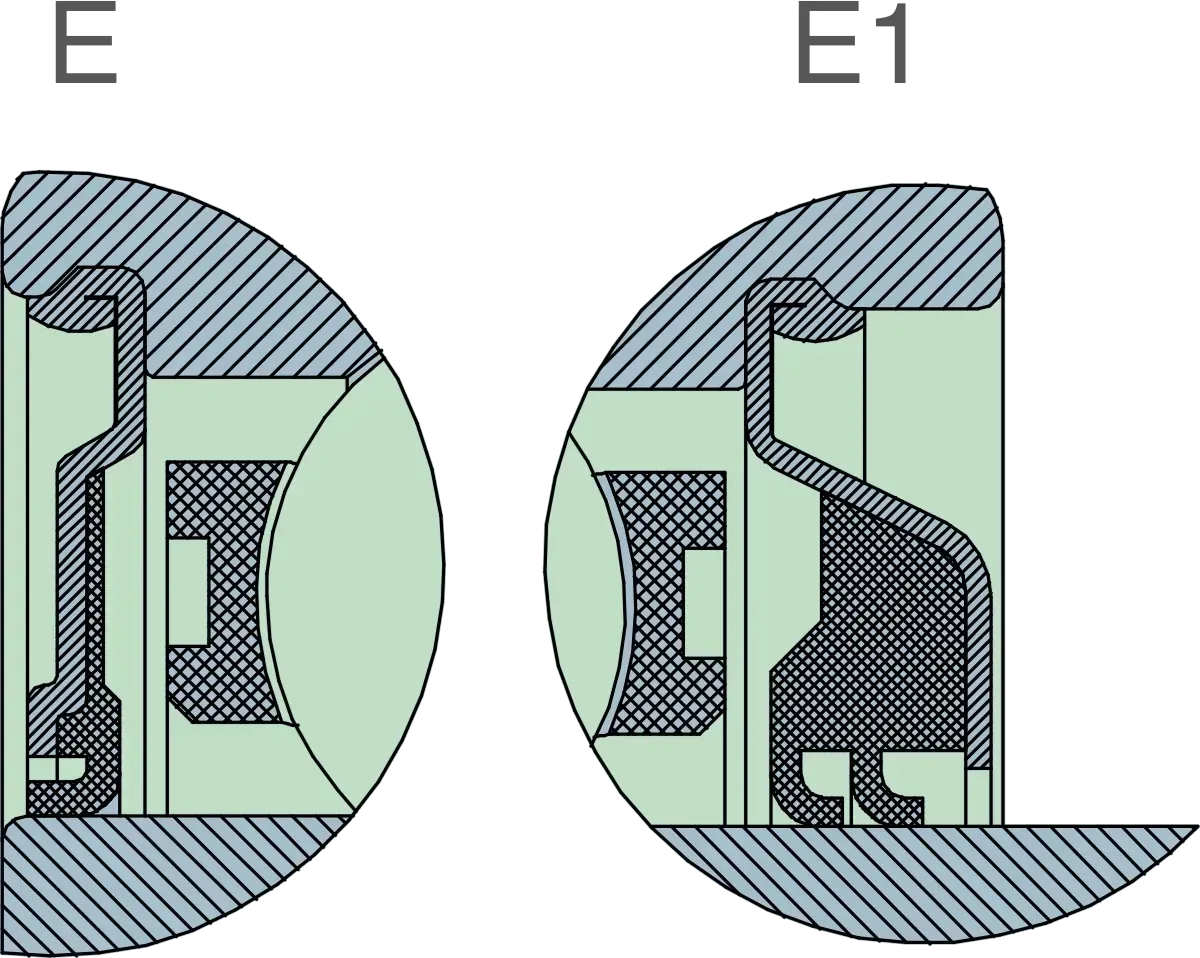

Interactive Drawing
| Bore diameter d (mm) | 16.027 |
|---|---|
| D (mm) — housing outside diameter | 45.225 |
| Inner ring width B (mm) | 26 |
| Outer ring width C (mm) | 22.82 |
| Mass | 0.19 |
| Dynamic load rating Cdyn (kN) | 16.3 |
| Static load rating Co (kN) | 10.9 |
| Fatigue load limit Pu (kN) | 0.458 |
Cross References
PEER5204 KRY2-R-A268 (PER.5204RRY2)
RBF5204 РУ3
CT-AGRIA59196
KABATP59196
HORSCH60021679
HORSCH60054734
JDAA104813
JDAA59196
KINZEGA26920
