F-562024.02KLQ VX

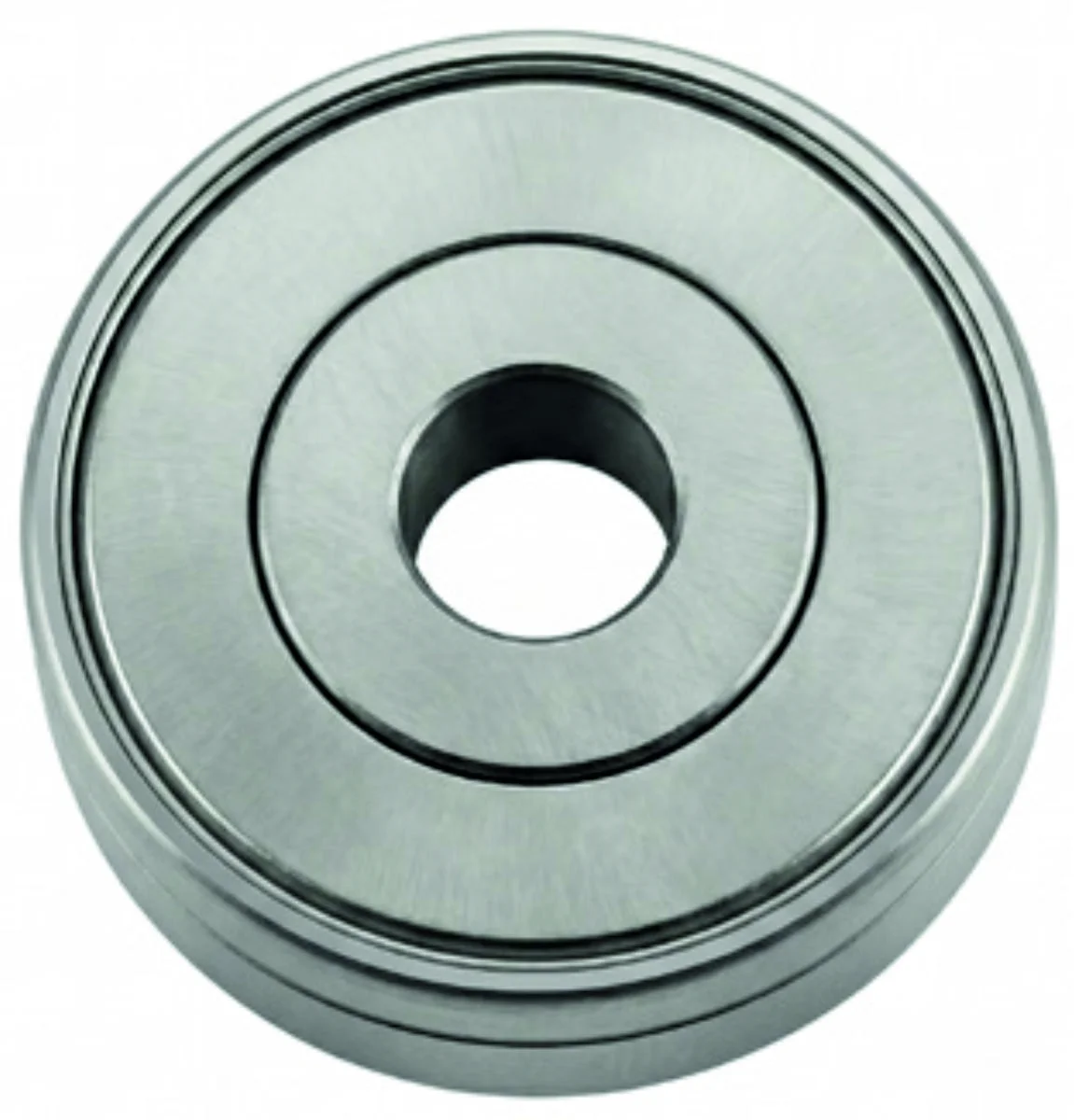

The F-562024.02KLQ VX is a double-row angular contact ball bearing with a round bore (d = 16.027 mm) and contact angle α = 25° for serviceable agricultural machinery units. Outer diameter D = 60 mm, inner ring width B = 22.5 mm, outer ring width C = 22.9 mm, weight 0.31 kg. Dynamic load capacity Cdyn = 22 kN, static Co = 15.2 kN, Pu = 0.64 kN. The enlarged outer diameter provides increased load capacity in a compact design. Direct replacement for INA/NTE F-562024.02.KLQ, CT-AGRI 23042700, RBF PN 008, FKL IL20-71/6T-B16.
Ready for integration into your project?
Get exact CAD models of the units in the required format or contact our engineers for customization to your operating environment.
| Bore diameter d (mm) | 16.027 |
|---|---|
| D (mm) — housing outside diameter | 60 |
| Inner ring width B (mm) | 22.5 |
| Outer ring width C (mm) | 22.9 |
| Mass | 0.31 |
| Dynamic load rating Cdyn (kN) | 22 |
| Static load rating Co (kN) | 15.2 |
| Fatigue load limit Pu (kN) | 0.64 |

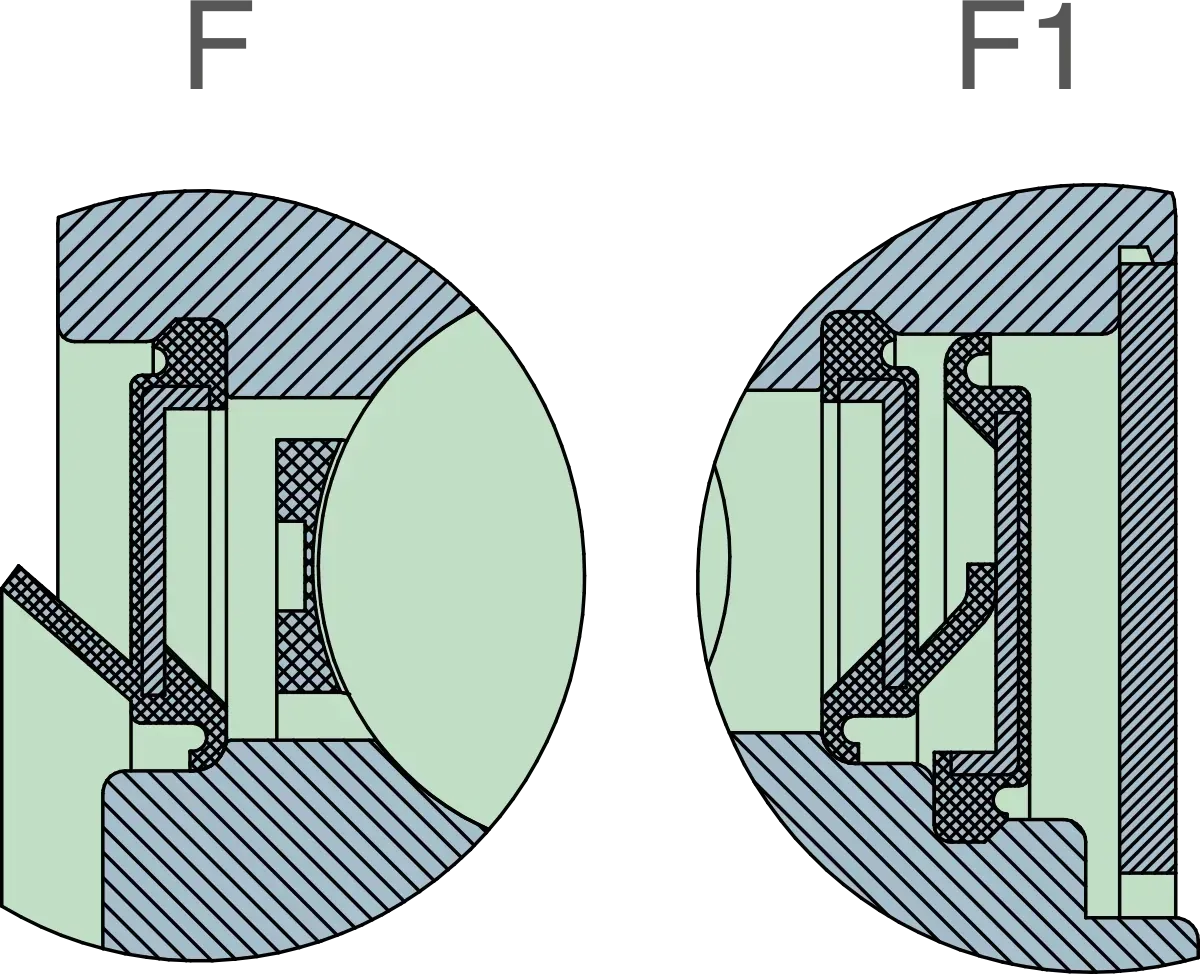

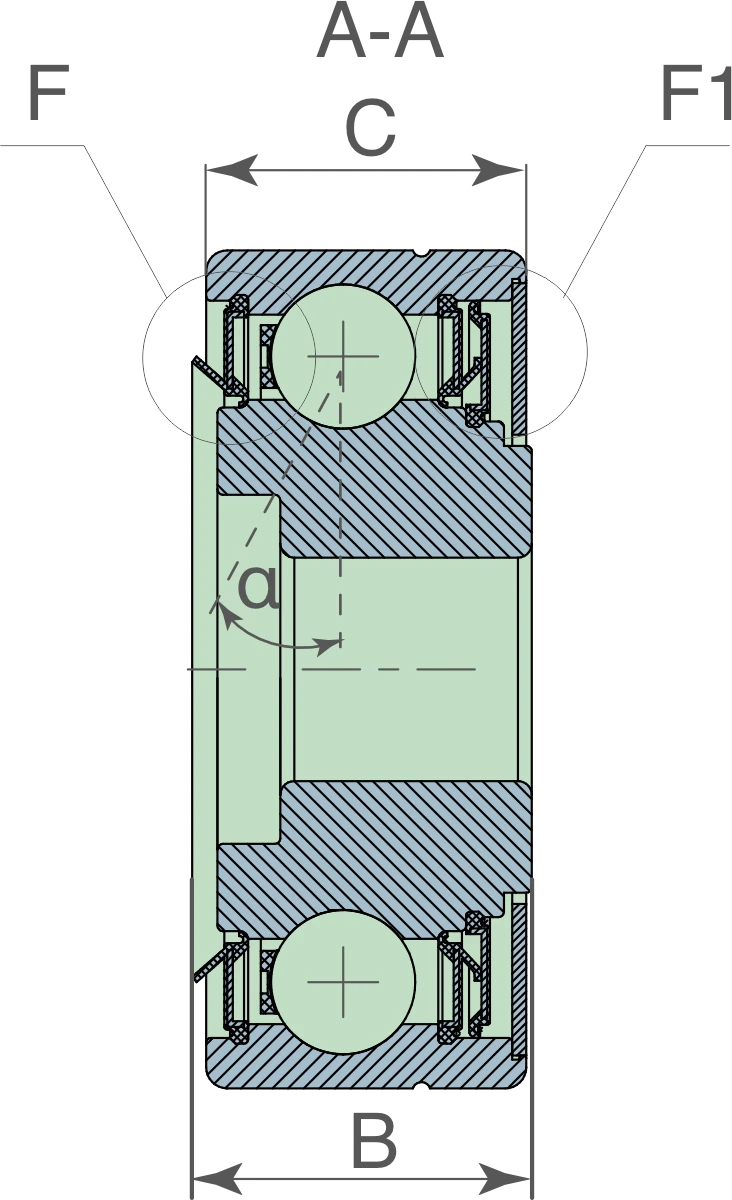

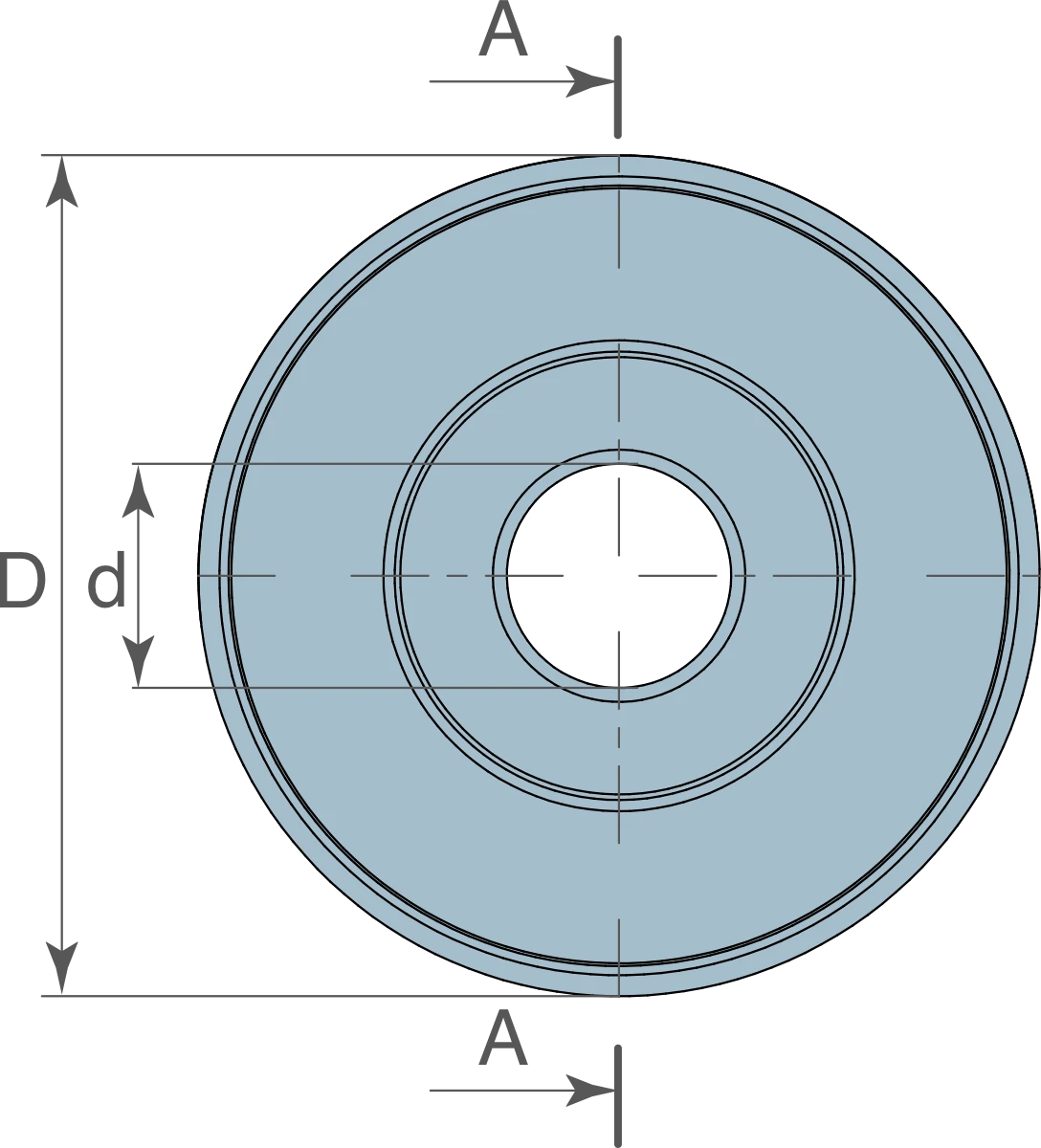

Interactive Drawing
| Bore diameter d (mm) | 16.027 |
|---|---|
| D (mm) — housing outside diameter | 60 |
| Inner ring width B (mm) | 22.5 |
| Outer ring width C (mm) | 22.9 |
| Mass | 0.31 |
| Dynamic load rating Cdyn (kN) | 22 |
| Static load rating Co (kN) | 15.2 |
| Fatigue load limit Pu (kN) | 0.64 |
Cross References
CT-AGRI23042700
INAF-562024.02.KLQ
NTEF-562024.02.KLQ
CT-AGRIF-562024.02.KLQ
RBFPN 008
FKLIL20-71/6T-B16
